| X-760K Technical Parameter | |||||||

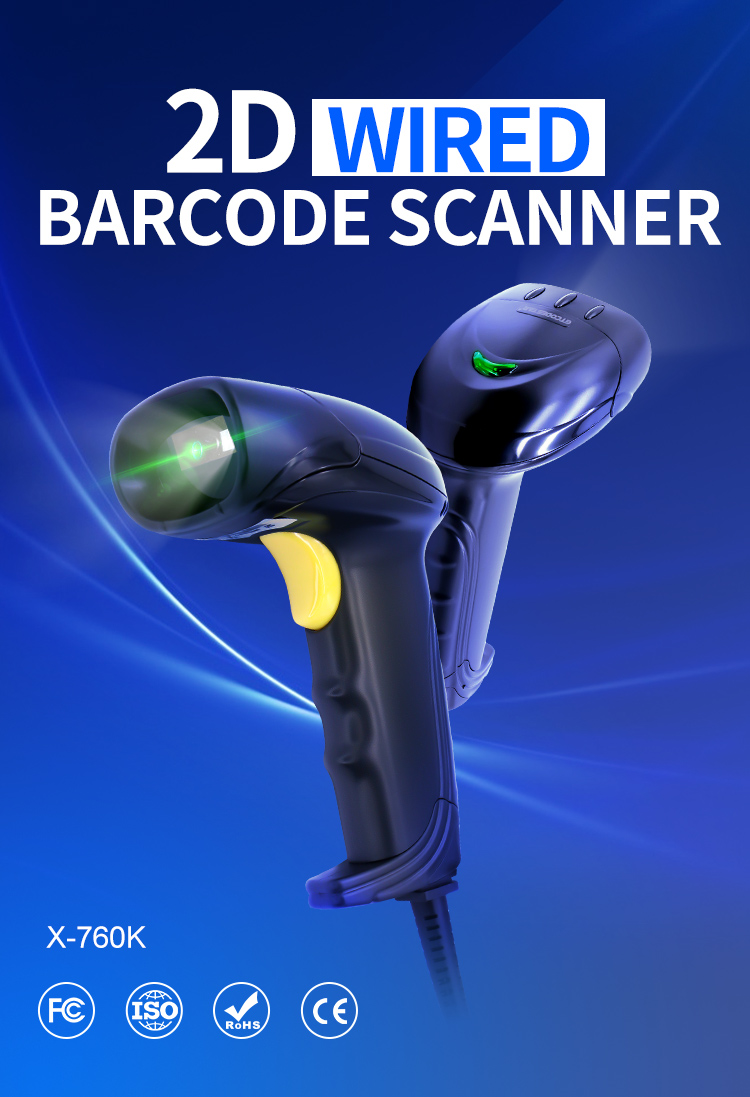

| Model | X-760K | ||||||
| Item | Wired 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC+PVC+PMMA | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Power Consumption | 815mW（working）；480mW（standby）；1105mW（maximum） | ||||||
| Weight | 112g±5g（Excluding wire） | ||||||

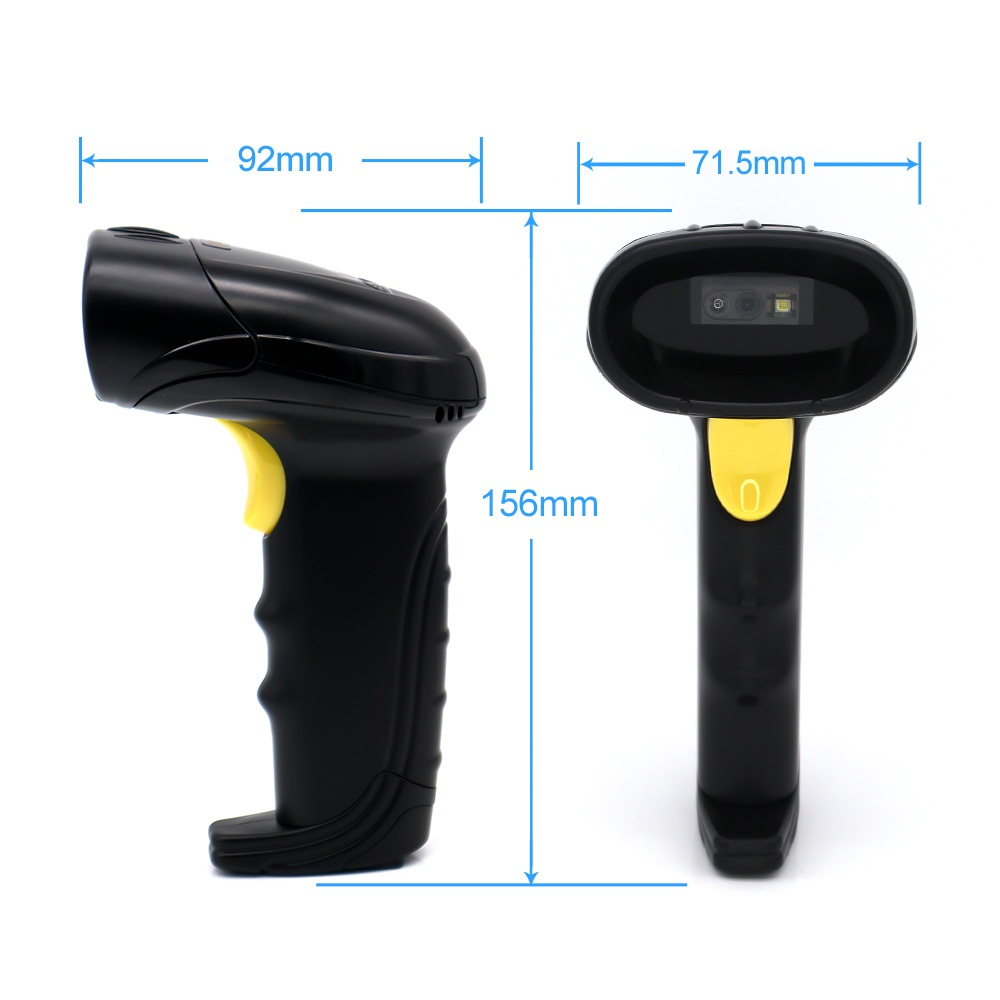

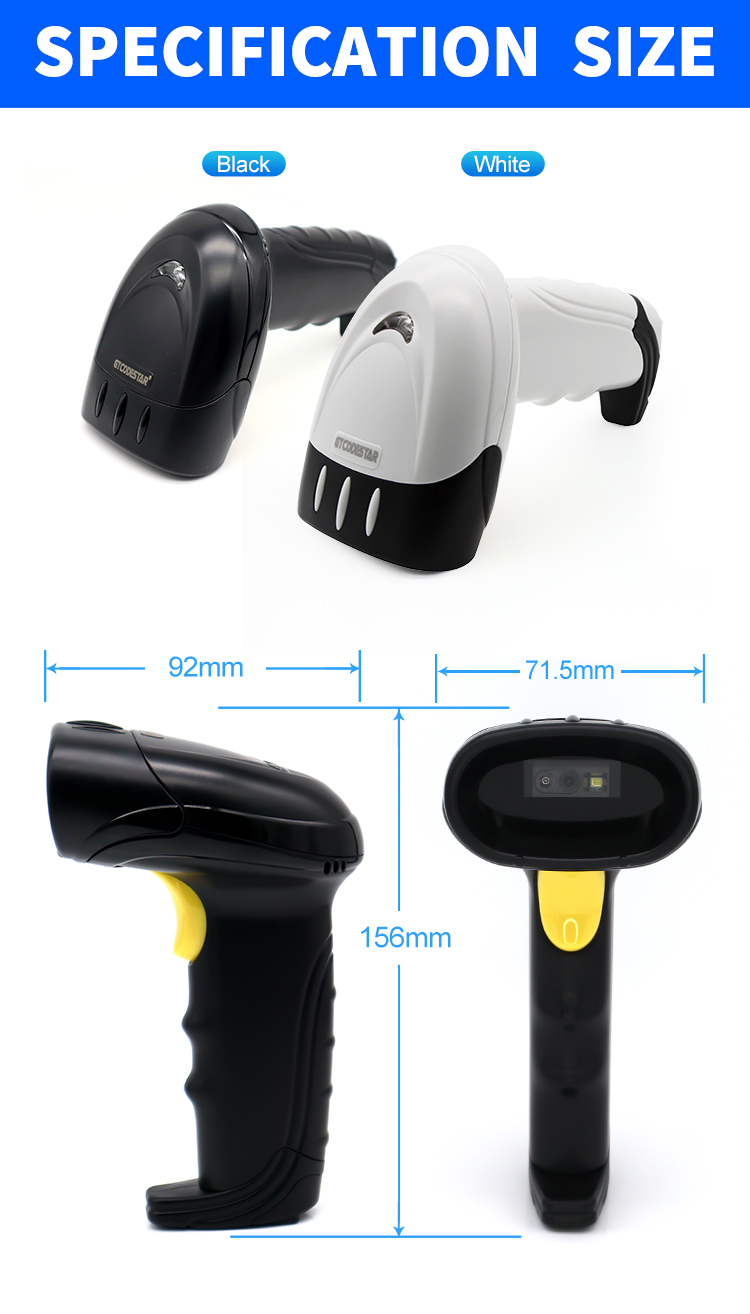

| Size | L * W * H：168.9 * 70.7 * 94.7（Unit:mm） | ||||||
| Color | Black; Grey white | ||||||
| Performance Parameter | |||||||

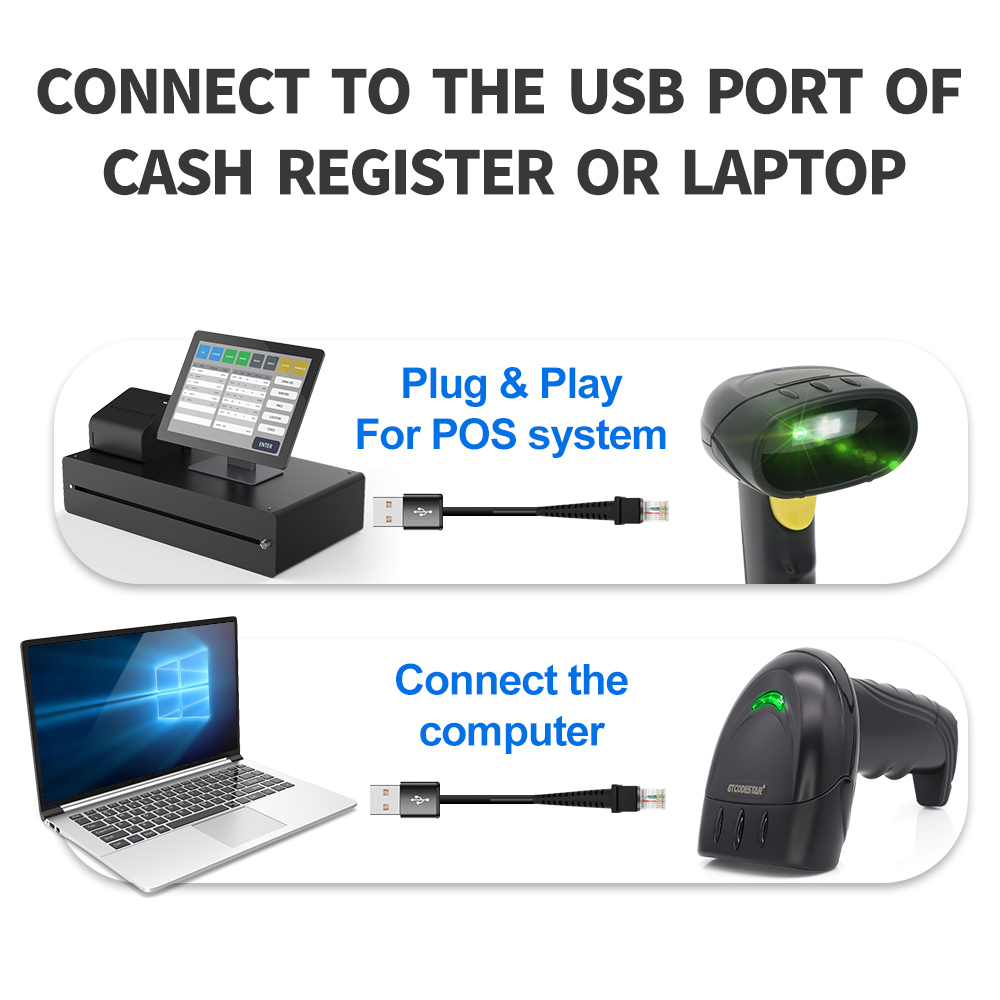

| Interface | USB；（RS232 customizable） | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | American English; Belgium; Finland; France; Germany; Italy; Sweden; Britain; Denmark; Norway; Spain; Portugal; Türkiye F; Türkiye Q; Japan; Russia (Support for virtual keyboards) | ||||||
| Sensor | CMOS sensor 480 * 640 | ||||||
| Light Source | Green light（Strip）LED aim + White light LED illumination | ||||||
| processor | 32-bit ARM MCU + BGA | ||||||
| Motion tolerance | QR： 25cm/sec | ||||||
| Resolution | ≥5mil | ||||||
| Bit error rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Key triggered mode, continuous scanning mode, self sensing mode | ||||||

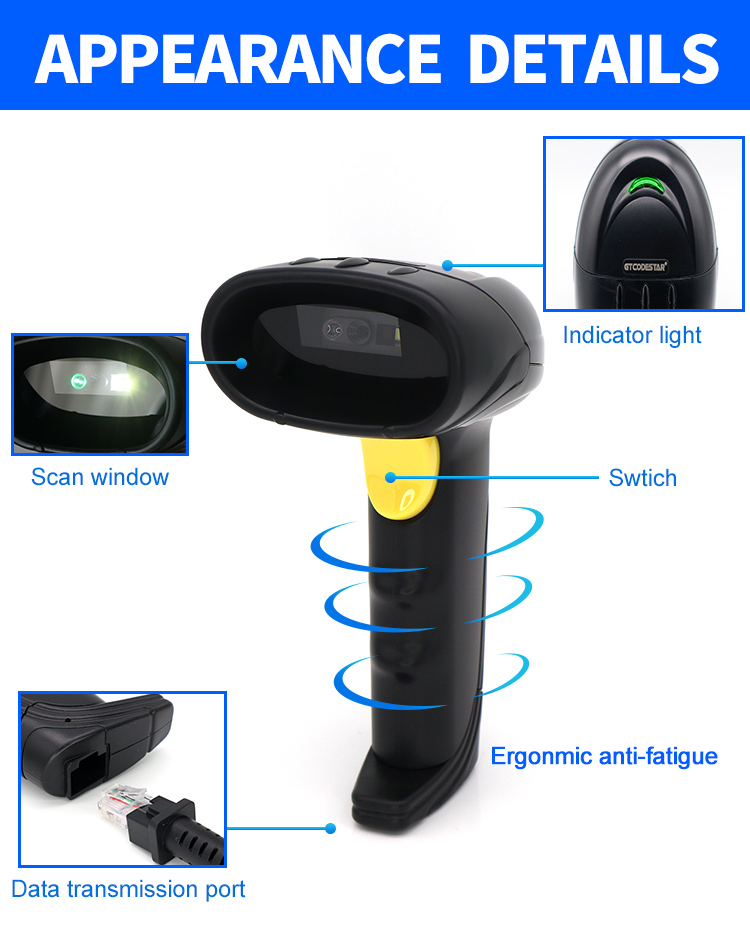

| Prompt Mode | Buzzer, Indicator Light（LED） | ||||||
| Print Contrast | ≥25% | ||||||
| Decoding Capability | 1D | ●EAN-13 ●EAN-8 ●UPC-E ●UPC-A ●Code 39 ●Code 93●Code 128 ●UCC/EAN 128 ●Codabar ●Interleaved 2 of 5 ●ITF-6 ●ITF-14 ●ISBN ●ISSN ●MSI-Plessey ●GS1 Databar ●Code 11 ●Industrial 2 of 5 ●Standard 2 of 5 ●Plessey ●Matrix 2 of 5 | |||||
| 2D | ●Data Matrix ●QR ●PDF417 ●Mrico QR ●Aztec ●Mrico PDF417 | ||||||
| Scanning Angel | Corner 360 °, horizontal ± 34 °, vertical ± 28 ° | ||||||
| Scanning Depth | EAN-13 50mm-200mm (12.50mil) Code39 40mm-90mm （5mil 10 byte） QR Code 25mm-240mm (20mil 16 byte) Data Marix 50mm-90mm （10mil 20 byte） PDF 417 30mm-130mm (7.50mil 7 byte) | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||

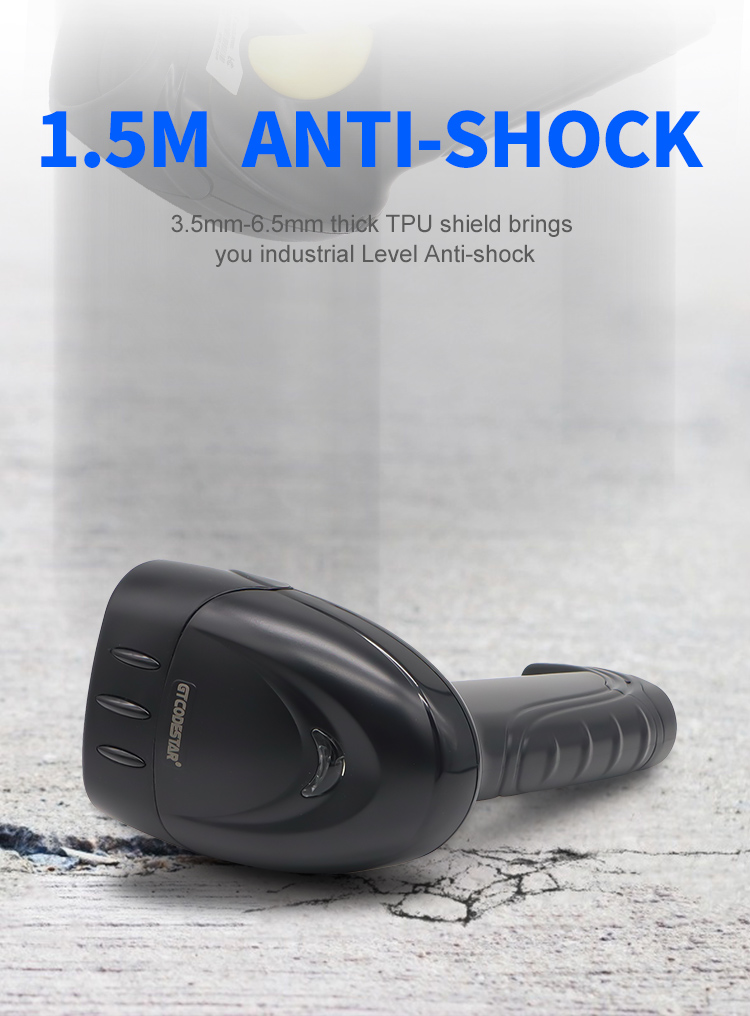

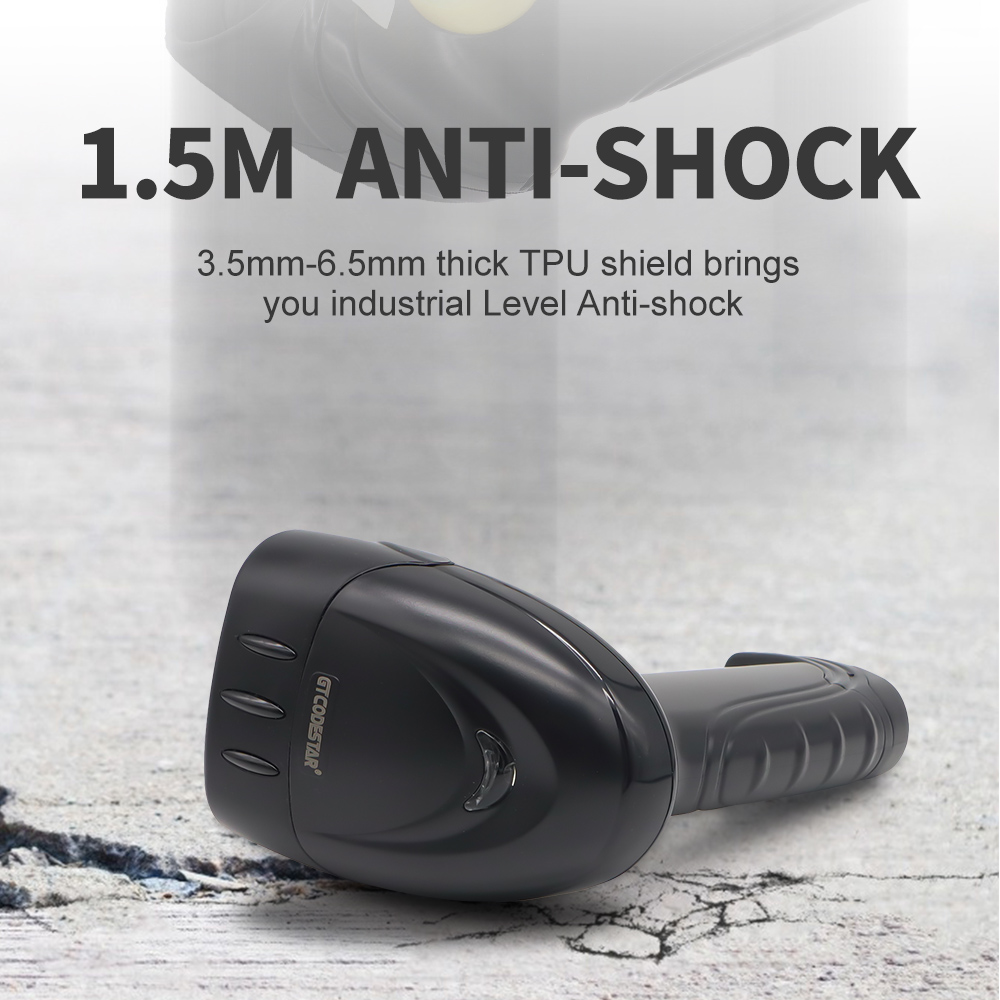

| Shock Resistance | 1.2m free fall on concrete surface | ||||||
