| X-1501B Technical Parameters | |||
| Product model | X-1501B | ||
| Product Name | 2D wireless barcode scanner | ||
| Physical parameters | |||
| texture of material | ABS + PC + TPU | ||

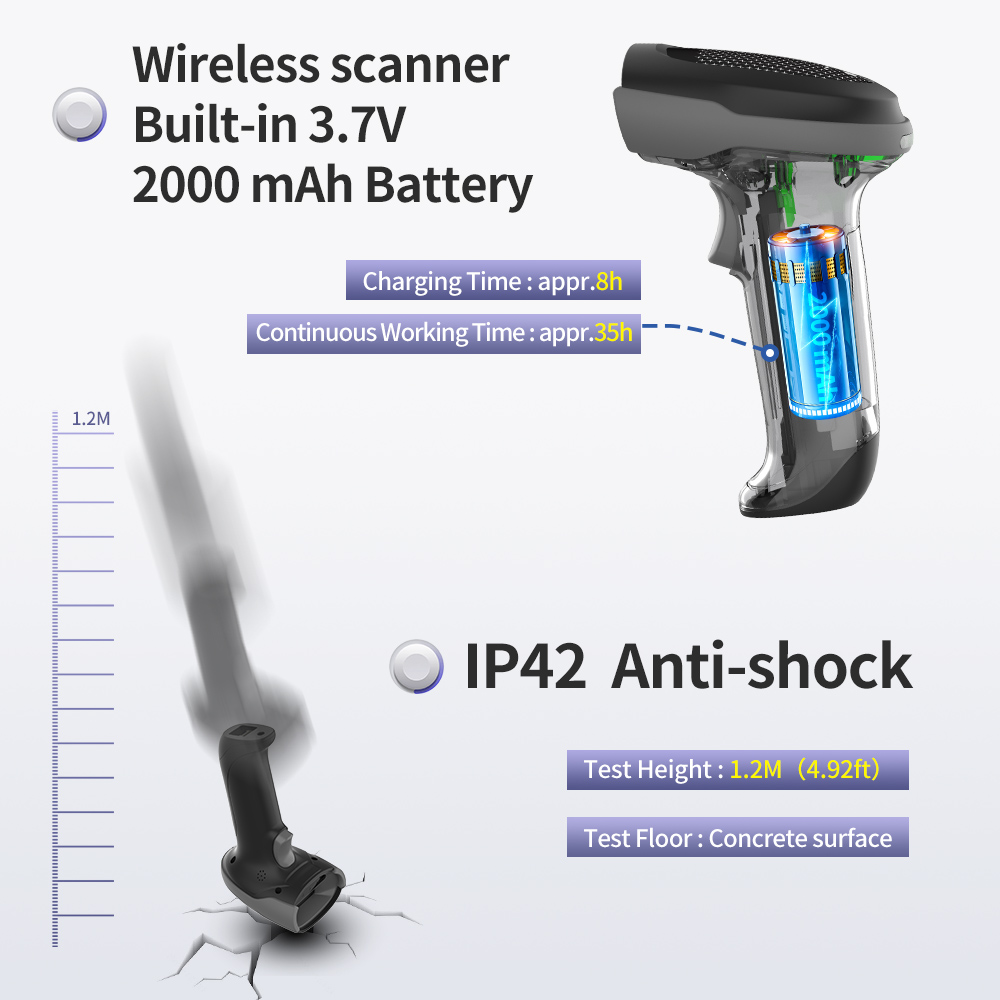

| Power supply | Charging DC 5V ± 5%; Built in 3.7V 2000mA lithium battery | ||
| power | 0.50W (working); 0.25W (standby); 1.00W (peak) | ||
| weight | Scanning gun | 168g ± 3g (excluding wire) | |

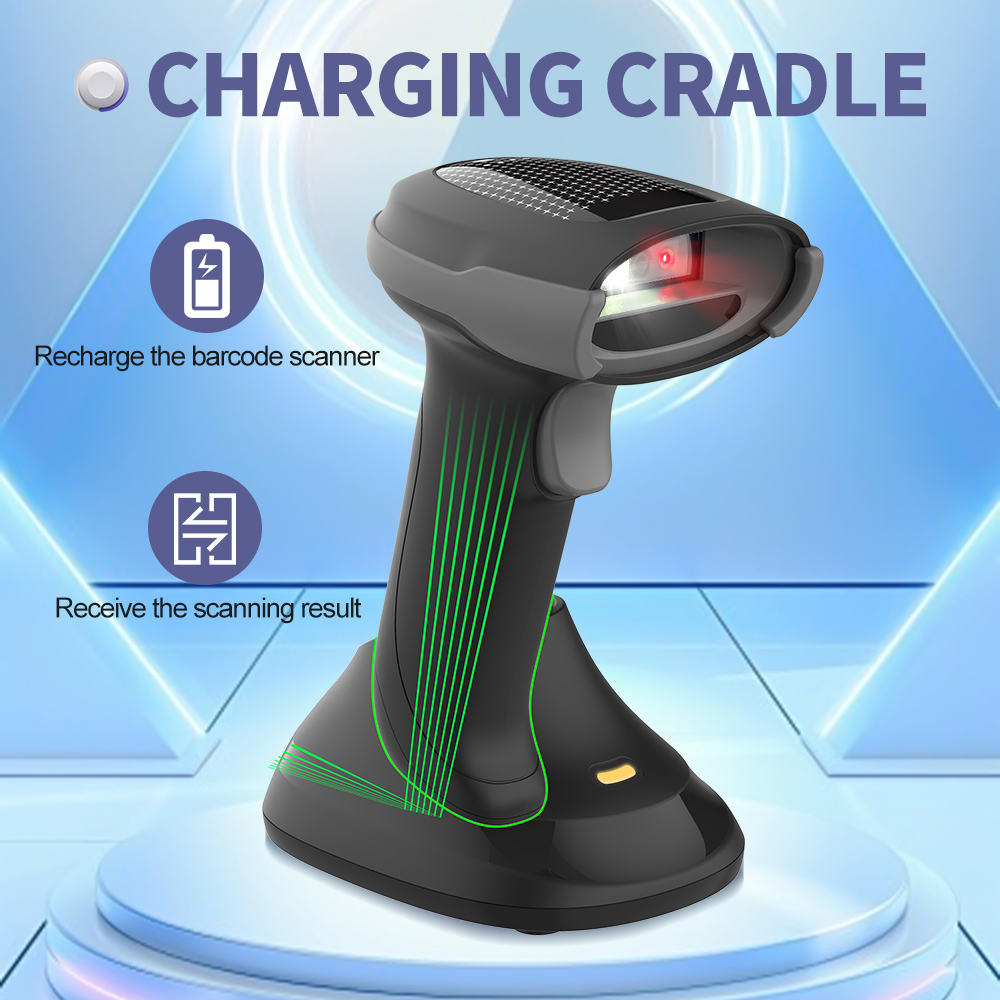

| Charging dock | 68g ± 3g (excluding wire) | ||

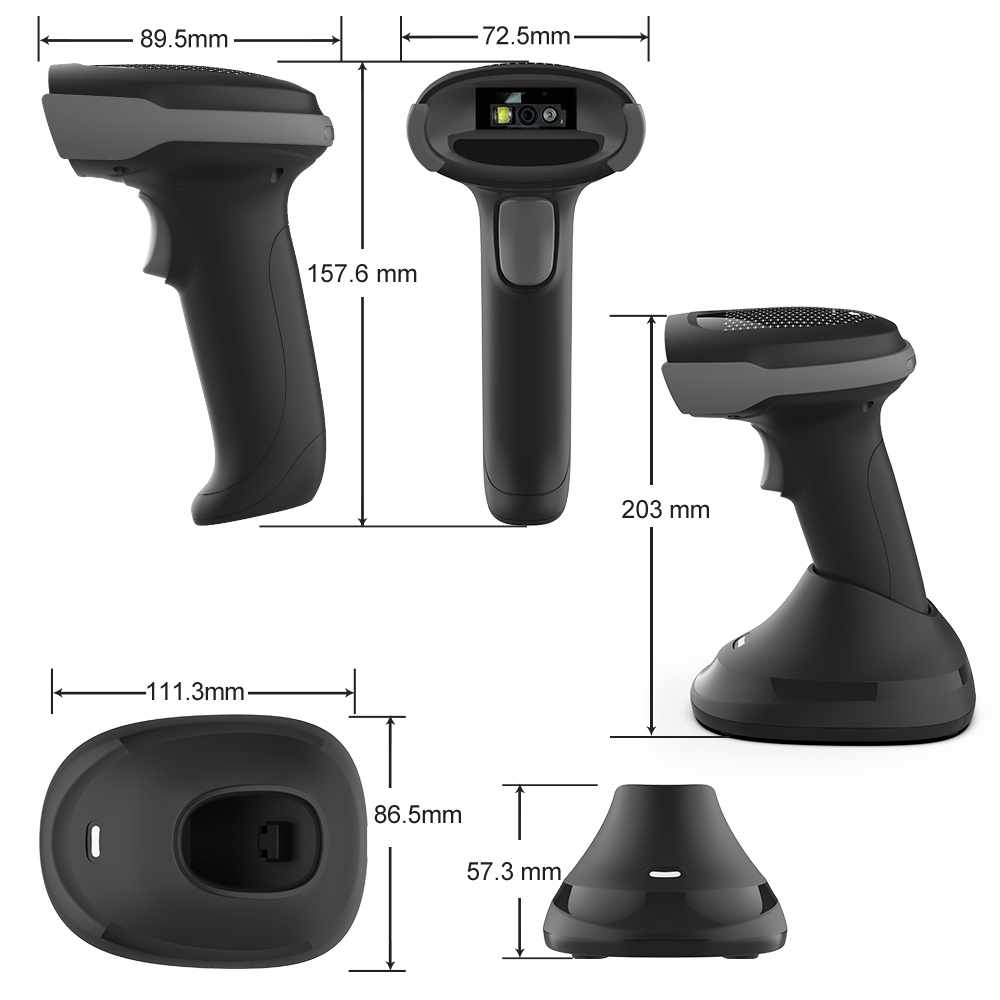

| size | Scanning gun | Length * Width * Height: 157.6 * 89.5 * 72.5 (unit/mm) | |
| Charging dock | Length * Width * Height: 111.3 * 86.5 * 57.3 (unit/mm) | ||
| colour | Black and grey | ||
| Button lifespan | Over 5000000 times | ||
| performance parameter | |||

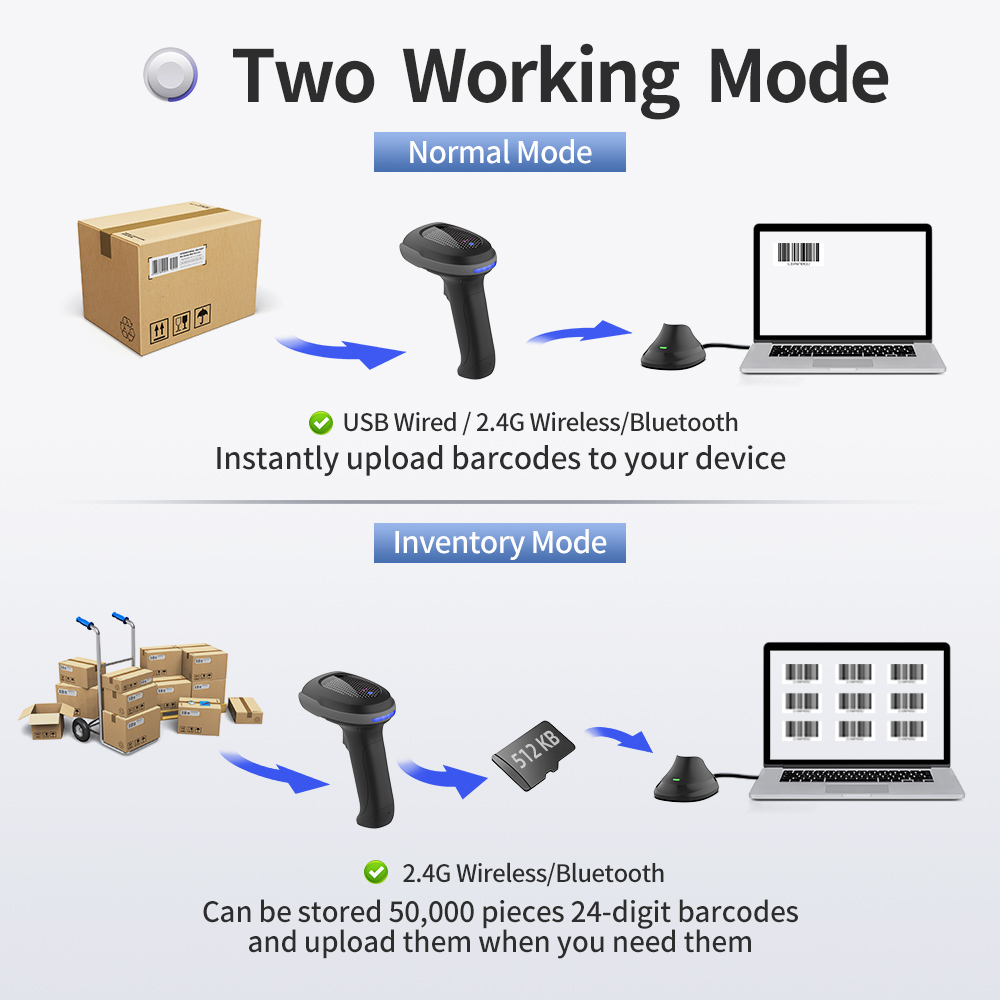

| Data upload | USB; 2.4G; Bluetooth | ||
| System support | Linux,Android,Windows XP,7,8,10,MAC | ||
| Language support | English - United States; French - Canada; Dutch - Netherlands; Spanish - International; Latin American - Argentina; Portuguese - Brazil; Danish - Denmark; English - UK; Italian - Italy 142; French - France; German - Germany; Portuguese - Portugal; Finnish - Finland; Turkish - F; Japanese language; Russian - Russia; Northern Sami - Norway [Supports keyboards from multiple countries] | ||

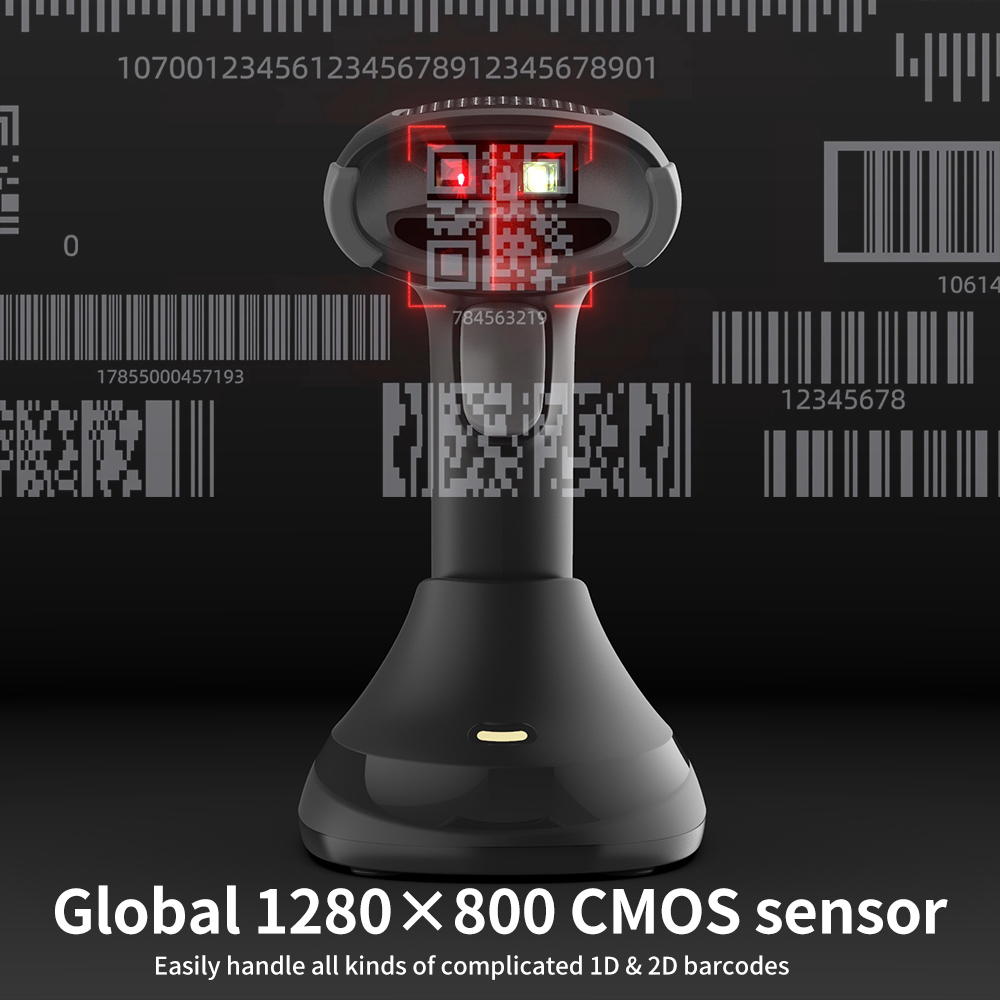

| sensor | CMOS sensor 1280 * 800 | ||
| processor | 32-bit ARM MCU | ||
| storage space | 512 KB (customizable capacity) | ||
| light source | White LED lighting + cross-shaped red LED positioning | ||
| Motion tolerance | code 128:75cm/sec QR:80cm/sec | ||

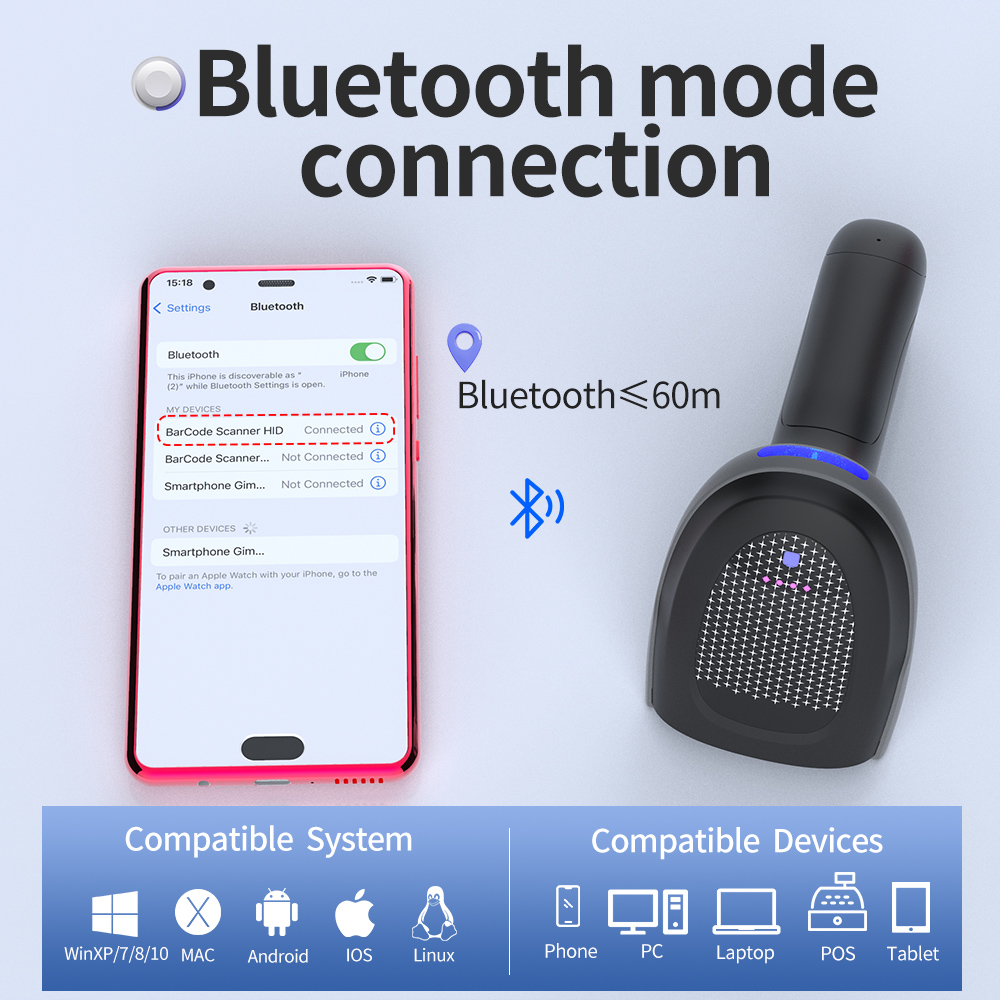

| Wireless transmission distance | 2.4G ≤ 90m (visible range) Bluetooth ≤ 60m (visible range) | ||
| Reading method | image | ||
| resolving power | ≥4mil | ||
| error rate | 1/5 million | ||
| Reading method | image | ||
| Trigger method | Key triggered mode; Continuous scanning mode; Self sensing mode | ||
| Feedback method | Buzzer+indicator light | ||
| Identify angles | Rotate 360 °, horizontal 39 °, vertical 26 ° | ||

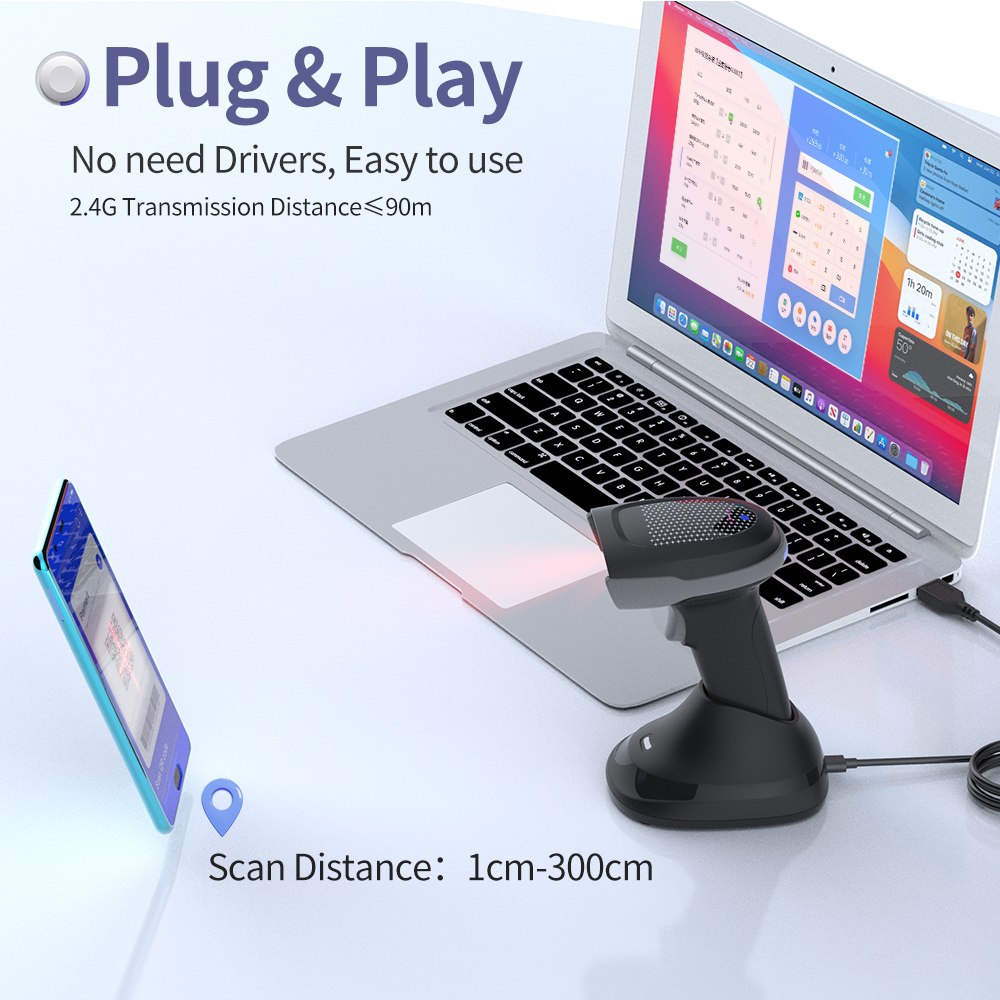

| Scan Distance | 1cm-300cm | ||
| Print contrast | ≥25% | ||
| Charging duration | appr.8h | ||
| Working hours | appr.18h | ||
| Code recognition system | 1D | Code128 ； Code39 ； Code 39 fullascii； Trioptic Code39； Code 32； Code93； UPC-A； UPC-E； UPC-E1； UPC-E+； UPC-A+； EAN8/JAN8； EAN13/JAN13； Bookland EAN/ISBN； Interleaved 2 of 5 ； Matrix 2 of 5 ； Industrial 2 of 5； Chinese 2 of 5； Codebar； Code 11 ； MSI ； ISBT ； GS1-128 ； GS1Databar14； GS1 Databar Limited ； GS1 Databar Expanded； 邮政码 | |
| 2D | PDF417 Data Matrix QR Code HanXin AZTEC Maxicode Grid Matrix GS1 QR Micro QR Micro PDF417 GS1 DatamatrixGS1 Combosite(CC-A/CC-B/CC-C) | ||
| Depth of Field | 4.17mil CODE39: 5cm - 13cm 5.83mil CODE39： 6cm - 15cm 12.50mil EAN13： 5cm - 55cm 10.83mil QR： 4cm - 20cm 10.83mil DataMatrix： 4cm - 24cm 7.50mil PDF417： 3cm - 25cm | ||
| Environmental parameters | |||
| IP rating | IP52 | ||
| Operating temperature | 0 to 50℃ / 32 to 122℉ | ||
| Storage temperature | 0 to 50℃ / 32 to 122℉ | ||
| Operating humidity | 20% to 85% (no condensation) | ||
| Storage humidity | 20% to 85% (no condensation) | ||
| Static protection | 15KV air discharge | ||
| Seismic resistance | Free fall 1.5m (concrete floor) | ||
| Environmental lighting | 0→100000Lux | ||
