| X-760H Technical Parameter | |||||||
| Model | X-760H | ||||||
| Item | Wired 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC+TPE | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Power Consumption | 0.85W（working）；0.55W（standby）；1.05W（maximum） | ||||||
| Current | 168mA（working）；109mA（standby）；200mA（maximum） | ||||||
| Weight | 108g±5g（Excluding wire） | ||||||

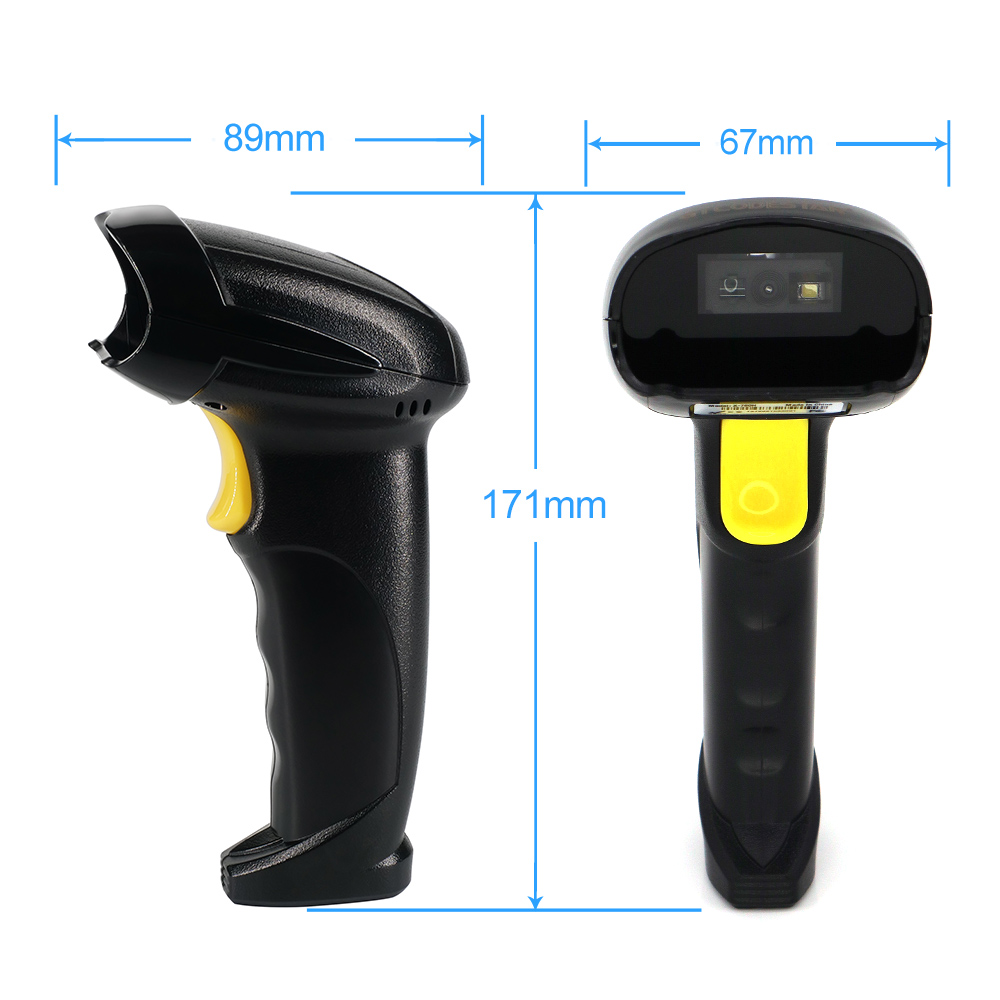

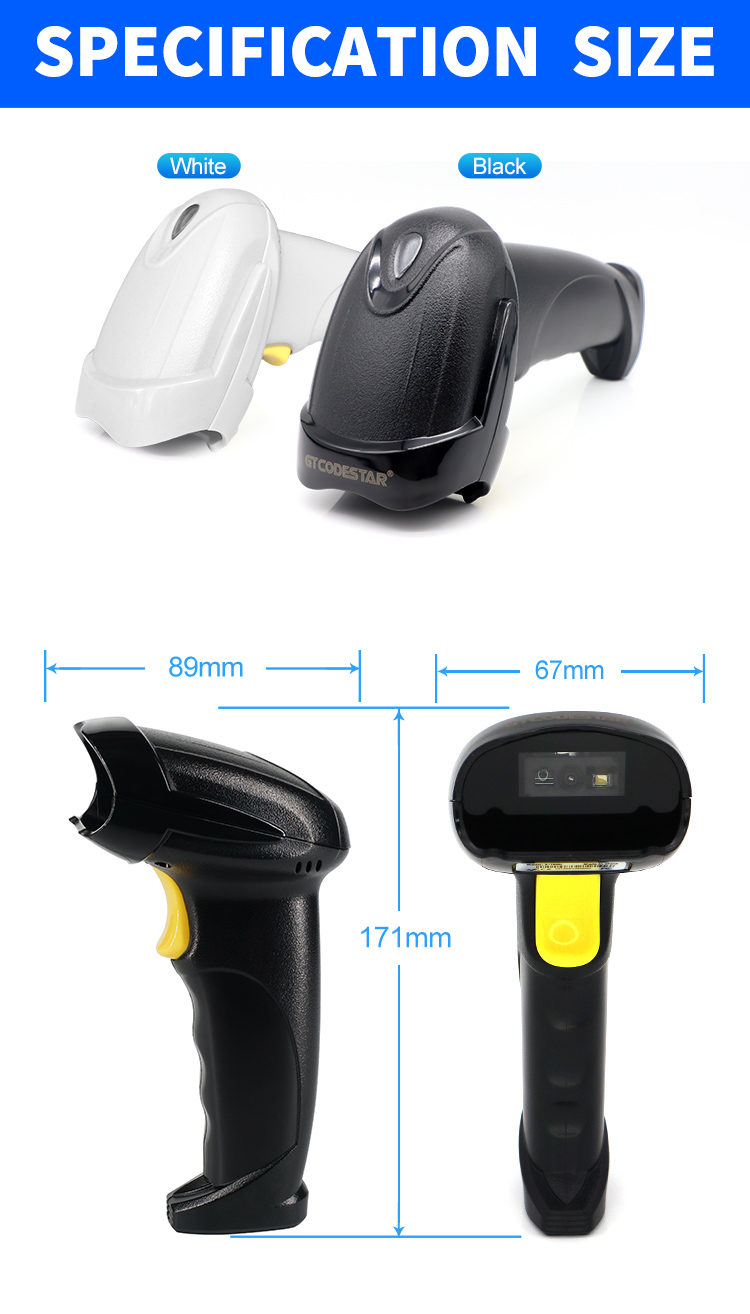

| Size | L * W * H：180.1 * 88.7 * 66.3（Unit:mm） | ||||||
| Color | Black; Grey white | ||||||
| Button Lifespan | ＞100000 | ||||||
| Performance Parameter | |||||||
| Interface | USB；（RS232 customizable） | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | American; Czech; French; German; Hungarian; Italian; Japanese; Spanish; Türkiye F; Türkiye Q (Support for virtual keyboards) | ||||||
| Light Source | Red light（Strip）LED aim + White light LED illumination | ||||||
| Resolution | ≥4mil | ||||||
| Bit error rate | 1/5000000 | ||||||
| Motion tolerance | code 128:20cm/sec QR:25cm/sec | ||||||
| Sensor | CMOS sensor 480 * 640 | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Key triggered mode, continuous scanning mode, self sensing mode | ||||||
| Reading distance | 1cm-200cm | ||||||
| Prompt Mode | Buzzer, Indicator Light（LED） | ||||||
| Print Contrast | ≥30% | ||||||
| Scanning Angel | Rotate 360 °, Horizontal 42 °, Vertical 37 ° | ||||||

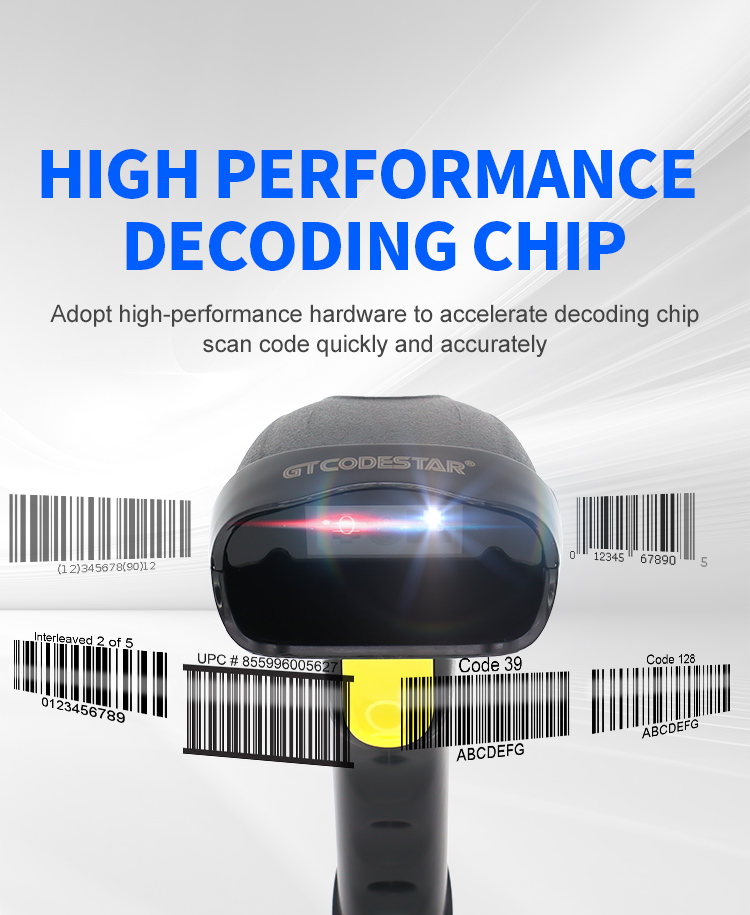

| Decoding Capability | 1D | ● Code25-Interleaved ● Code25-Standard ● Code25-Matrix ● RSS-14 ● Code39-Regular ● Code39-FullASCII ● Code93-Regular ● Code93-FullASCII ● Code128 ● Code11 ● UPCE0/E1 ● EAN/GSL/UCC-128Auto ● Codabar ● MSI ● EAN/JAN-13 ● UPC-A ● JAN/EAN-8 ● ChinaPost 25 ● Plessey | |||||
| 2D | ● Data Matrix ● QR ● PDF417 ● Micro QR ●HanXin ● Micro PDF 417 ● Maxi Code ●Aztec | ||||||
| Scanning Depth | QR 9.17 mil（7mil）：6cm - 10cm Data Matrix 9.17mil（7mil)：7cm - 10cm code93 5.83mil（14mil）：7cm - 10cm Refund code 28mil：10cm - 15cm WeChat Pay QR Code：9cm - 45cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||

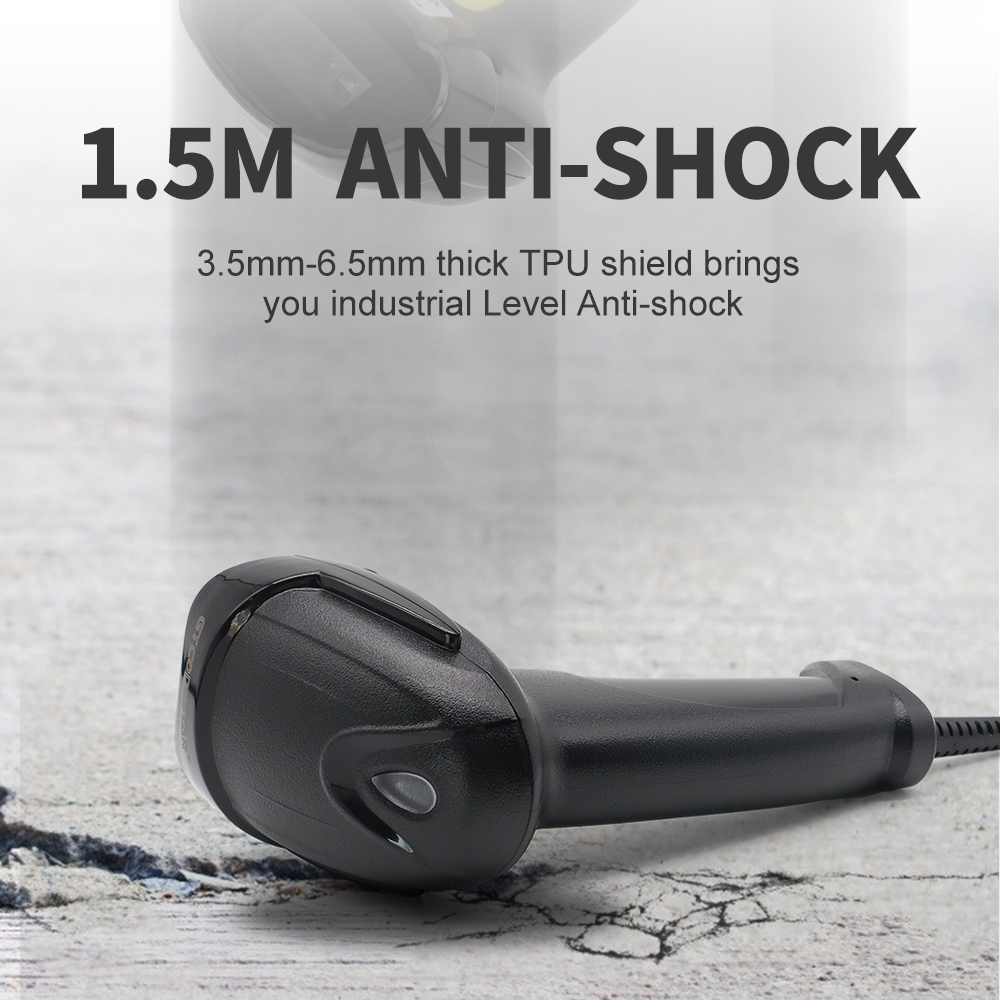

| Shock Resistance | 1.5m free fall on concrete surface | ||||||
| Ambient light | 0~100000LUX | ||||||
