| X-760E Technical Parameter | |||||||
| Model | X-760E | ||||||
| Item | Wired 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Power Consumption | 952mW（working）；512mW（standby）；1105mW（maximum） | ||||||
| Weight | 146.0g±5g（Excluding wire） | ||||||

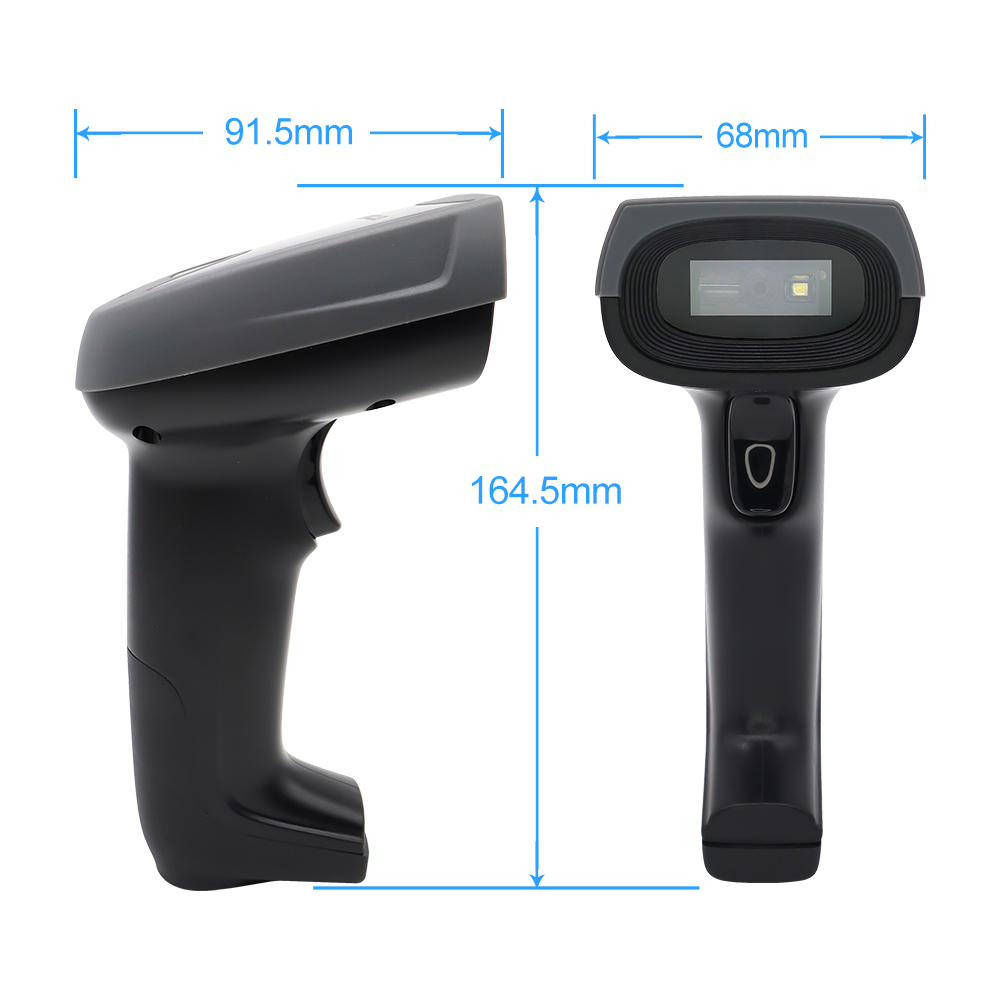

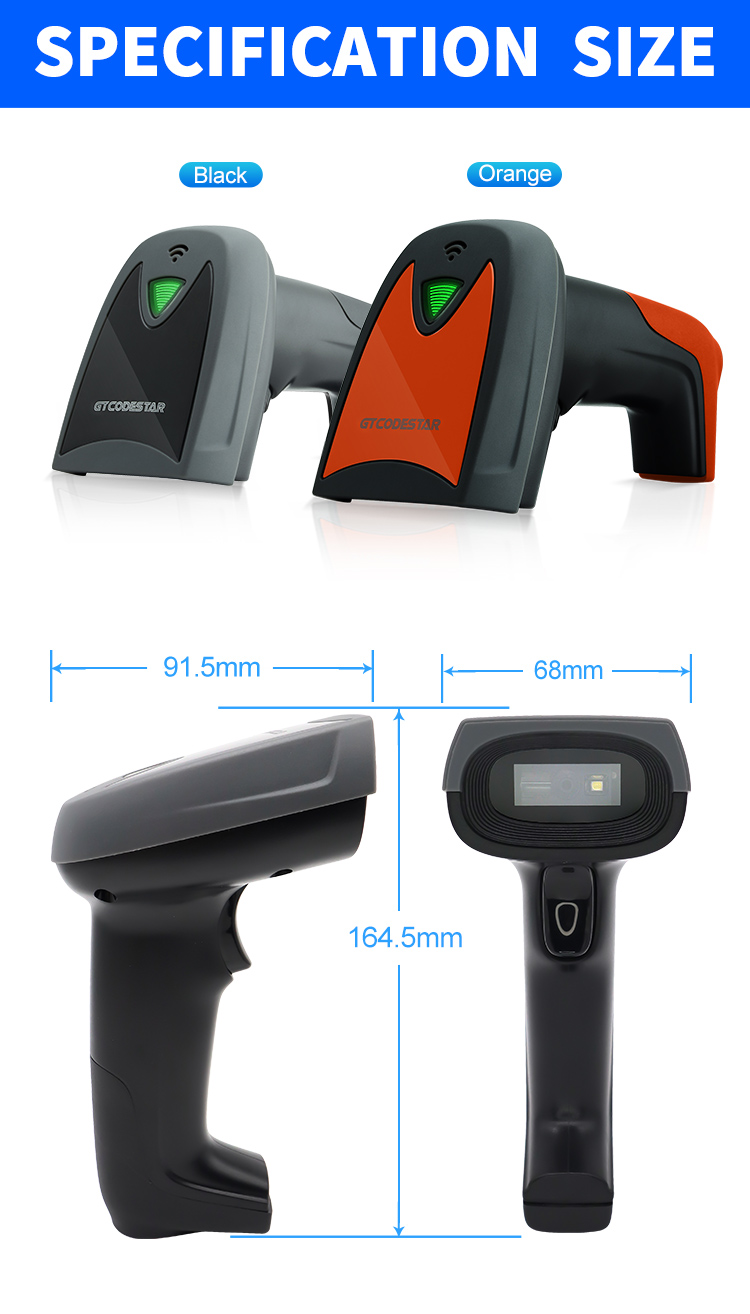

| Size | L*W*H：176.9 * 68.3 * 90.5（Unit:mm） | ||||||
| Color | Black, black gray, black orange | ||||||
| Button Lifespan | ＞100000 | ||||||
| Performance Parameter | |||||||

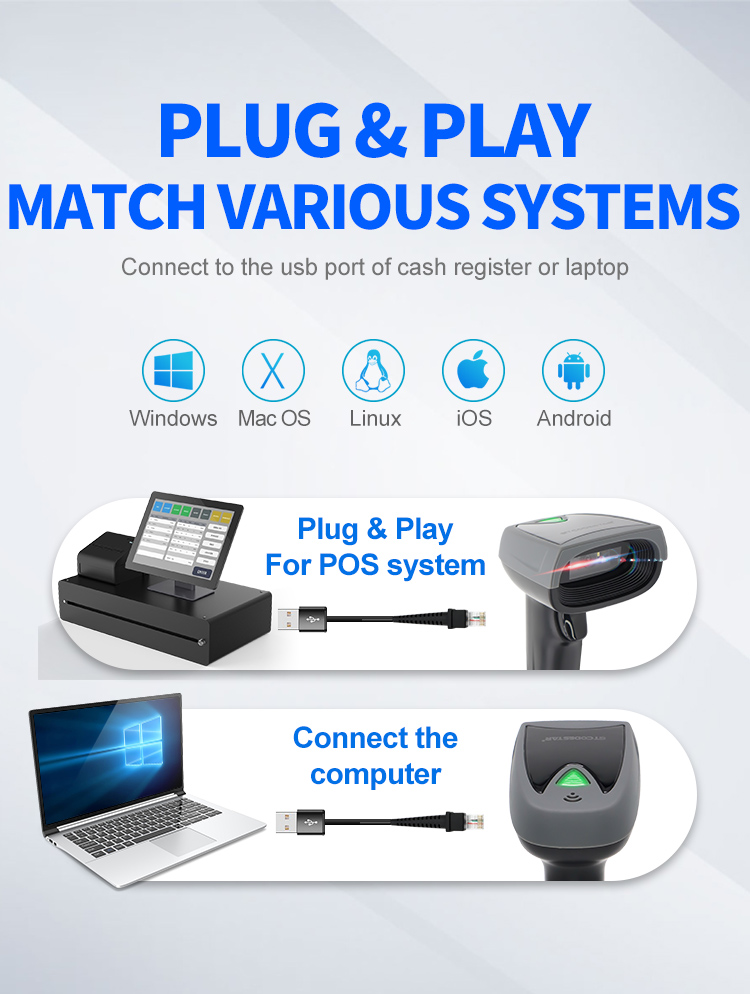

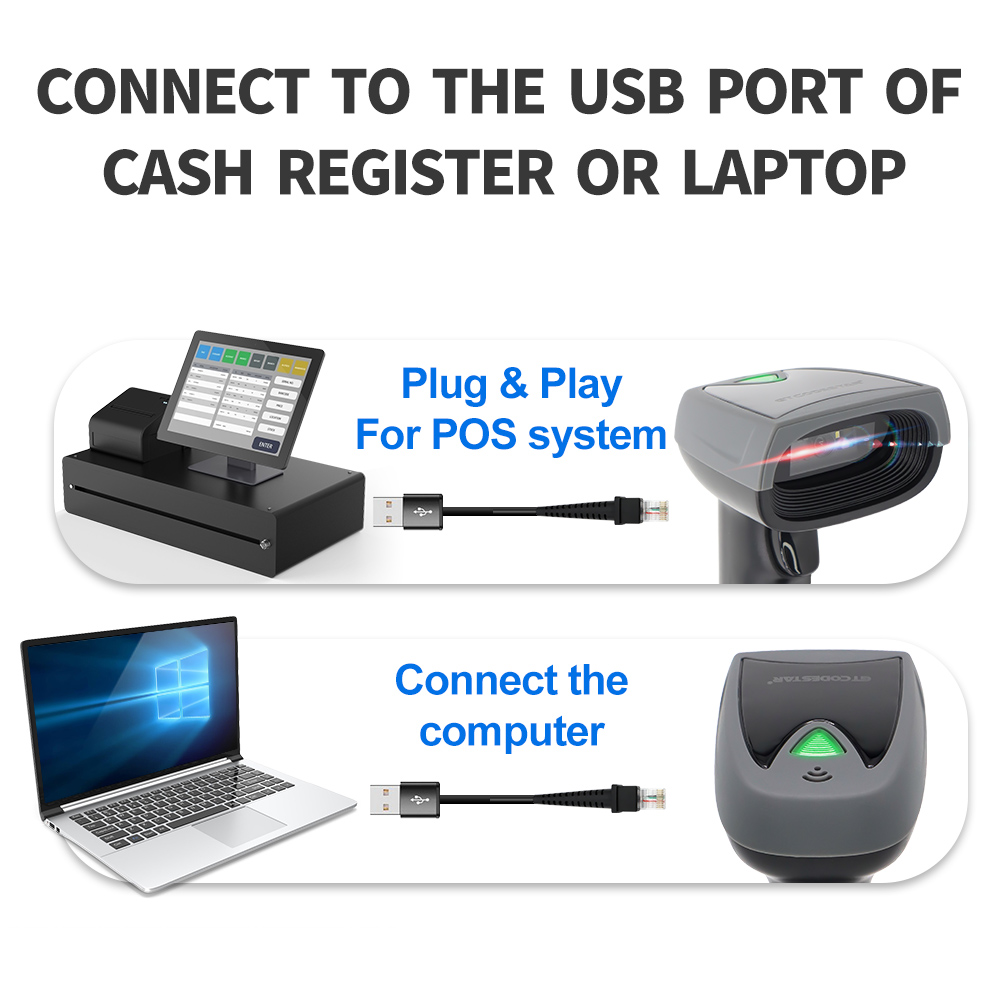

| Interface | USB；（RS232 customizable） | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | "American English; Belgium; Finland; France; Germany; Italy; Sweden; Britain; Denmark; Norway; Spain; Portugal; Türkiye F; Türkiye Q; Japan; Russia (Support for virtual keyboards) | ||||||
| Sensor | 640×480 CMOS sensor | ||||||
| Light Source | Red light（Strip）LED aim + White light LED illumination | ||||||
| processor | 32-bit ARM MCU + BGA | ||||||
| Motion tolerance | Code128： 35cm/sec QR： 45cm/sec | ||||||
| Resolution | ≥4mil | ||||||
| Bit error rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Key triggered mode, continuous scanning mode, self sensing mode | ||||||

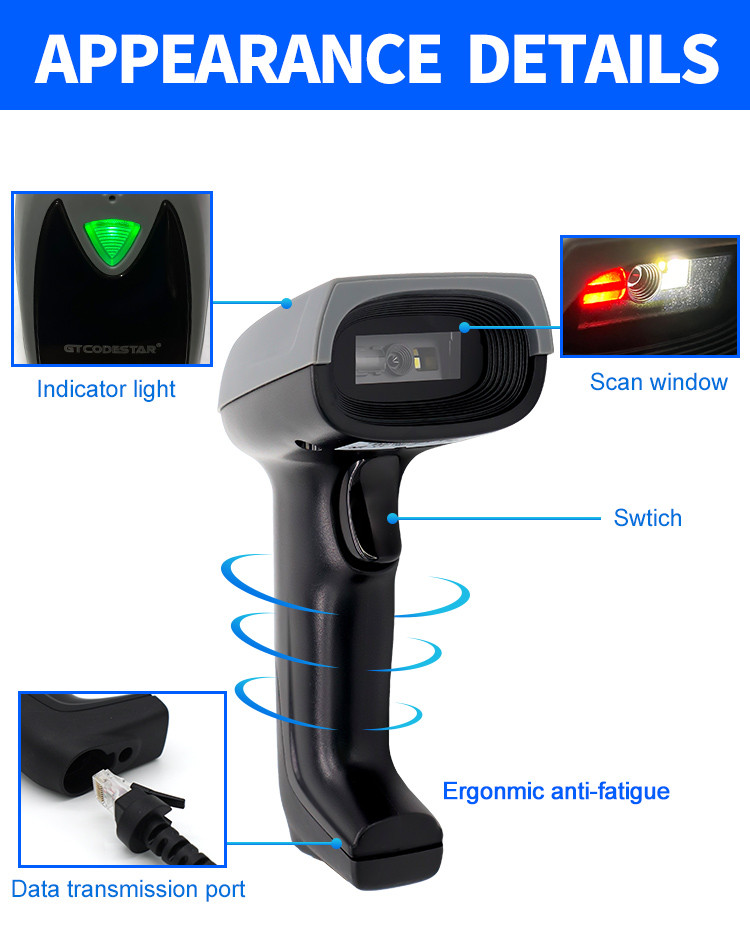

| Prompt Mode | Buzzer, Indicator Light（LED） | ||||||
| Print Contrast | ≥25% | ||||||

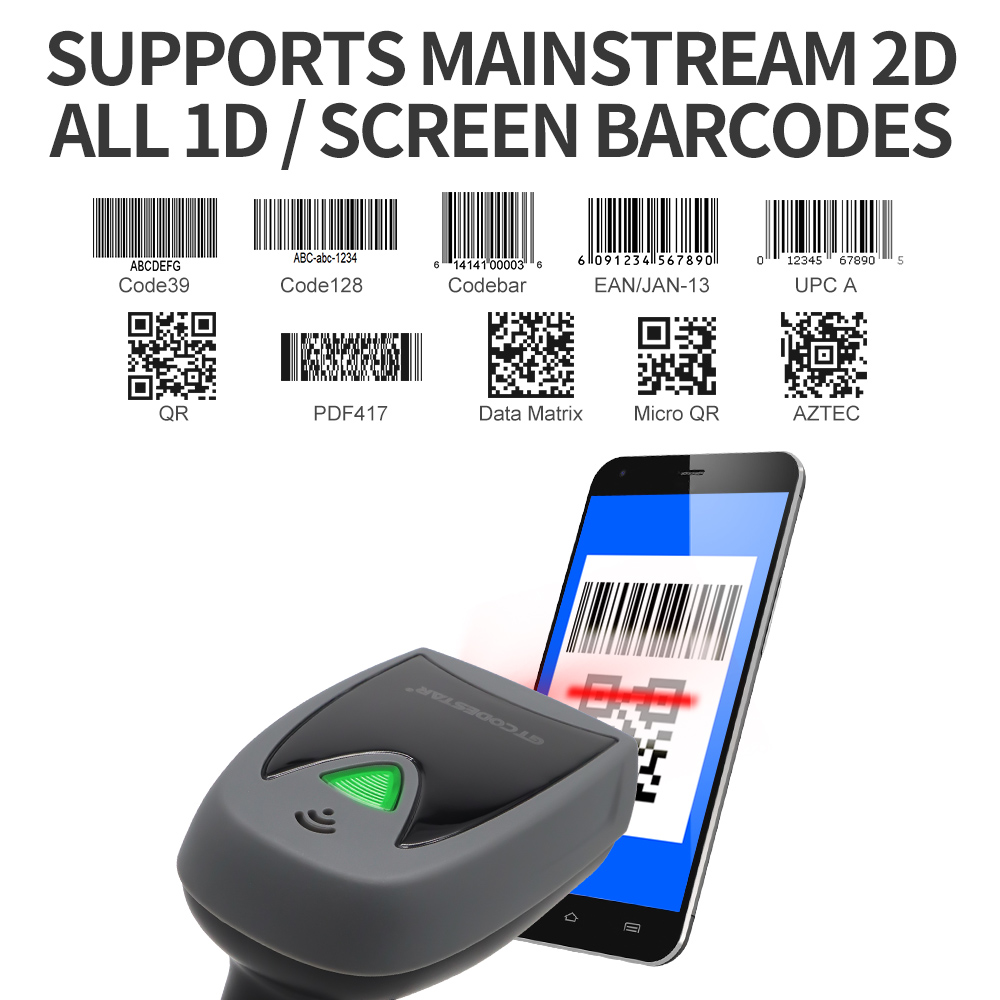

| Decoding Capability | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5 ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 composite code | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode ◎Micro QR ◎Micro PDF417 | ||||||
| Scanning Angel | Horizontal ± 34 °, vertical ± 26 °, rotating 360 ° | ||||||
| Scanning Angel | EAN-13 30mm-180mm (10.50mil) QR Code 25mm-200mm (19.17mil 8 byte) Data Marix 25mm-250mm （20.83mil 8 byte） PDF 417 25mm-200mm (7.50mil 7 byte) | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||

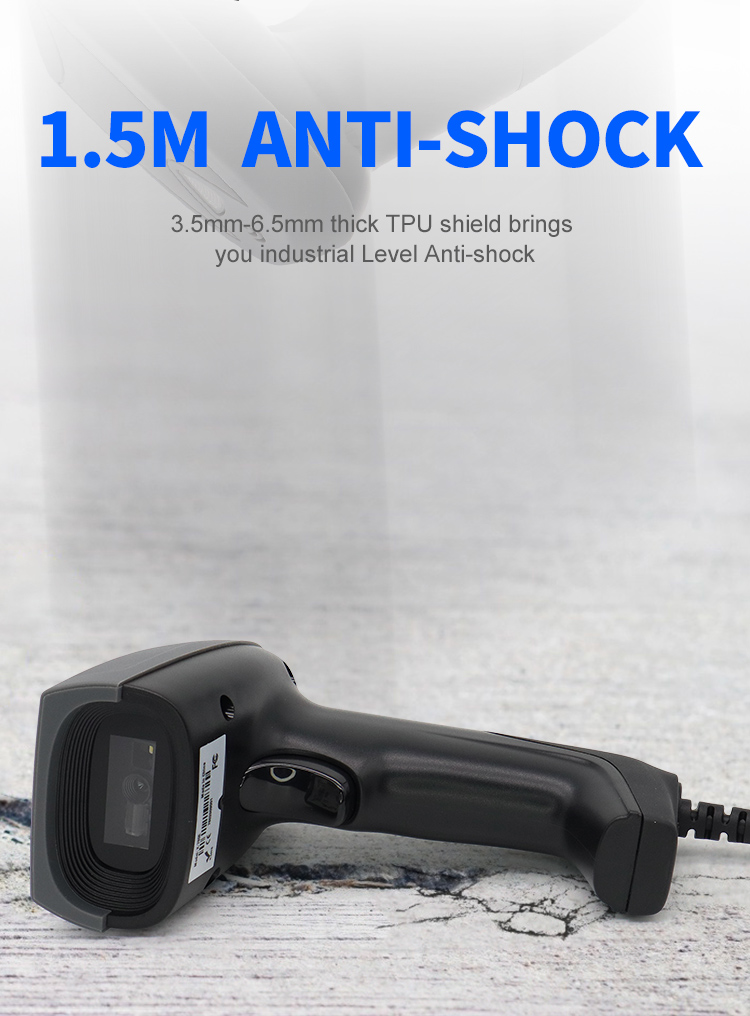

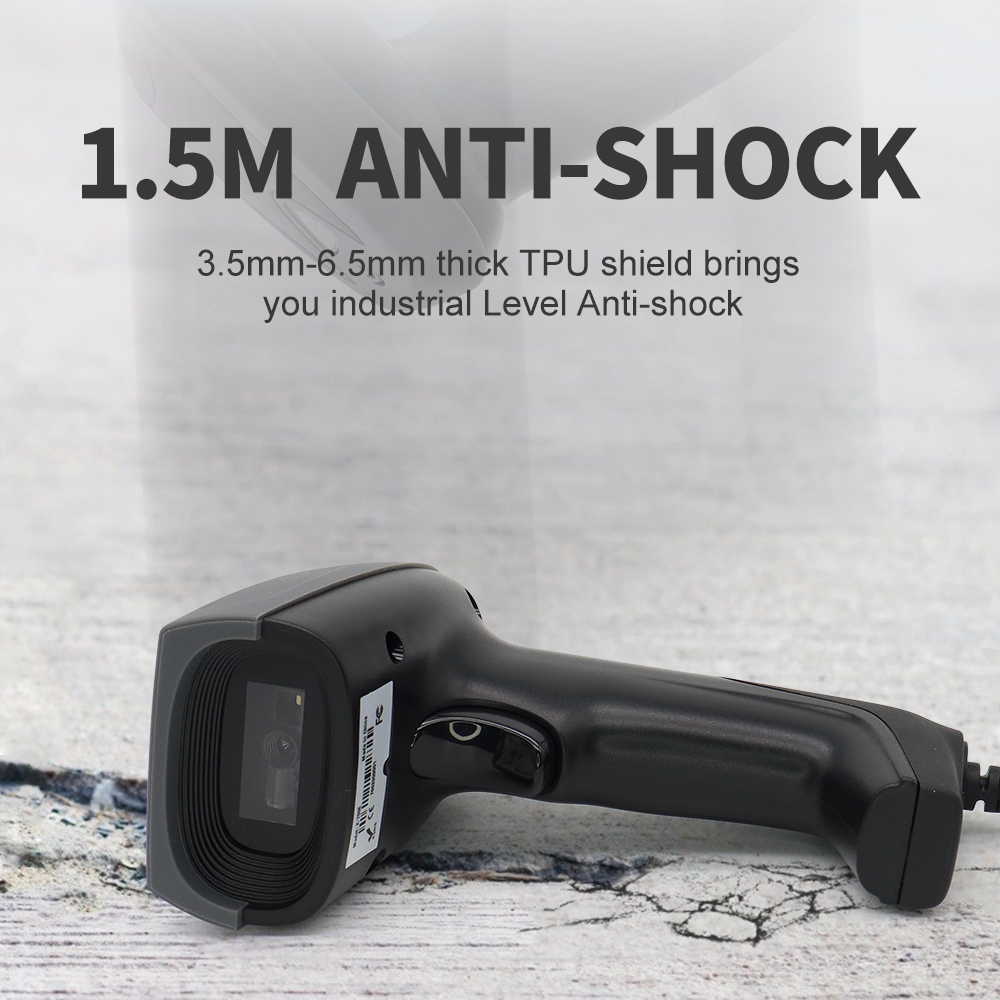

| Shock Resistance | 1.5m free fall on concrete surface | ||||||
