| Technical Parameter |

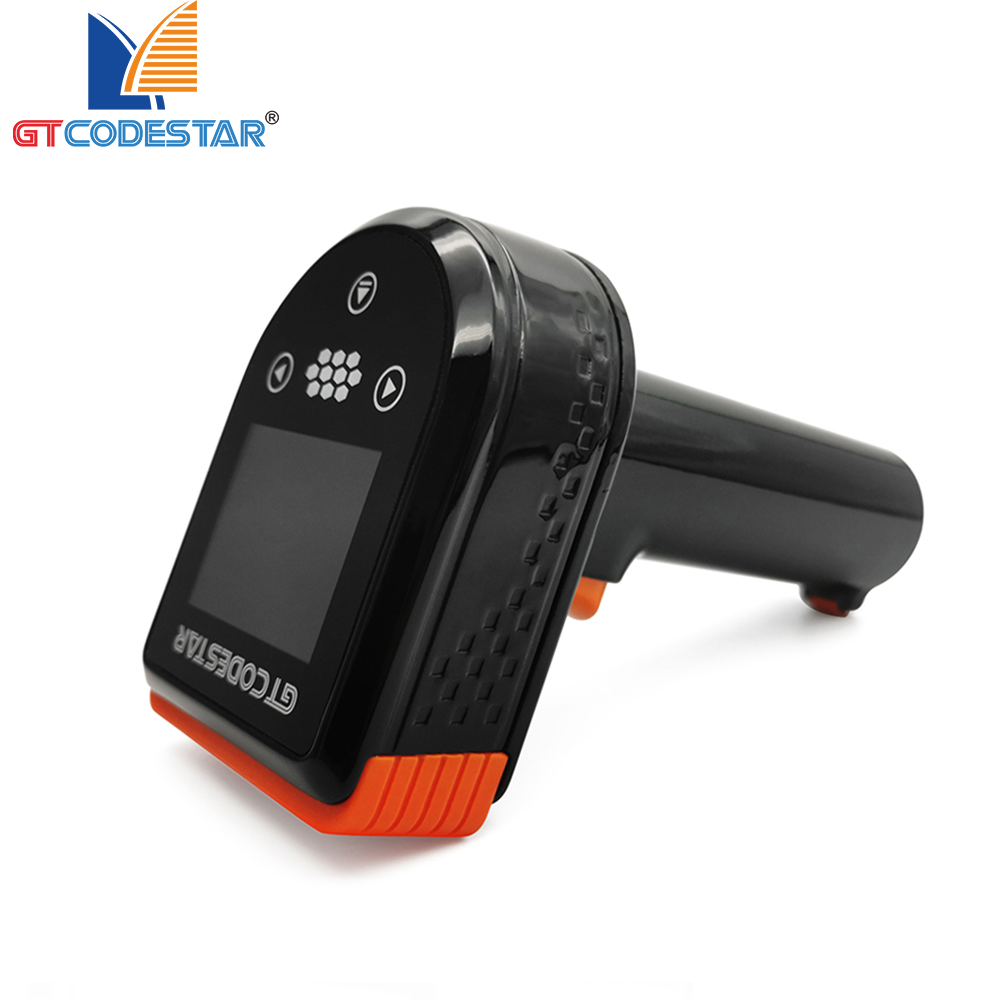

| Model | X-3301V |

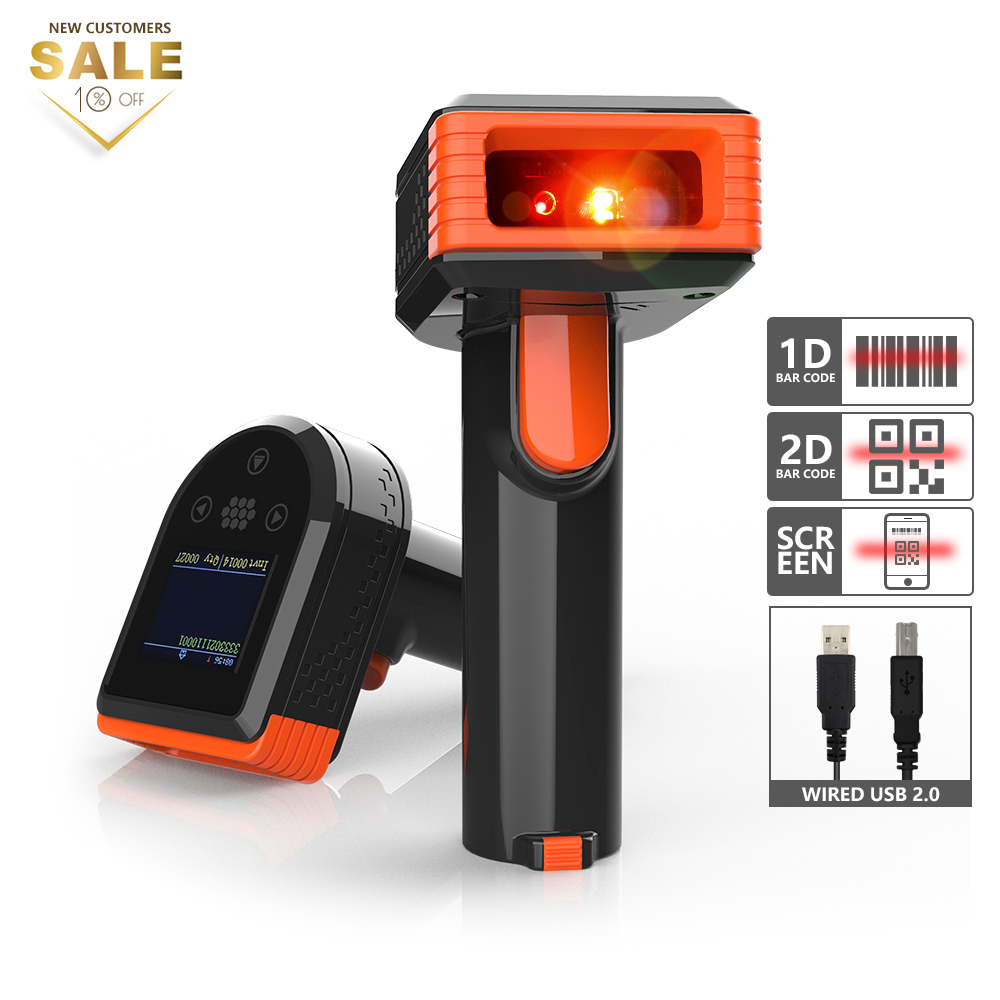

| Item | Wired 2D Barcode Scanner |
| Physical Parameter |
| Material | ABS+PC |
| Power Supply | DC 5V ±5% |
| Current | 200mA（working）；40mA（Standby）；220mA（maximum）【Average current】 |
| Power Consumption | 1.00W（working）；0.20W（Standby）；1.10W（maximum）【Average power consumption】 |
| Weight | 145.0g±5g（Without wire） |

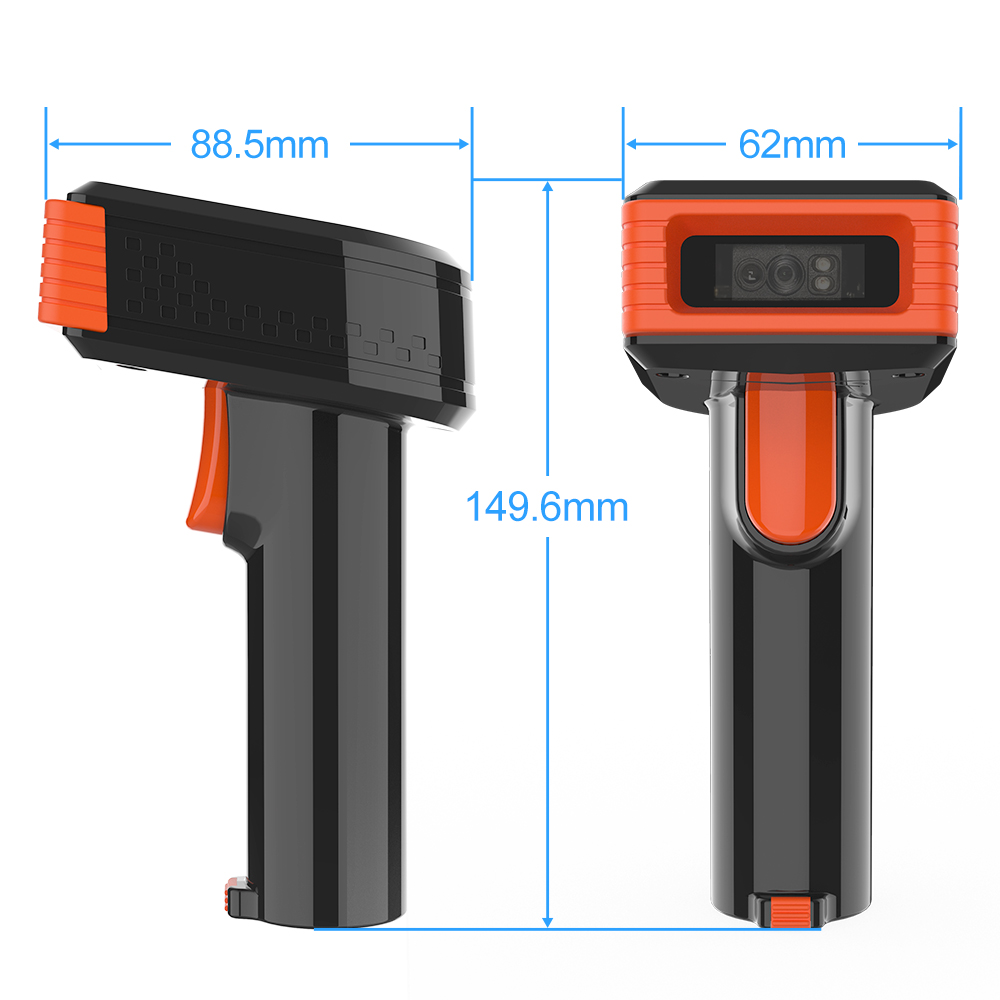

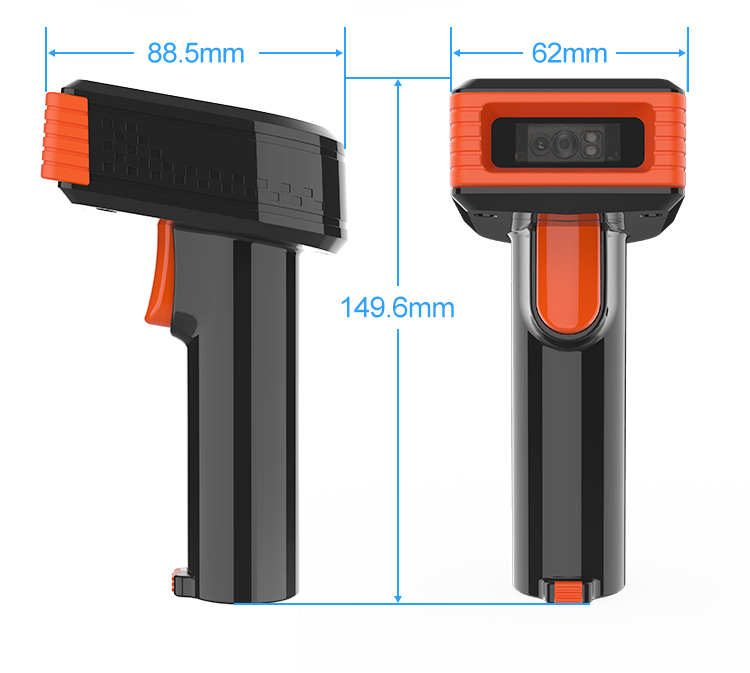

| Size | L * W * H：149.6 * 62.0 * 88.5（unit：mm） |

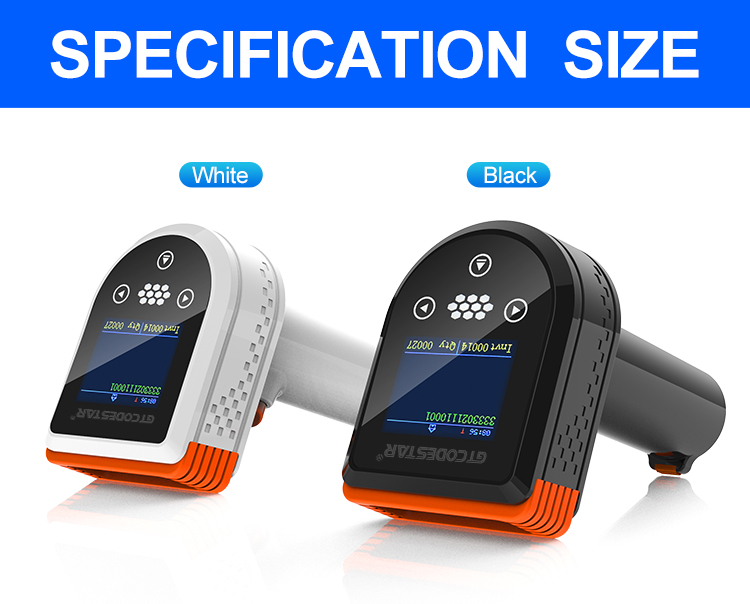

| Color | black grey，Black |
| Performance Parameter |
| Interface | USB |
| System Supported | Linux，Android，Windows XP、7、8、10，MAC |
| Language Supported | English; Belgium; Finland; sent; Germany; Italy; Sweden; United Kingdom; Denmark; Norway; Spain; Portugal; Turkey Q; Turkey F; Japan; Russia; Czech Republic; Thailand; Ukraine; Brazil; Greece; Hungary; Netherlands; Poland ; Romania; Slovakia; |
| [Support virtual keyboard] |
| Sensor | 640×480 global exposure CMOS |
| Light Source | Red light LED aiming + red light LED lighting |
| processor | 32-bit ARM MCU + DSP |
| Motion tolerance | Code128： 60cm/sec |
| QR： 65cm/sec |
| Resolution | ≥4mil |
| Bit error rate | 1/5000000 |
| Reading Mode | Image |
| Trigger Mode | Button trigger mode, self-sensing mode, continuous scan mode |
| Prompt Mode | Buzzer, Indicator Light（LED） |
| Print Contrast | ≥25% |
| Scanning Angel | Roll 360°，Pitch 55°，Yew 55° |
| Scan speed | 100 times/sec |

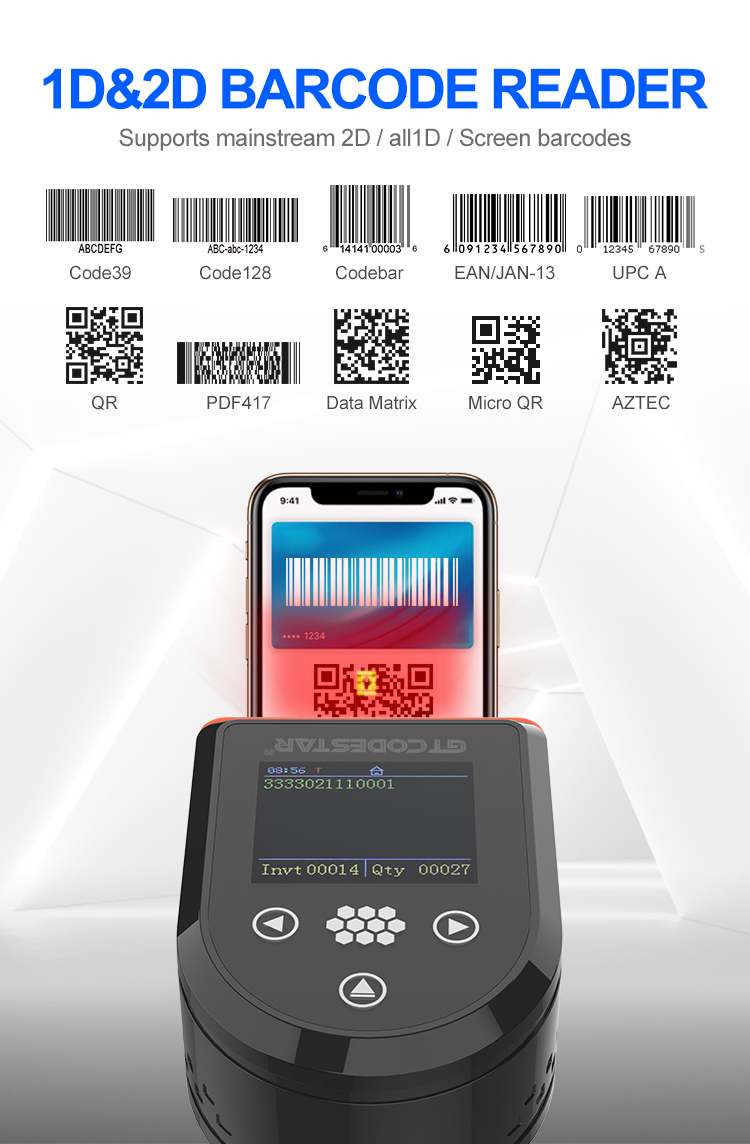

| Decoding | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN |
| Capability | ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5 |
| ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 |
| ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar |
| ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93 |
| ◎GS1 composite code |
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode |
| Scanning Depth | QR 7.50mil 15byte：5cm - 10cm |
| QR 10.83mil 16byte：3cm - 16cm |
| Code128 5.83mil 15byte: 6cm - 15cm |
| Environmental parameters |
| IP Grade | IP52 |
| Operating Temp. | 0 to 60℃ / 32 to 122℉ |
| Storage Temp. | 0 to 60℃ / 32 to 122℉ |
| Operating Humidity | 20% to 85%（No Condensation） |
| Storage Humidity | 20% to 85%（No Condensation） |
| ESD Protection | 15KV air discharge |

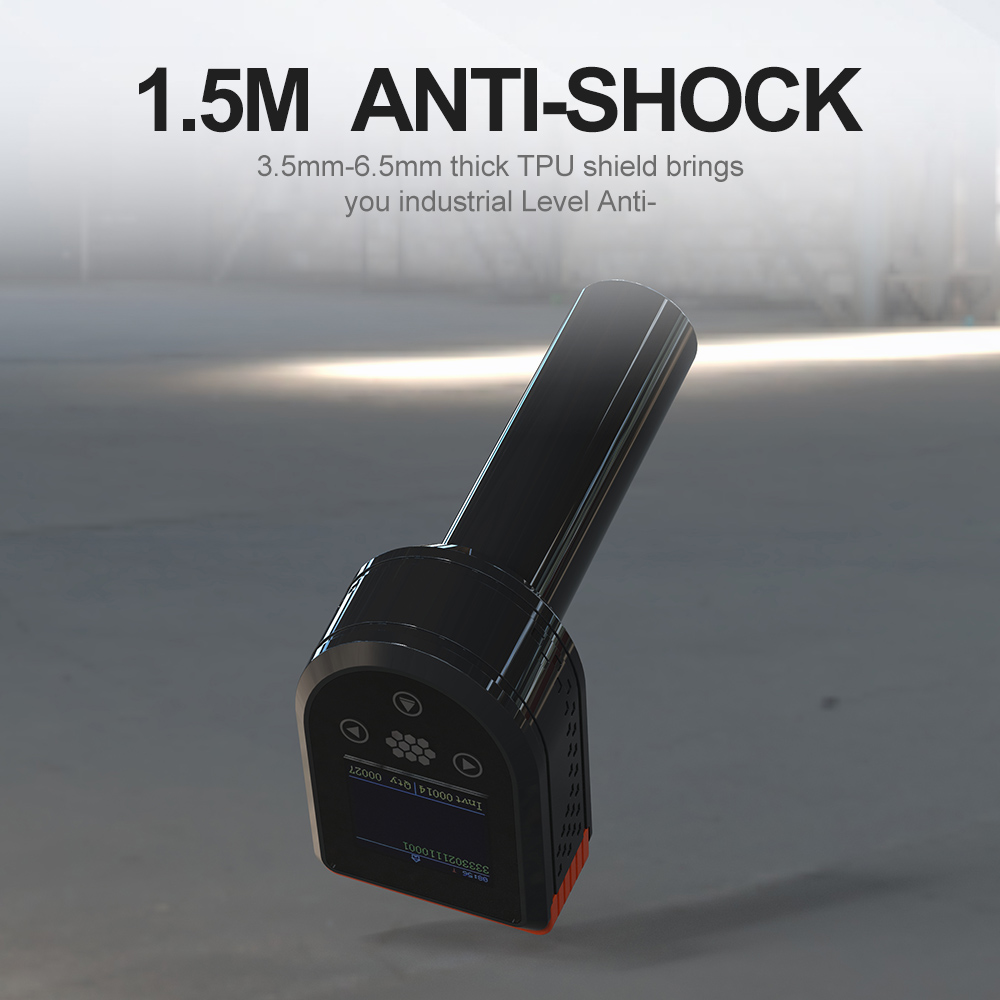

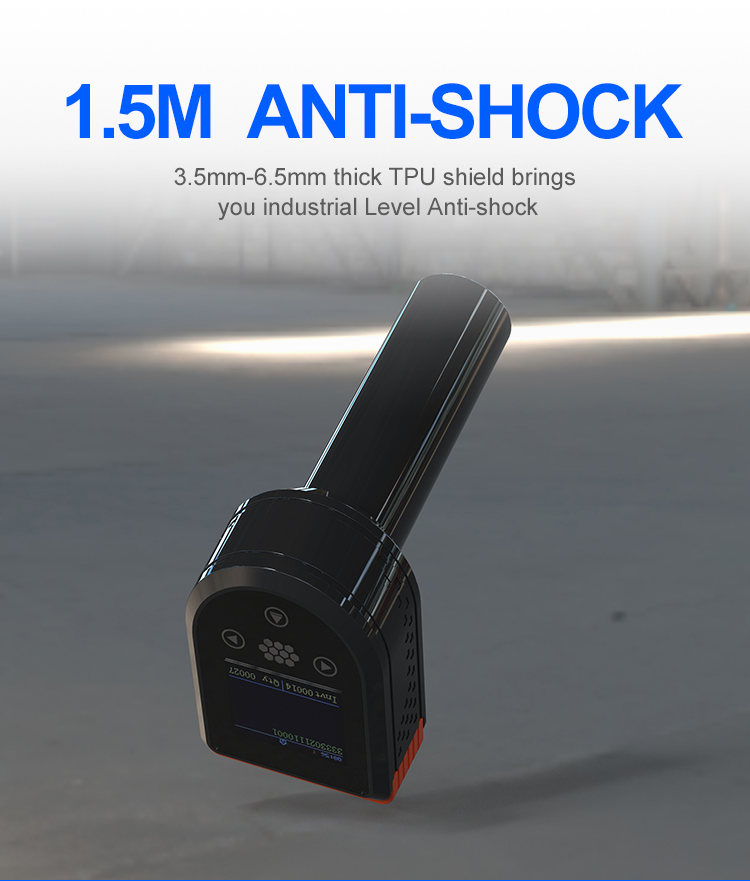

| Shock Resistance | 1.5m free fall on concrete surface |
| Ambient light | 0→100000Lux |
