| X-19122Technical Parameter | |||||||
| Model | X-19122 | ||||||

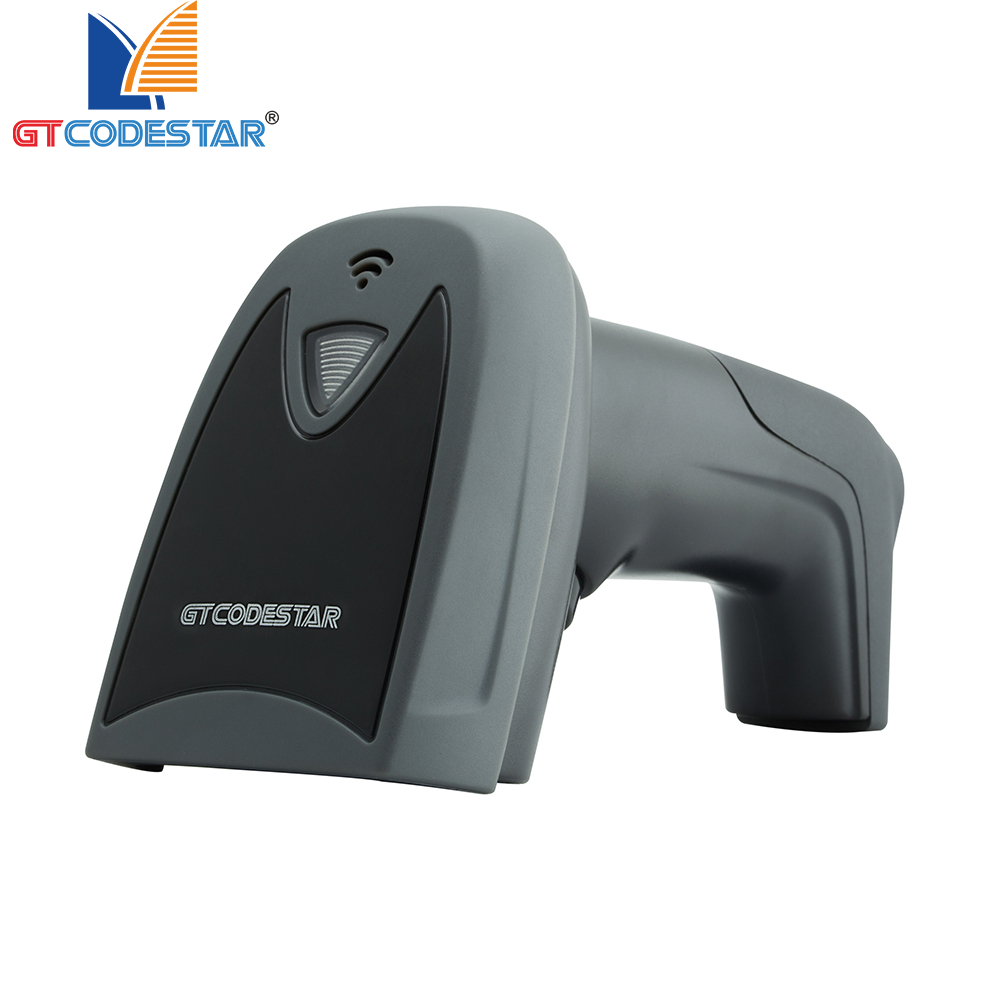

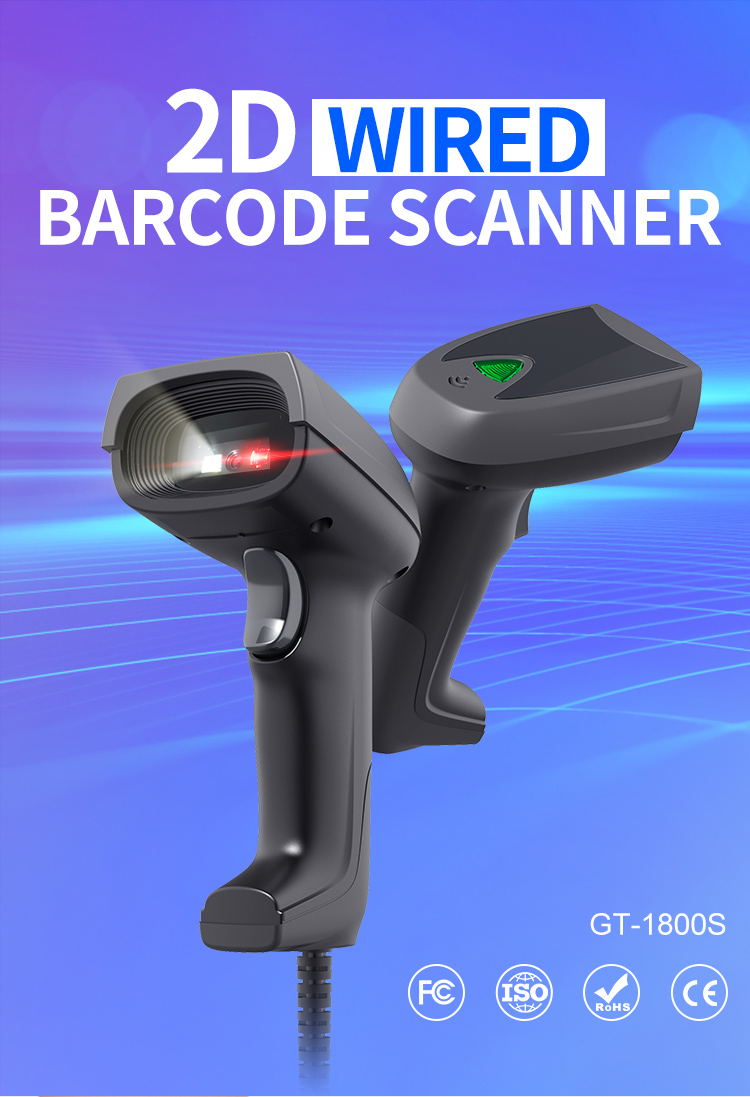

| Item | Wired 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Current | 150mA（working）；45mA（standby）210mA（maximum）【Average current】 | ||||||
| Power Consumption | 0.75W（working）；0.23W（standby）；1.05W（maximum）【Average power consumption】 | ||||||
| Weight | 145.0g±5g（Without wire） | ||||||

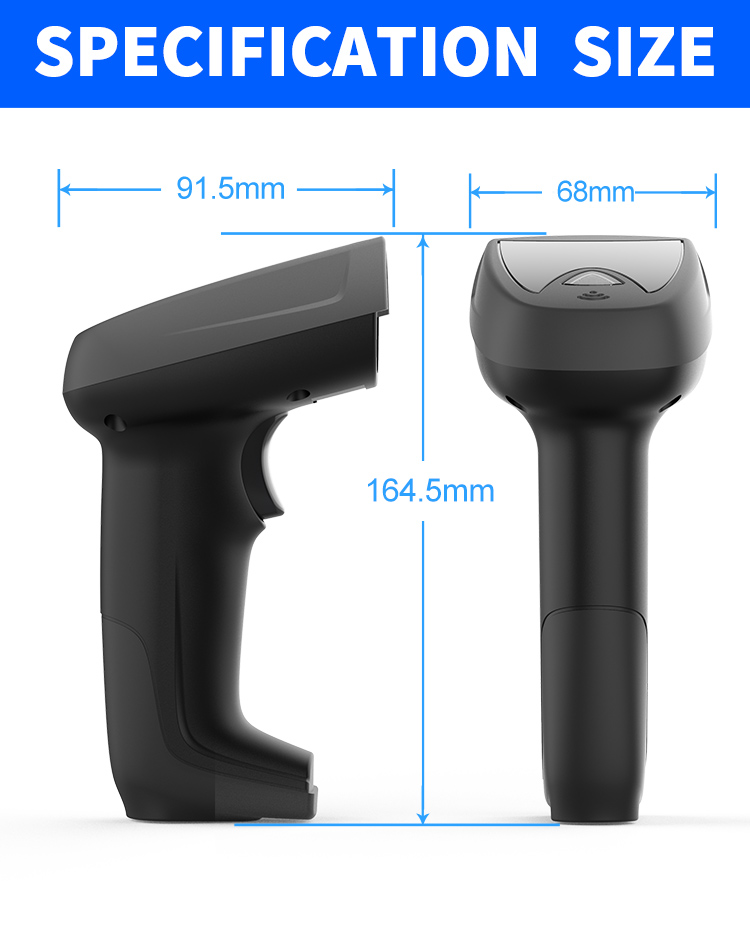

| Size | L * W * H：176.9*68.3*90.5（unit：mm） | ||||||
| Color | black grey，Black | ||||||
| Performance Parameter | |||||||
| Interface | USB；（RS232 can be customized） | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English; Belgium; Finland; sent; Germany; Italy; Sweden; United Kingdom; Denmark; Norway; Spain; Portugal; Turkey Q; Turkey F; Japan; Russia; Czech Republic; Thailand; Ukraine; Brazil; Greece; Hungary; Netherlands; Poland ; Romania; Slovakia; [Support virtual keyboard] | ||||||

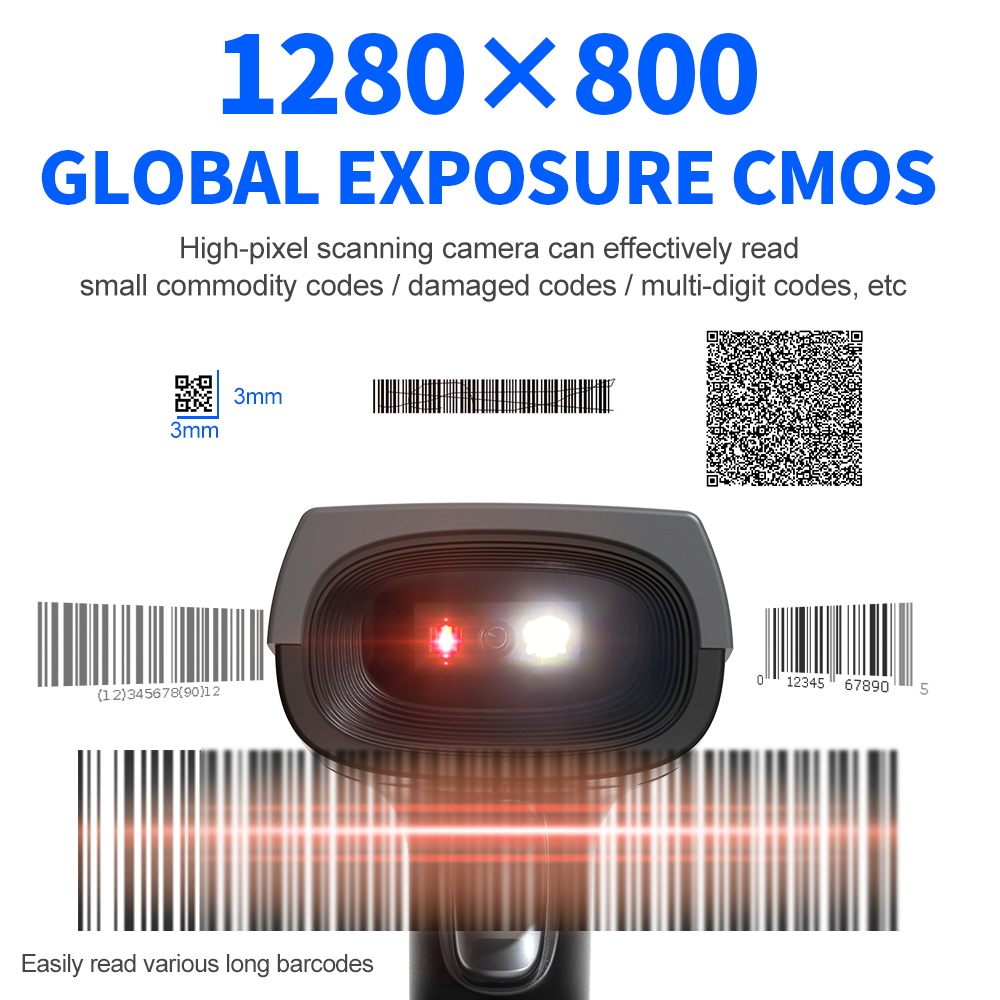

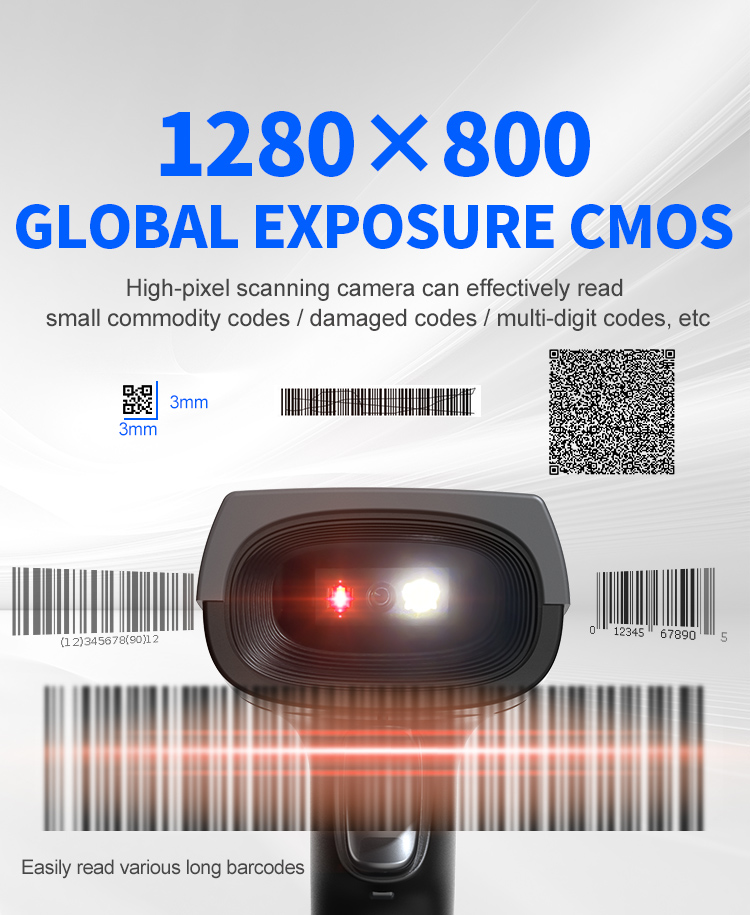

| Sensor | global exposure CMOS 1280×800 | ||||||
| Light Source | Red light LED aiming + white light LED lighting | ||||||
| processor | 32-bit ARM MCU + DSP | ||||||
| Motion tolerance | Code128： 80cm/sec QR： 85cm/sec | ||||||
| Resolution | ≥4mil | ||||||
| Bit error rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||

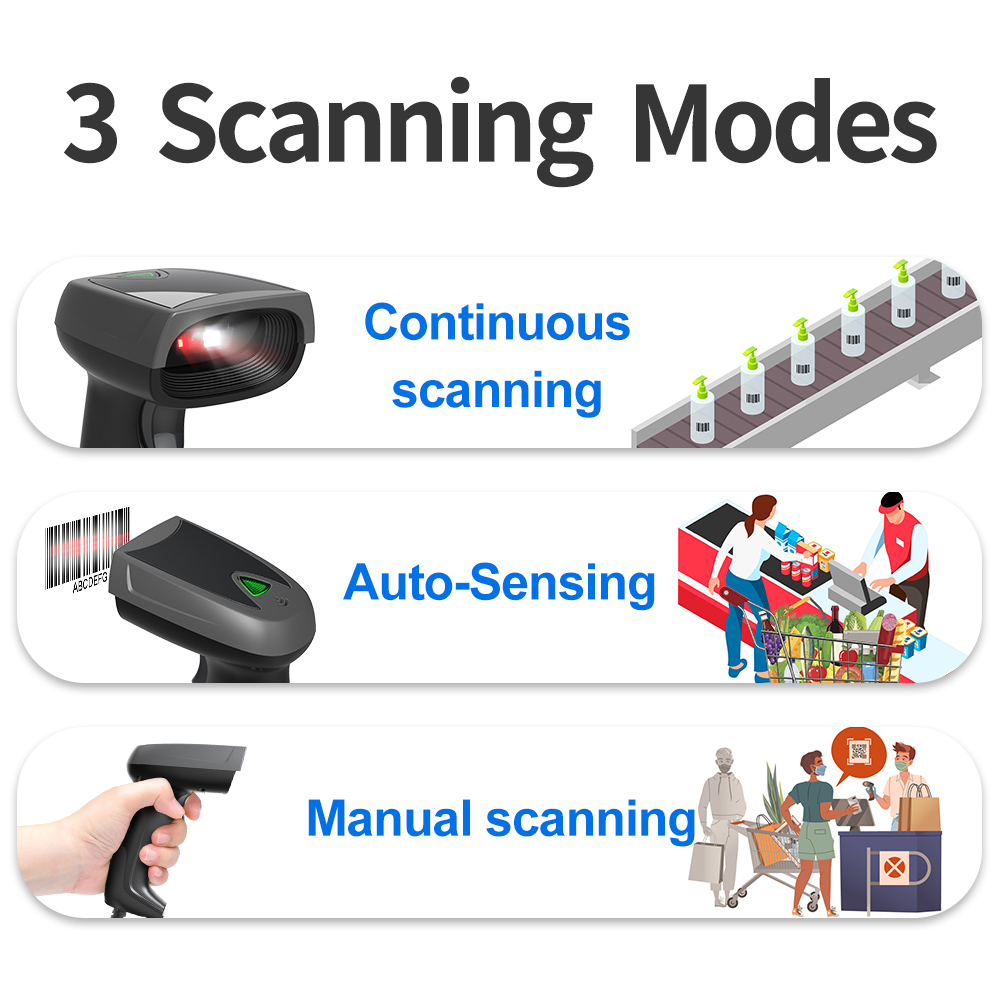

| Trigger Mode | Button trigger mode, self-sensing mode, continuous scan mode | ||||||

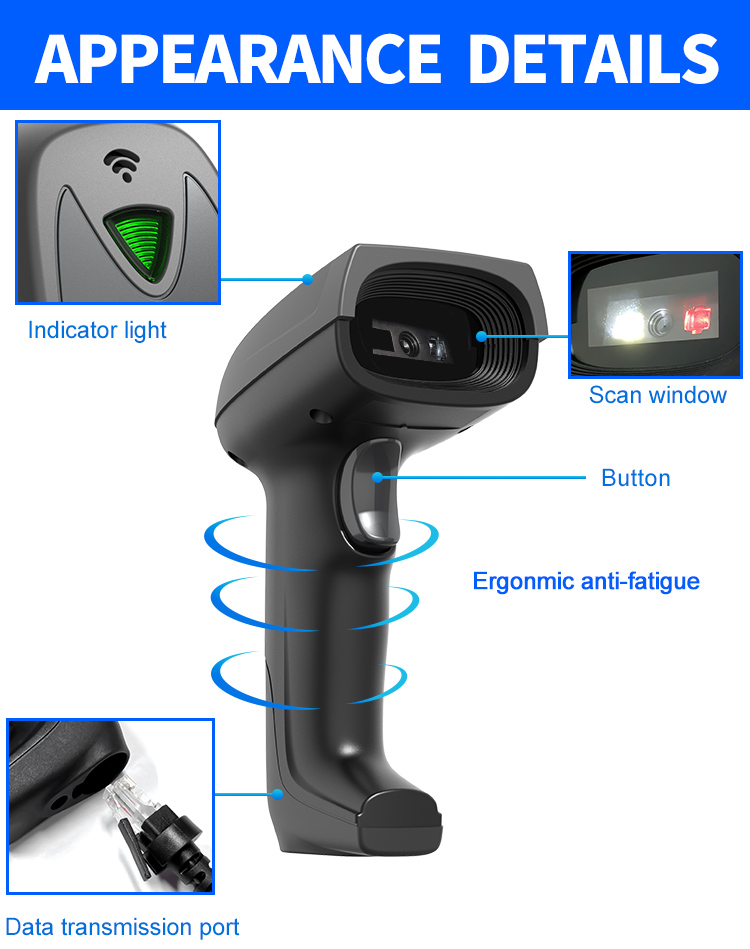

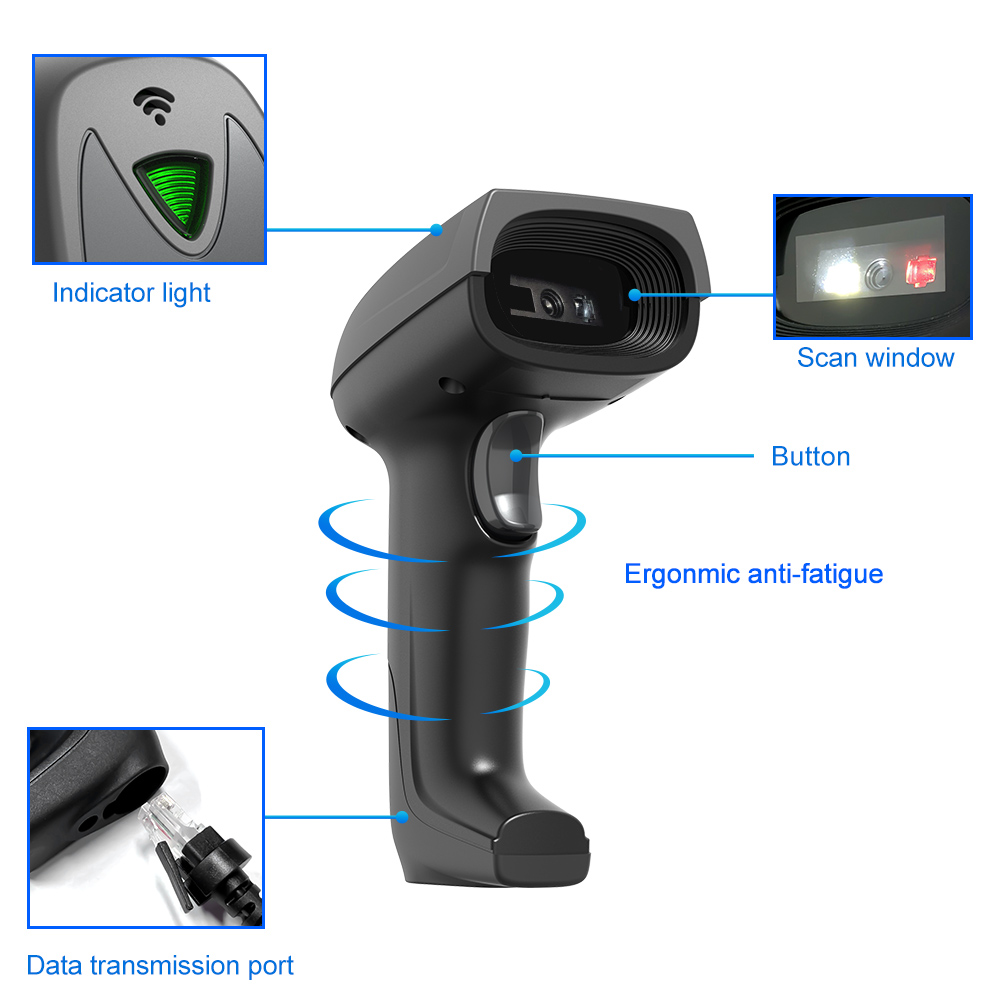

| Prompt Mode | Buzzer, Indicator Light（LED） | ||||||
| Print Contrast | ≥25% | ||||||
| Scanning Angel | Roll 360°，Pitch 55°，Yew 55° | ||||||
| Scan speed | 100 times/sec | ||||||

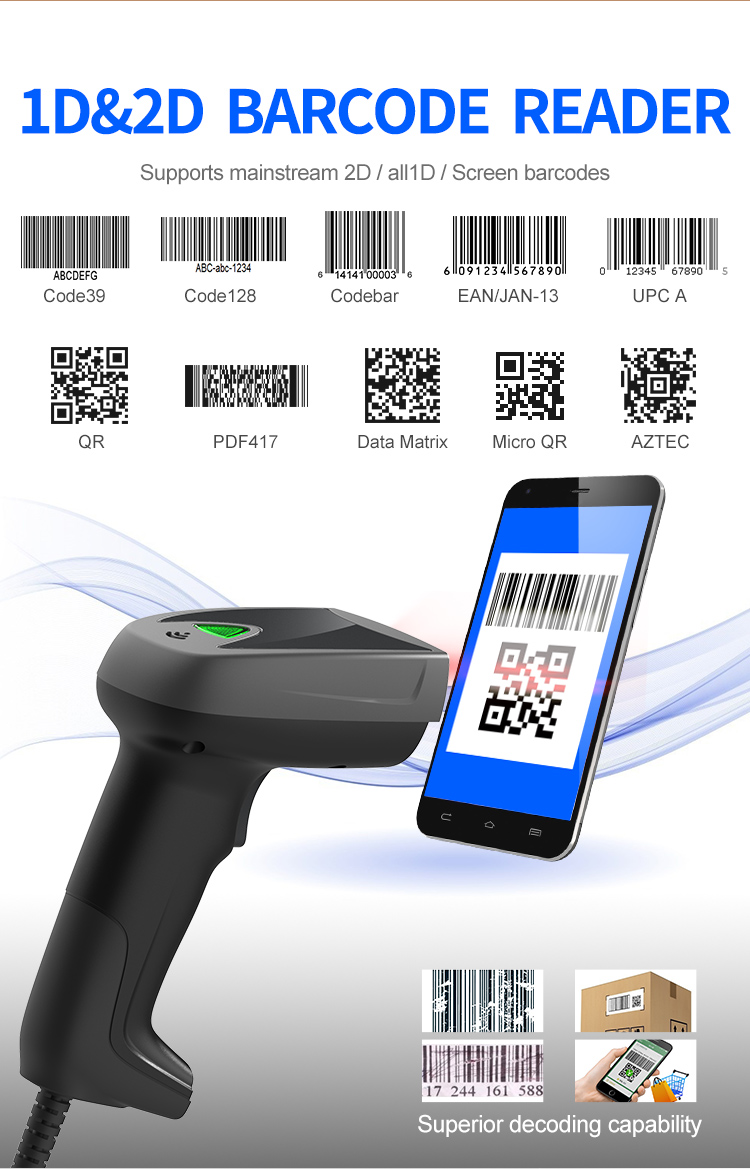

| Decoding Capability | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISB-128 ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 composite code ◎Matrix 2 of 5 ◎Code 32 | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode ◎Micro QR ◎Micro PDF417 | ||||||
| Scanning Depth | QR 7.50mil 15byte：5cm - 10cm QR 10.83mil 16byte：4cm - 16cm Code39 5.83mil 15byte: 6cm - 16cm | ||||||
| Environmental parameters | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||

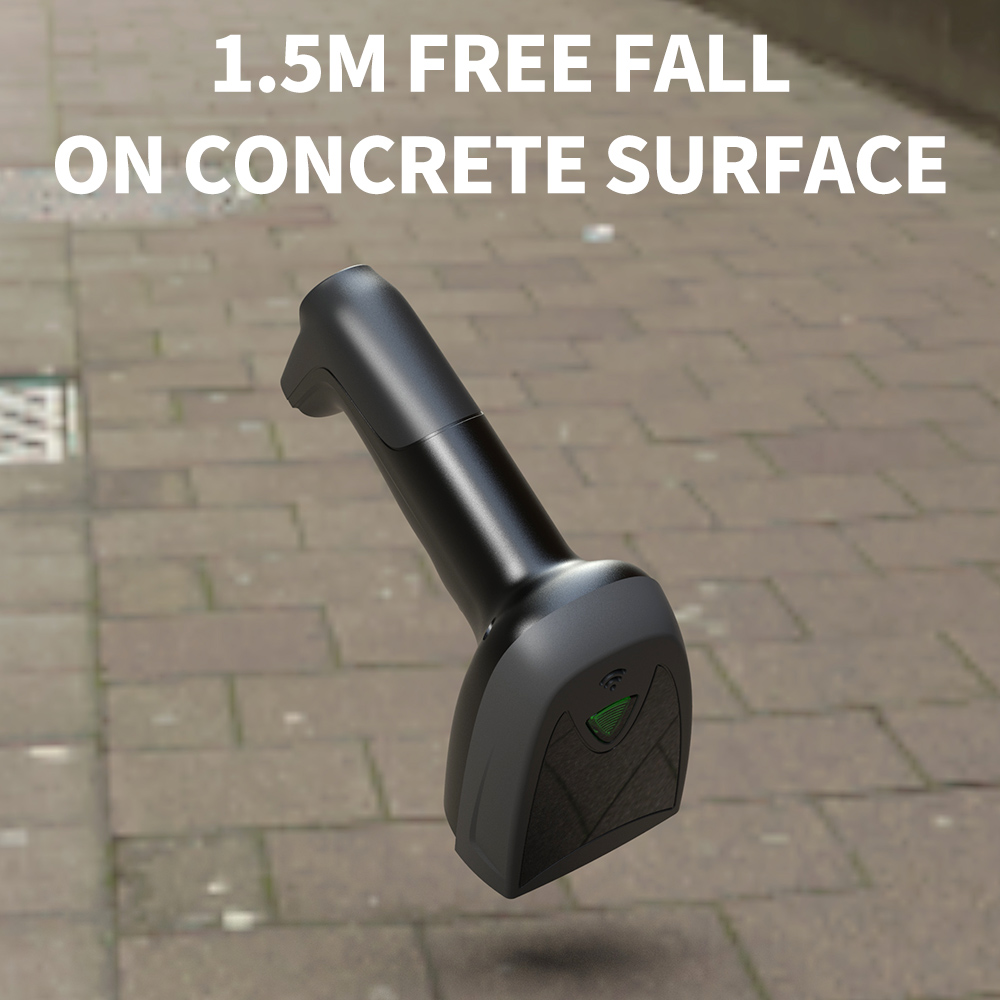

| Shock Resistance | 1.5m free fall on concrete surface | ||||||
| Ambient light | 0→100000Lux | ||||||
