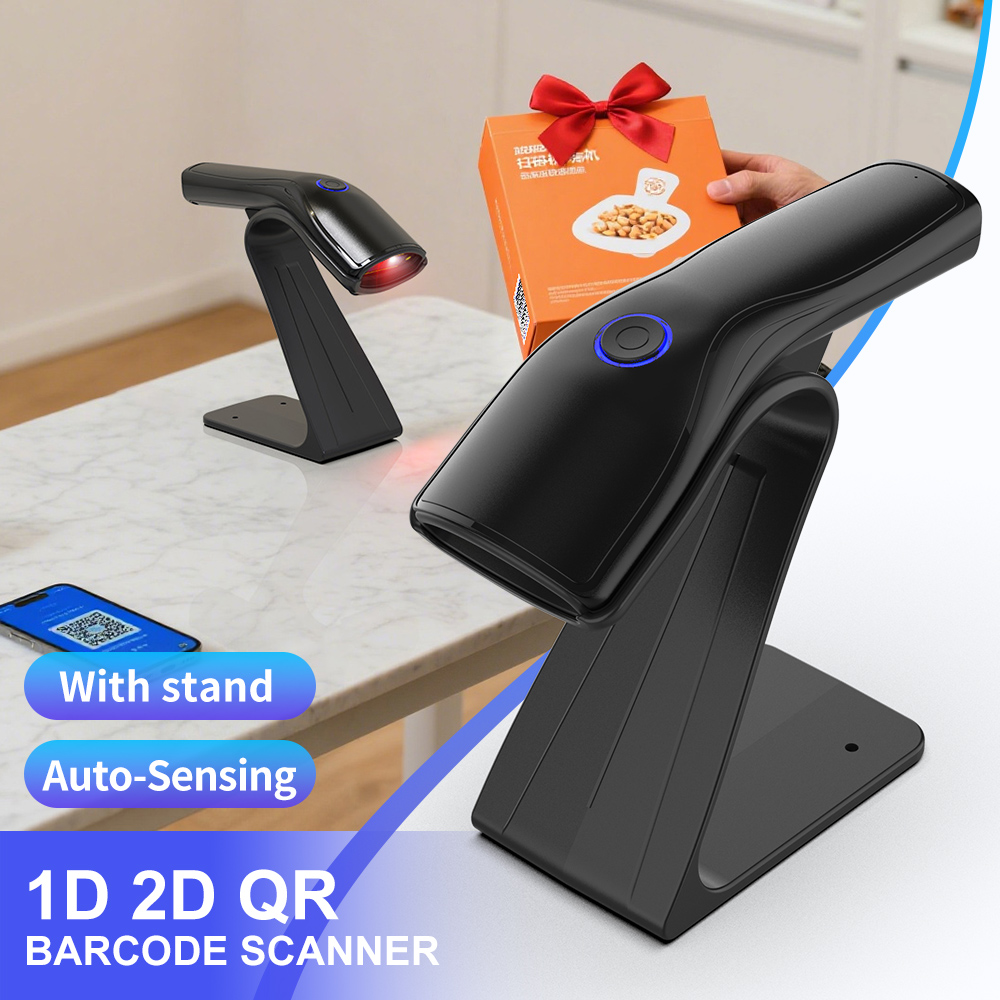

| Model | X-3500B | ||||||
| Item | Wireless 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS + PC + TPU | ||||||
| Power Supply | Charge DC 5V ±5% ; Built-in 3.7V 800mA lithium Battery | ||||||
| Power Consumption | 0.45W(Working); 0.25W(Stand by); 0.80W(Maximum) | ||||||
| Weight | 108g±5g(Excluding wire) | ||||||

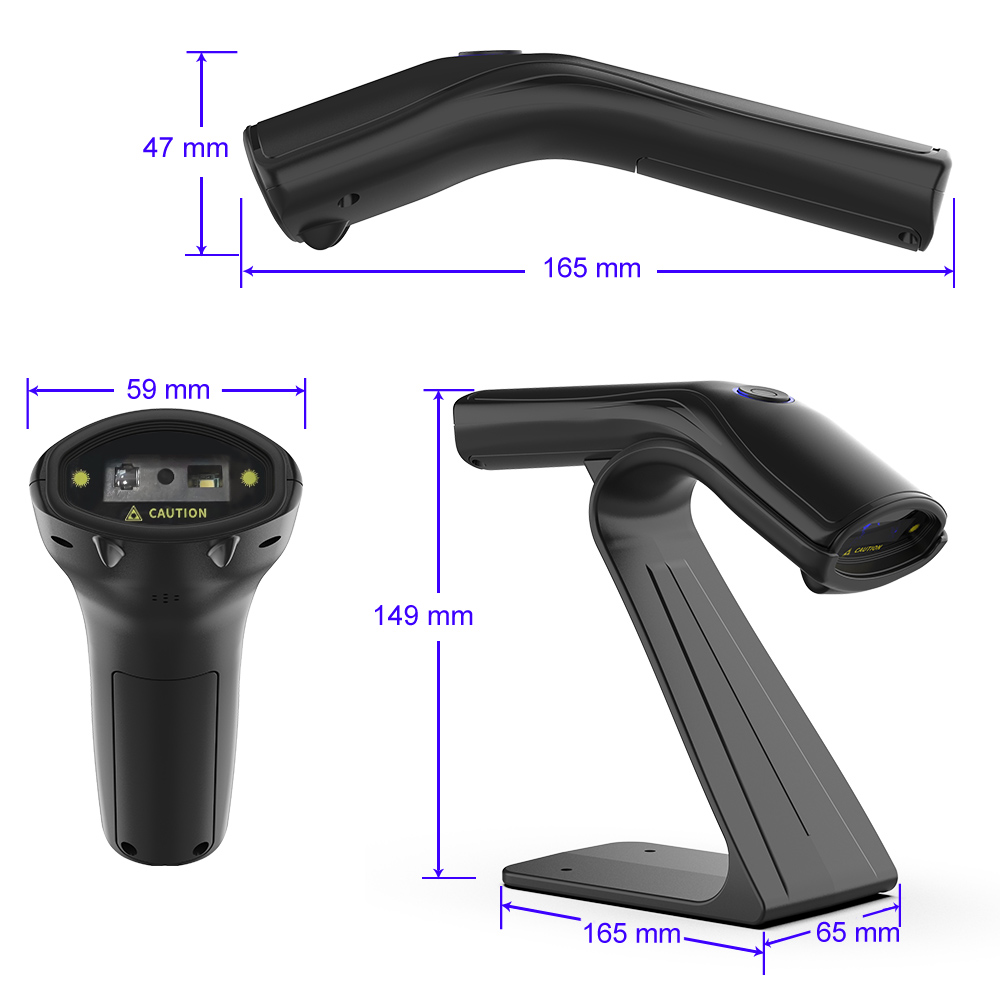

| Size | scanner | L * W * H:165 * 47 * 59(Unit/mm) | |||||

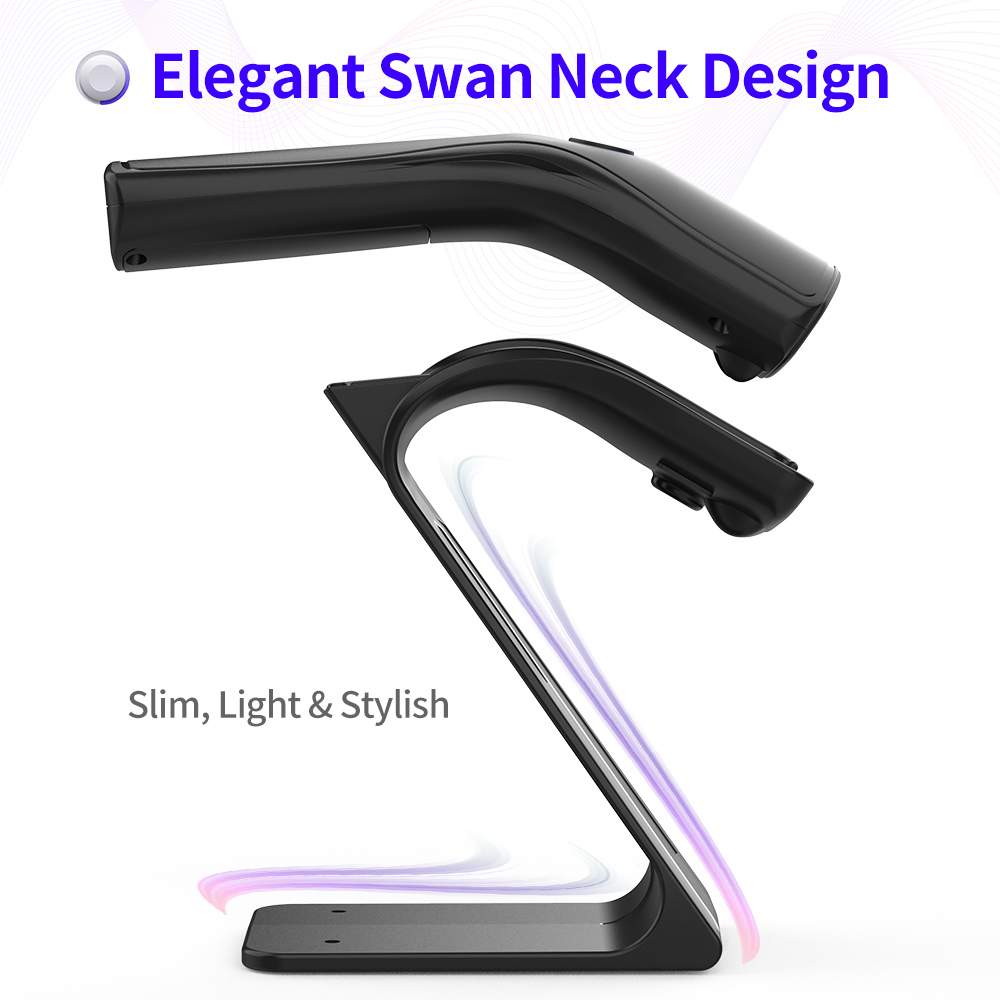

| bracket | L * W * H:136.70 * 126.20 * 64.95(Unit/mm) | ||||||
| Color | Black; White | ||||||
| Button life | >100000 | ||||||
| Performance Parameter | |||||||

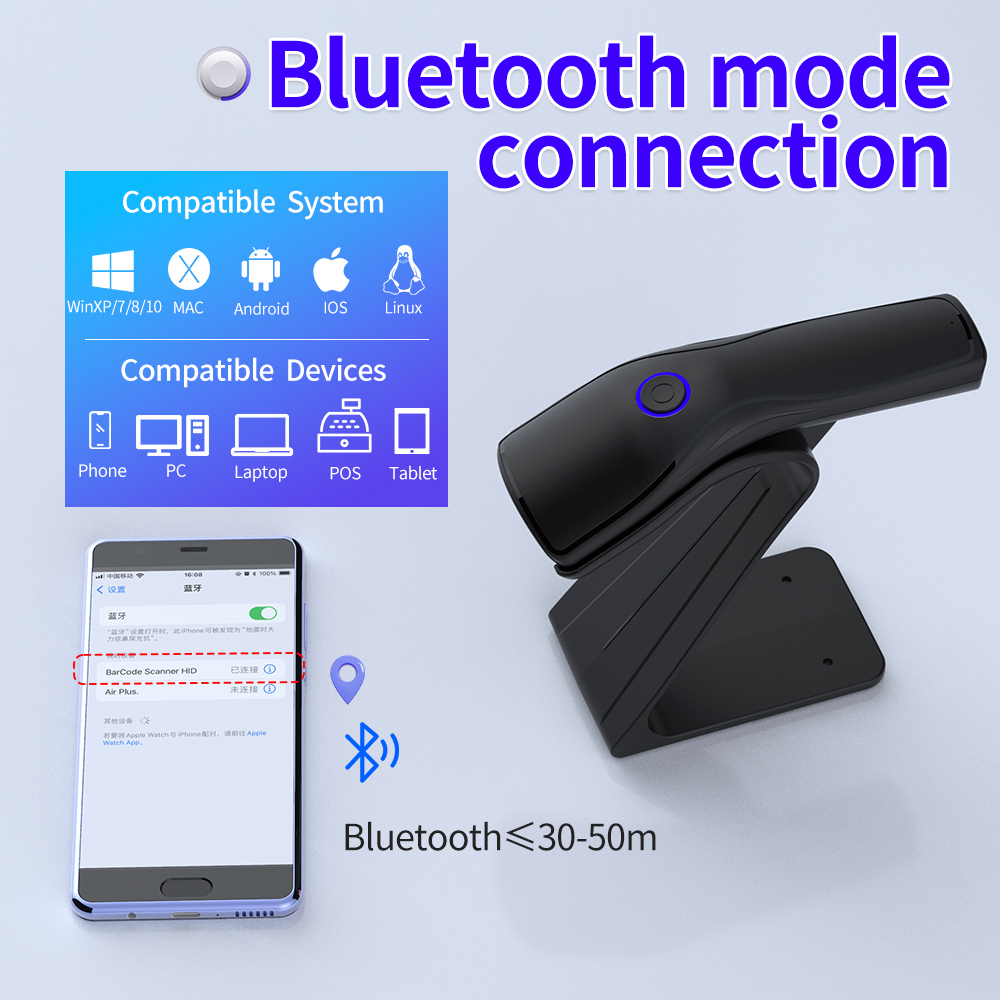

| Interface | USB;2.4G;Bluetooth | ||||||
| System Supported | Linux,Android,Windows XP,7,8,10,MAC | ||||||
| Language Supported | "English - US; French - Canada; Dutch - Netherlands; Spanish - International; Latin American - Argentina; Portuguese - Brazil; Danish - Denmark; English - UK; Italian - Italy 142; French - France; German - Germany; Portuguese - Portugal; Finnish - Finland; Turkish - F; Japanese; Russian - Russia; North Sami - Norway [Supports keyboards from multiple countries]“ | ||||||

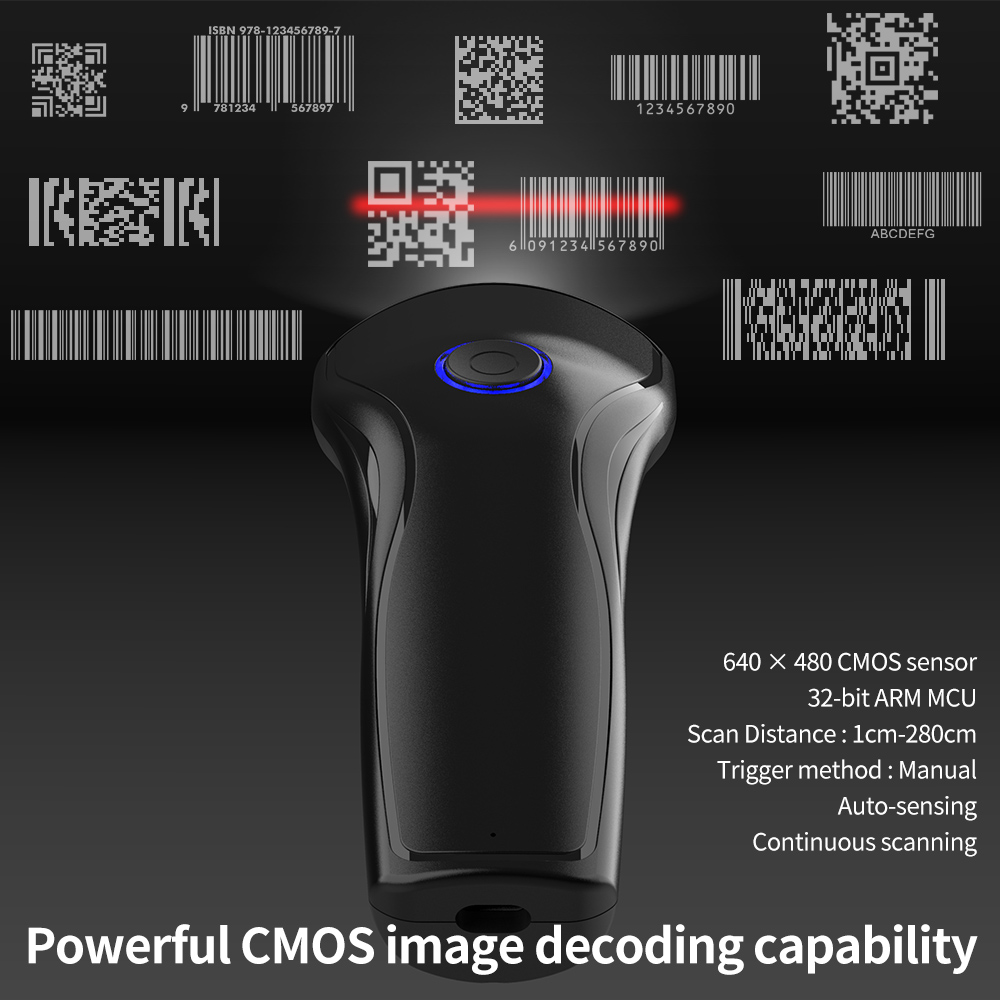

| Sensor | CMOS sensor 480 * 640 | ||||||
| Processor | 32-bit ARM MCU | ||||||
| Storage | 512 KB (customizable capacity) | ||||||
| Light Source | White LED illumination+red LED positioning | ||||||
| Motion Tolerance | Code128: 40cm/sec QR: 45cm/sec | ||||||

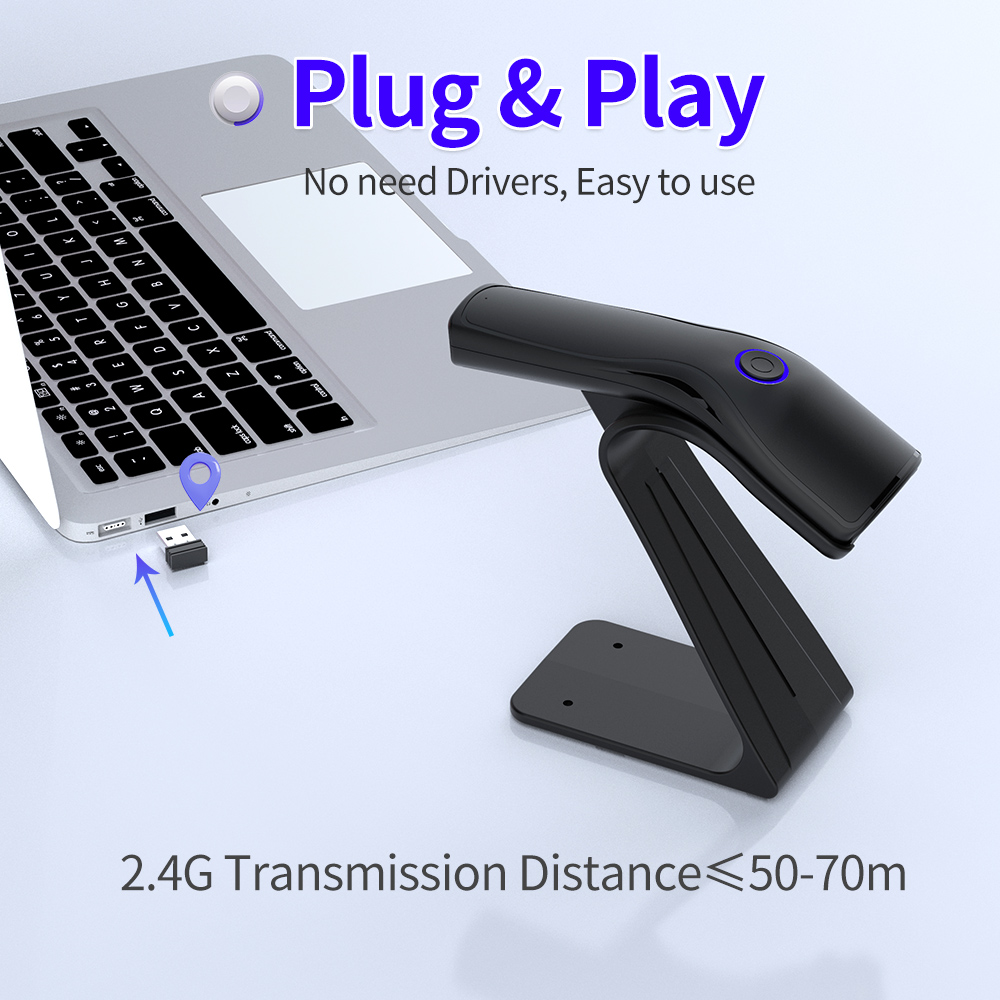

| Wireless Transmission Distance | 2.4G≤90m(Visual range) Bluetooth≤60m(Visual range) | ||||||
| Reading Mod | Image | ||||||
| Resolution | ≥4mil | ||||||
| Bit error rate | 1/500 | ||||||

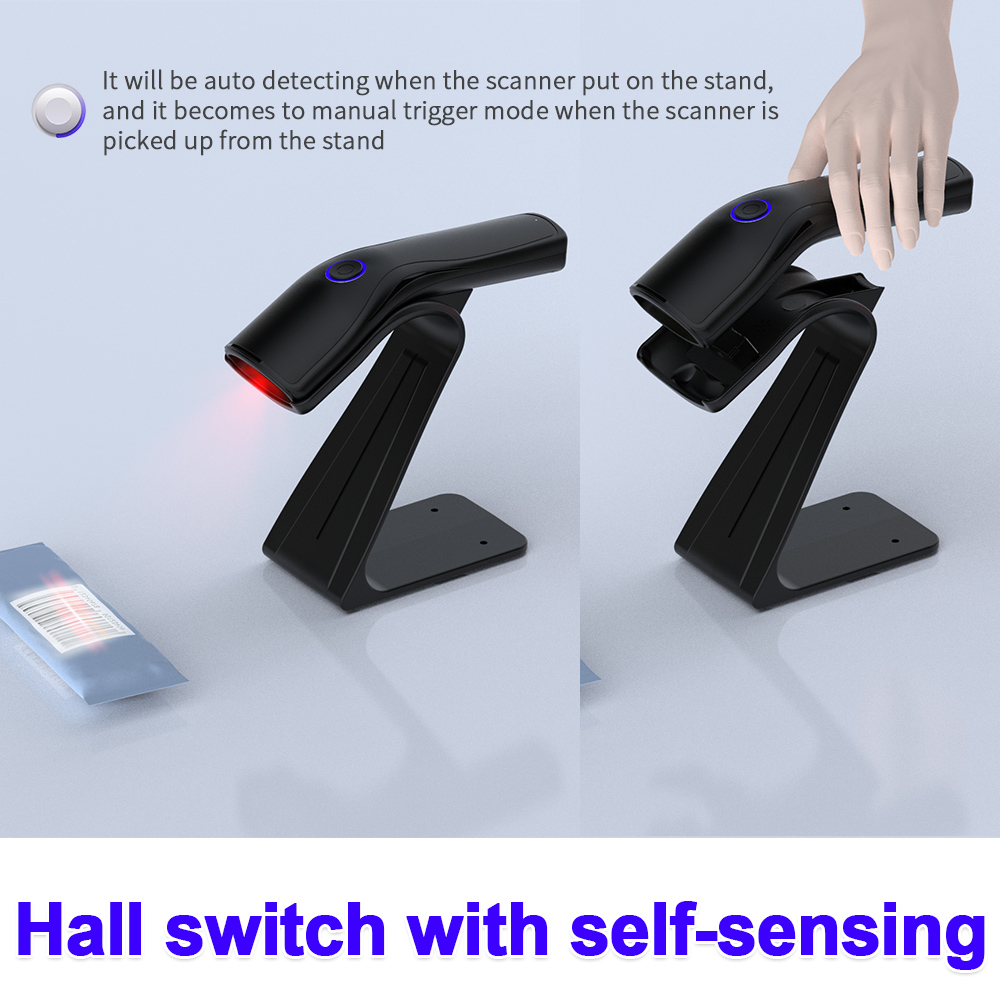

| Trigger Mode | Key triggering mode; Continuous scanning mode; Self sensing mode | ||||||
| Prompt Mode | Buzzer+indicator light+vibration (optional) | ||||||
| Scaning Angle | Tilt ± 55 °, deflect ± 55 °, rotate 360 ° | ||||||
| Reading distance | 1cm-280cm | ||||||
| Print Contrast | ≥25% | ||||||
| Charging Time | appr.2.5h | ||||||
| Working Time | appr.10h | ||||||

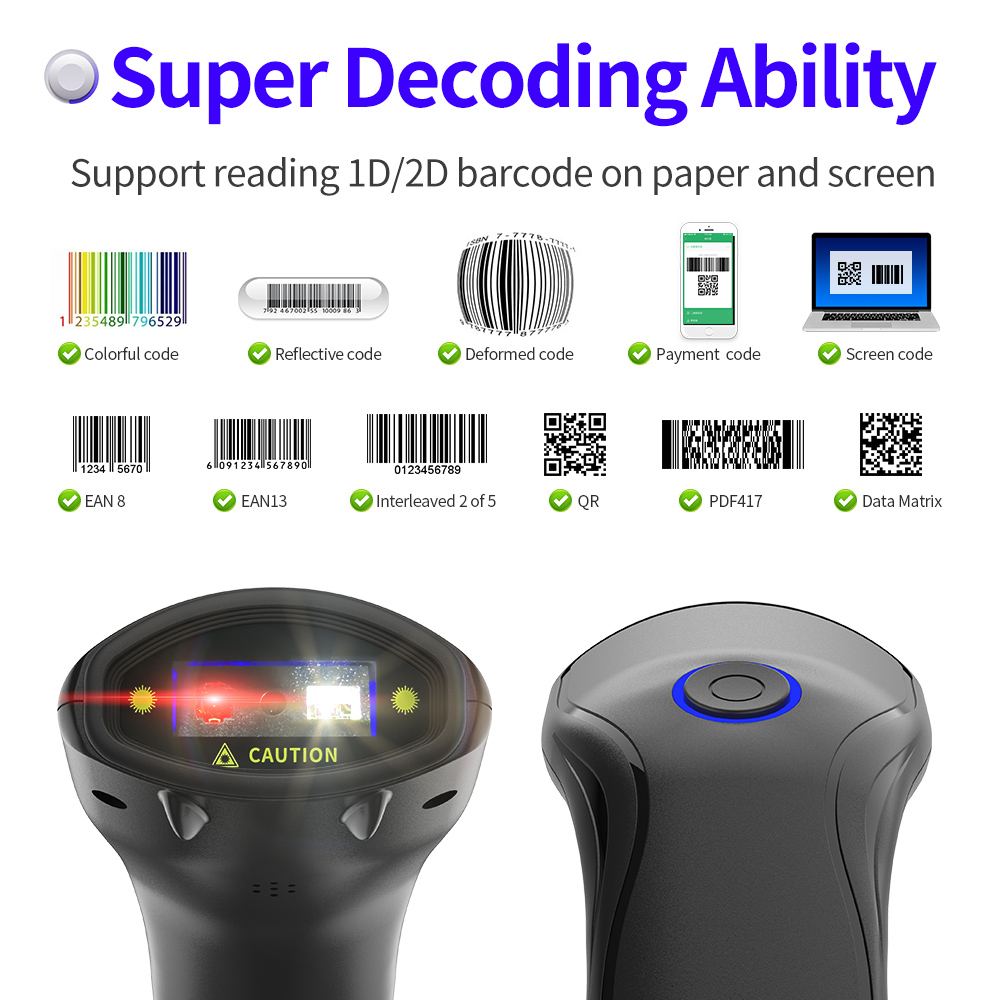

| Decoding Capability | 1D | *Interleaved 2 of 5 *ITF-6 *ITF-14 *ISBN *Code 11 *UCC/EAN-128 *GS1 Databar *Matrix 2 of 5 *Industrial 2 of 5 *Code 128 *EAN-13 *EAN-8 *Code 39 *UPC-A *UPC-E *Codabar *Standard 2 of 5 *Plessey *MSI-Plessey *Code 93 *GS1 composite code *Brazilian bank code | |||||
| 2D | *PDF417 *Data Matrix *QR Code *HanXin *AZTEC *Maxicode *Codablock F *Pharmacode One-Track *Micro QR *Micro PDF417 | ||||||
| Scanning Depth | Code39 5.83mil(15 byte):5cm - 15cm Code128 7.50mil(16 byte):5cm - 21cm Data Matrix 15.83mil(8 byte):3cm - 12cm Code QR 10.83mil(8 byte):1cm - 13cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%(No Condensation) | ||||||
| Storage Humidity | 20% to 85%(No Condensation) | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | Free Fall 1.5m(concrete surface) | ||||||
| Ambient light | 0~100000LUX | ||||||
