| GT-3303 Technical Parameter | |||||||
| Model | GT-3303 | ||||||

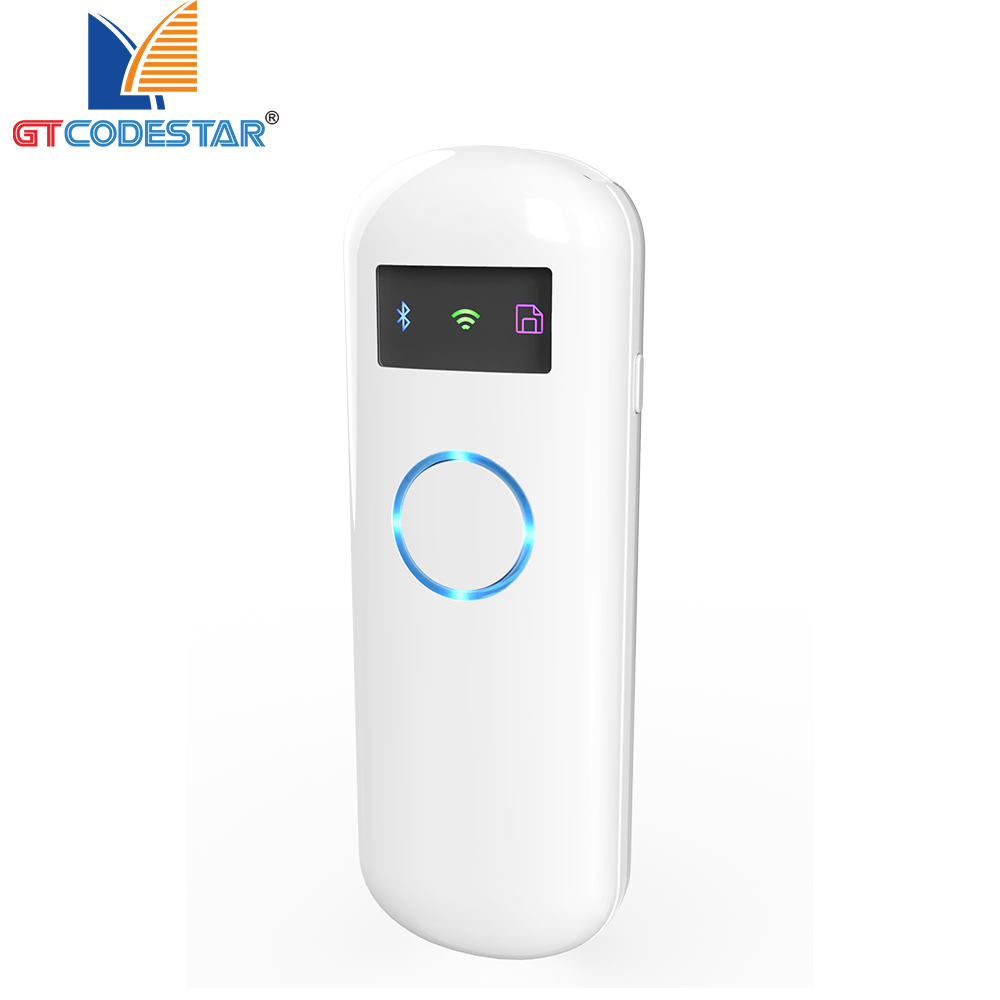

| Item | Portable Wireless 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS + PC | ||||||
| Power Supply | DC 5V ±5% ; 3.7V 1000mA lithium Battery | ||||||
| Power | 0.41W(Working); 0.20W(Stand by); 0.75W(Maximum) | ||||||
| Weight | 76g±5g(Without Cable) | ||||||

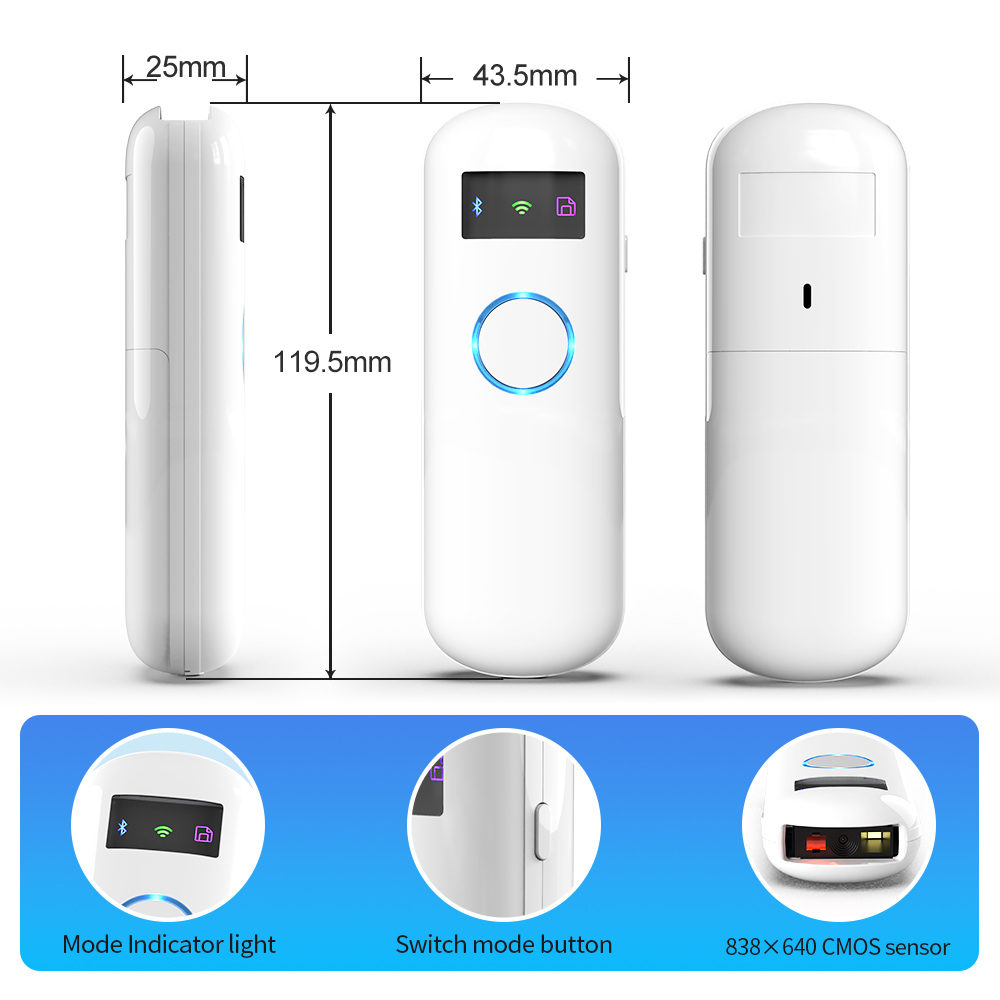

| Size | L * W * H:119.5 *42.4 * 25.0(Unit:mm) | ||||||
| Color | white | ||||||
| Button life | >100000 | ||||||
| Performance Parameter | |||||||
| Interface | USB;2.4G;Bluetooth | ||||||
| System Supported | Linux,Android,Windows XP,7,8,10,MAC | ||||||
| Language Supported | English-US; French-Canada; Dutch-Netherlands; Spanish-International; Latin American-Argentina; Portuguese-Brazil; Danish-Denmark; English-UK; Italian- Italy142; French-France; German-Germany; Portuguese-Portugal; Finnish- Finland; Turkish-F; Japanese;Russian-Russia; Northern Sami - Norway [Supports keyboards from multiple countries] | ||||||
| Sensor | 838×640 CMOS | ||||||
| Processor | 32-bit ARM MCU | ||||||
| Storage | 512 KB(Capacity can be customized) | ||||||
| Light Source | White LED lighting+red LED positioning | ||||||
| Motion Tolerance | Code128: 35cm/sec QR: 45cm/sec | ||||||
| Wireless transmission distance | 2.4G≤90m(Visible range) Bluetooth≤60m(Visible range) | ||||||
| Reading Mod | Image | ||||||
| Resolution | ≥5mil | ||||||
| Bit error rate | 1/5000000 | ||||||
| Key function | 1. Side button (double-click to enter storage mode+long press for 8 seconds to shut down) 2. Main button (click scan mode+long press for 10 seconds to enter Bluetooth mode) | ||||||
| Trigger Mode | Key triggered mode; Continuous scanning mode; Self sensing mode | ||||||
| Prompt Mode | Buzzer+indicator light+vibration | ||||||
| Scaning Angle | Corner 360 °, horizontal ± 60 °, vertical ± 60 ° | ||||||
| Scan Distance | 2cm-200cm | ||||||
| Print Contrast | ≥30% | ||||||
| Charging Time | appr.3.5h | ||||||
| Working Time | appr.9h | ||||||
| Decoding Capability | 1D | ■ Interleaved 2 of 5 ■ Code25-Standard ■ Matrix 2 of 5 ■ ITF-14 ■ ITF-6 ■ Code39 ■ Code93 ■ ISBN ■ Code128 ■ Code11 ■ UPCE ■ EAN/GS1/UCC-128Auto ■ Codabar ■ MSI ■ EAN/JAN-13 ■ UPC-A ■ JAN/EAN-8 ■ GS1 Databar(RSS) ■ Industrial 2 of 5 ■ ISS | |||||
| 2D | ■ Data Matrix ■ QR ■ PDF417 ■ Micro QR ■ Micro PDF 417 ■ Aztec | ||||||
| Scanning Depth | QR 9.17 mil：3cm - 9cm Data Matrix 12.50mil：2cm - 8cm Code93 10.83mil：2cm - 18cm EAN13 10.83mil：3cm - 19cm Refund code: 28 bytes: 4cm - 20cm Wechat Pay QR code: 4cm - 45cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%(No Condensation) | ||||||
| Storage Humidity | 20% to 85%(No Condensation) | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | Free Fall 1.2m(concrete surface) | ||||||
| Ambient light | 0→100000Lux | ||||||
