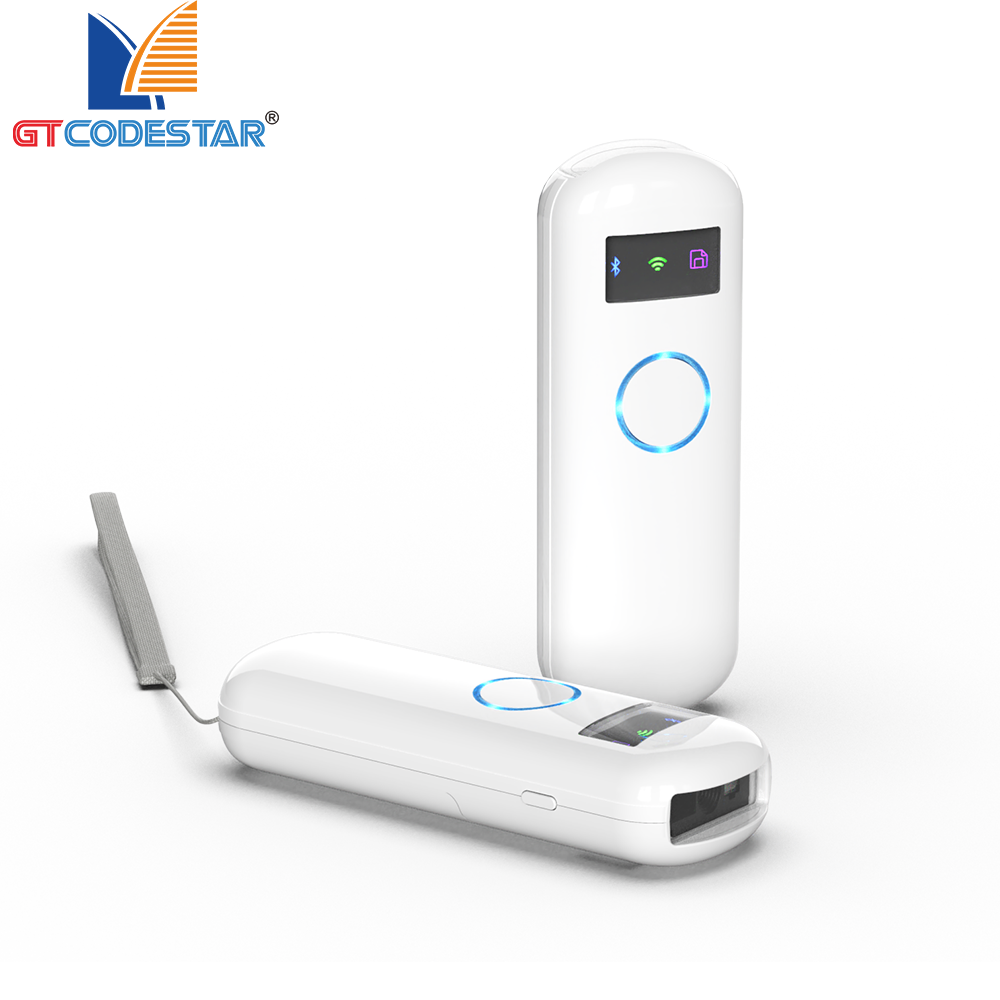

| GT-265B Technical Parameter | |||||||
| Model | GT-265B | ||||||
| Item | Portable 2D Wireless Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PVC+PC | ||||||
| Power Supply | Charge DC 5V ±5% ；Built-in 3.7V 1000mA lithium Battery | ||||||
| Power | 0.41W（Working）;0.2W（Standby）;0.75W（Maximum） | ||||||
| Weight | 76g±5g（Without wire） | ||||||

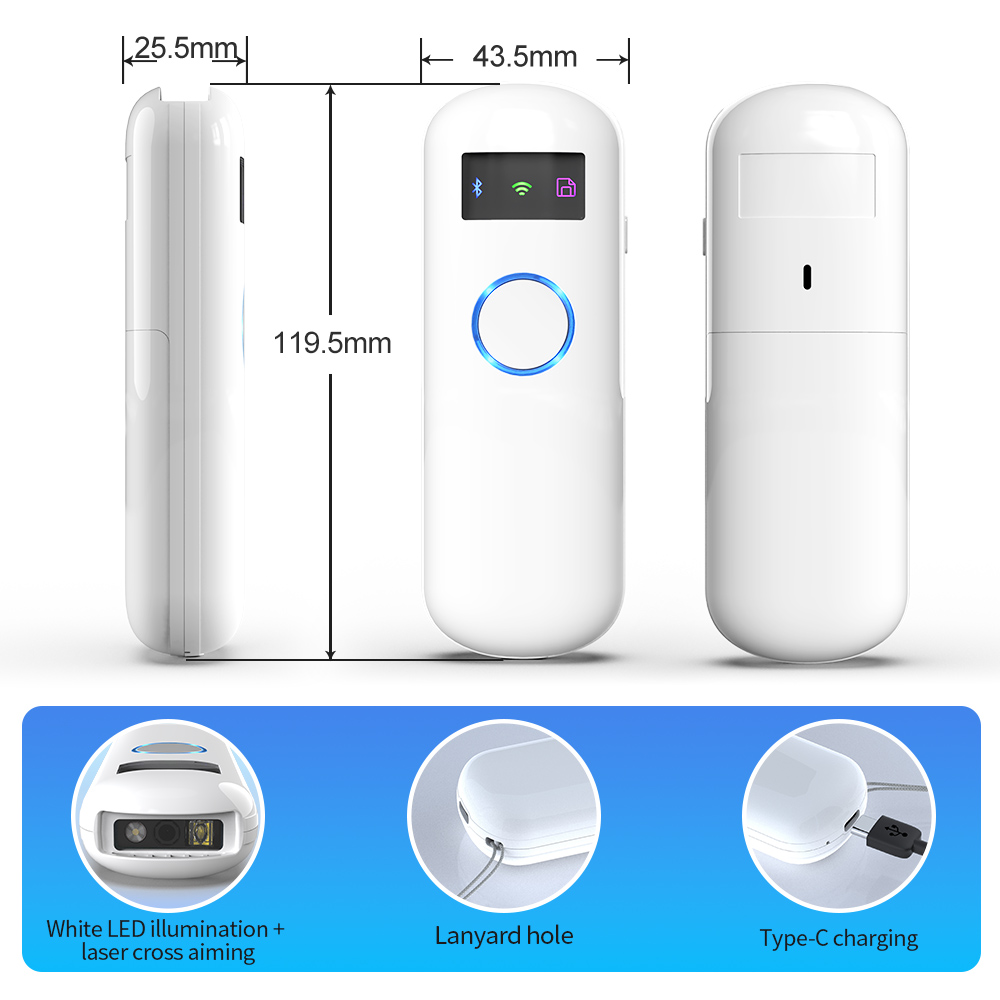

| Size | L * W * H：119.5*42.4*25.0（Unit/mm） | ||||||
| Color | White | ||||||
| Button life | ＞100000 | ||||||
| Performance Parameter | |||||||

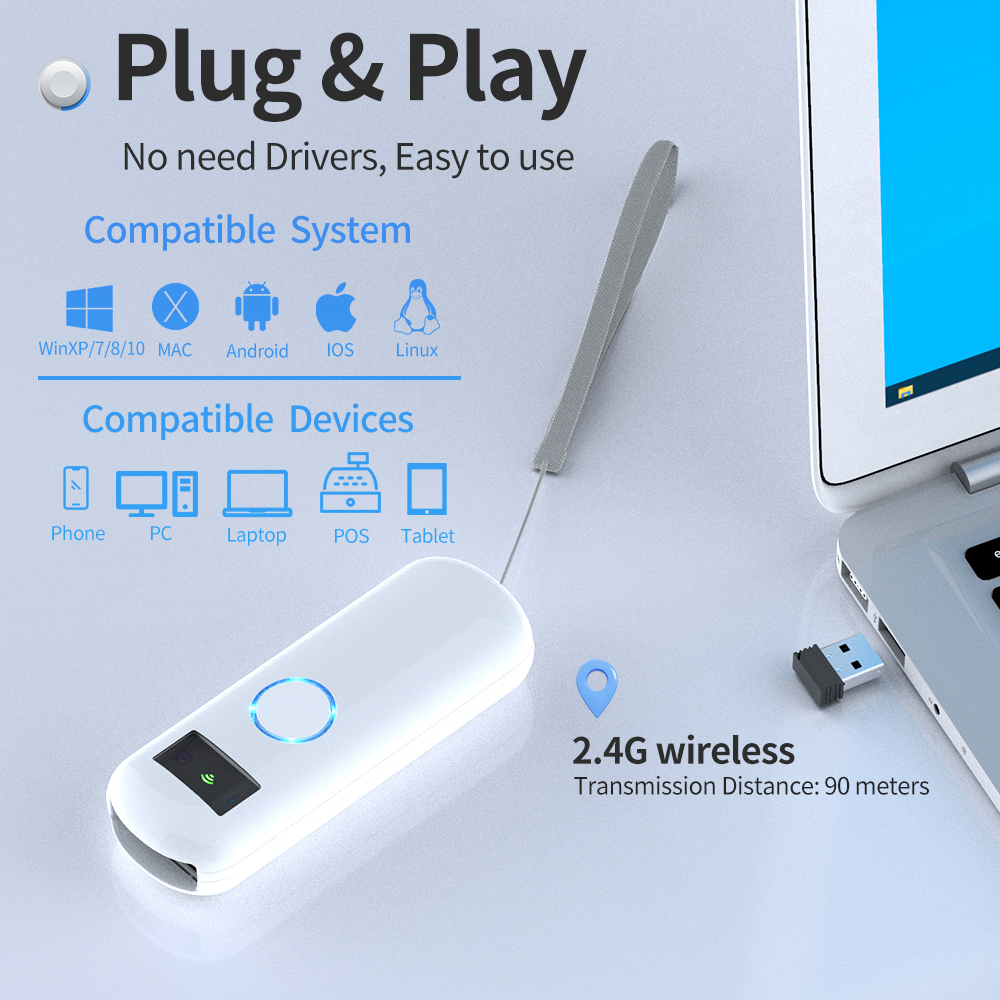

| Interface | USB；2.4G；Bluetooth | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English-United States; French-Canada; Dutch-Netherlands; Spanish-International; Latin American-Argentina; Portuguese-Brazil; Danish-Denmark; English-UK; Italian-Italy 142; French-France; German- Germany; Portuguese-Portugal; Finnish-Finland; Turkish-F; Japanese; Russian-Russia; Northern Sami-Norway [Support multi-country keyboard] | ||||||
| Processor | 32-bit ARM MCU | ||||||
| storage | 512 KB (capacity can be customized) | ||||||
| Light Source | White LED lighting + cross-shaped red LED positioning | ||||||

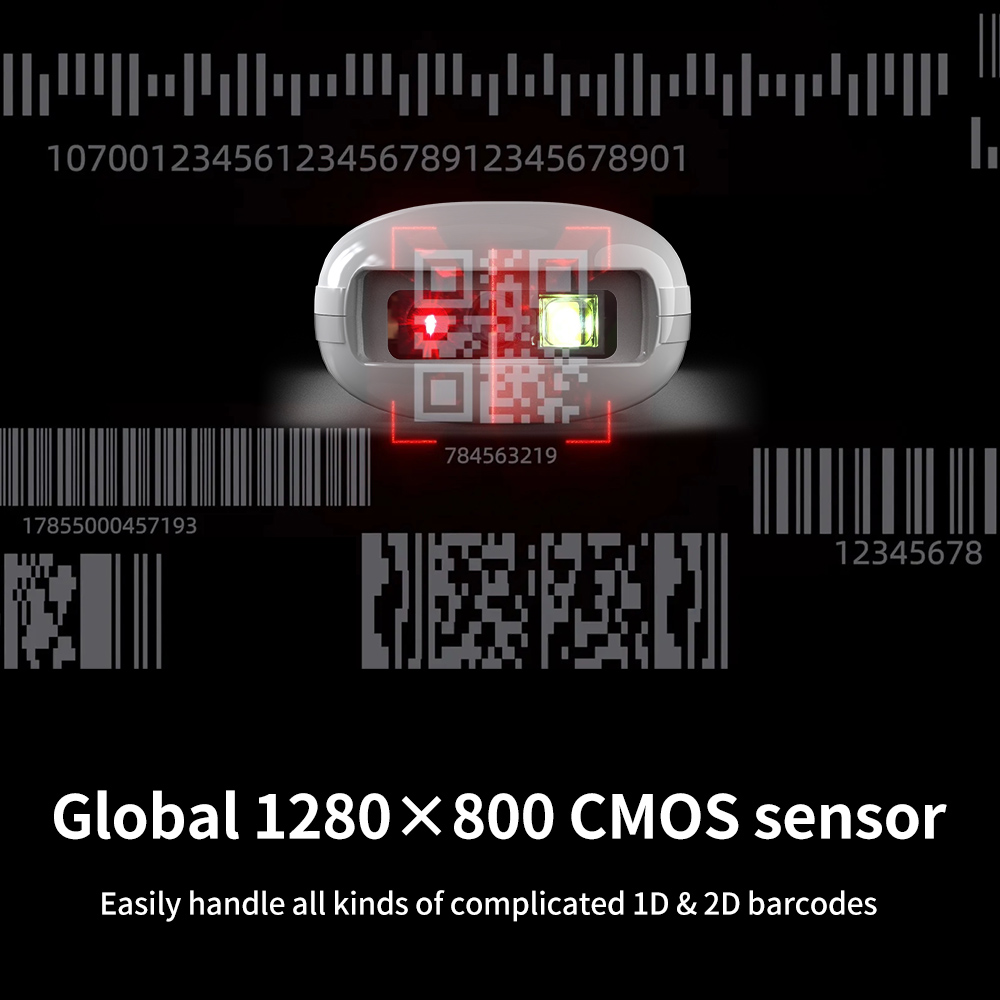

| Sensor | Global 1280x800 CMOS sensor | ||||||
| Reading Mode | Image | ||||||
| Resolution | ≥4mil | ||||||

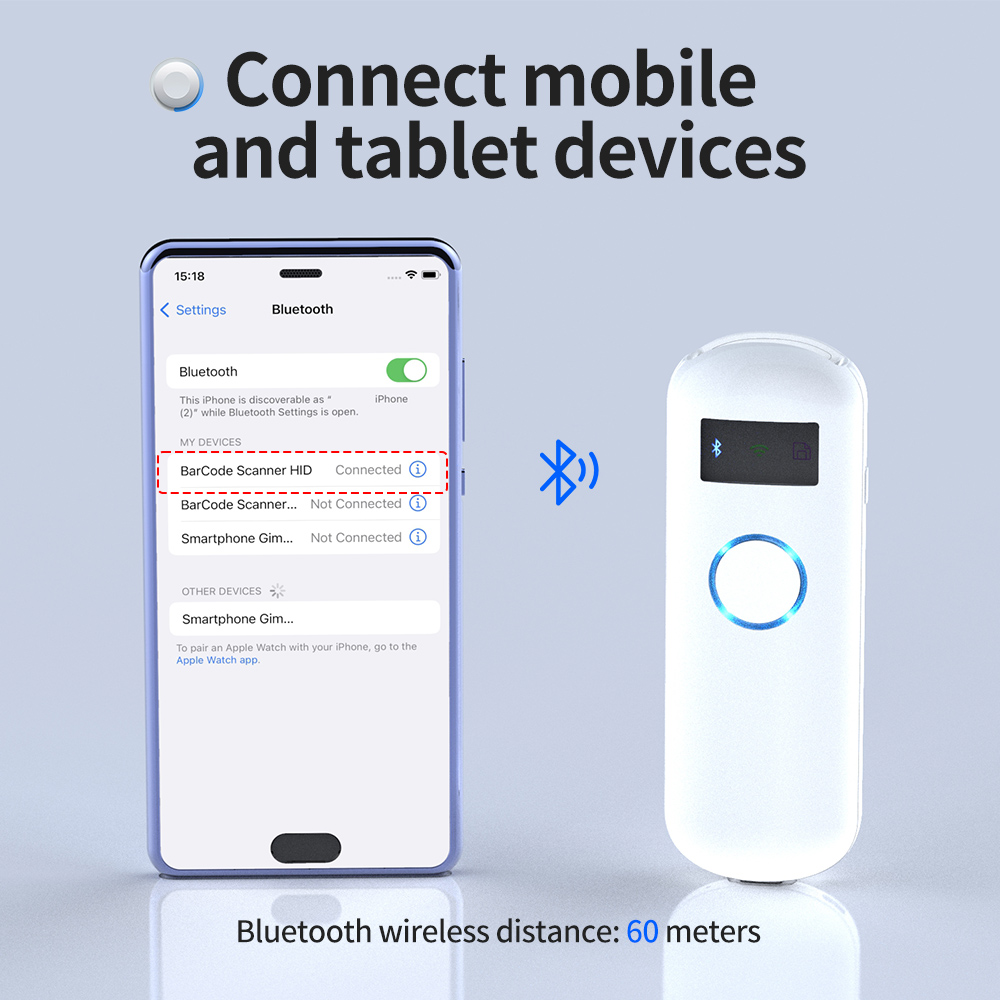

| Wireless transmission distance | 2.4G≤80m（Visual range） Bluetooth≤60m（Visual range） | ||||||
| Bit error rate | 1/5000000 | ||||||
| Trigger Mode | Manual;Auto-Sensing;Continuous scanning | ||||||
| Prompt Mode | Buzzer + indicator light + vibration | ||||||

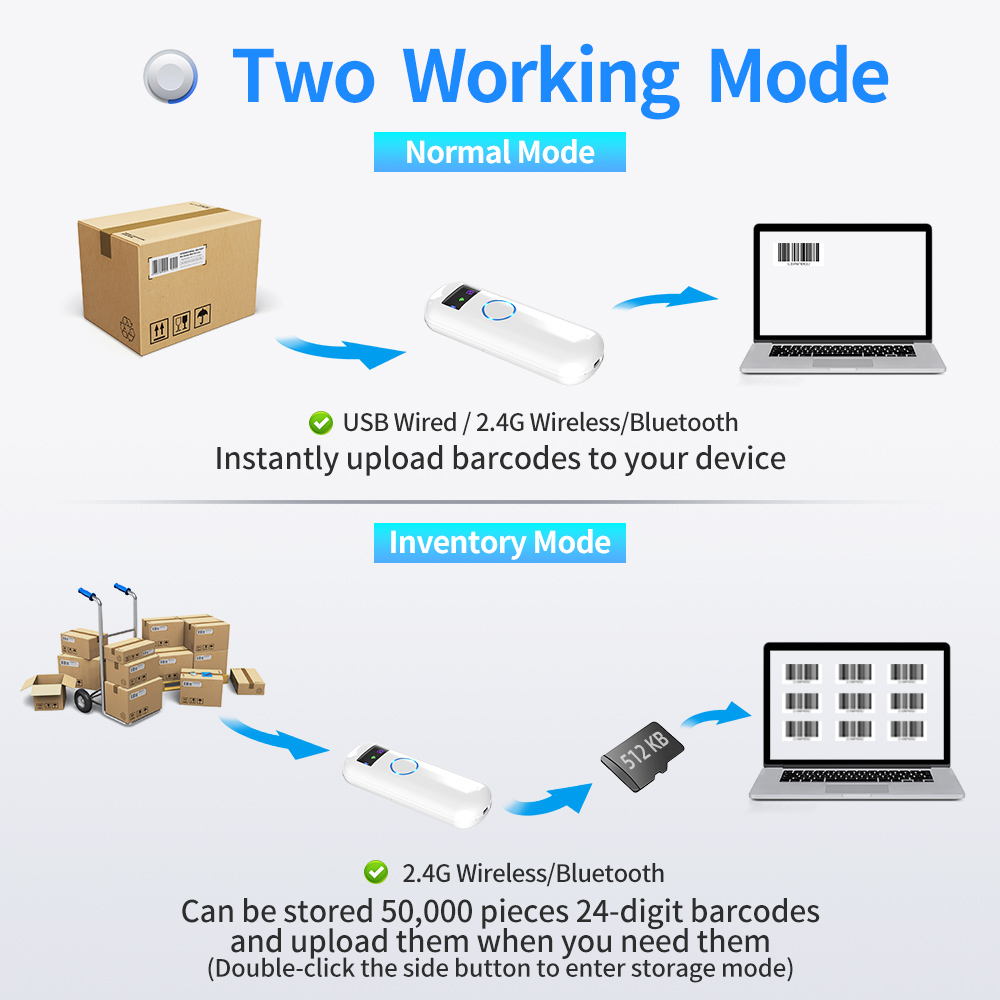

| Key function | 1.Side button: (Double-click to enter storage mode + long press for 8 seconds to power off) 2. Main button: (Click to scan mode + long press for 10 seconds to enter Bluetooth mode) | ||||||
| Motion tolerance | Code128： 75cm/sec QR： 80cm/sec | ||||||
| Recognition angle | Rotate 360°, horizontal 39°, vertical 26° | ||||||
| Reading Distance | 1cm-300cm | ||||||
| Print Contrast | ≥25% | ||||||
| Charging time | appr.3.5h | ||||||
| Working Time | appr.9h | ||||||
| Decoding Capability | 1D | ◎Code128 ； ◎Code39 ； ◎Code 39 fullascii； ◎Trioptic Code39； ◎Code 32； ◎Code93； ◎UPC-A； ◎UPC-E； ◎UPC-E1； ◎UPC-E+； ◎UPC-A+； ◎EAN8/JAN8； ◎EAN13/JAN13； ◎Bookland EAN/ISBN； ◎Interleaved 2 of 5 ； ◎Matrix 2 of 5 ； ◎Industrial 2 of 5； ◎Chinese 2 of 5； ◎Codebar； ◎Code 11 ； ◎MSI ； ◎ISBT ； ◎GS1-128 ； ◎GS1Databar14； ◎GS1 Databar Limited ； ◎GS1 Databar Expanded； ◎邮政码 | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode ◎Grid Matrix ◎GS1 QR ◎Micro QR ◎Micro PDF417 ◎GS1 DatamatrixGS1 ◎Combosite(CC-A/CC-B/CC-C) | ||||||
| Scanning Depth | 4.17mil CODE39: 5cm - 13cm 5.83mil CODE39： 6cm - 15cm 12.50mil EAN13： 5cm - 55cm 10.83mil QR： 4cm - 20cm 10.83mil DataMatrix： 4cm - 24cm 7.50mil PDF417： 3cm - 25cm | ||||||
| Environmental parameters | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | Free Fall 1.5m（concrete surface） | ||||||
| Ambient light | 0→100000Lux | ||||||
