| Technical Specification | ||

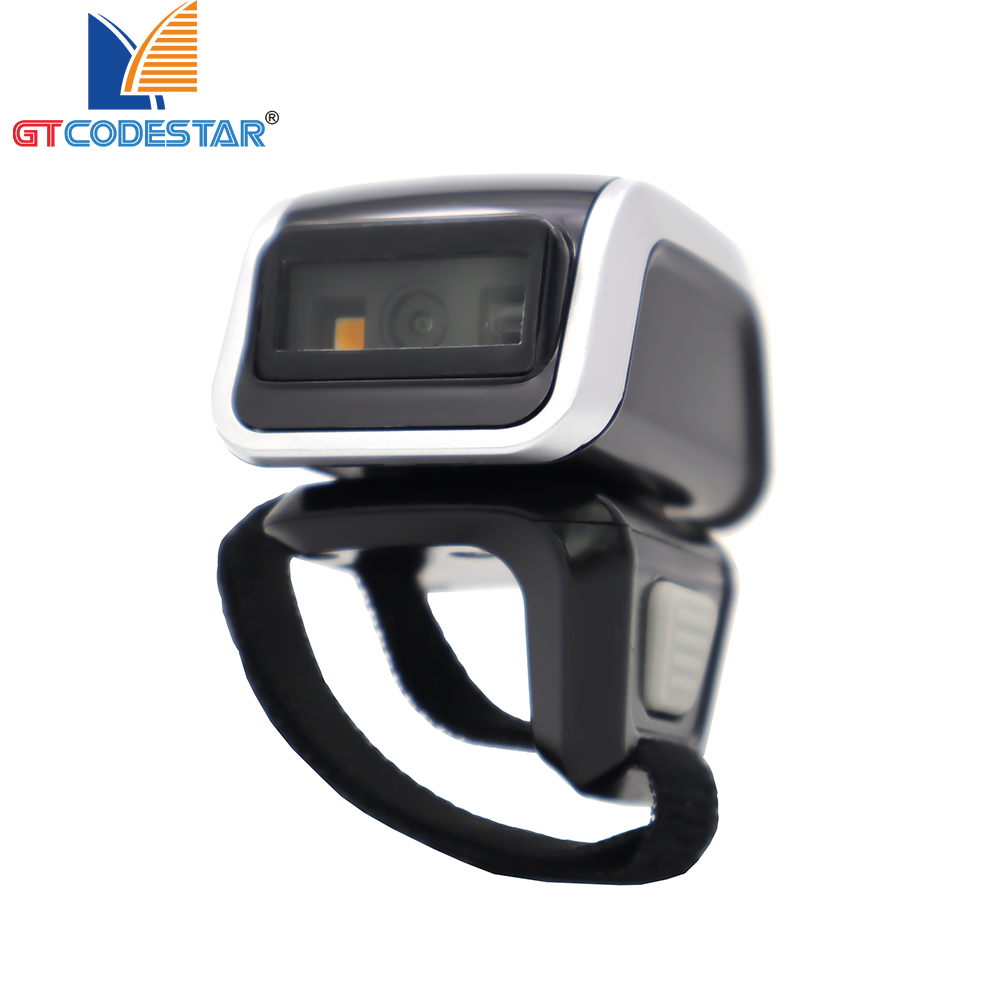

| Product | Model | GT-S102 |
| Model Number | CMOS (HW-6208) Laser(HW-6208L) | |
| Reading performance | Image Sensor | CMOS 640*480 30fps Laser SE950 |
| Resolution | 3mil(laser), 4mil(CCD), 4mil(CMOS, can customize 3mil) | |
| Decoding capacity | Support paper and screen barcodes | |
| 2D: QR, Micro QR, PDF417, Micro PDF417, DataMatrix , AZTEC etc | ||
| 1D: Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey etc. | ||
| Light Source | 625±10nm Visible red LED，white LED Laser 650nm | |
| Scan Angle | Rotation360°,tilt±55°,skew±55° | |
| Min Contrast | 20% | |
| Typical DOF | EAN13(13mul) 50 -260mm Code39(10mil) 35 -205mm FDF417(10mil) 50 - 215mm Data Matrix(10mil) 50 - 160mm QR Code(15mil) 50 - 210mm Performance may be impacted by bar code quality and environmental conditions | |

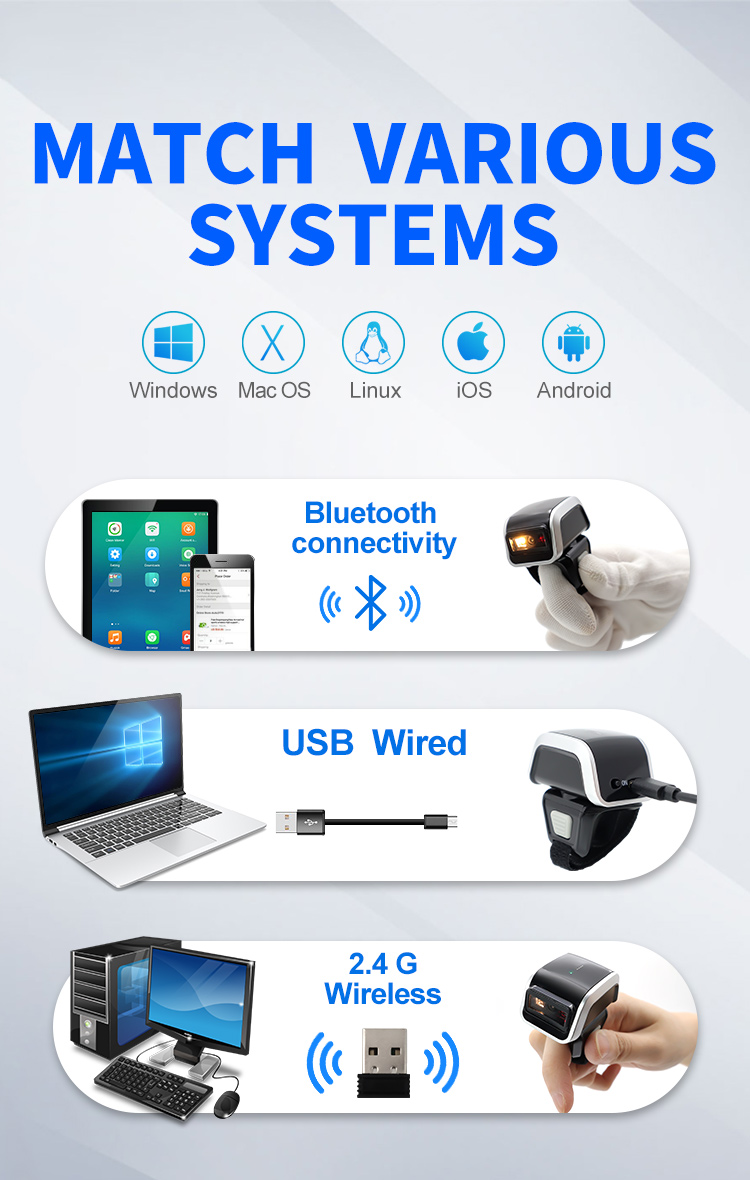

| Mechanical and electrical | Communication | USB(KBW/COM) Bluetooth 2.4GHz RF wireless(USB dongle) |
| Bluetooth Protocol | Bluetooth HID,SPP,BLE | |
| Transmission Distance | Bluetooth—50M 2.4GHz 100M open air | |
| Working Voltage | DC 5±10%VDC | |
| Current & Power | 210mA(working) 7mA(standby) 3uA(sleep) | |

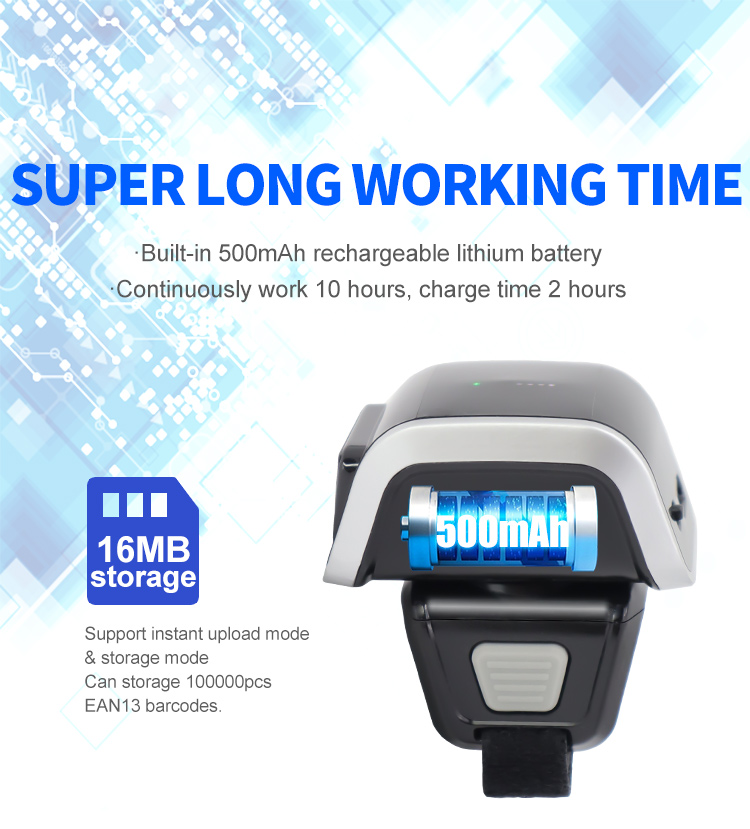

| Battery | 450mAH continuously work 10hours,charge time 3-4H | |
| Memory Size | 16MB store 10K barcodes | |
| Dimensions | 85*30*18mm | |
| Weight | 38g cable length 0.9M | |

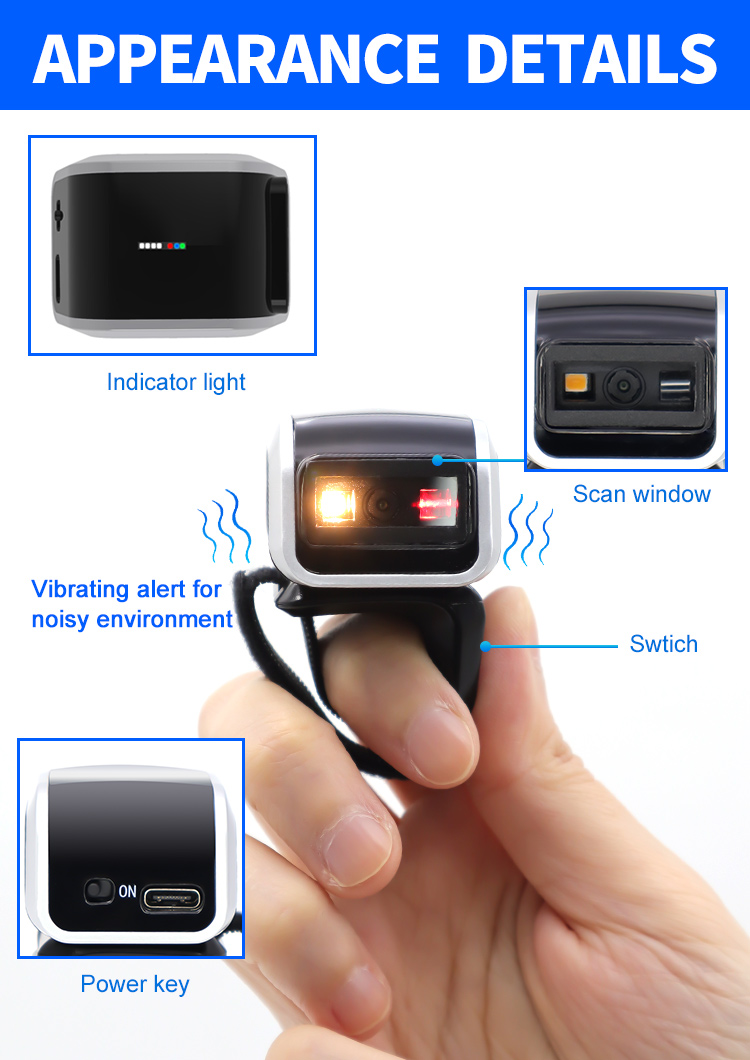

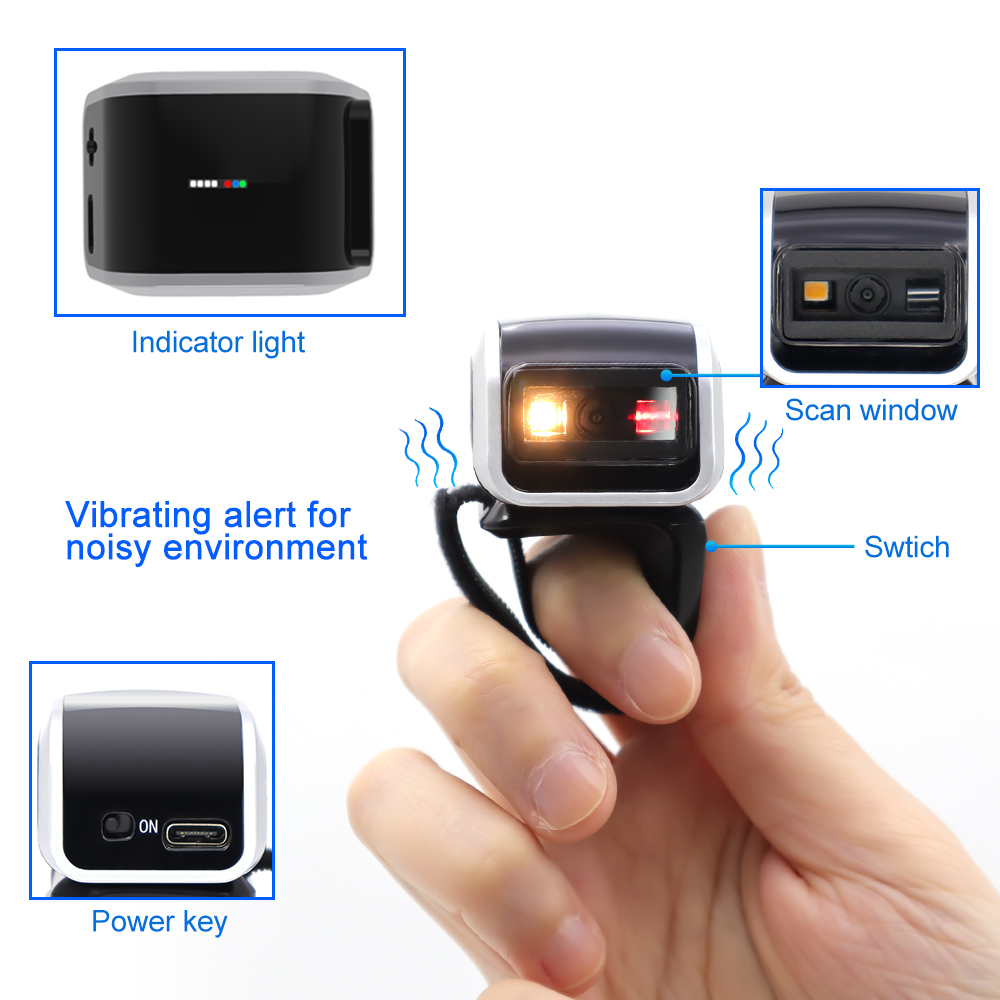

| Indication | Buzzer & LED | |
| Material | ABS+TPR | |
| Environment Request | Working Tem | -20~55℃ |
| Storage Tem | -40~80℃ | |
| Humidity | 5%-95%(Non-condensing) | |
| Light Immunity | 0~100,000Lux | |
| Drop Test | 1.5M | |
| waterproof level | IP41 | |
