| GT-9207Technical Parameter | |||||||

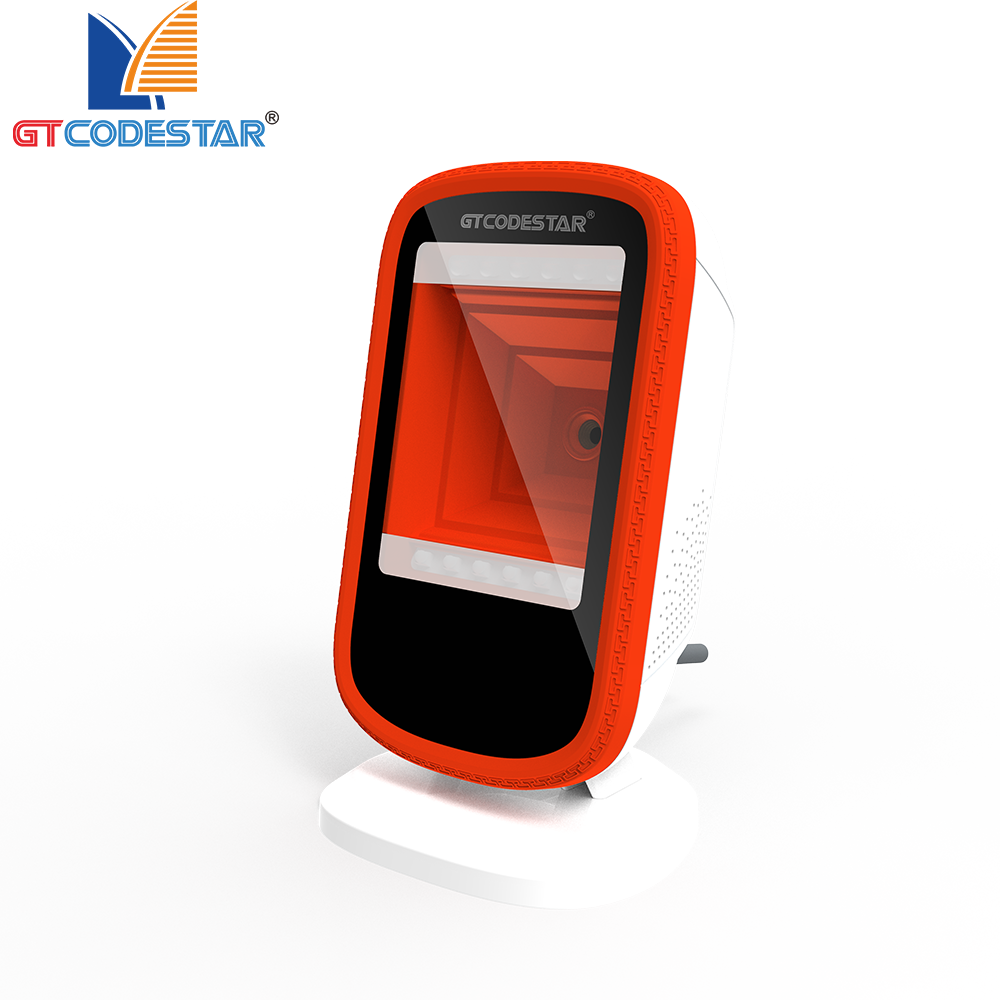

| Model | GT-9207 | ||||||

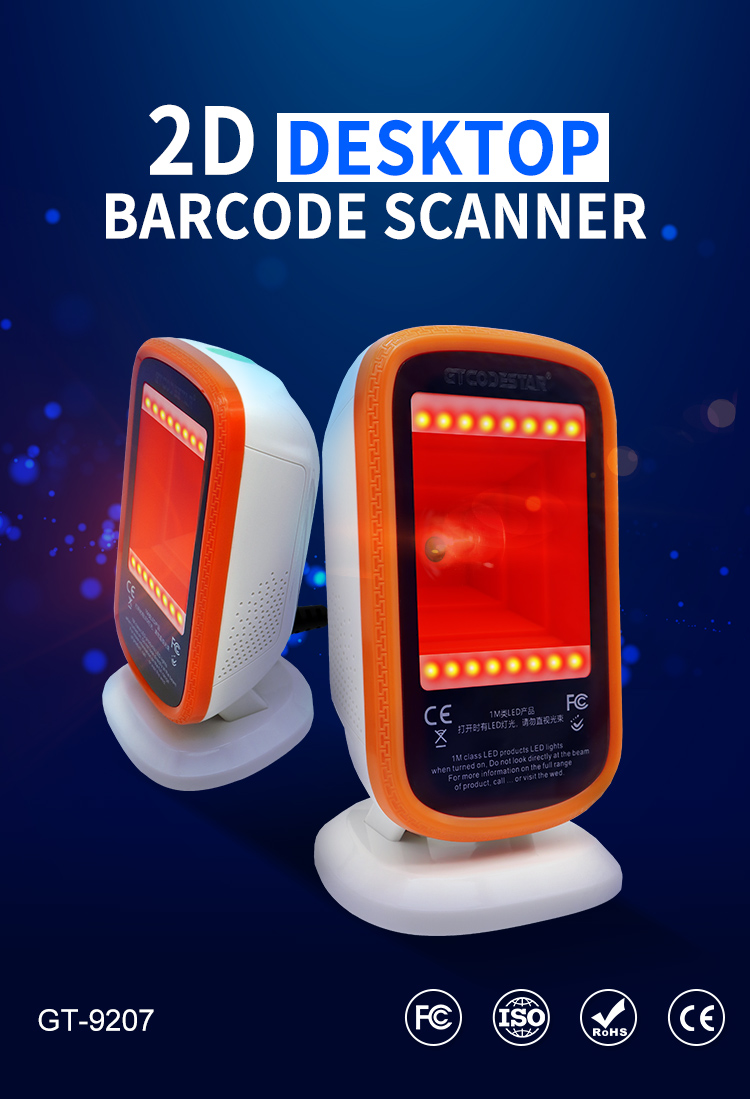

| Item | Omnidirectional 2D Barcode Scanning Platform | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V 0.5A | ||||||
| Power Consumption | 1.60W（working）；0.80W（standby）；2.34W（maxium） | ||||||
| Weight | 294.0g±5g（without cable） | ||||||

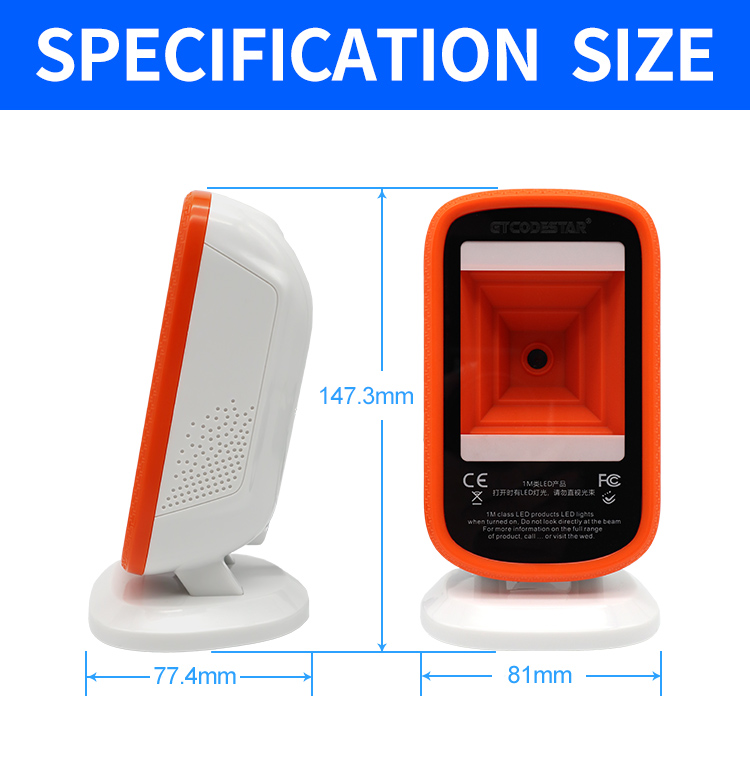

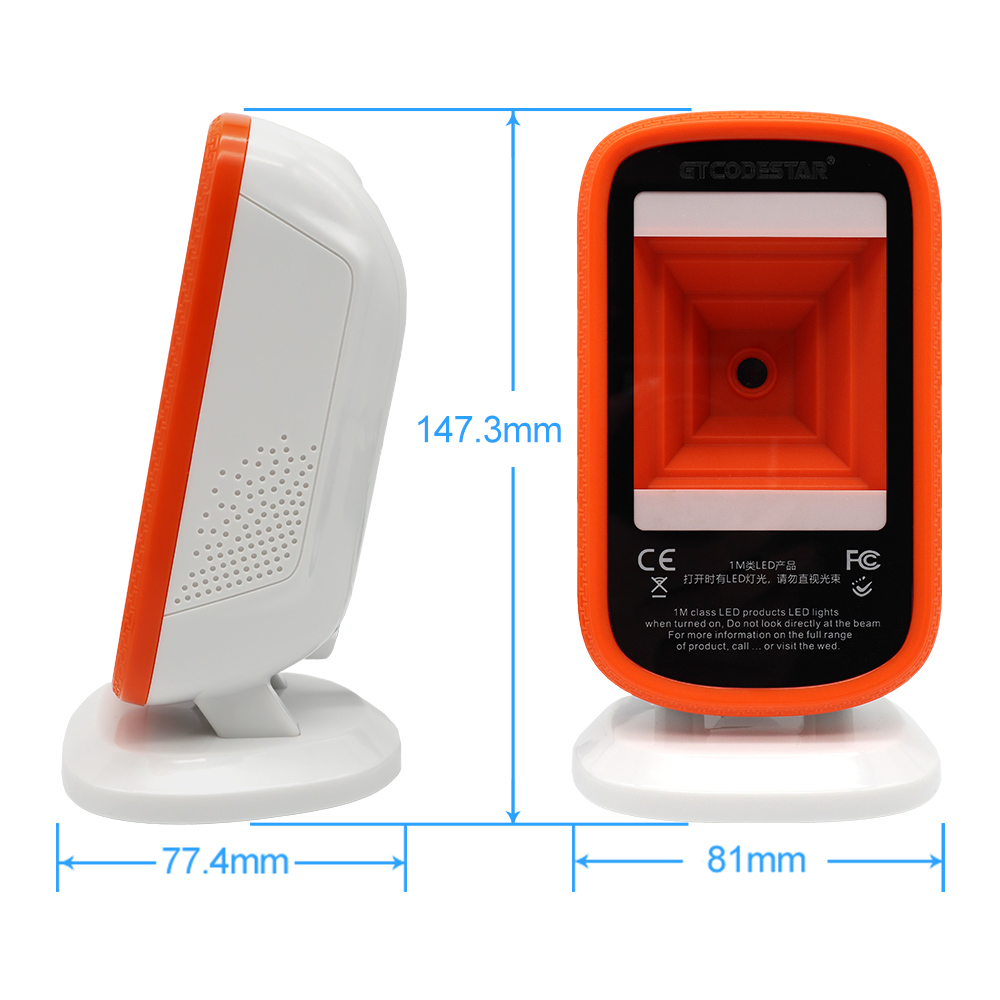

| Size | L * W * H：146.99 * 85.27 * 89.97（unit：mm） | ||||||
| Color | Black | ||||||
| Performance Parameter | |||||||
| Interface | USB；（RS232 can be customized） | ||||||

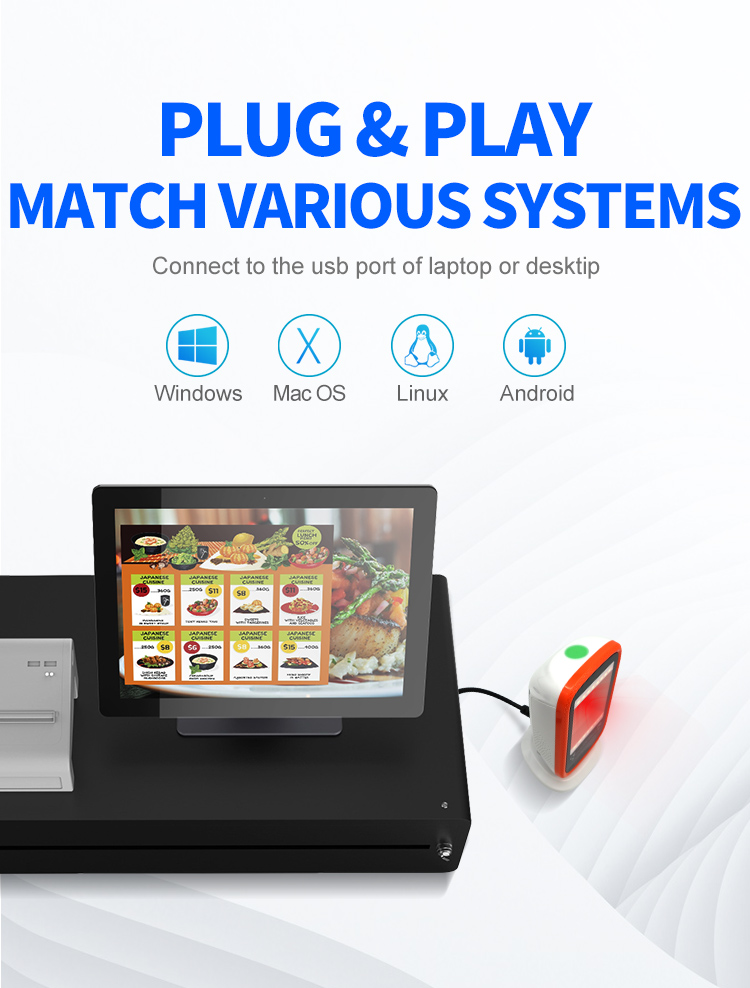

| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | American; French; German; Hungarian; Italian; Italy142:; Japanese; Spanish; Finnish; Russian; Irish; Polish; Dutch; Arabic; Czech; Portuguese (Portugal); Portuguese ( Brazil); Greek; Swedish; Turkish F; Turkish Q [Support virtual keyboard] | ||||||
| Sensor | Planar CMOS sensor 1600 * 900 | ||||||
| Light source | Red lightLED | ||||||
| Processor | 32-bit ARM MCU + DSP | ||||||
| Motion Tolerance | 3.24m/sec | ||||||
| Resolution | Code39 4mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Imaging Sensor | ||||||

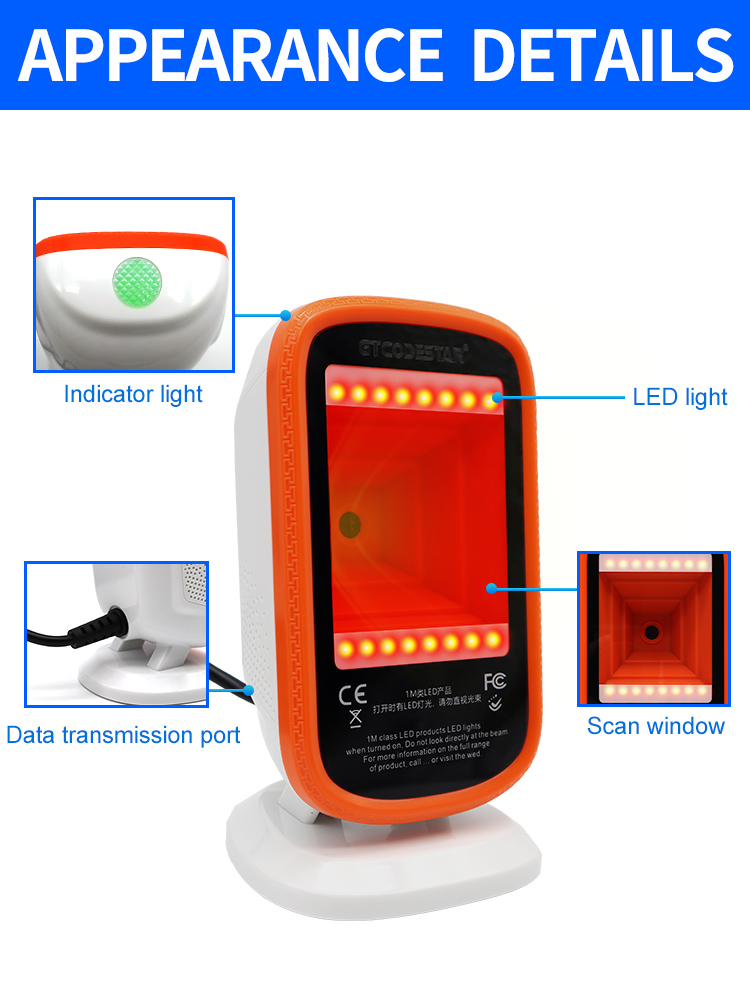

| Prompt Mode | Buzzer, Indicator Light（LED） | ||||||
| Image code | Support | ||||||
| Invoice Function | Support | ||||||
| Button | Can cut and scan code mode (mode 1: 1D; 2D can scan; Mode 2: only scan 1D) | ||||||
| Print Constrast | ≥25% | ||||||
| Scan speed | 100 times/sec | ||||||
| Decoding Capability | 1D | ● Interleaved 2 of 5 ● Standard 2 of 5 ● Matri 2 of 5 ● RSS-14 ● Code39 ● Code39-FullASCII ● Code93-Regular ● Code93-FullASCII ● Code128 ● Code11 ● UPCE0/E1 ● EAN/GSL/UCC-128Auto ● Codabar ● JAN/EAN-8 ● EAN/JAN-13 ● UPC-A | |||||
| 2D | ●MICRO QR ●Data Matrix ●QR ●AZTEC ●PDF417 | ||||||
| Scanning Angle | Roll360°,Pitch45°,Yew45° | ||||||
| Scanning Depth | 5mil code39: 1 cm -- 12 cm 13mil UPC-A : 2 cm -- 30 cm 20mil code39 : 1 cm -- 30 cm 6.7mil PDF417 : 1 cm -- 6 cm 10mil Data Matrix : 1 cm -- 9 cm 15mil Data Matrix : 1 cm -- 20 cm Payment 1D : 0 cm -- 42 cm Payment 2D : 0 cm -- 42 cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No condensationc） | ||||||
| Storage Humidity | 20% to 85%（No condensation） | ||||||
| ESD Protection | 15KV | ||||||
| Shock Resistance | 1.5m free fall on concrete surface | ||||||
