| Technical Parameter | |||||||
| Model | GT-9120 | ||||||

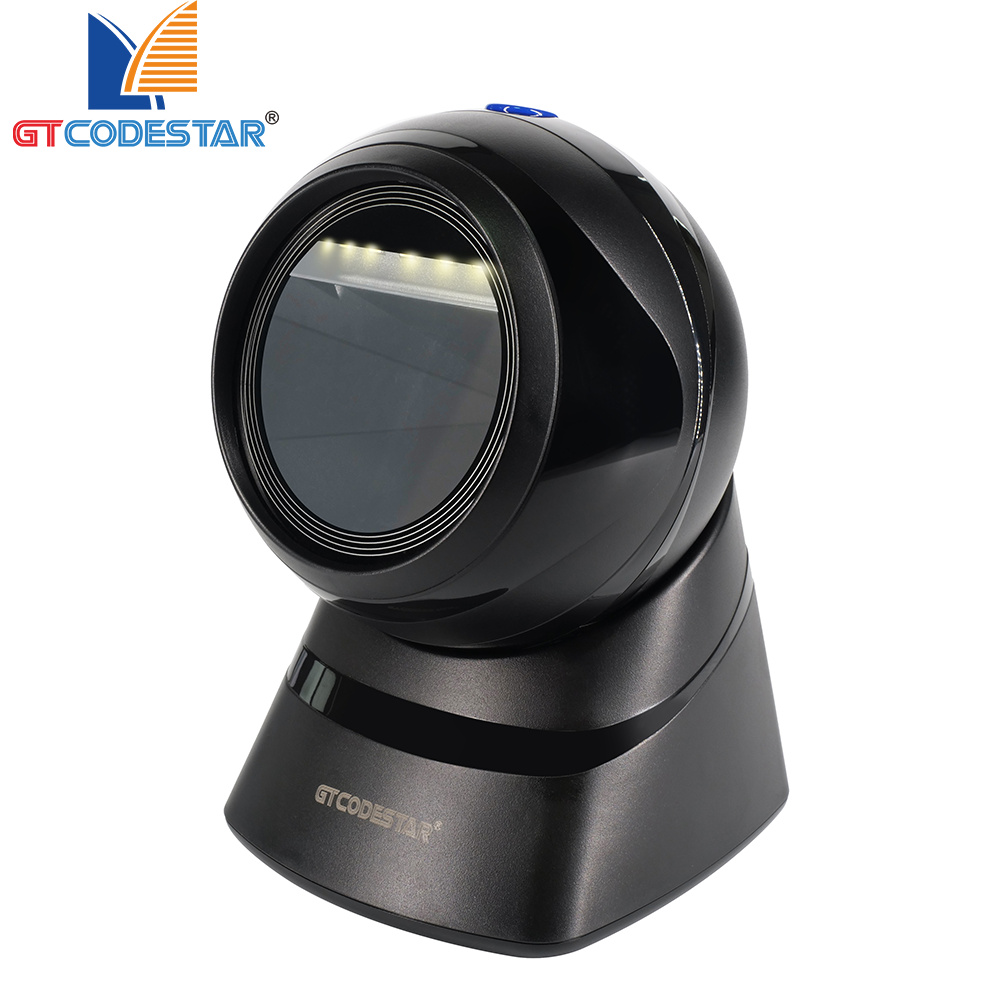

| Item | Desktop 2D Image Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Power Consumption | 1.80W（working）；0.75mW（standby）；2.40W（maximum） | ||||||
| Weight | 230.0g±5g（Without cable） | ||||||

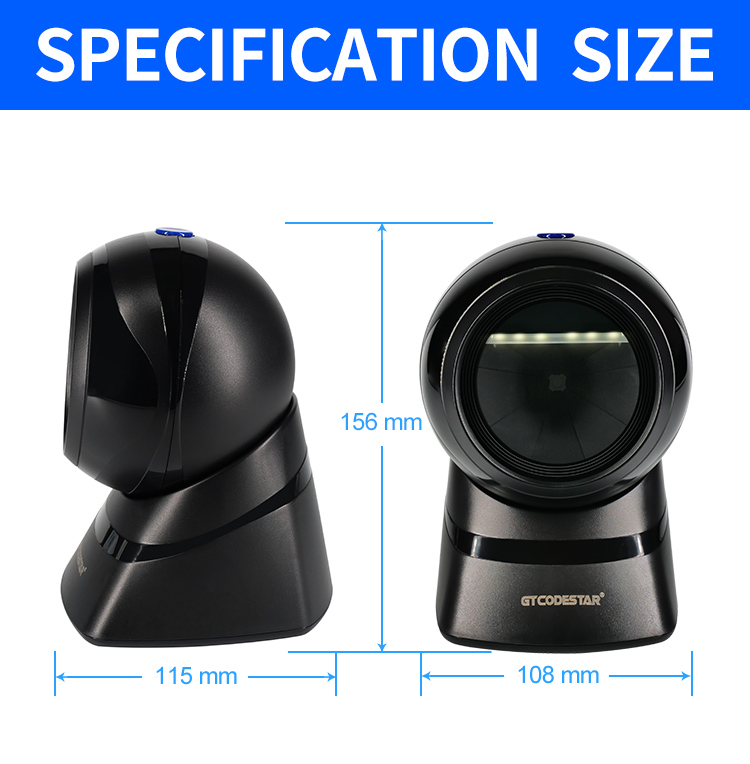

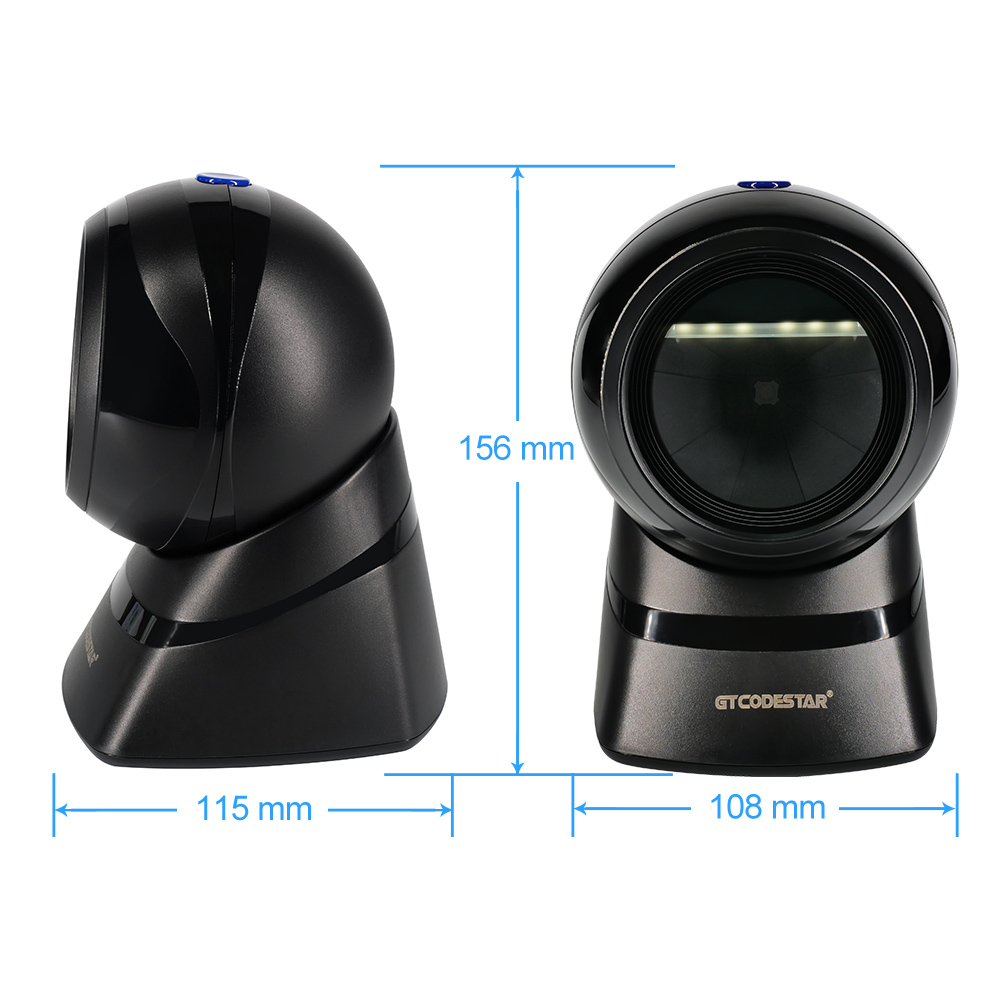

| Size | L*W*H：115 * 108 * 156（unit：mm） | ||||||
| Color | Grayish white ；Black | ||||||
| Performance Parameter | |||||||
| Interface | USB cable ；（RS232 can be customized） | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English, German, French, Italian, Russian, Finnish, Norwegian,etc. (language can be customized) | ||||||
| Sensor | Planar CMOS sensor | ||||||
| Light Source | white LED | ||||||
| Professor | 32-bit ARM MCU + DSP | ||||||
| Scanning speed | Code39： 20cm/sec | ||||||
| Resolution | 5mil | ||||||
| Bit Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Auto-Sensing | ||||||

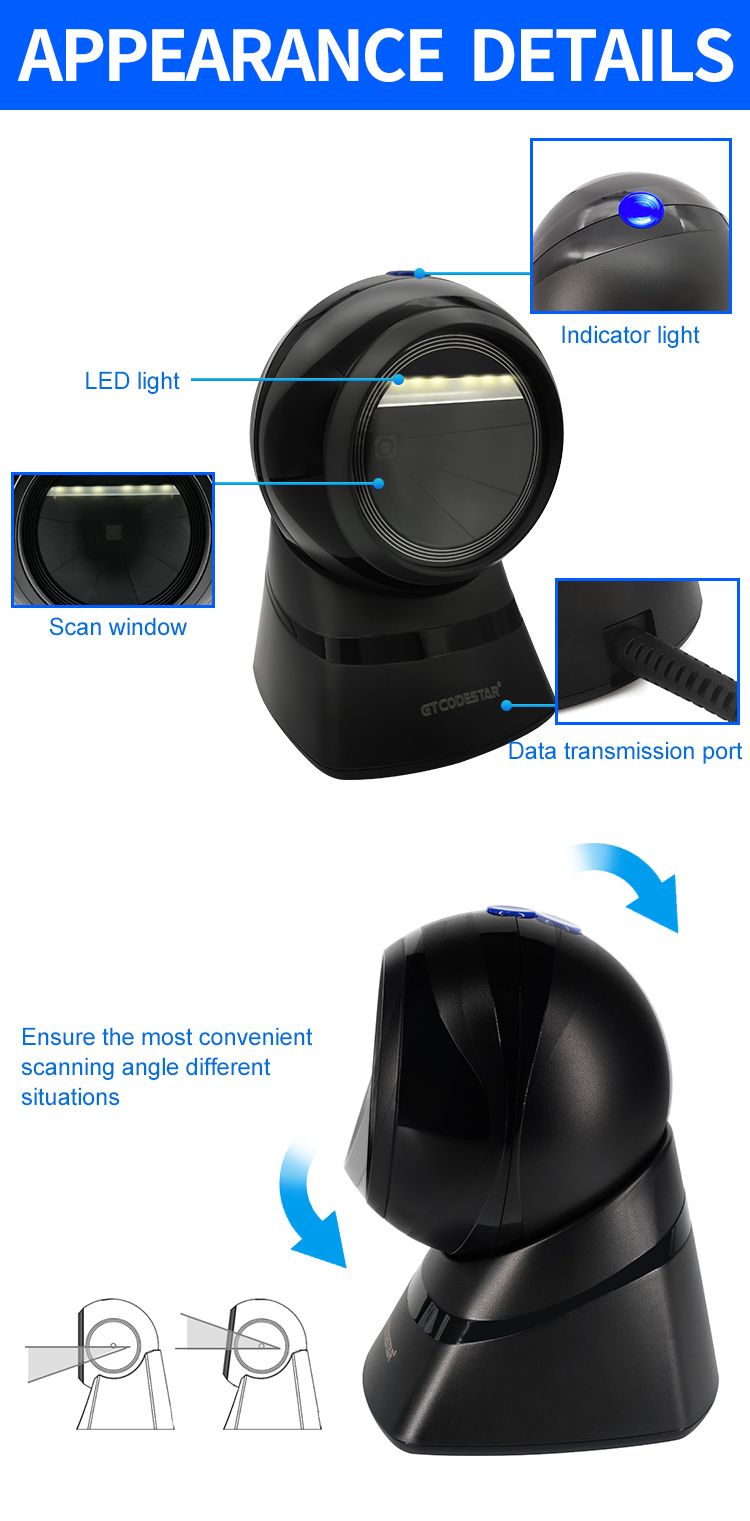

| Prompt Mode | Buzzer, Indicator Light（LED） | ||||||
| Print Contrast | ≥25% | ||||||
| Scan speed | 100 times/sec | ||||||
| Decoding Capability | 1D | ●Code25-Interleaved ●Code25-Standard ●Code25-Matri ●Code39-Regular ●Code39-FullASCII ●Code32 ●Code93-Regular ●Code93-FullASCII ●Code128 ●EAN/GSL/UCC-128Auto ●Codabar ●MSI ●EAN/JAN-13 ●UPC-A ●JAN-8 ●Code11 ●UPCE0 | |||||
| 2D | ●MICRO QR ●Data Matrix ●QR ●AZTEC ●PDF417 | ||||||
| Scanning Angel | Roll360°， c45°，Yew45° | ||||||
| Scanning Depth | Code39 4mil：1cm - 4cm QR 15mil：1cm - 14cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | 1.2m free fall on concrete surface | ||||||
