| Technical parameters of gt-7100c | |||||||

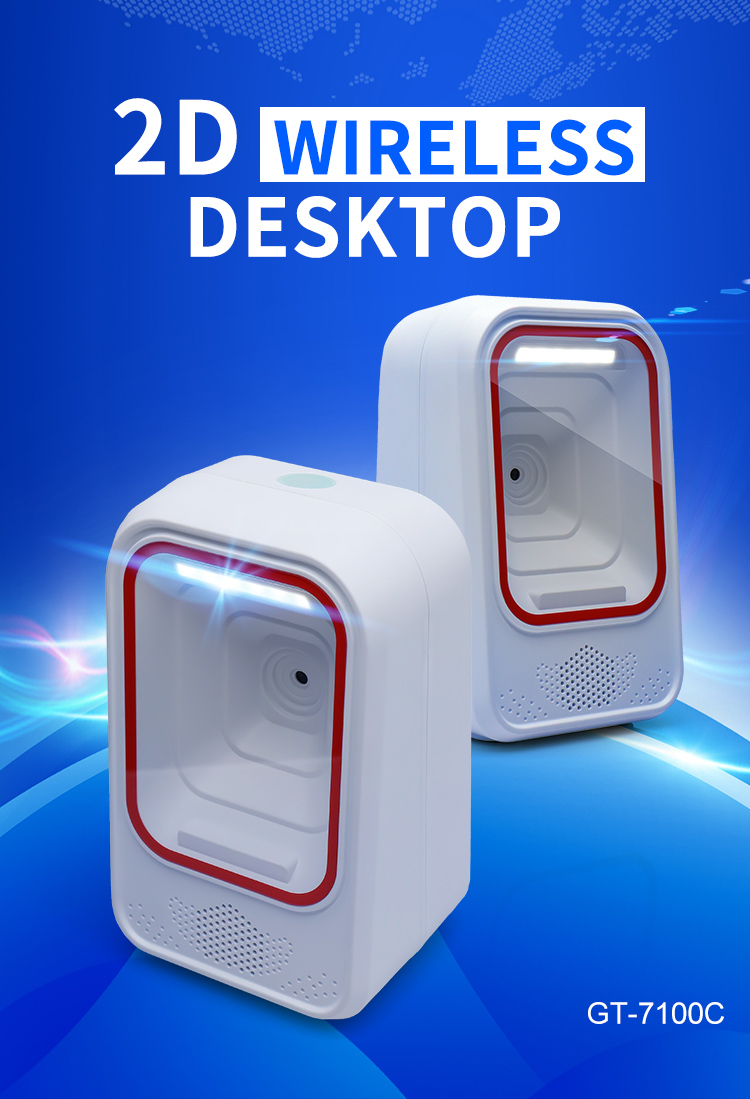

| Product model | GT-7100C | ||||||
| Product name | Two dimensional bar code scanning platform | ||||||
| Physical parameters | |||||||
| texture of material | ABS+PVC+PC | ||||||
| Power supply | Charging DC 5V ± 5%;Built in 3.7V 2000mA lithium battery | ||||||
| electric current | 410Ma (working);2mA (standby);750ma (maximum peak) [average current] | ||||||
| weight | 283g ± 5g (excluding wire) | ||||||

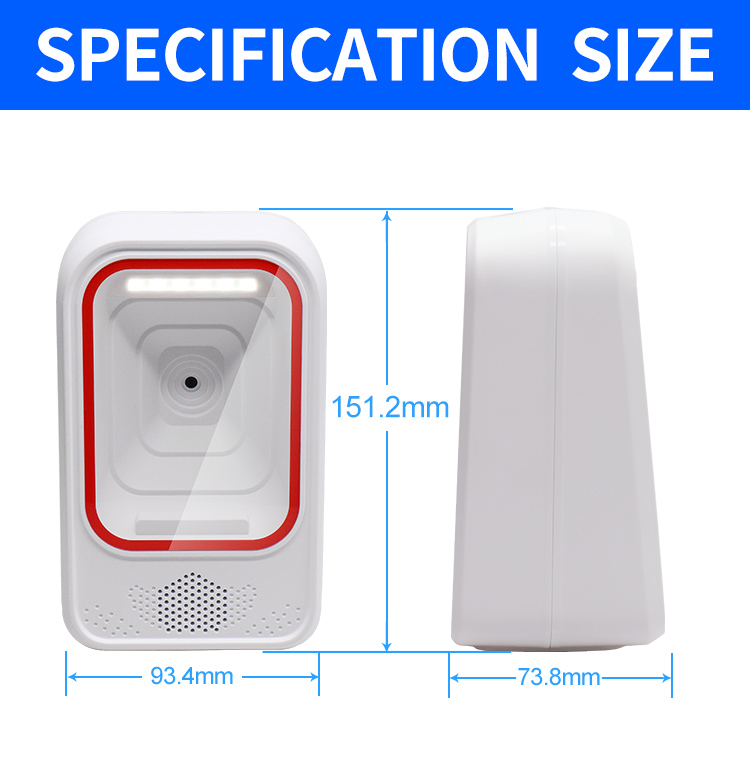

| size | Length * width * height: 93.4mm * 73.8mm * 151.2mm | ||||||
| colour | Black;white | ||||||
| Key life | > 100000 times | ||||||
| performance parameter | |||||||

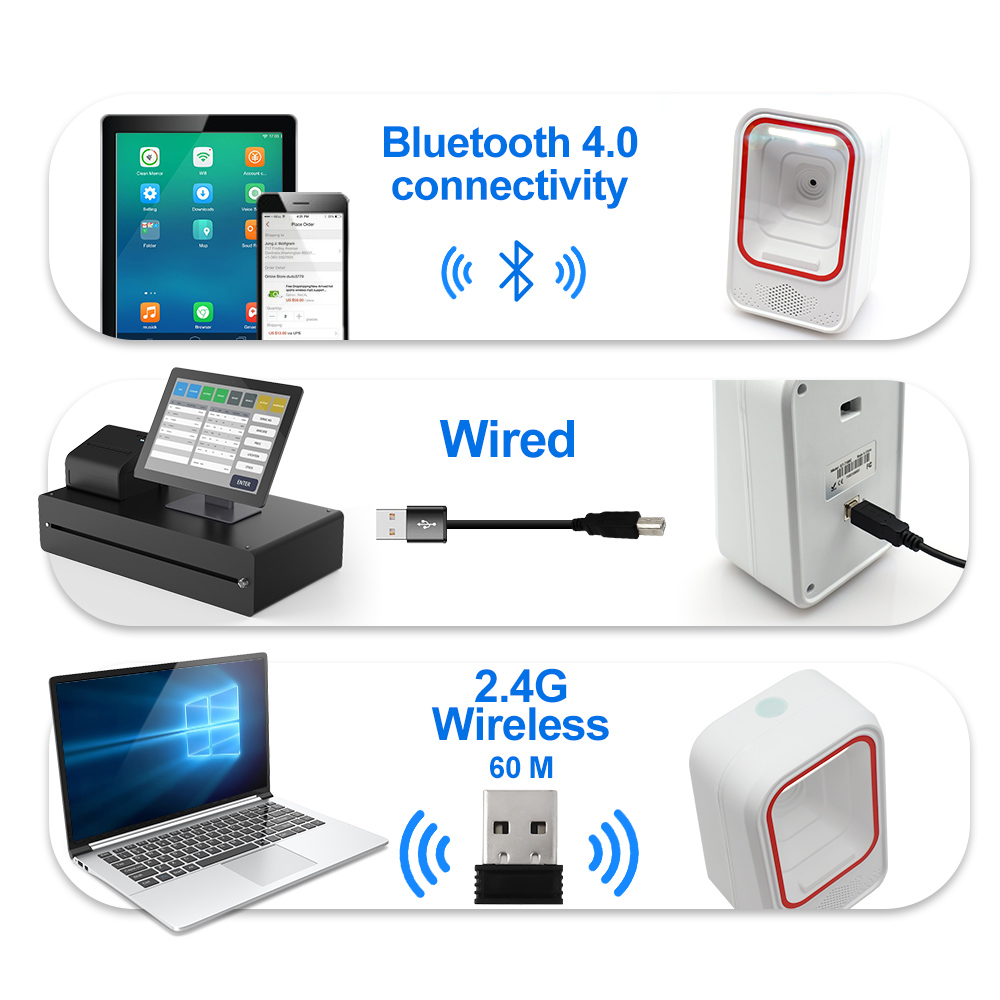

| Data upload | USB；2.4G；Bluetooth | ||||||

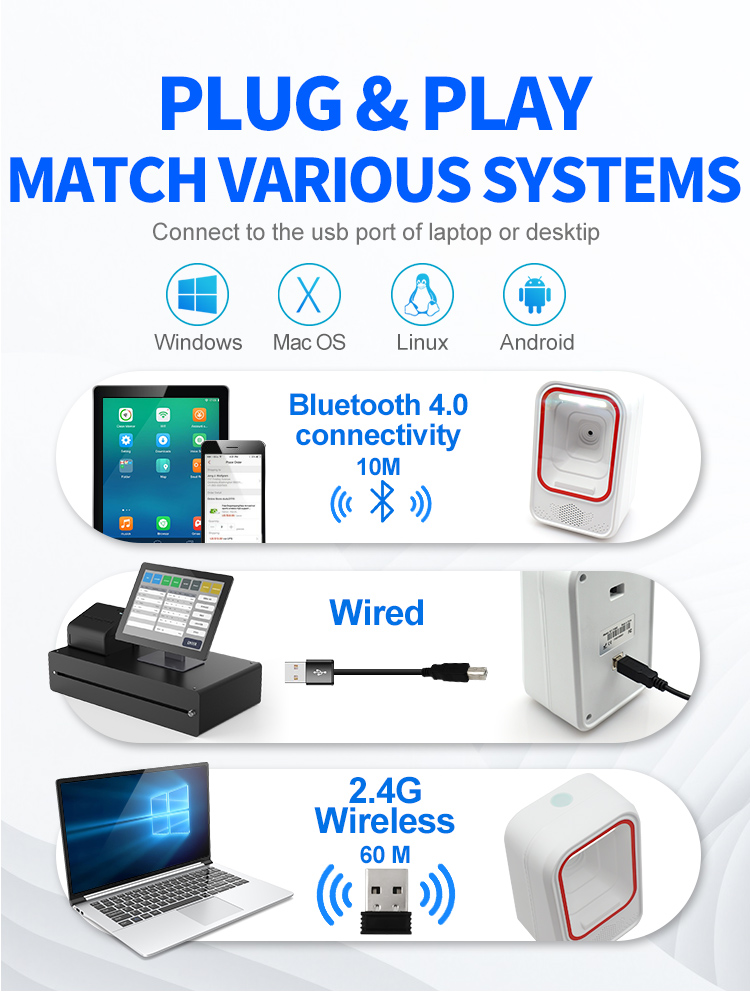

| System support | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language support | English - USA;French - Canada;Dutch - Netherlands;Spanish - International;Latin American - Argentina;Portuguese - Brazil;Danish - Denmark;English - UK;Italian - Italy 142;French - France;German - Germany;Portuguese - Portugal;Finnish - Finland;Turkish-f;Japanese; Russian Russian;North Sami - Norway [support multi-national keyboard] | ||||||
| sensor | one thousand two hundred and eighty×800 global exposure CMOS | ||||||
| processor | 32-bit ARM MCU | ||||||

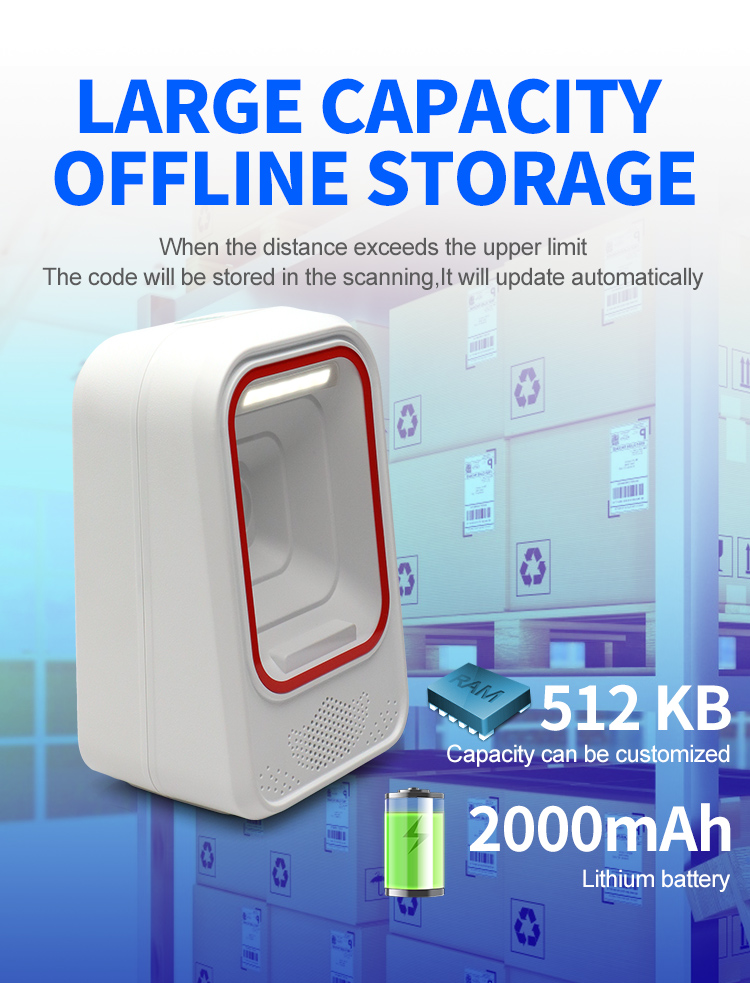

| storage space | 512 KB (customizable) | ||||||

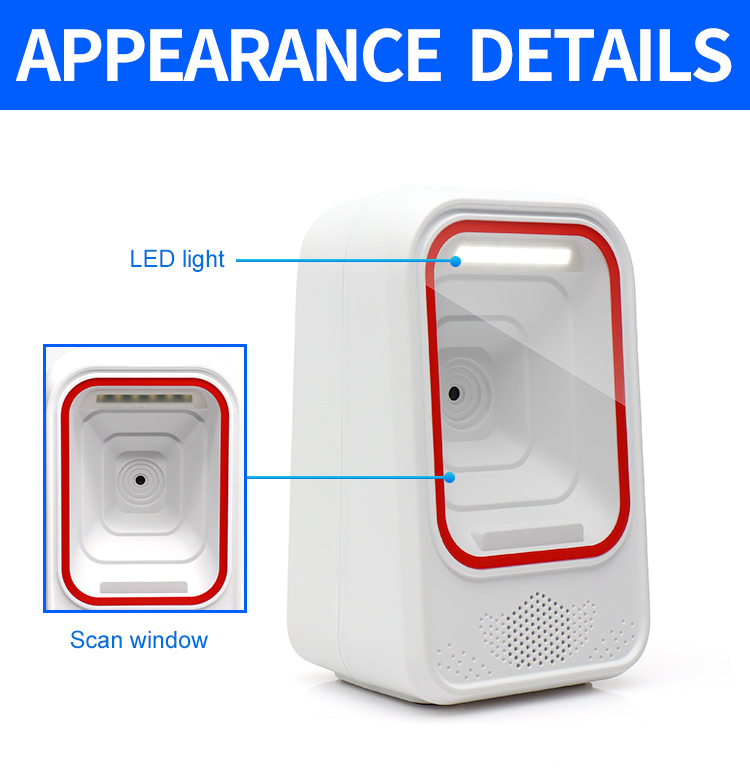

| light source | White LED lighting | ||||||
| Motion tolerance | Code128： 3.28m/sec QR： 3.56m/sec | ||||||
| Wireless transmission distance | 2.4G ≤ 60m (visual range) Bluetooth ≤ 10m (visual range) | ||||||
| Reading mode | image | ||||||
| resolving power | ≥5mil | ||||||
| error rate | 1 / 5 million | ||||||
| Reading mode | image | ||||||
| Trigger mode | Induction mode | ||||||
| Feedback mode | Horn + indicator | ||||||
| Recognition angle | Tilt ± 55 °, deflection ± 55 °, rotation 360 ° | ||||||
| Scan Distance | 10mm-500mm | ||||||
| Print contrast | 25% | ||||||
| Charging time | appr.5h | ||||||
| Working hours | appr.8h | ||||||
| 扫描速度 | 100次/秒 | ||||||

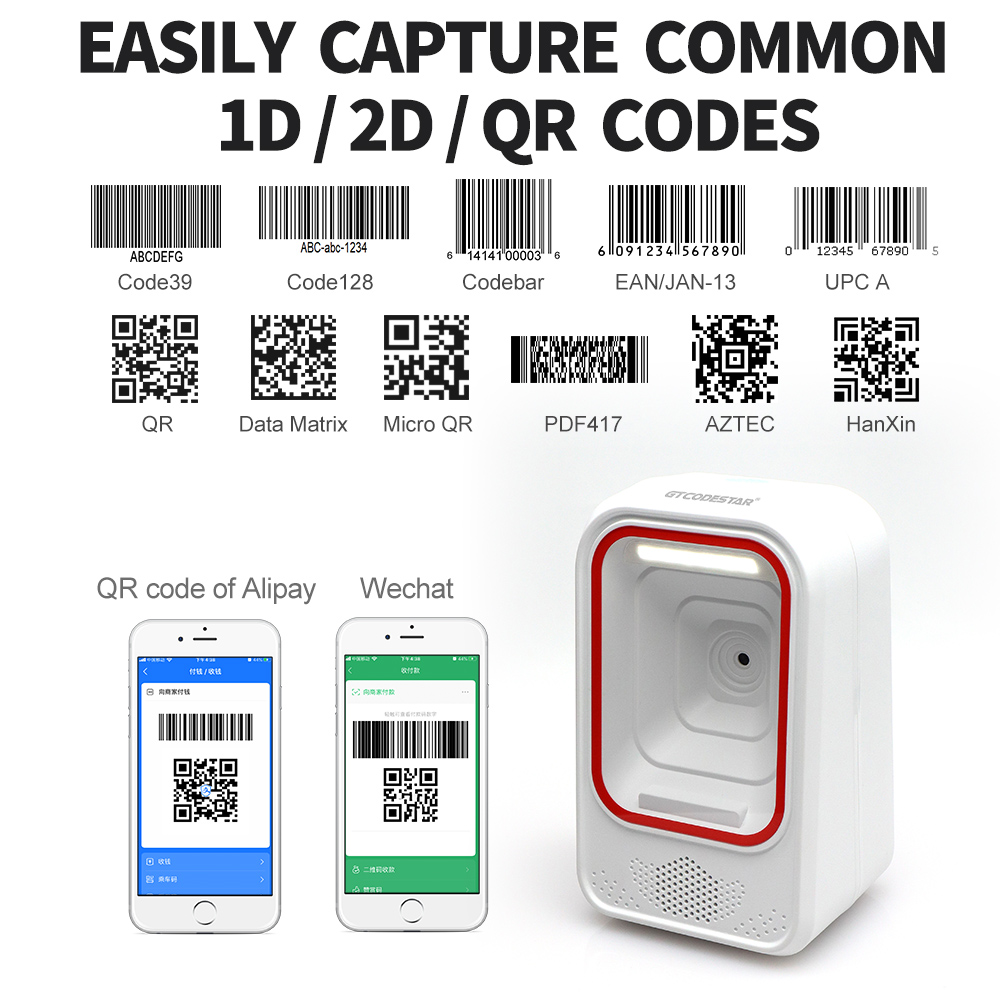

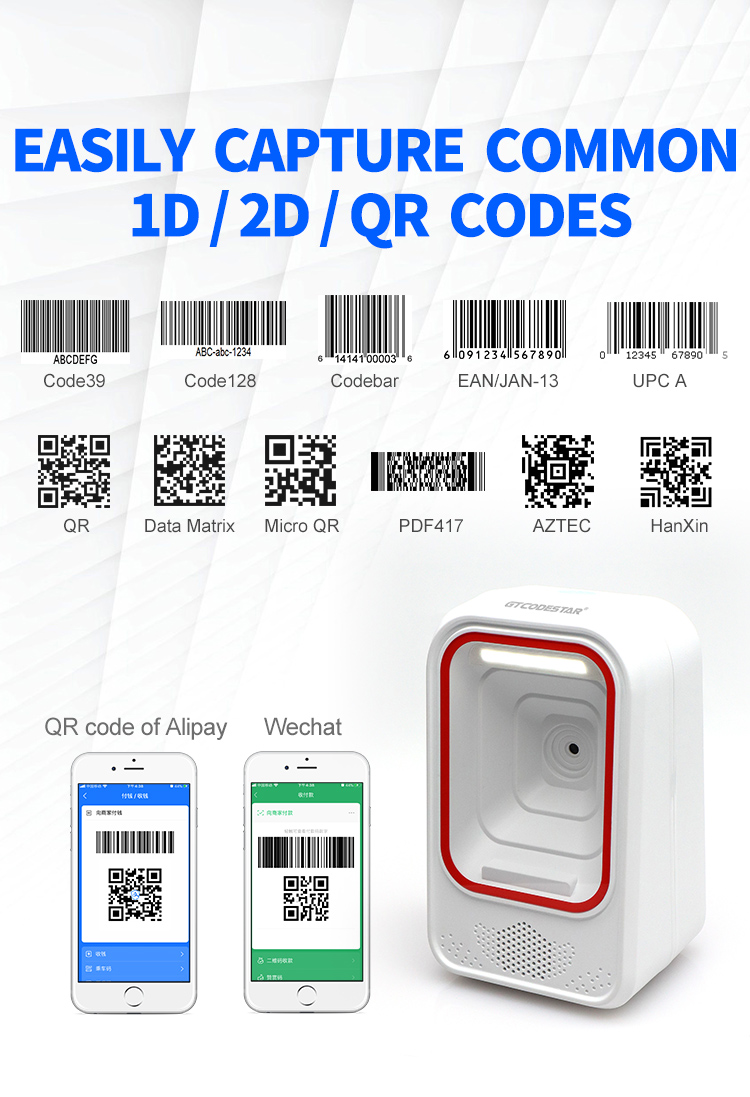

| Reading code system | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5 ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 composite code | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode ◎Micro QR ◎Micro PDF417 | ||||||
| Depth of field | Wechat payment QR Code: 60mm - 500mm Wechat payment one-dimensional code: 100mm - 350mm Qr10.83mil 16 bytes: 10mm - 90mm QR 15.83mil 16 bytes: 10mm - 150mm Code39 9.17mil 15 bytes: 60mm - 120mm | ||||||
| Environmental parameters | |||||||
| IP level | IP52 | ||||||
| Operating temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating humidity | 20% to 85% (no condensation) | ||||||
| Storage humidity | 20% to 85% (no condensation) | ||||||
| Electrostatic protection | 15kV air discharge | ||||||
| Seismic capacity | Free fall 1.5m (concrete ground) | ||||||
| Ambient light | 0→100000Lux | ||||||
