| GT-8801 Technical Parameter | |||||||
| Model | GT-8801Technical Parameter | ||||||

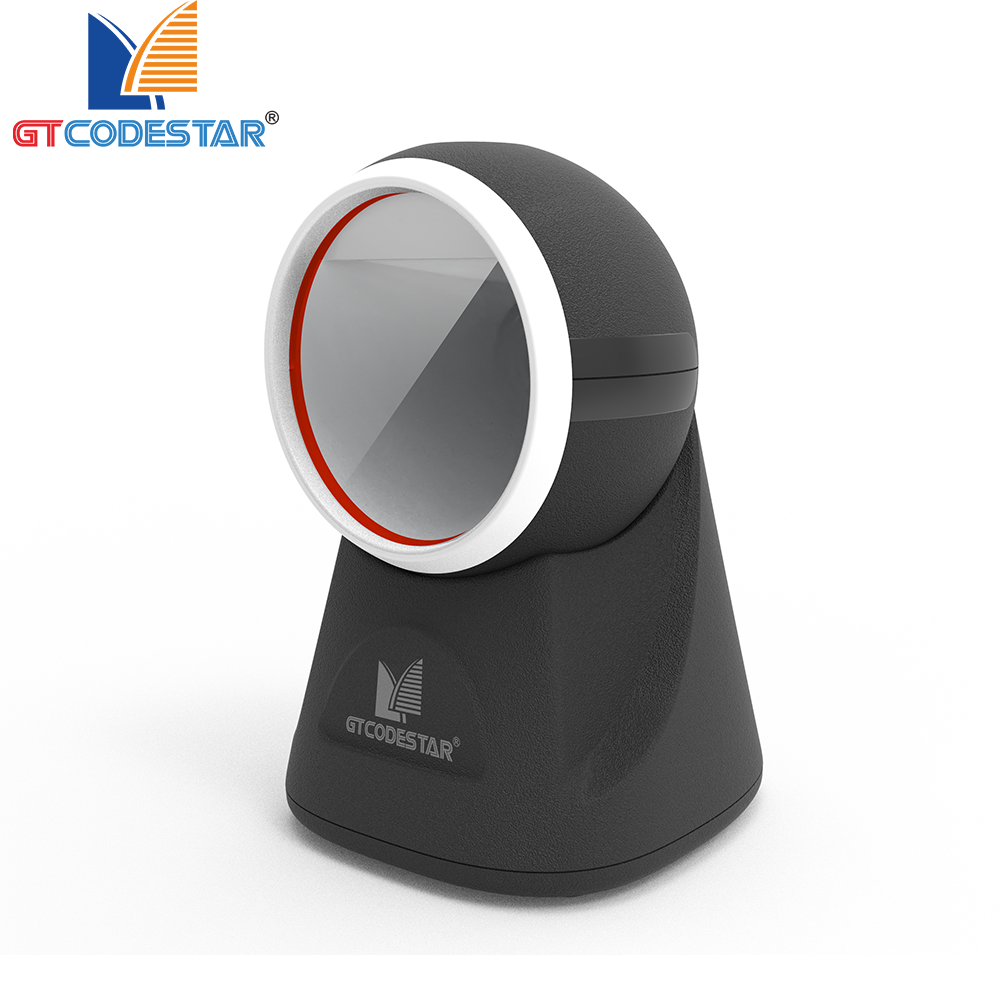

| Item | Wired 2D Image Desktop barcode scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+TPU | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Operating Current | 0.26A（Standby）；0.29A（Operating）；0.33A（Max）【Average】 | ||||||
| Power consumption | 1.30W（Standby）；1.45W（Operating）；1.65W（Max）【Average】 | ||||||
| Weight | 291.0g±5g（Without cable） | ||||||

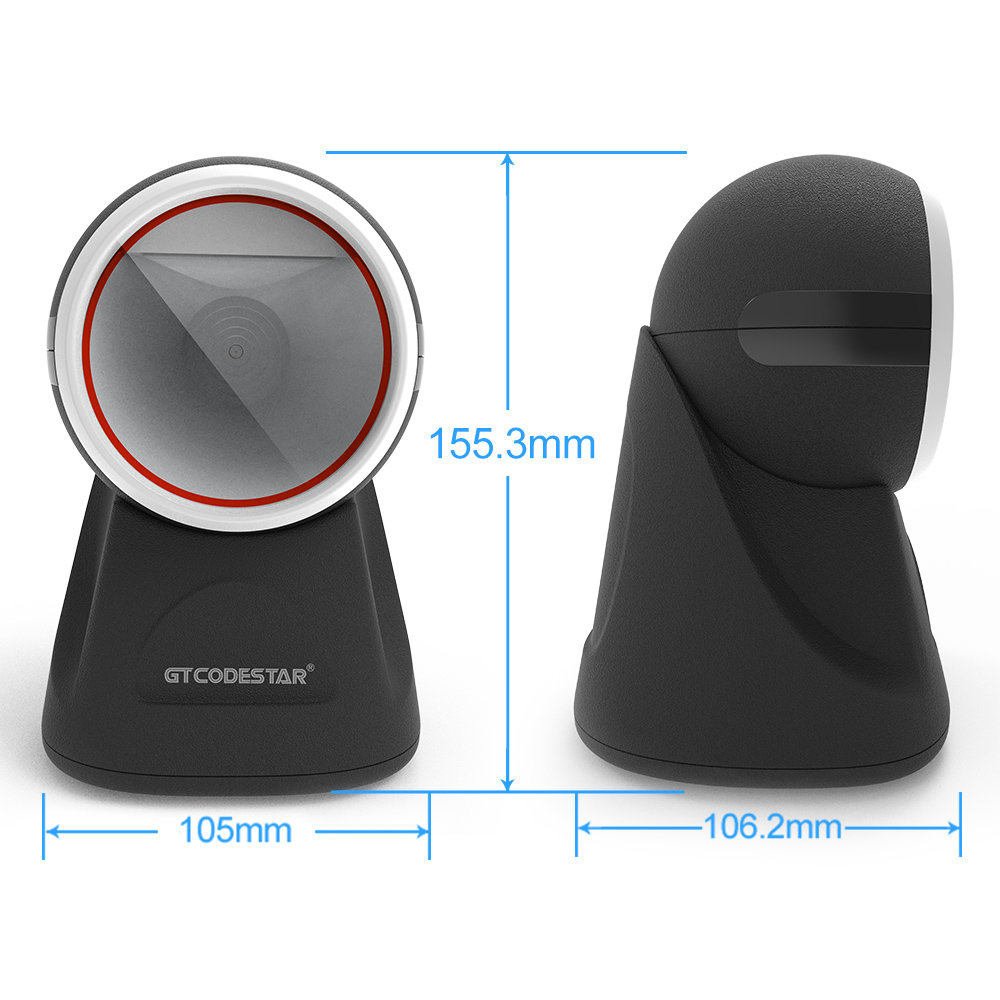

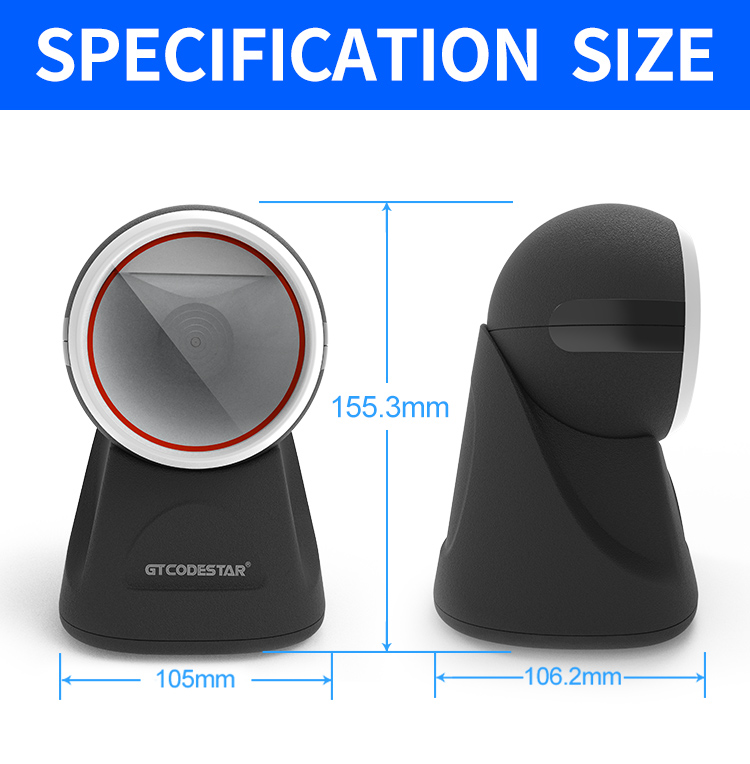

| Size | L * W * H：106.2 * 105.0 * 155.3（unit：mm） | ||||||

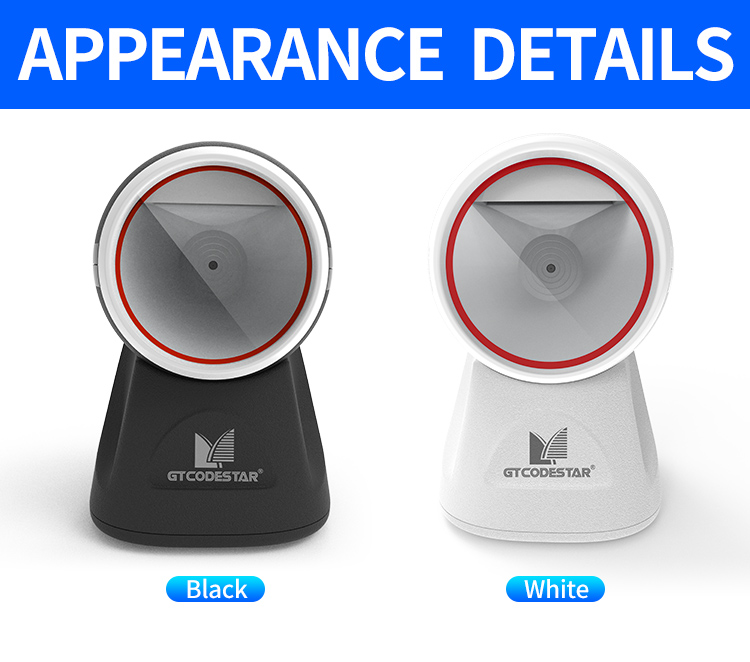

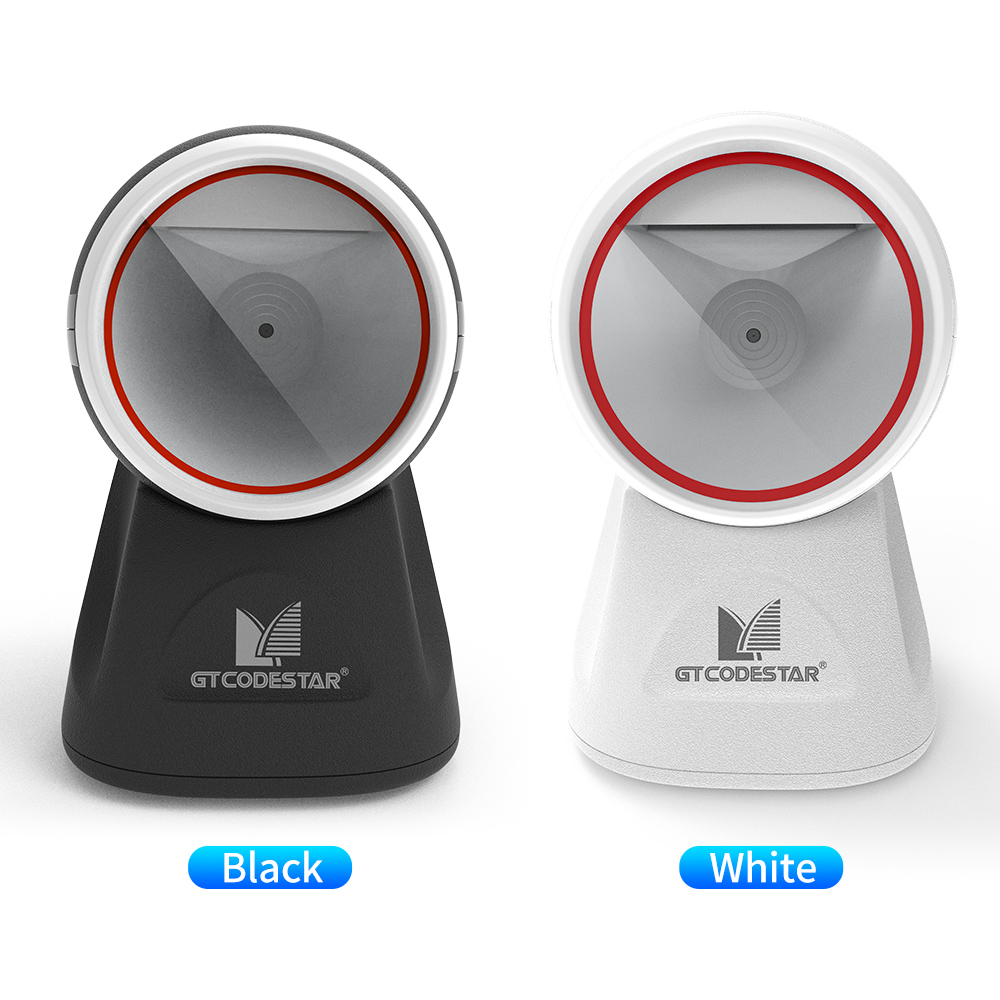

| Color | Black，white | ||||||
| Performance Parameter | |||||||
| Interface | USB | ||||||
| System supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language supported | English; Belgium; Finland; France; Germany; Italy; Sweden; Britain; Denmark; Norway; Spain; Portugal; Turkey Q; Turkey F; Japan; Russia; Czech Republic; Thailand; Ukraine; Brazil; Greece; Hungary; Netherlands; Poland; Romania; Slovakia; [Support virtual keyboard] | ||||||
| Sensor | Planar CMOS sensor 480 * 640 | ||||||
| Light Source | Red LED | ||||||
| Processor | 32-bit ARM MCU + DSP | ||||||
| Motion Tolerance | 85cm/sec【10mil QR】 | ||||||
| Resolution | Code39 ≥5mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||
| Triggle Mode | Auto-sensing | ||||||

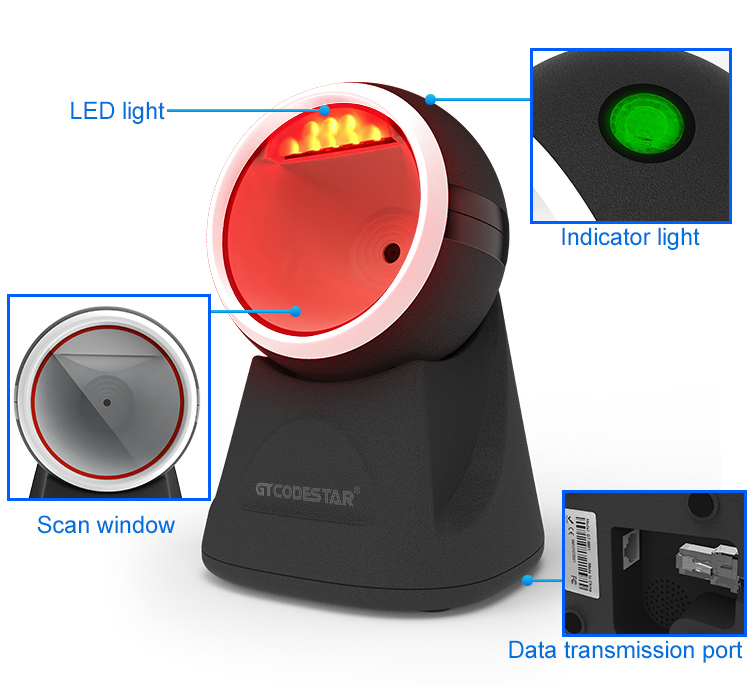

| Prompt Mode | Buzzer+Indicator Light(LED) | ||||||

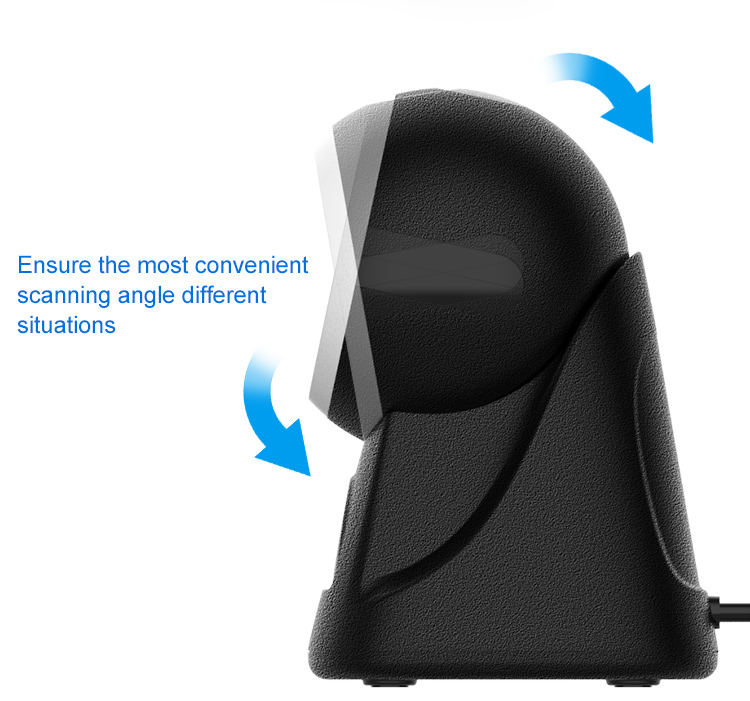

| Scanning Angle | Rotation 360°, elevation ± 55°, deflection ± 65° | ||||||
| Invoice Code supported | Support | ||||||
| Print Contrast | ≥30% | ||||||
| Scan speed | 100 times/sec | ||||||

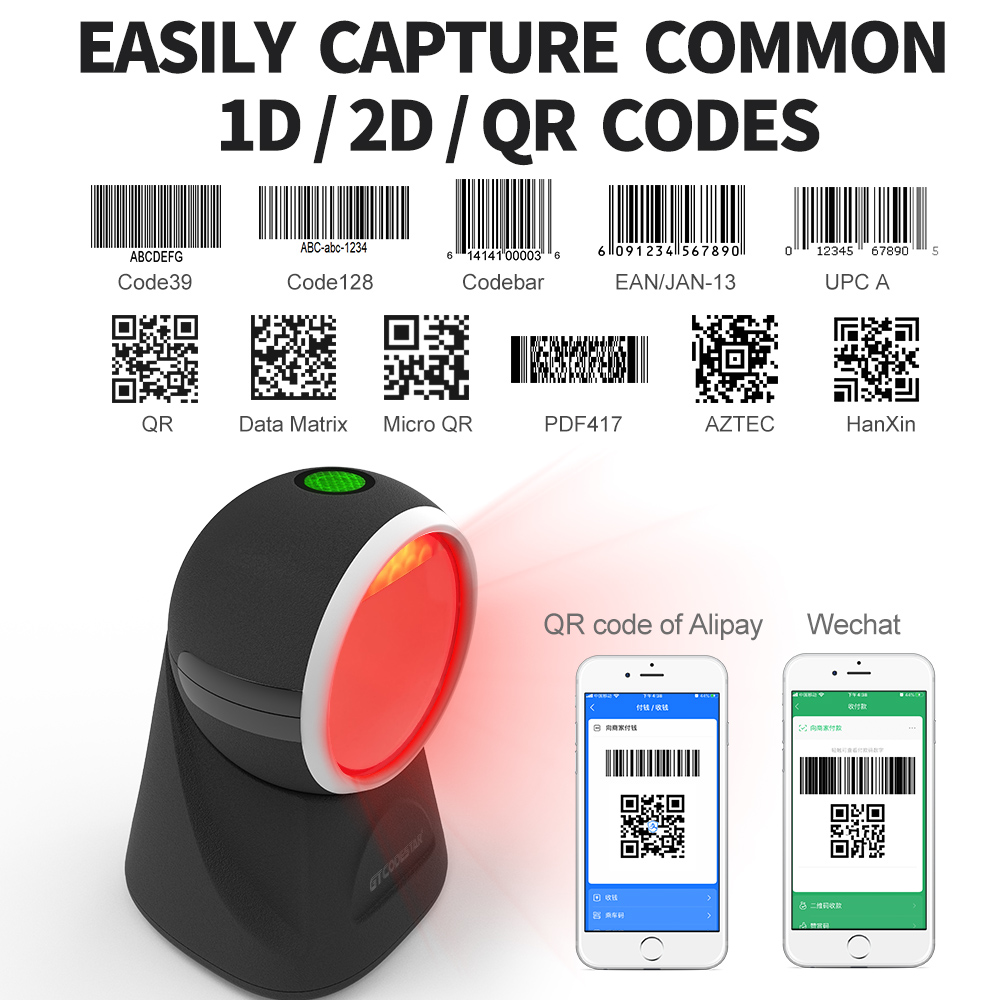

| Decoding Capability | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISB-128 ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Industrial 2 of 5 ◎Matrix 2 of 5 ◎Code 32 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎UPC-E ◎Code 93 ◎GS1 composite code | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎Micro PDF417 ◎HanXin ◎AZTEC ◎Maxicode ◎Micro QR | ||||||
| Scanning Depth | QR Code 12.50mil（7bit）：3cm - 12cm PDF417 9.17mil（7bit）：2cm - 15cm Data Matrix 12.50mil（8bit）：2cm - 7cm Code 128 7.50mil（15bit）：2cm - 10cm EAN13（10mil）：2cm - 16cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | 1.2m free fall on concrete surface | ||||||
| Ambient light | 0→100000Lux | ||||||
| International Certification | |||||||
