| GT-8800F Technical Parameter | |||||||
| Model | GT-8800F Technical Parameter | ||||||

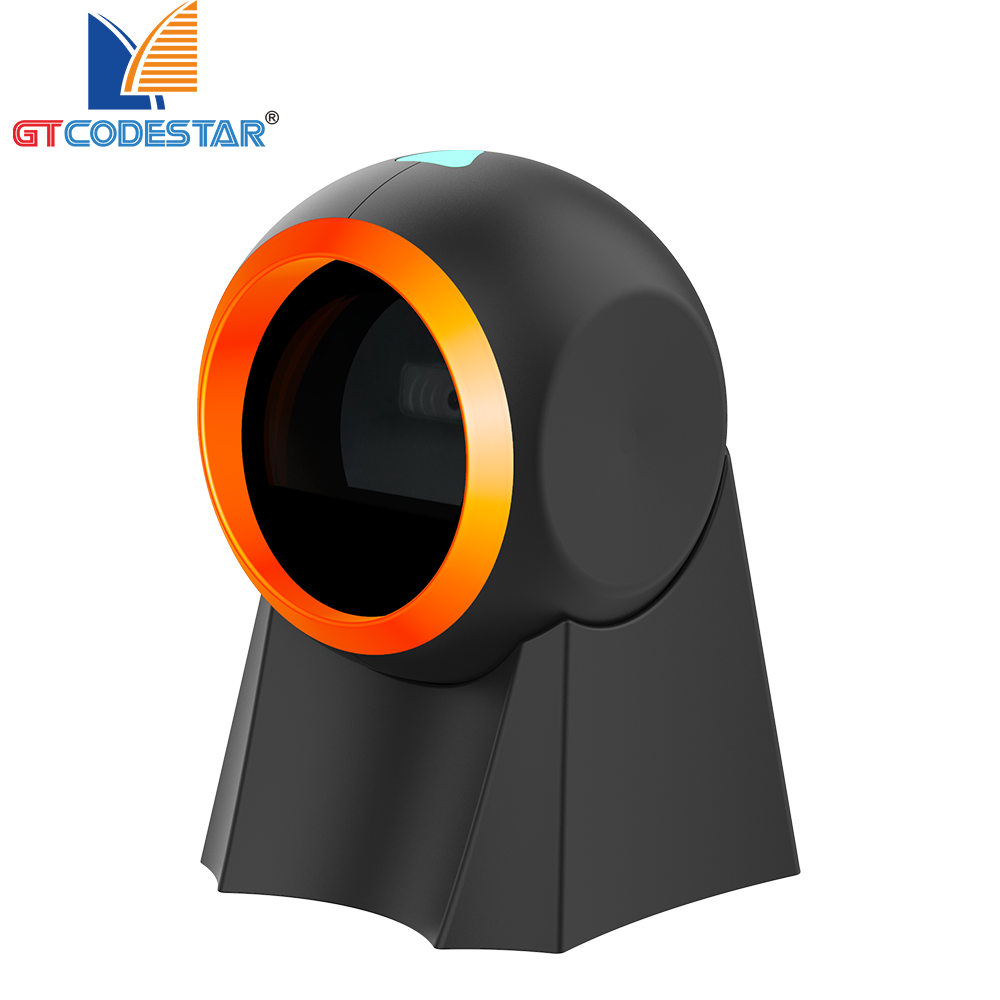

| Item | Wired 2D Image Desktop barcode scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Operating Current | 0.18A（Standby）；0.25A（Operating）；0.32A（Max）[Average] | ||||||
| Power consumption | 0.90W（Standby）；1.25W（Operating）；1.60W（Max）[Average] | ||||||
| Weight | 308.0g±5g（Without cable） | ||||||

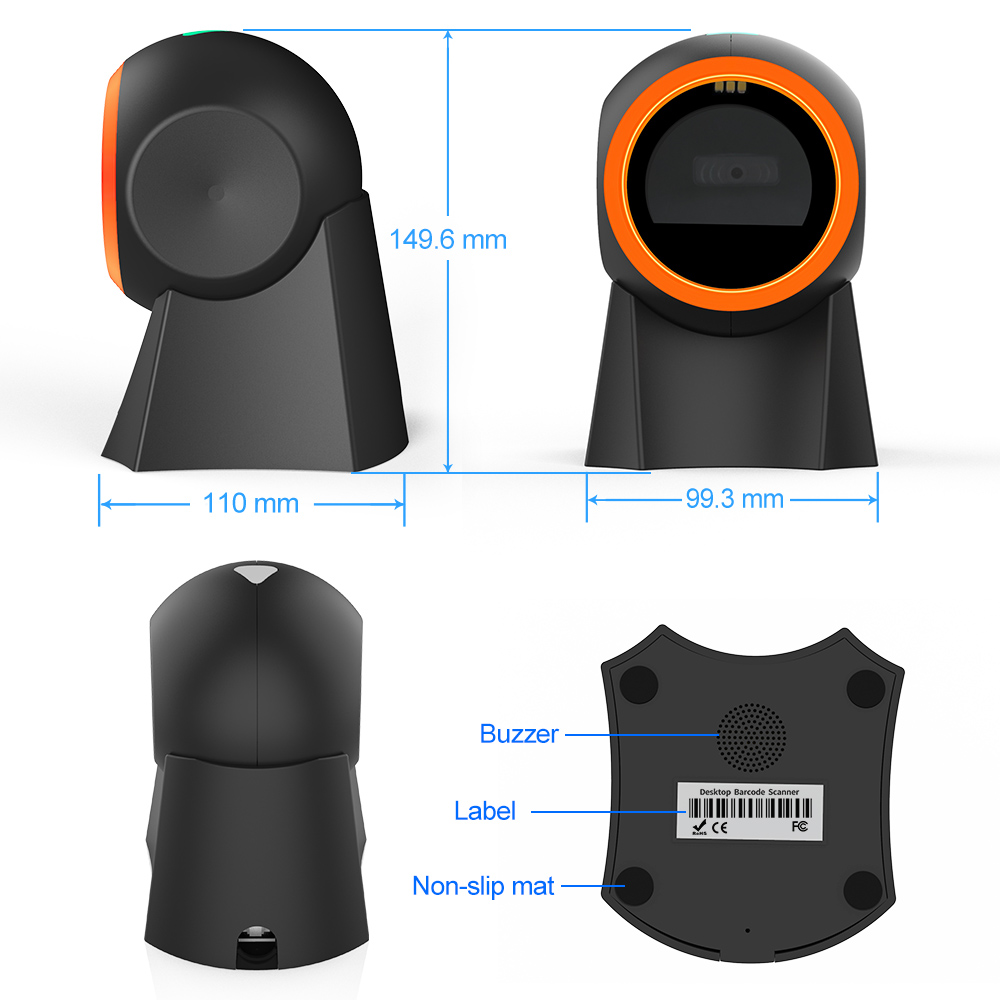

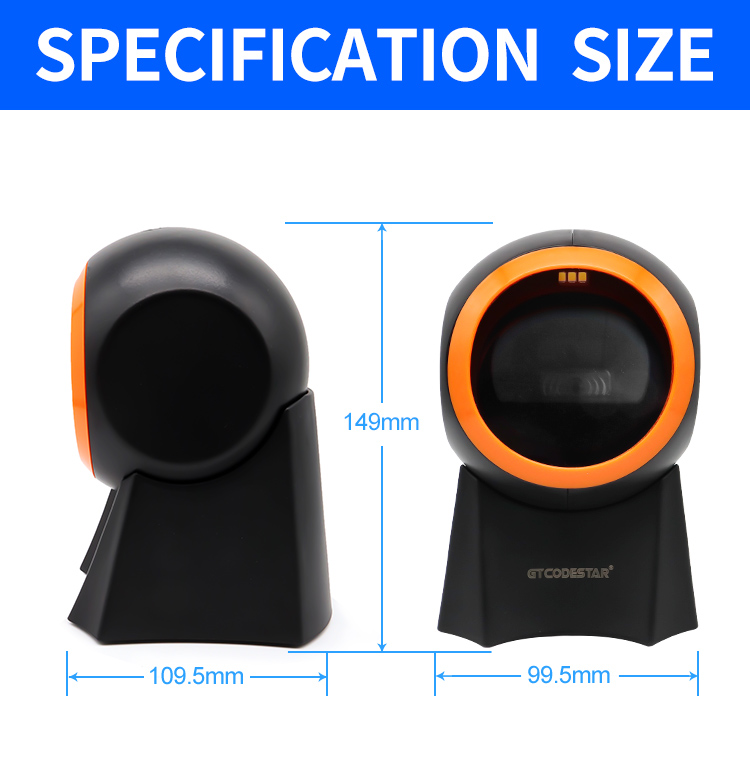

| Size | L * W * H：110.0 * 99.3 * 149.6（unit：mm） | ||||||
| Color | Black and Orange | ||||||
| Performance Parameter | |||||||

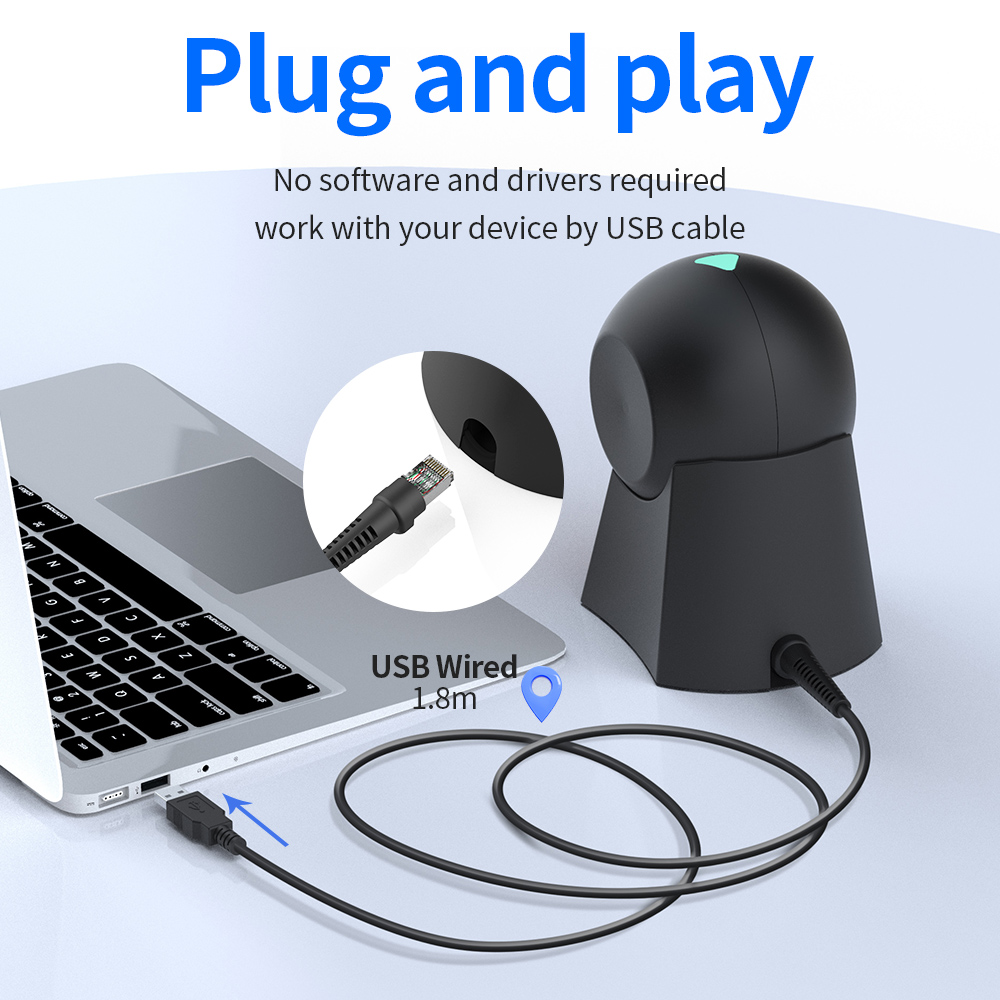

| Interface | USB | ||||||
| System supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language supported | English;Belgium;Finnish;French;German;Italian;Swedish;Danish; Norwegian; Spanish; Portuguese; Turkish Q; Turkish F; Japanese; Russian; Czech; Thai; Ukrainian; Brazilian; Greek; Hungarian; Dutch; Polish; Romanian; Slovakia language; [Support virtual keyboard] | ||||||
| Sensor | Planar CMOS sensor 480 * 640 | ||||||
| Light Source | White LED Light | ||||||
| Processor | 32-bit ARM MCU + DSP | ||||||
| Motion Tolerance | 35cm/sec[10mil QR] | ||||||
| Resolution | Code39 ≥5mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||
| Triggle Mode | Auto-sensing | ||||||

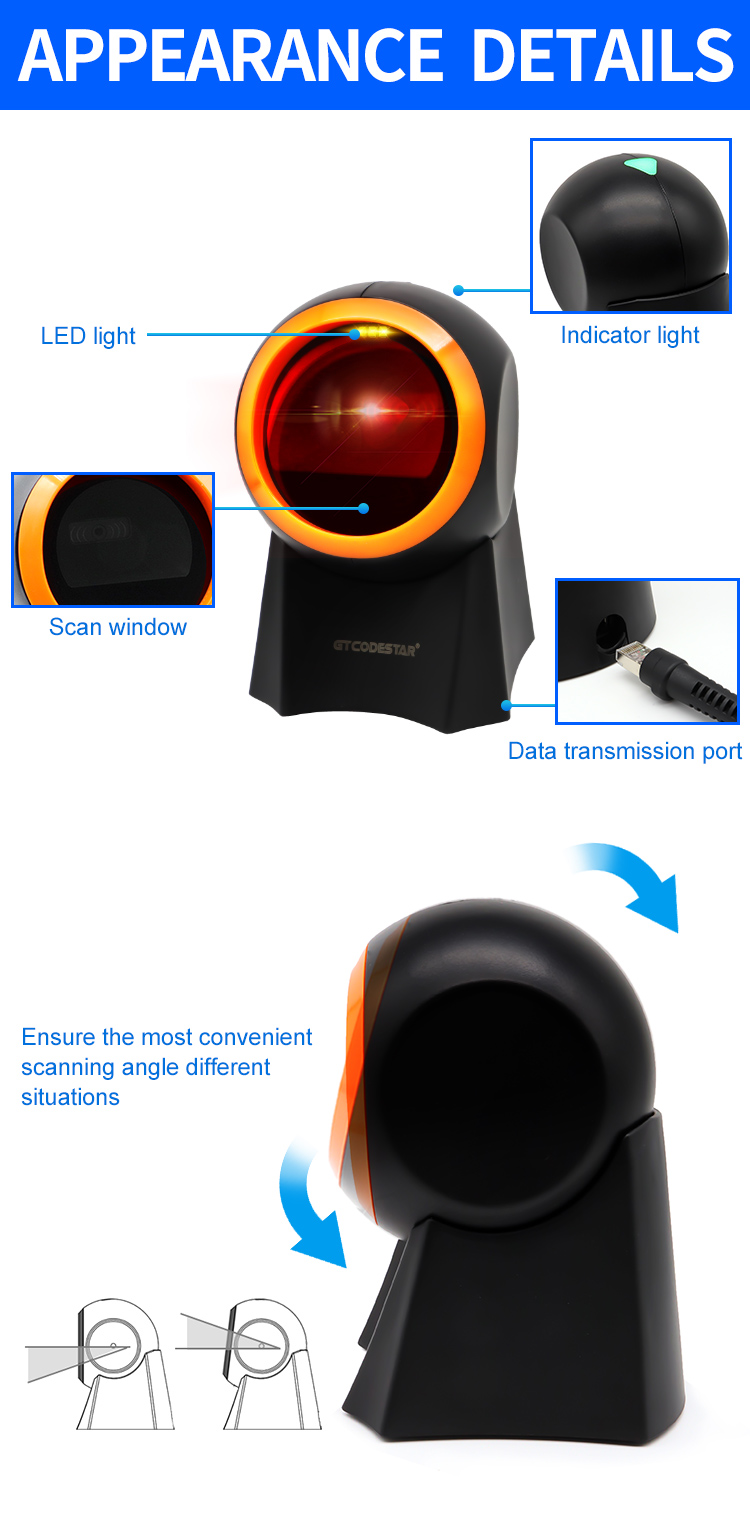

| Prompt Mode | Buzzer+Indicator Light(LED) | ||||||
| Scanning Angle | Rotation 360°, elevation ± 55°, deflection ± 55° | ||||||
| Invoice Code supported | Support | ||||||
| Print Contrast | ≥30% | ||||||
| Scan speed | 100 times/sec | ||||||

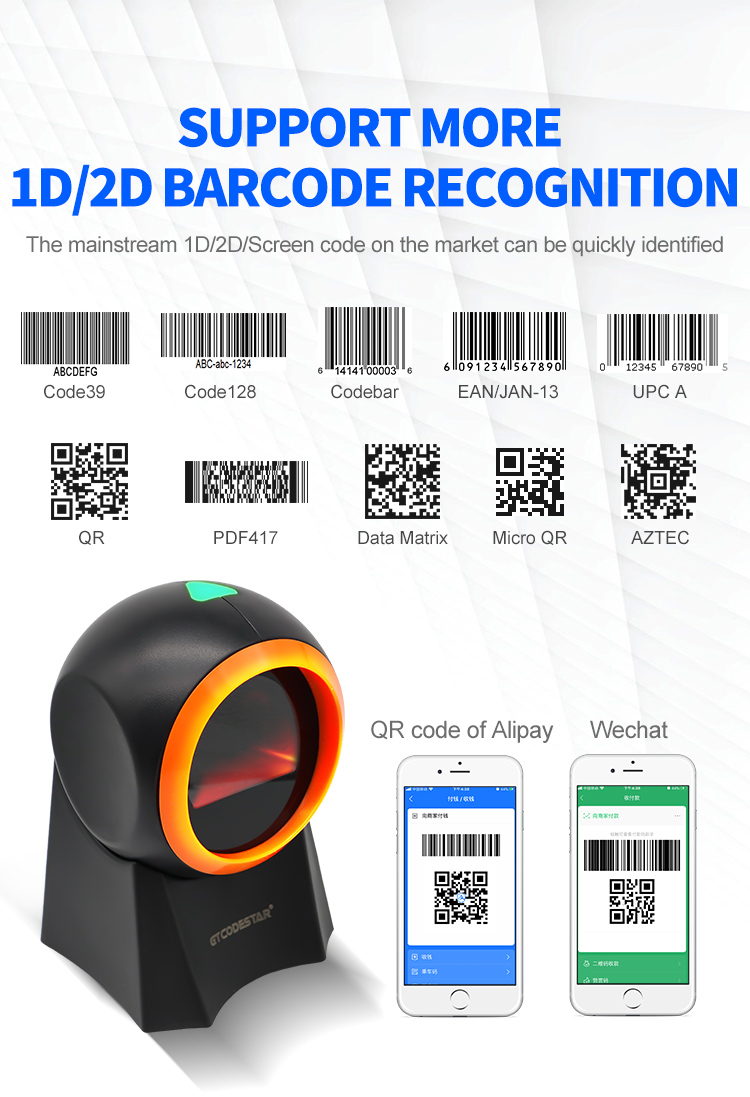

| Decoding Capability | 1D | ■UPC-A ■JAN/EAN-8 ■JAN/EAN-13 ■Code 128 ■Code 39 ■Codabar ■Code 93 ■Interleaved 2 of 5 ■UPC-E ■UCC/EAN 128 ■GS1-128 ■ISBN-13 ■Industrial（Standard）2 of 5 ■Code 11 ■MSI Plessey ■Code32 ■GS1 Composite ■GS1 Databar ■Composite ■Matrix 2 of 5 | |||||
| 2D | ■PDF417 ■Micro QR Code ■QR Code ■Aztec code ■Data Matrix | ||||||
| Scanning Depth | QR Code 12.50mil（7 bit）：0cm - 11cm PDF417 9.17mil（7 bit）：0cm -11cm Data Matrix 12.50mil（8 bit）：0cm - 7cm Code 128 7.50mil（15 bit）：1cm - 10cm EAN13（10mil）：3cm - 12cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | 1.2m free fall on concrete surface | ||||||
| Ambient light | 0→100000Lux | ||||||
