| Model | GT-8900A | ||
| Item | 2D wired barcode scanning platform | ||
| Physical Parameter | |||
| Material | ABS + PVC + SIL + PPM | ||
| Power Supply | DC 5V ±5% | ||
| Operating Current | 0.22A(Standby);0.26A(Operating);0.29A(Max)[Average] | ||
| Power consumption | 1.1W(Standby);1.3W(Operating);1.45W(Max)[Average] | ||
| Weight | 203.0g±5g(Without cable) | ||

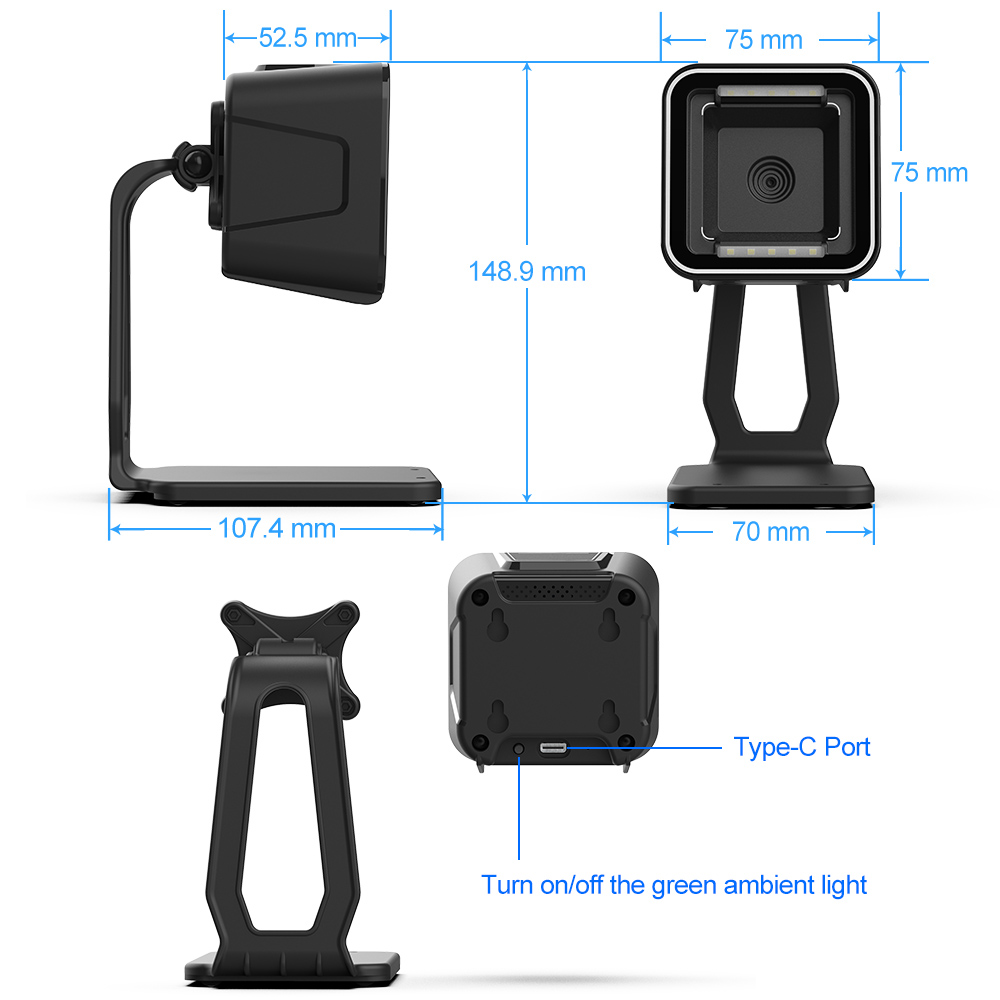

| Size | Size with bracket | L * W * H:107.4 * 75.0 * 148.9(unit:mm) | |
| Bare machine size | L * W * H:75 * 52.5 * 75(unit:mm) | ||
| Color | Black | ||
| Performance Parameter | |||

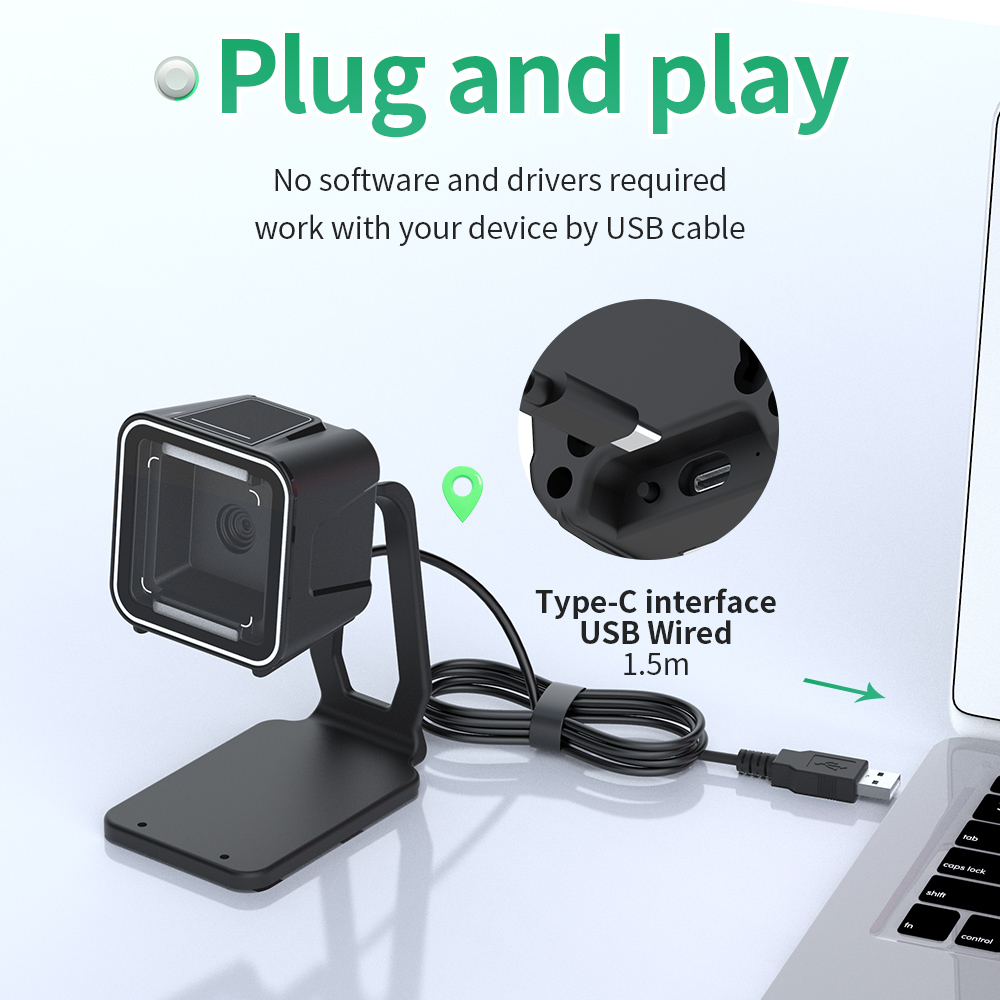

| Interface | USB;USB COM(customized) | ||
| System supported | Linux,Android,Windows XP,7,8,10,MAC | ||
| Language supported | English;Czech;French;German;Hungarian;Italian;Japanese;Spanish;Turkish; Mexican;Russian;Vietnamese;Swiss;Finnish;Swedish;Danish; Norwegian; Croatian; Arabic;Dutch;Lithuanian;Irish;Portuguese;Brazilian; [Support virtual keyboard] | ||
| Sensor | global shutter sensor 480 * 640 | ||
| Light Source | White LED Light+Green ambient light | ||
| Processor | 32-bit ARM MCU + DSP | ||
| Motion Tolerance | 75cm/sec[Code128],80cm/sec[QR] | ||
| Resolution | 1D≥4mil,2D≥6mil | ||
| Error Rate | 1/5000000 | ||
| Reading Mode | Image | ||

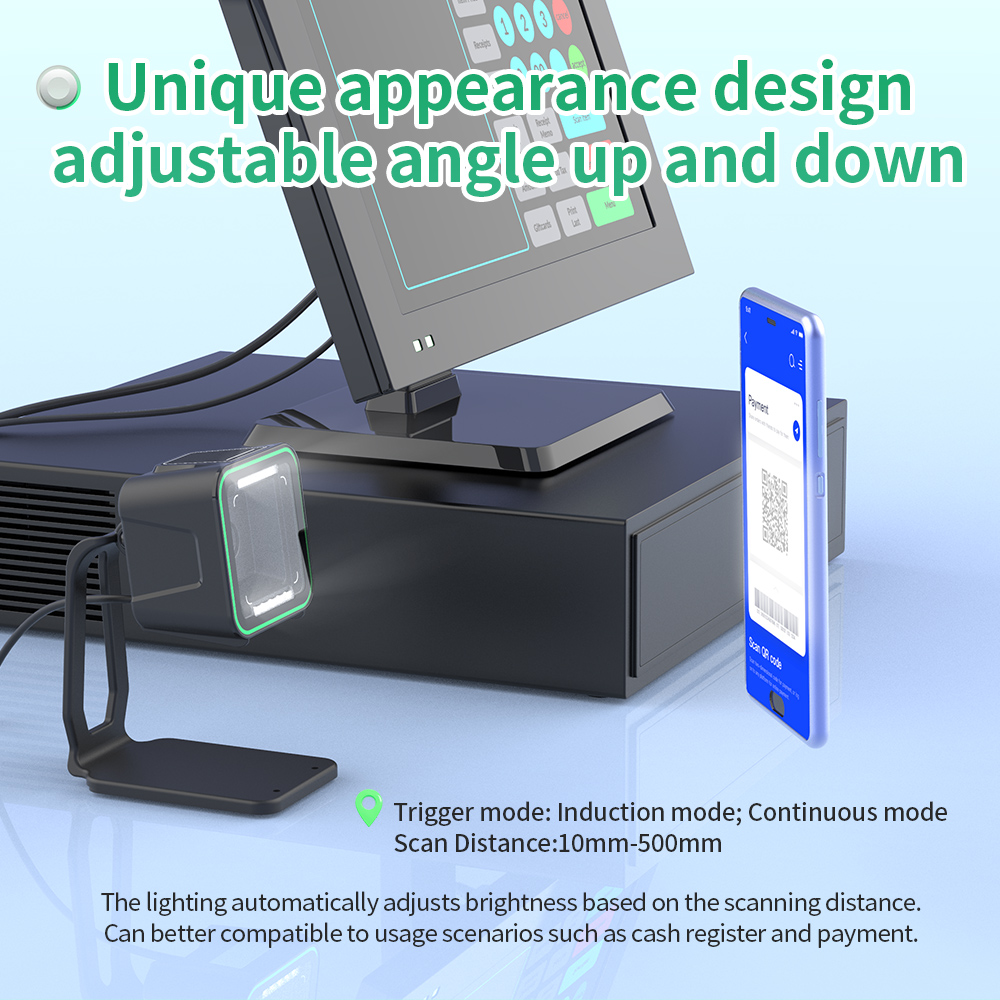

| Triggle Mode | Auto-sensing/Continuous mode | ||
| Prompt Mode | Buzzer+Indicator Light(LED) | ||

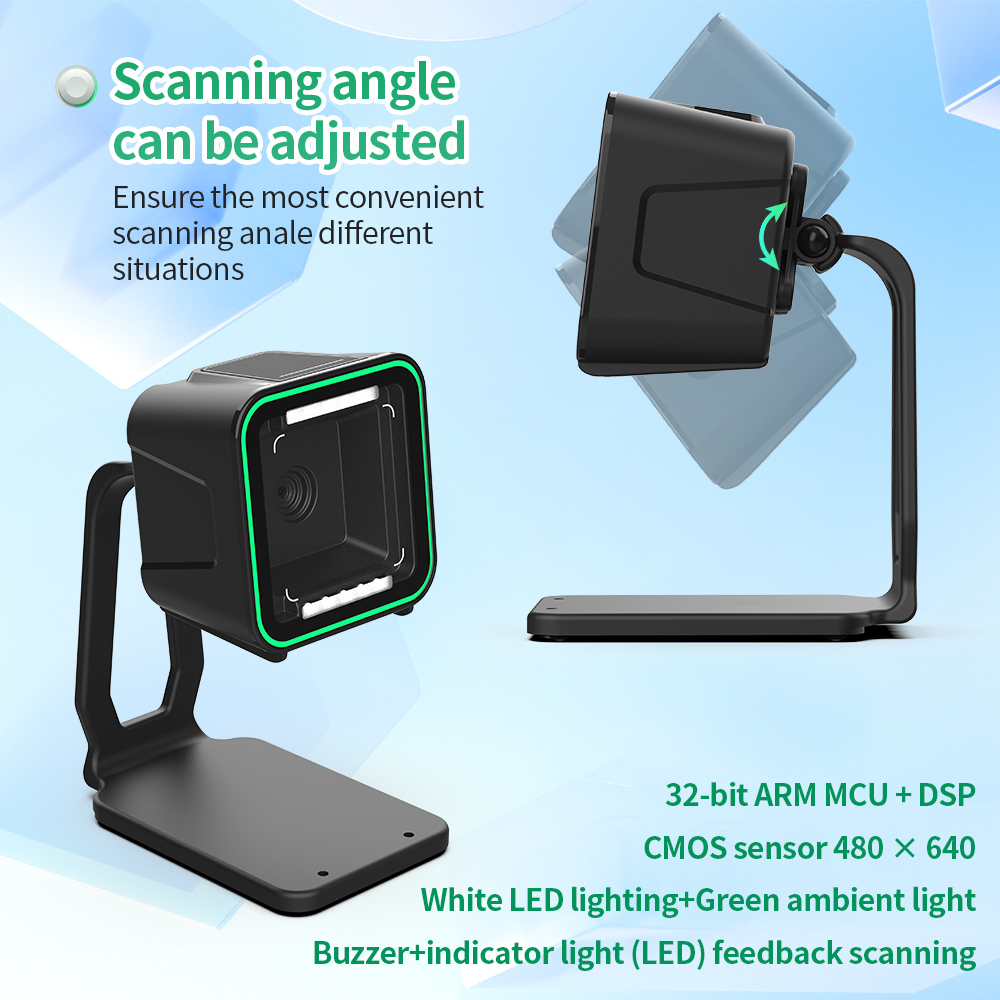

| Scanning Angle | Rotation 360°, 32° horizontal, 24° vertical | ||
| Invoice Code supported | Support | ||
| Print Contrast | ≥25% | ||

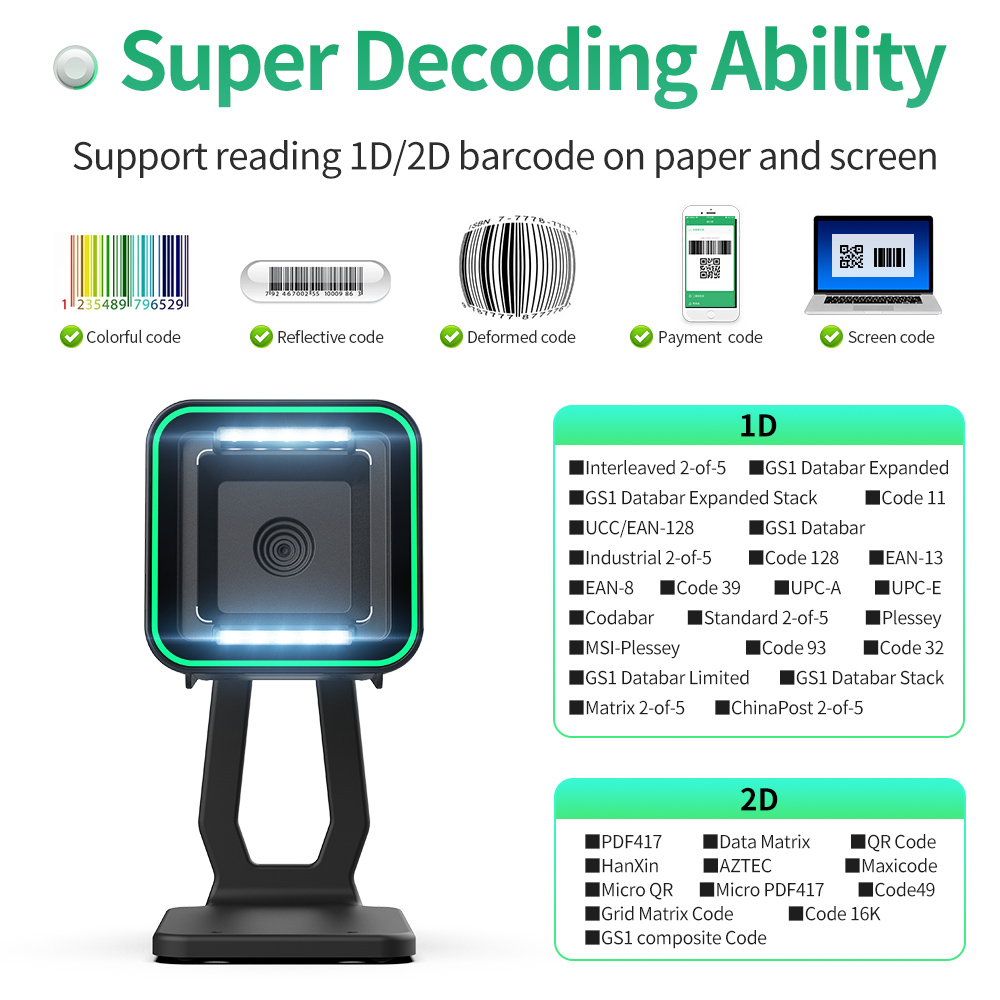

| Decoding Capability | 1D | *Interleaved 2-of-5 *GS1 Databar Expanded Stack *Code 11 *UCC/EAN-128 *GS1 Databar *Industrial 2-of-5 *Code 128 *EAN-13 *EAN-8 *Code 39 *UPC-A *UPC-E *Code 93 *Codabar *Standard 2-of-5 *Plessey *MSI-Plessey *GS1 Databar Limited *GS1 Databar Expanded *Code 32 *GS1 Databar Stack *Matrix 2-of-5 *ChinaPost 2-of-5 | |
| 2D | *PDF417 *Micro QR Code *QR Code *Aztec code *Data *HanXin *Maxicode *Matrix *Micro PDF417 *Grid Matrix Code *Code49 | ||
| Scanning Depth | QR 14mil:1cm - 12cm Wechat payment code:1cm - 30cm | ||
| Environment Parameter | |||
| IP Grade | IP54 | ||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||
| Operating Humidity | 20% to 85%(No Condensation) | ||
| Storage Humidity | 20% to 85%(No Condensation) | ||
| ESD Protection | 15KV air discharge | ||
| Shock Resistance | 1.2m free fall on concrete surface | ||
| Ambient light | 0→100000Lux | ||
