| X-7200 technical parameter | |||||||

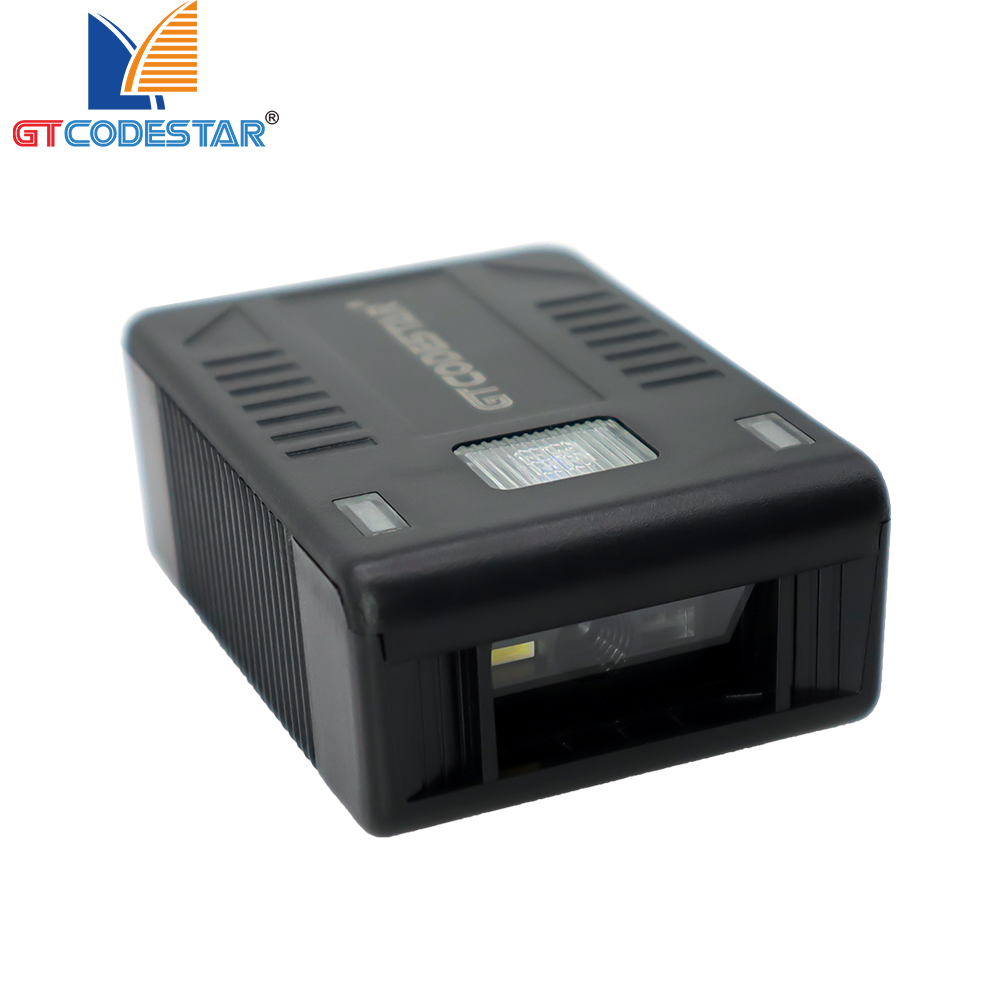

| Model | X-7200 | ||||||
| Item | Wireless 2D barcode Module | ||||||
| Physical Parameter | |||||||
| Material | ABS | ||||||
| Power Supply | DC 5V 500mA | ||||||
| Power consumption | 1.2W（Operating）；0.5W（Standby）；1.52W（Max）【Average】 | ||||||
| Weight | 49.0g±5g（without cable） | ||||||

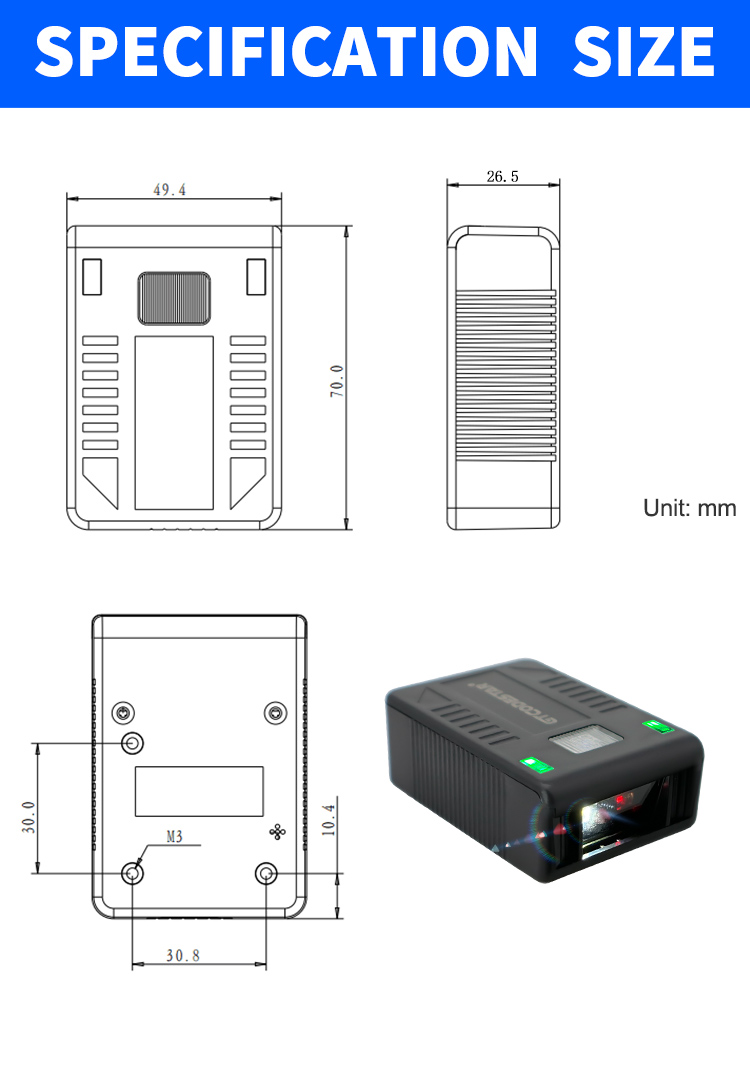

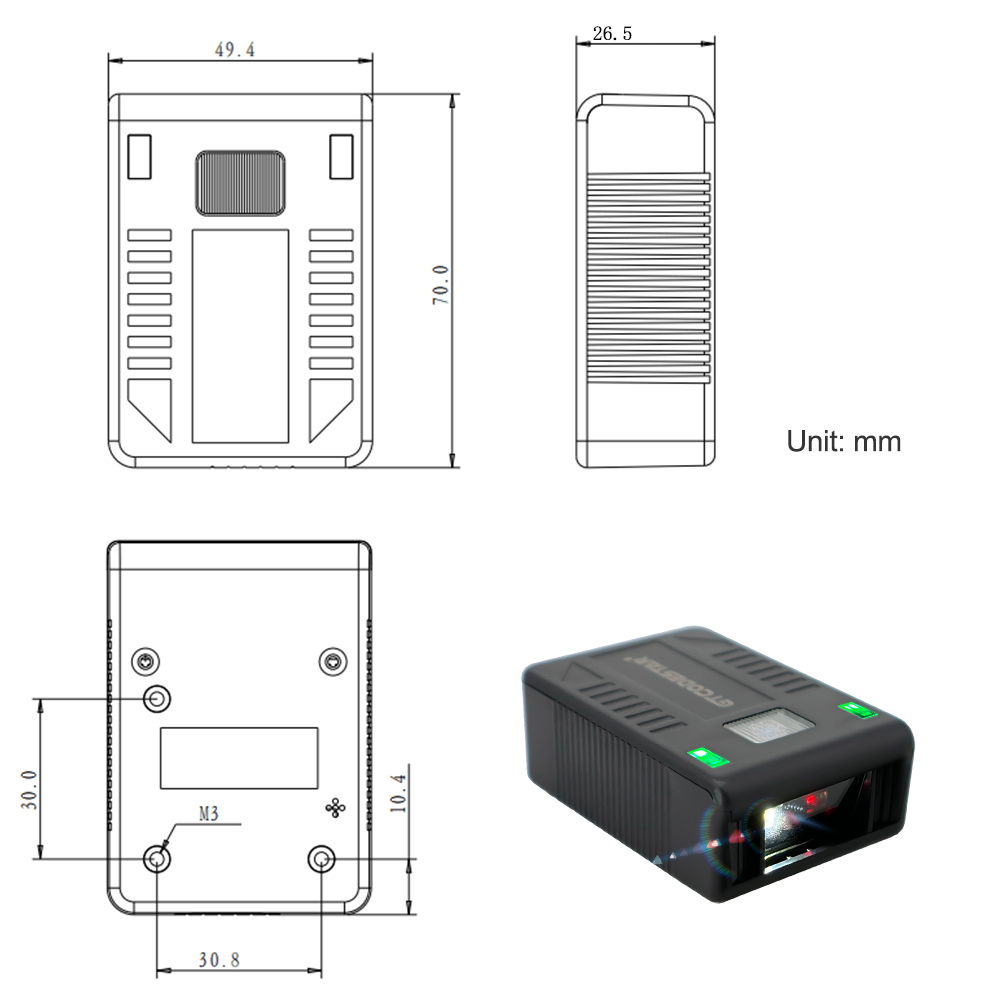

| Size | L*W*H：70.5 * 49.5 * 26.5 （Unit：mm） | ||||||
| Color | Black | ||||||
| Button life | ＞100000 | ||||||
| Performance Parameter | |||||||
| Interface | USB；USB COM；RS232 | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English-United States; French-Canada; Dutch-Netherlands; Spanish-International; Latin American-Argentina; Portuguese-Brazil; Danish-Denmark; English-UK; Italian-Italy 142; French-France; German- Germany; Portuguese-Portugal; Finnish-Finland; Turkish-F; Japanese; Russian-Russia; Northern Sami-Norway [Support multi-country keyboard] | ||||||
| Sensor | 640×480 global exposure CMOS | ||||||
| Processor | 32-bit ARM MCU + BGA | ||||||

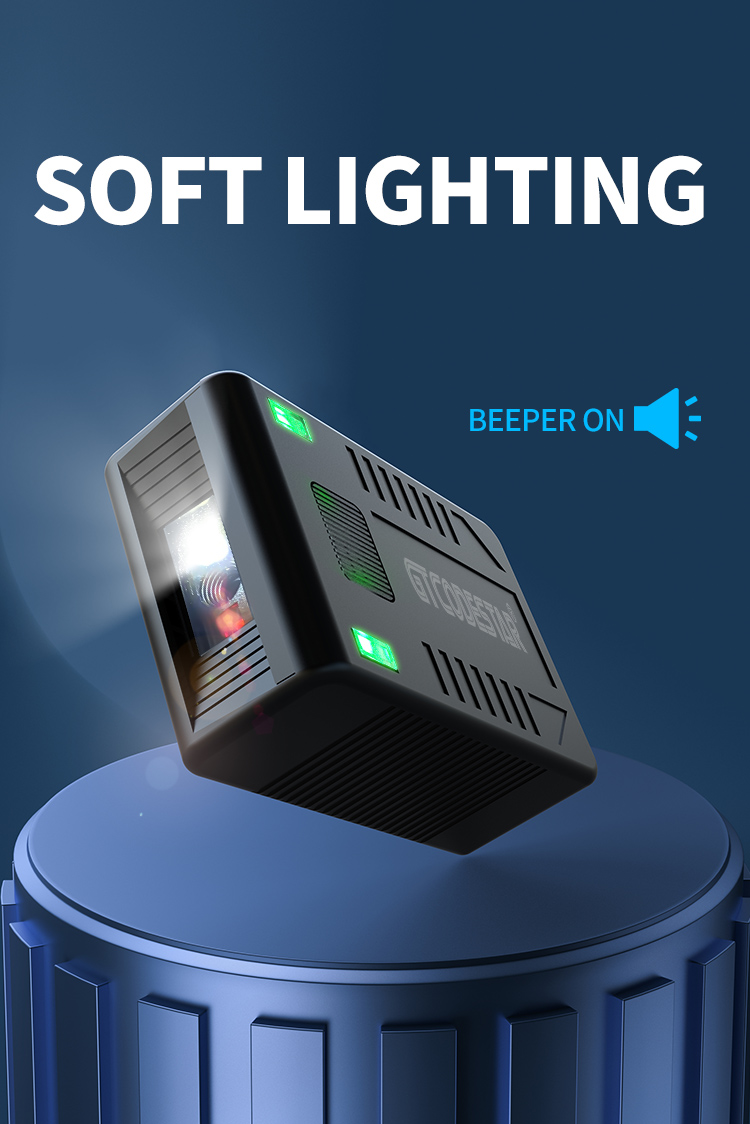

| Light Source | Red light LED aiming + white light LED lighting | ||||||
| Motion Tolerance | Code128： 60cm/sec QR： 65cm/sec | ||||||
| Reading Mod | Image | ||||||
| Resolution | ≥4mil | ||||||
| Bit error rate | 1/5000000 | ||||||
| Trigger Mode | Manual;Auto-Sensing;Continuous scanning | ||||||
| Prompt Mode | Buzzer + indicator light | ||||||
| Recognition angle | Tilt ±55°, deflection ±55°, rotation 360° | ||||||
| Reading distance | 10mm-600mm | ||||||
| Print Contrast | 25% | ||||||
| Scan speed | 100 times/sec | ||||||

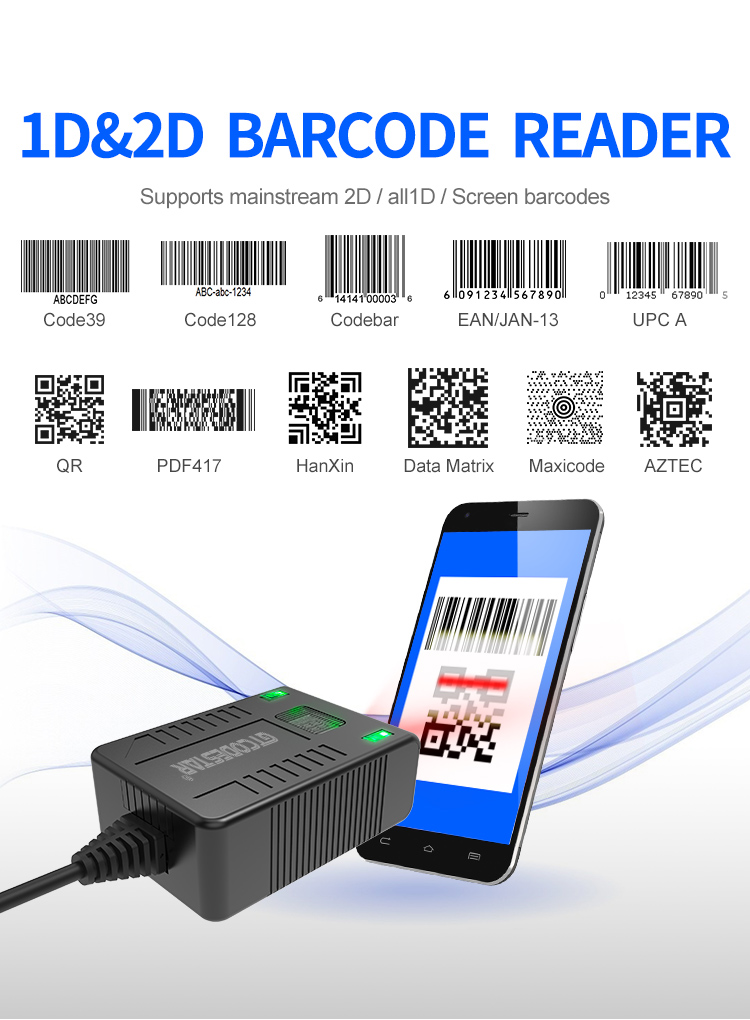

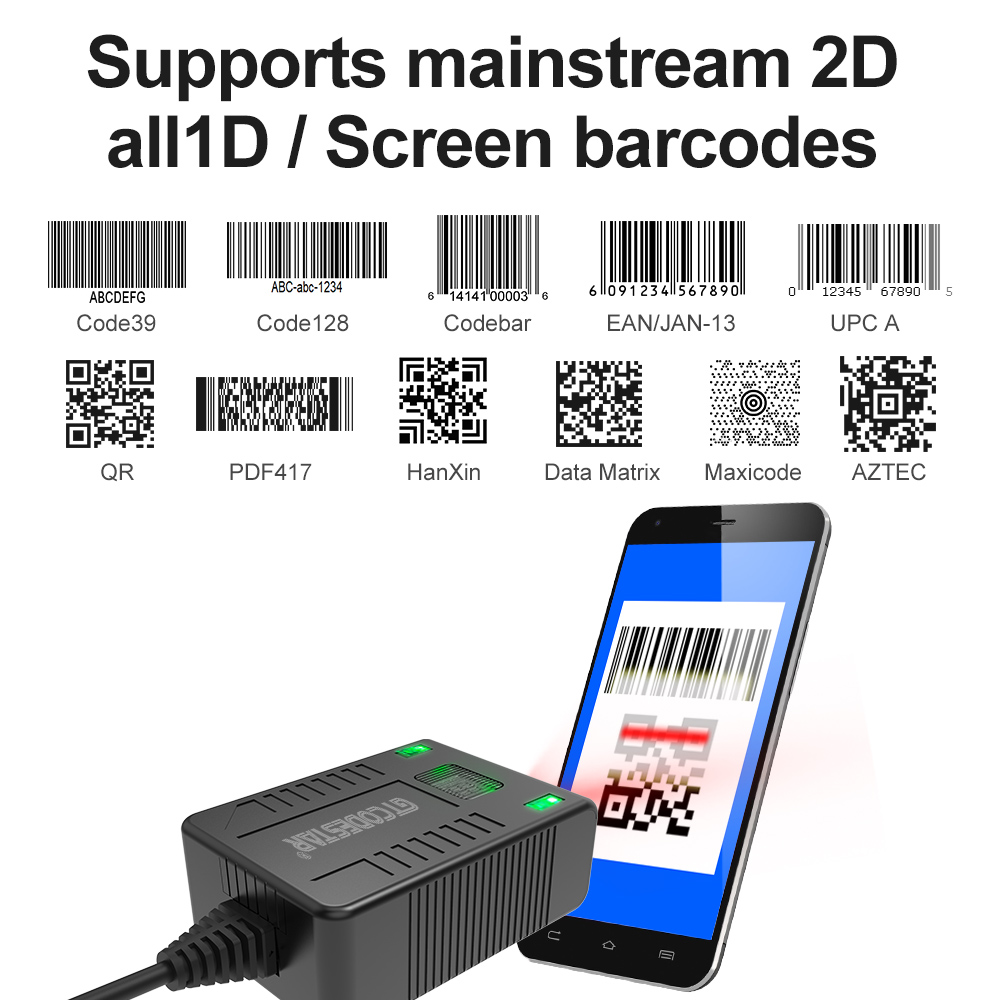

| Decoding Capability | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5 ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 composite code | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode | ||||||
| Scanning Depth | QR 7.50mil 15byte：5cm - 10cm QR 10.83mil 16byte：3cm - 16cm Code128 5.83mil 15byte: 6cm - 15cm | ||||||
| Environmental parameters | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | Free Fall 1.5m（concrete surface） | ||||||
| Ambient light | 0→100000Lux | ||||||
