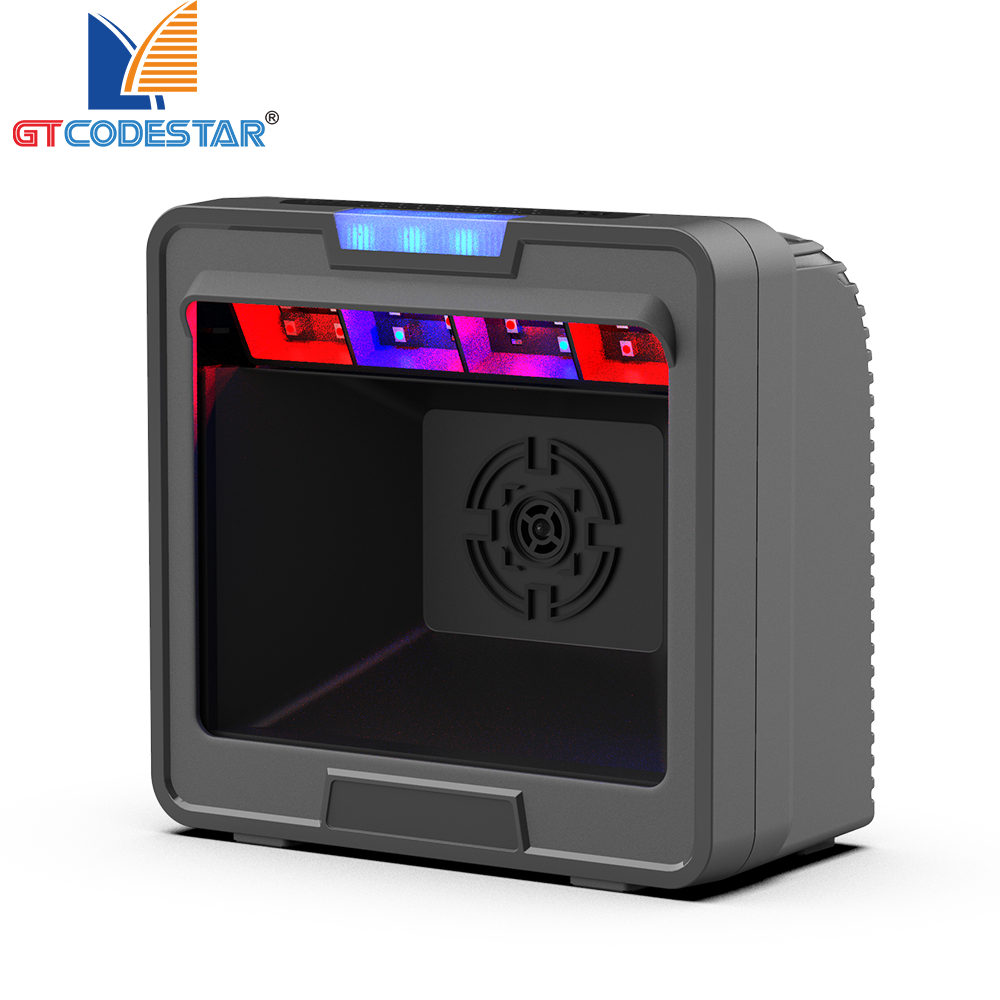

| GT-9800F Technical Parameter | |||||||
| Model | GT-9800F | ||||||

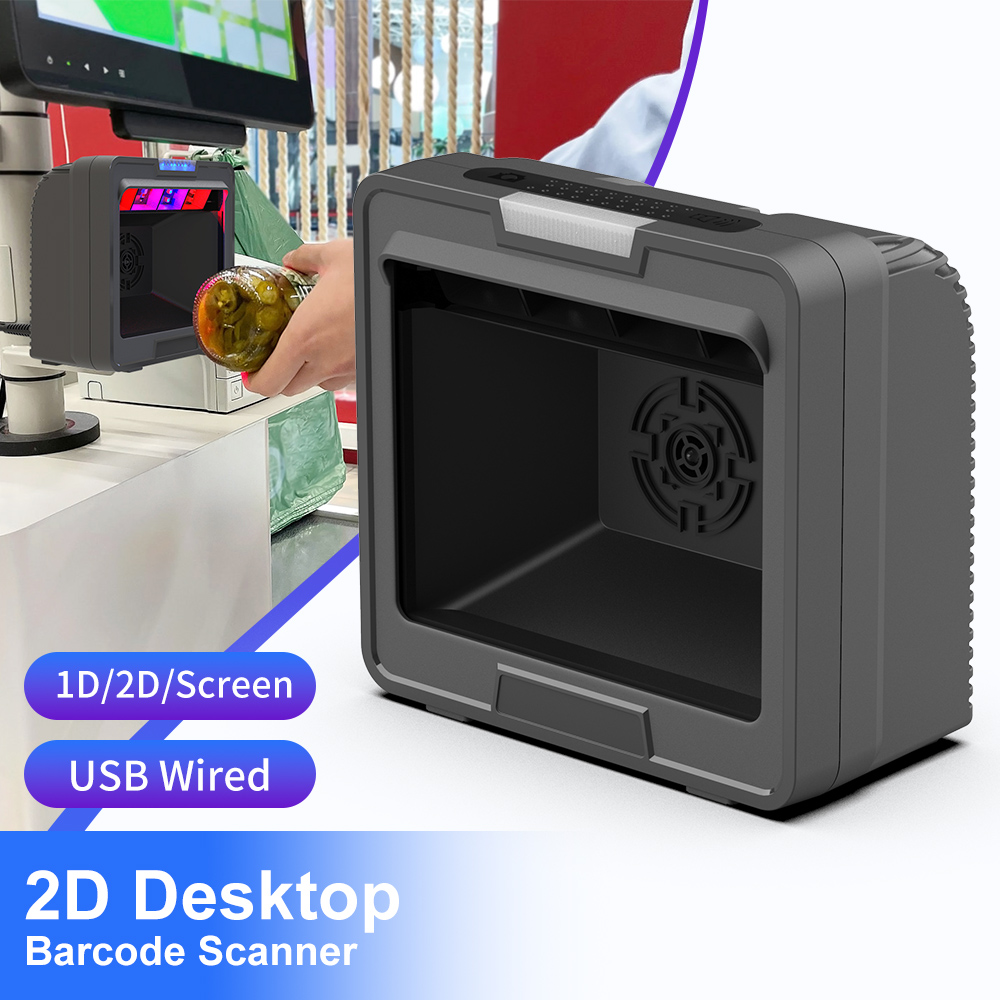

| Item | Omnidirectional 2d barcode scanning platform | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V 500mA | ||||||
| Power Consumption | 1.15W（working）；0.80W（standby）；1.80W（maxium） | ||||||
| Weight | 285.0g±5g（without cable） | ||||||

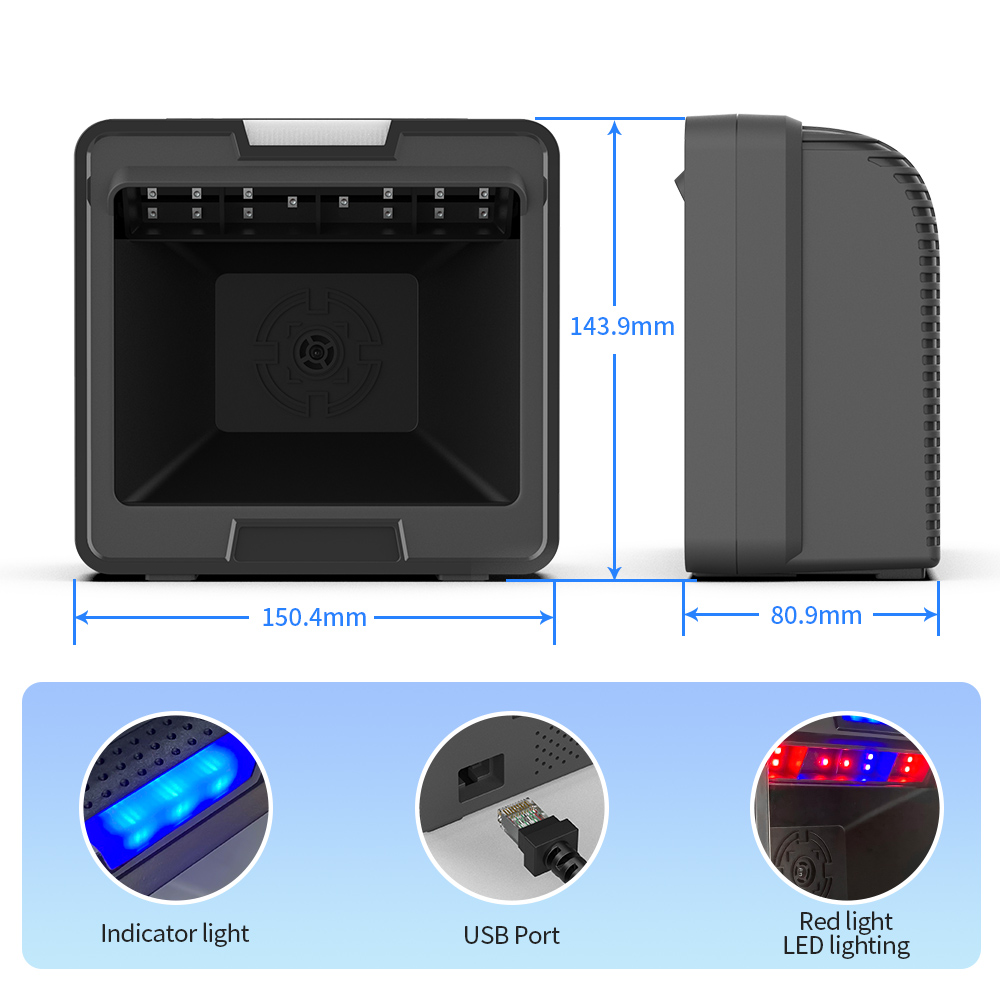

| Size | L*W*H：150.4 * 143.9 * 80.9（unit：mm） | ||||||
| Color | Black | ||||||
| Performance Parameter | |||||||

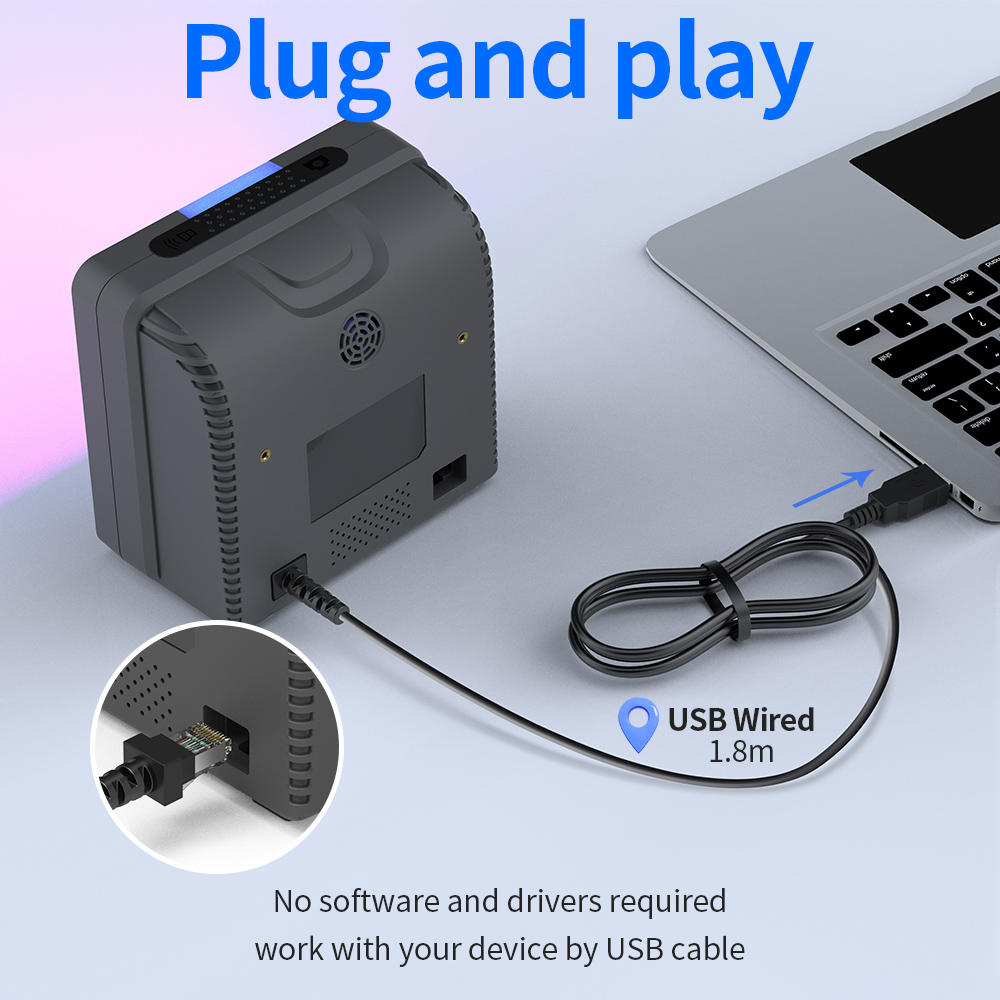

| Interface | USB；USB COM（RS232 can be customized ） | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English,Danish,Germany,French,Finnish,Switzerland(Germany),Italian,Russian,Norwegian,Spanish,Belgium(French),Romanian,Hungarian,Dutch,Arabic,Czech,Polish,Brazil(Portuguese),Turkish-F,Turkish-Q,Greek,Thai,Swedish,Slovak(support multiple languages) | ||||||
| Sensor | Global CMOS sensor 1600 * 900 | ||||||
| Light source | Red LED | ||||||
| Processor | 32-bit ARM MCU | ||||||
| Motion Tolerance | Code39： 2.35m/sec QR： 2.63m/sec | ||||||
| Resolution | 4mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||

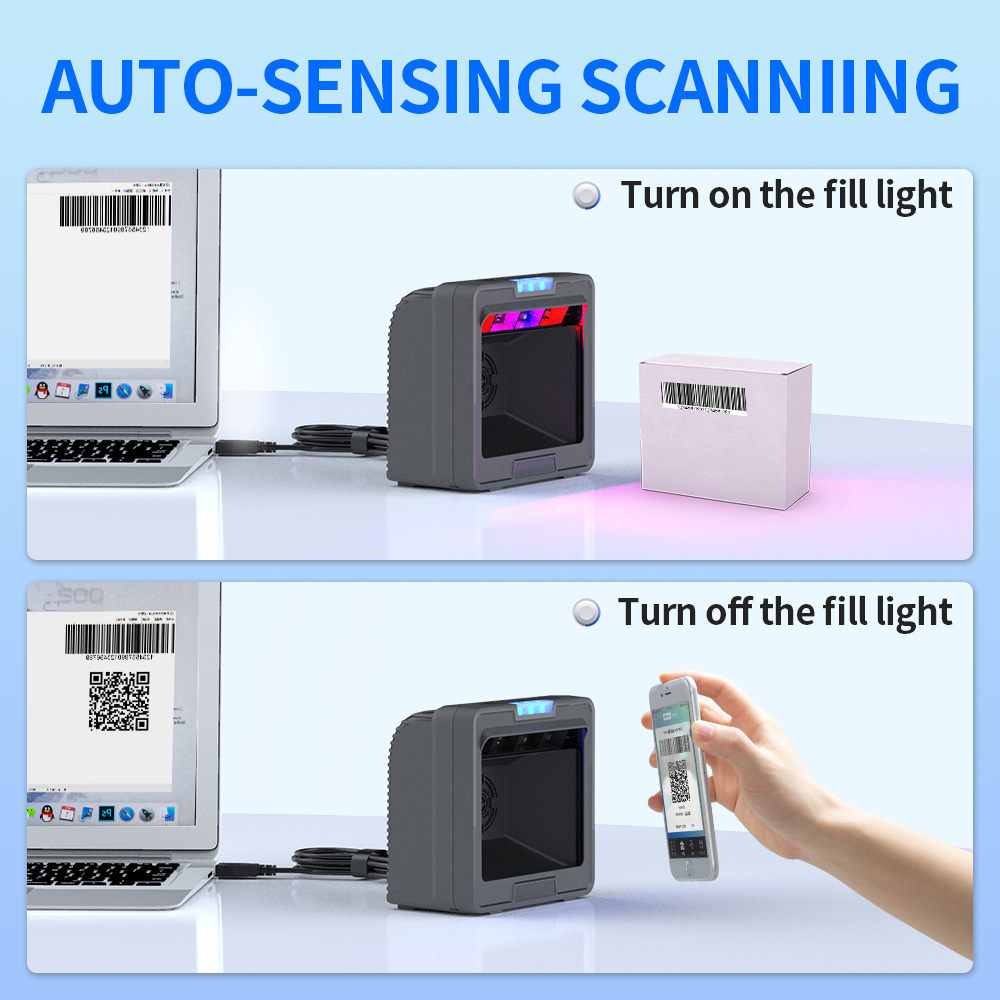

| Trigger Mode | Imaging Sensor | ||||||
| Prompt Mode | Buzzer, Indicator Light（LED） | ||||||
| Image code | Support | ||||||
| OCR | Support China ID and passport MRZ | ||||||
| POST CODE | Support | ||||||
| Invoice Function | Support | ||||||

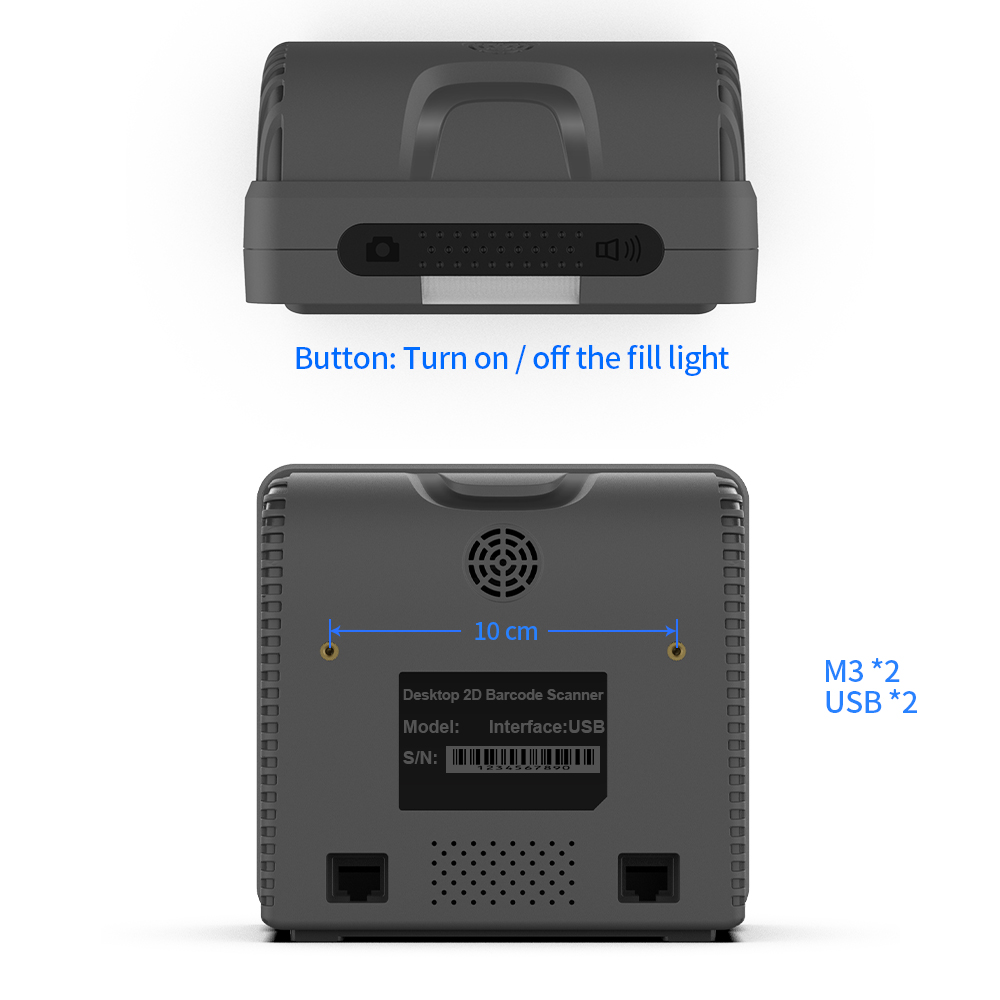

| Button | Switch sound frequency and convert 1D and 2D | ||||||
| Print Constrast | ≥25% | ||||||

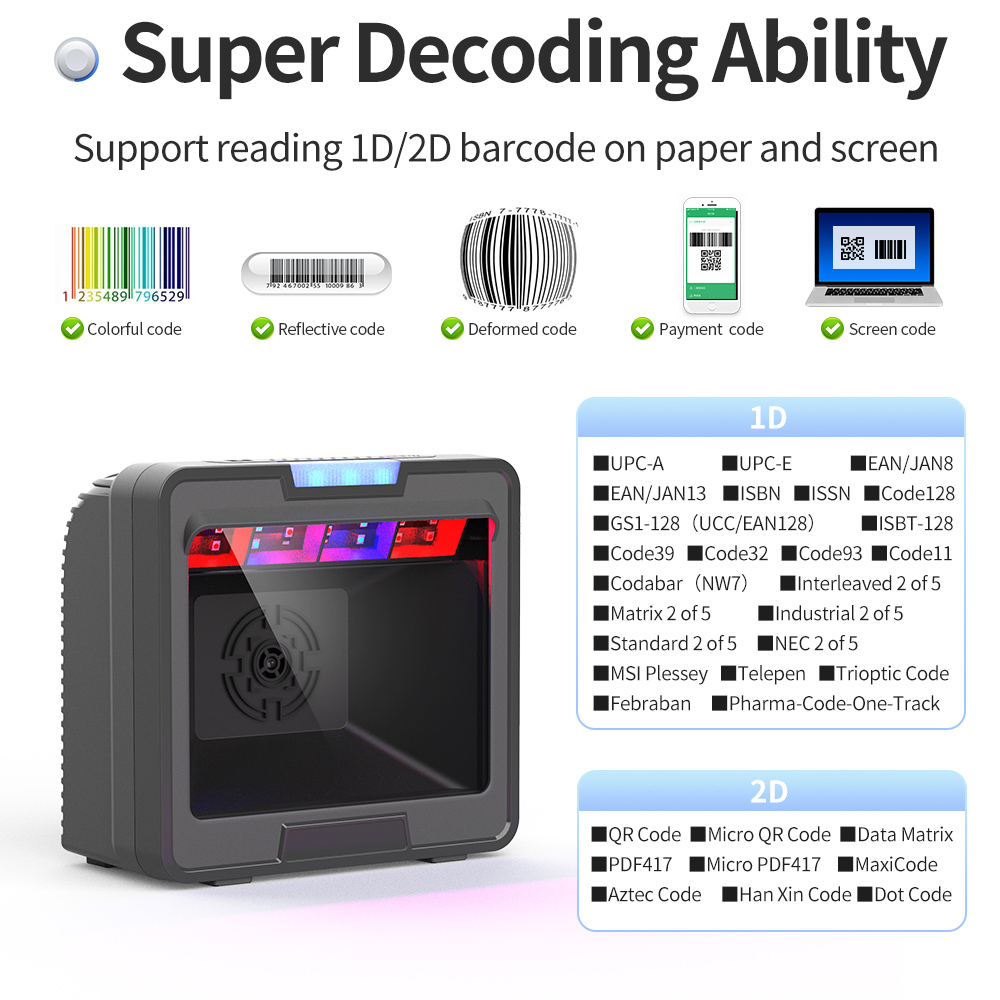

| Decoding Capability | 1D | ■UPC-A ■UPC-E ■EAN/JAN8 ■EAN/JAN13 ■ISBN ■ISSN ■Code128 ■GS1-128（UCC/EAN128） ■ISBT-128 ■Code39 ■Code32 ■Code93 ■Code11 ■Codabar（NW7） ■Interleaved 2of5 ■Matrix 2of5 ■Industrial 2of5 ■Standard 2of5 ■NEC 2of5 ■MSI Plessey ■Telepen ■Trioptic Code ■Febraban ■Pharma-Code-One-Track | |||||
| 2D | ■QR Code ■Micro QR Code ■Data Matrix ■PDF417 ■Micro PDF417 ■MaxiCode ■Aztec Code ■Han Xin Code ■Dot Code | ||||||
| Scanning Angle | Roll360°,Pitch55°,Yew55° | ||||||
| Scanning Depth | 5mil Code39: 1 cm -- 9 cm 13mil UPC-A : 1 cm -- 16 cm 10mil Code39 : 1 cm -- 16 cm 20mil QR Code : 1 cm -- 15 cm 10mil Data Matrix : 2 cm -- 10 cm Alipay : 1 cm -- 50 cm WeChat : 1 cm -- 50 cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No condensationc） | ||||||
| Storage Humidity | 20% to 85%（No condensation） | ||||||
| ESD Protection | 15KV | ||||||
| Shock Resistance | 1.5m free fall on concrete surface | ||||||
