| model | GT-3013B |

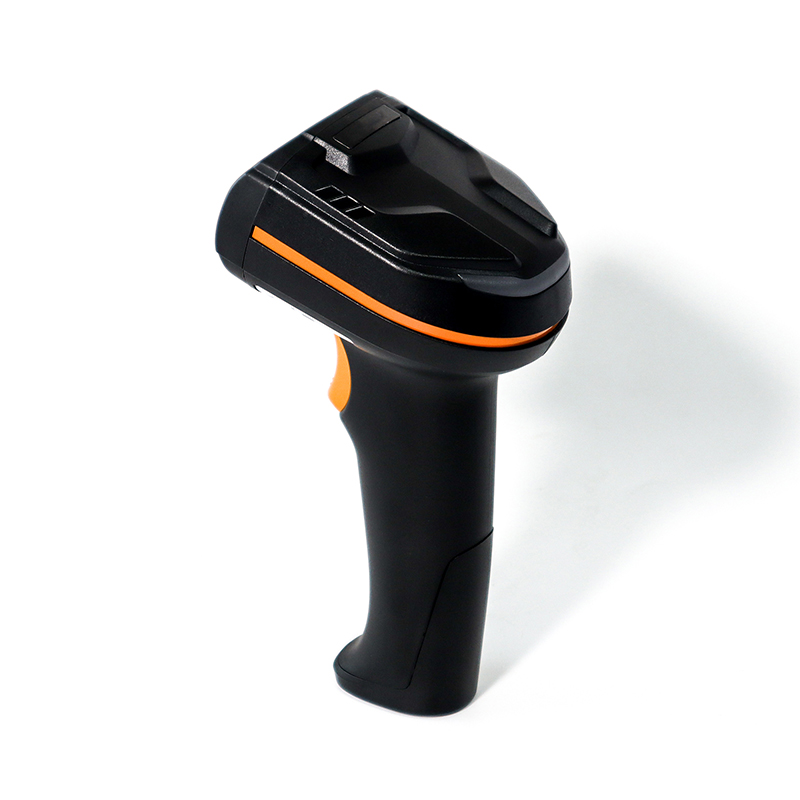

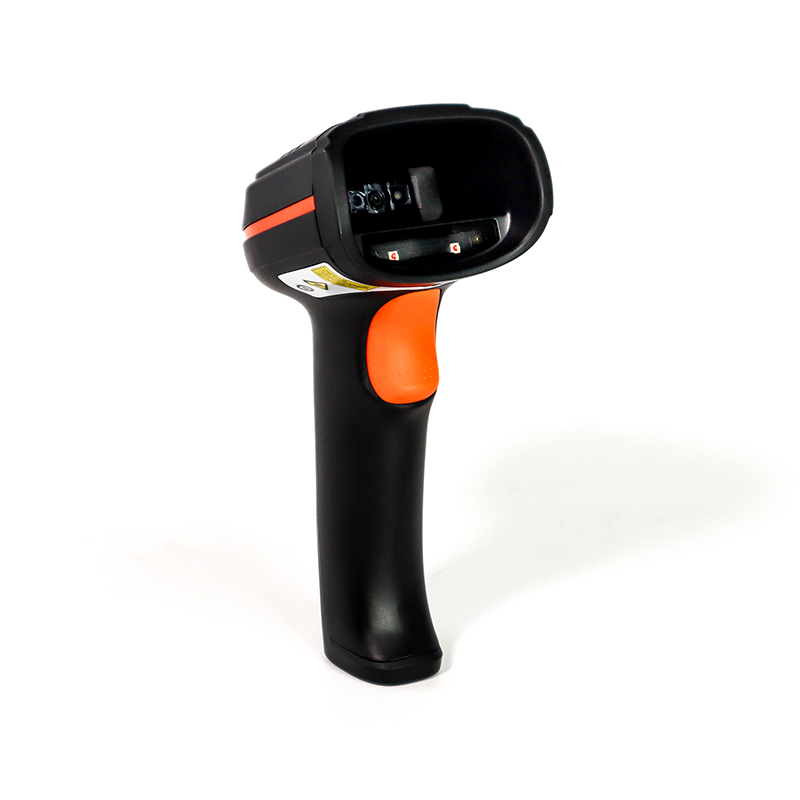

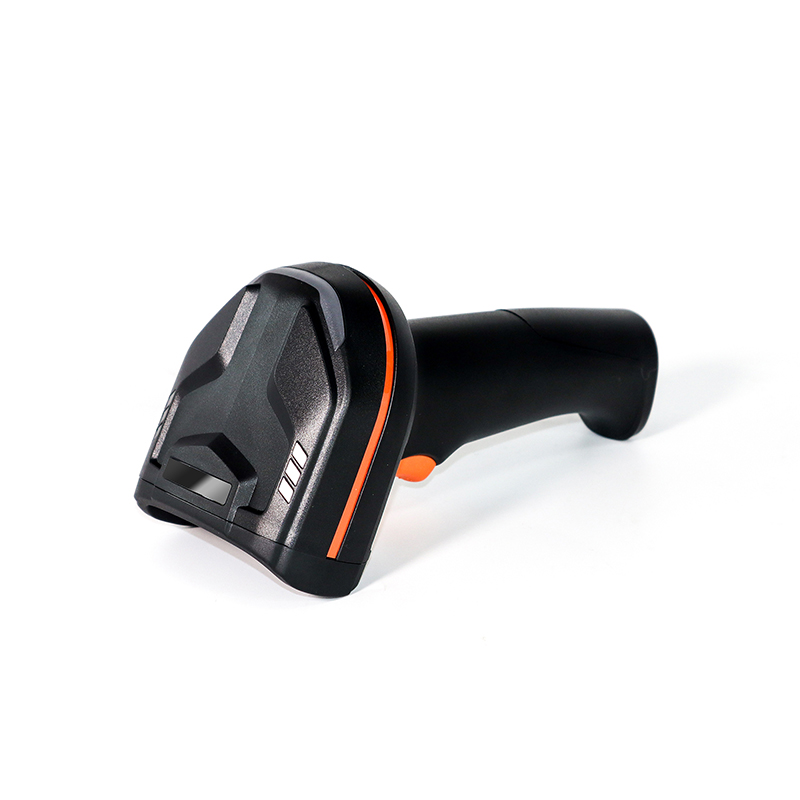

| parameter | The 1.3-megapixel wireless industry handheld code reader |
| function |
| Barcode category | 1 D code: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 25, ITF 14, UPCA, UPCE, et al |
| QR code: QR Code, Data Matrix, et al |
| Barcode minimum | 3 mil |
| Maximum processing | 50 fps |
| Sensor type | CMOS, the global shutter |
| Like a meta size | 3 pm x 3 pm |
| Target size | 1/4" |
| resolution ratio | 1280 x 1024 |
| depth of field * | Code 128 (3 mil): 35 〜80 mm |
| Code 128 (10 mil): 10 ~ 170 mm |
| Code 39 (5mil): 15~ 100 mm |
| Code 39 (20 mil): 20 ~250 mm |
| Data Matrix (10 mil): 5 ~ 115 mm QR Code (20 mil): 20~ 190mm |
| Field of view Angle | 40° horizontal and 34° vertical |
| Detection Angle | Tilt angle is ± 60., Deflection, Angle S, 60°, rotation angle, 360. |
| Symbolic contrast | 20% |
| Wireless communication |
| PDA | BT5.0,2.42.4835 GHz band, BLE |
| Wireless range | 70m (open range) |
| protocol |
|
| Reader: Bluetooth Base: SmartSDK, USB (HID / CDC), Bluetooth |
| electrical character |
| joggle | USB2.0, the DC terminal |
| cell | 3150 mAh, rechargeable lithium battery |
| charging interval | 8.5 h (USB) |
| Number of scans | 29,000 times (fully charged) |
| supply electricity | Reader: 3.8 VDC (battery powered) |
| Base: 5 VDC (USB); 12-24 VDC (DC terminal) |
| maximum power dissipation | Reader: standby mode: 0.8W@3.8VDC; working mode: 1.6W@3.8VDC; |
| sleep mode: 0.6W@3.8 VDC |
| Base: 5 VDC (USB); 12-24 VDC (DC terminal) |
| structure |
| focal distance | 4.7 mm |
| Lens interface | M5.8-Mount |
| Environmental light | 0~ 100000 lux |
| illuminant | glow LED |
| sight | Cross laser aiming |
| prompting mode | LED indicator lamp, buzzer, vibrator |

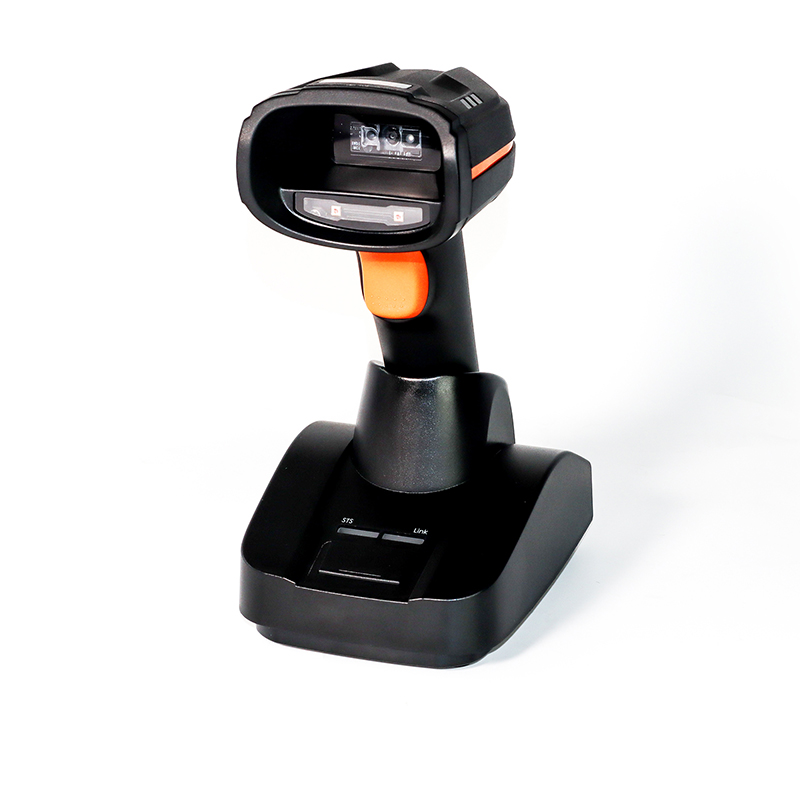

| outline dimension | Reader: 74.4 mm x 86.6 mm x 179.5 mm Base: 100.9 mm x 131.8 mm x 83.6 mm |
| weight | Reader: about 230g |
| Base: approximately 180g |
| IP levels of | IP42 |
| temperature | Operating temperature is-20~50°C, storage temperature is-30~60°C, and battery charging |
| humidity | 20% ~ 80% RH without condensation |
| Fall height | At 1.5 m or more than 50 times |
| As standard |
| software | IDMVS |
| attestation | CE, KC |
