| Model | GT-1800F | ||||||

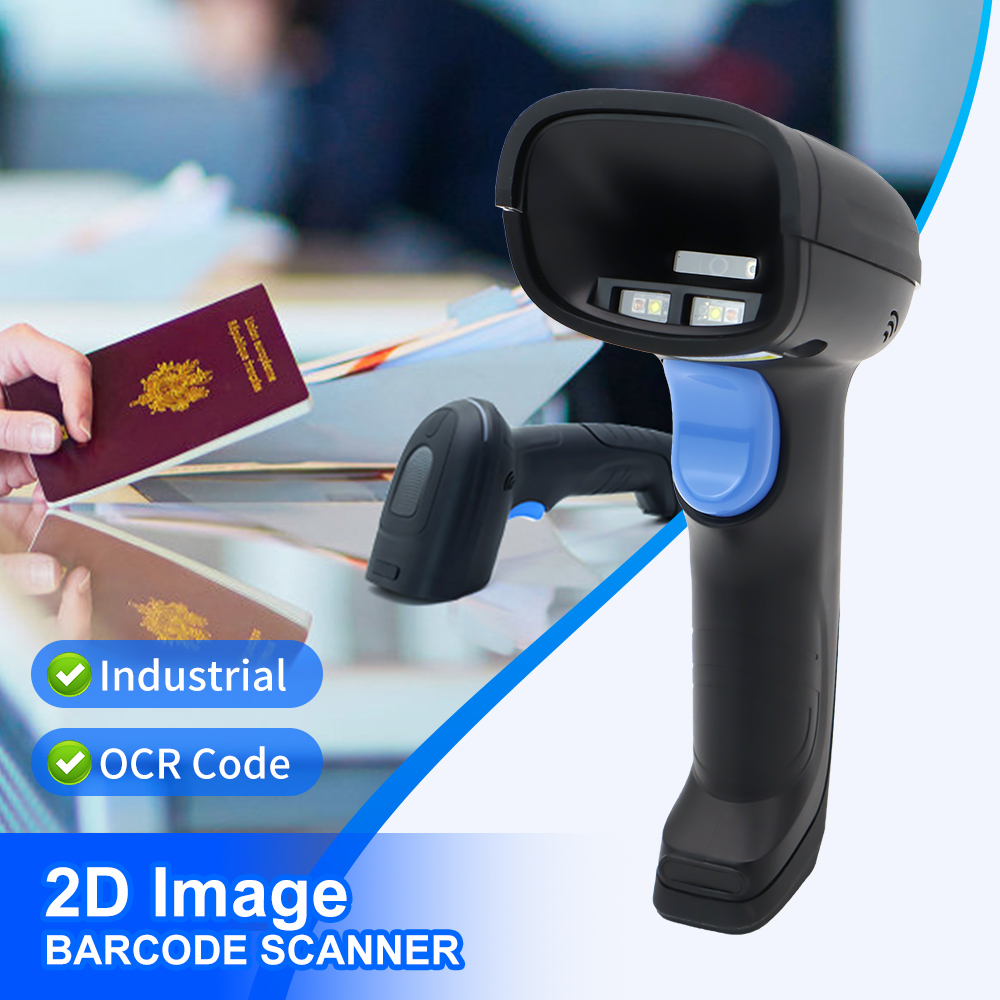

| Item | Wired 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Current | Working: 2.35W@5V and Standby: 0.475W @5V/ Current: Operating.<470mA Standby:95mA | ||||||
| Weight | 177g | ||||||

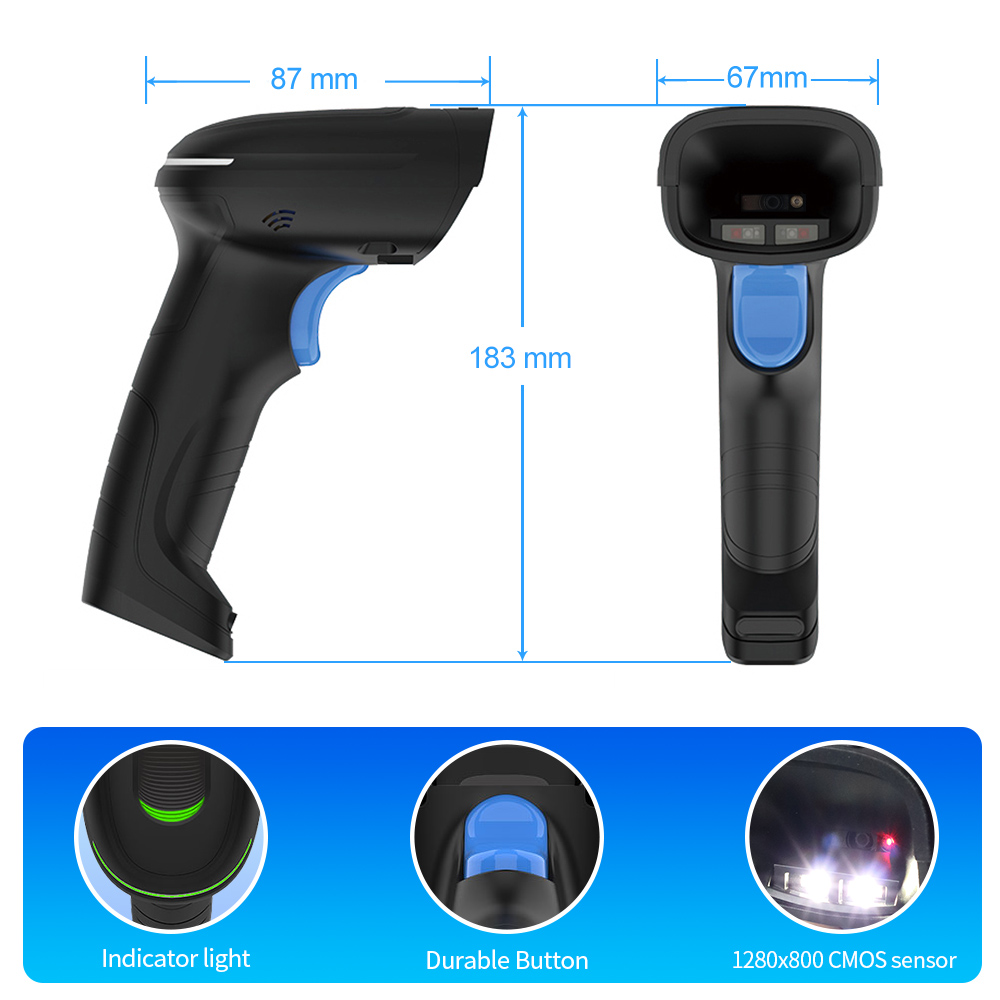

| Size | 67mm*87mm*183mm | ||||||
| Color | Black | ||||||
| Button lifetime | >20,000,000 times | ||||||
| Performance Parameter | |||||||
| Interface | USB ;USB COM | ||||||
| System Supported | Linux,Android,Windows XP,7,8,10,MAC | ||||||
| Language Supported | English; Belgian; Finnish; French; German; Italian; British; Danish;etc. | ||||||
| Sensor | global exposure CMOS 1280×800 | ||||||
| Field of view | 42°H*30°V | ||||||
| Light Source | Red and white LED lighting | ||||||
| Aim | laser | ||||||
| Processor | 32-bit ARM MCU | ||||||
| Resolution | ≥3mil | ||||||
| Bit error rate | 1/5,000,000 | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Button trigger, infrared trigger | ||||||
| Prompt Mode | Buzzer, Indicator Light(LED)+ shock | ||||||
| Print Contrast | ≥15% | ||||||
| Decoding Capability | 1D | All standard 1D codes including GS1 DataBar™ * Interleaved 2 of 5 * Standard 2 of 5 * Matri 2 of 5 * ITF-14 * Code39-Regular * Code39-FullASCII * Code93-Regular * Code93-FullASCII * Code128 * Code11 * UPCE0/E1 * EAN/GS1-128 * Codabar * MSI PLESSEY * EAN/JAN-13 * UPC-A * JAN/EAN-8 * GS1 Databar * Code 32 * China Postal * UK PLESSEY | |||||
| 2D | * Data Matrix * QR Code * PDF417 * HanXin Code * Aztec * Micro QR * Micro PDF417 * Maxi code * Dotcode * GS1 Composite *Digimarc | ||||||
| Postal | *Australian *RM4SCC *Canadian *Intelligent Mail Bar *Japanese Post *KIX Post *USPS Planet *UPU FICS | ||||||
| OCR | Chinese ID card number recognition,MRZ | ||||||
| Scanning Angel | Roll 360°,Pitch ±60°,Yew±60° | ||||||
| Scanning Depth | 3mil Code 39 10-90mm 13mil UPC 10-200mm 10mil DM 0-100mm 20mil UPC 60-250mm 40mil QR from smartphone: 30-500mm | ||||||
| Environmental parameters | |||||||
| IP Grade | IP65 | ||||||
| Operating Temp. | -20 to 50℃ | ||||||
| Storage Temp. | -40 to 70℃ | ||||||
| Operating Humidity | 0 to 95%(No Condensation) | ||||||
| Storage Humidity | 0 to 95%(No Condensation) | ||||||
| ESD Protection | 15KV air discharge, 8KV contact discharge | ||||||
| Ambient light | 0→100000Lux | ||||||
| Shock Resistance | Can withstand 18 drops from a 2-meter steel plate and 40,000 drops from a 5cm plate | ||||||
