| Technical Parameter | |||||||

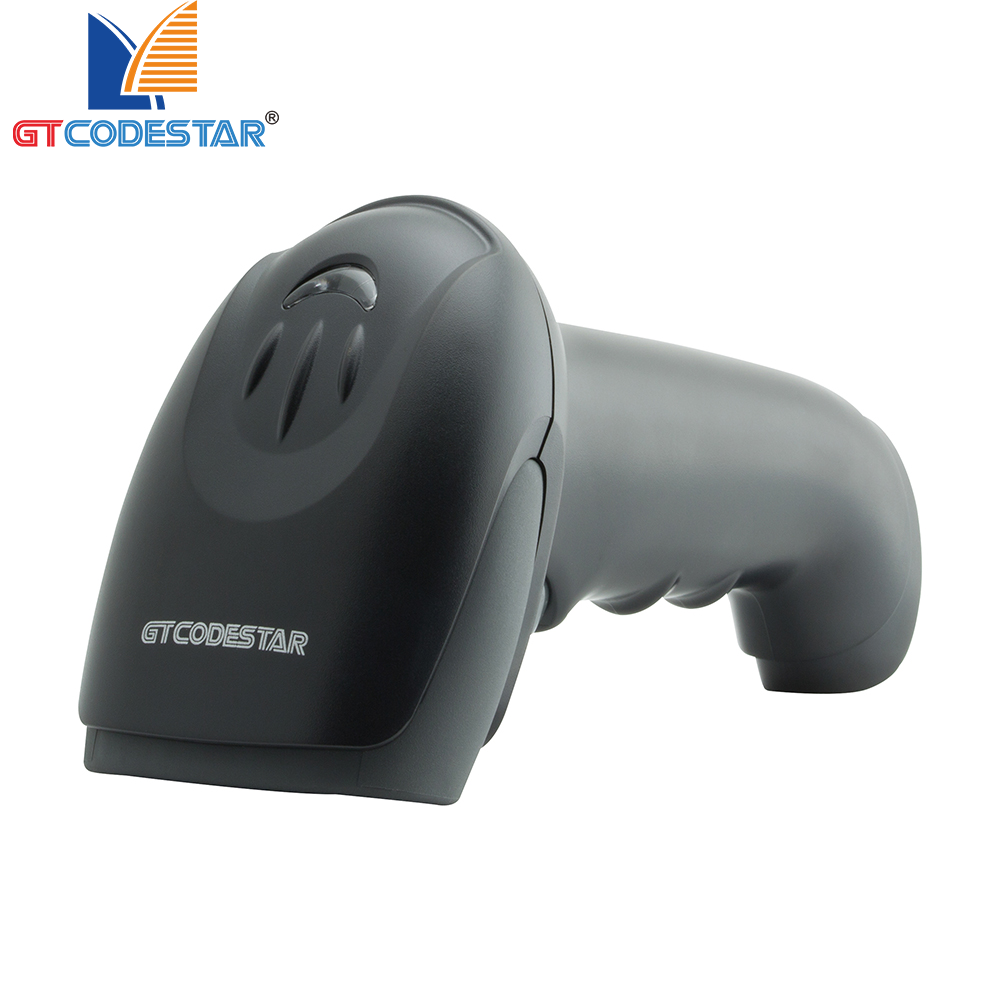

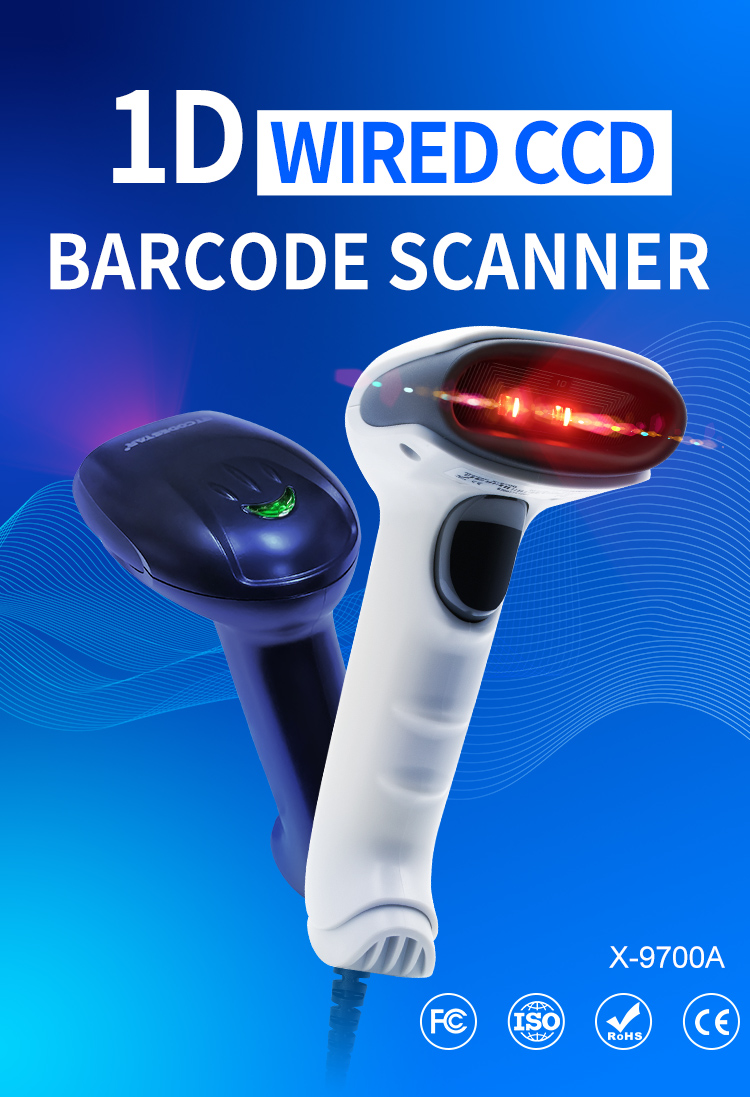

| Model | X-9700A | ||||||
| Item | Wired CCD Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC+TPE | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Operating Current | 580mW（working）；197mW（standby）；890mW（maximum） | ||||||
| Weight | 115g±5g（With cable） | ||||||

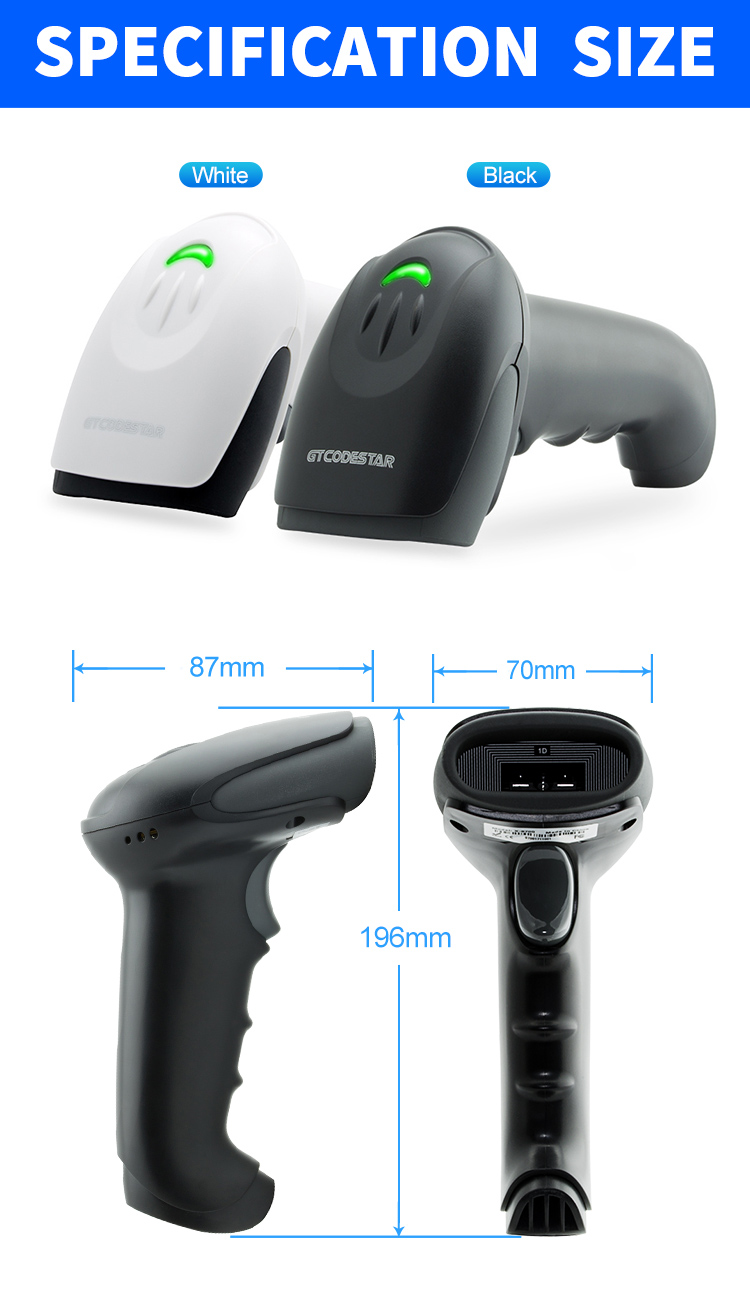

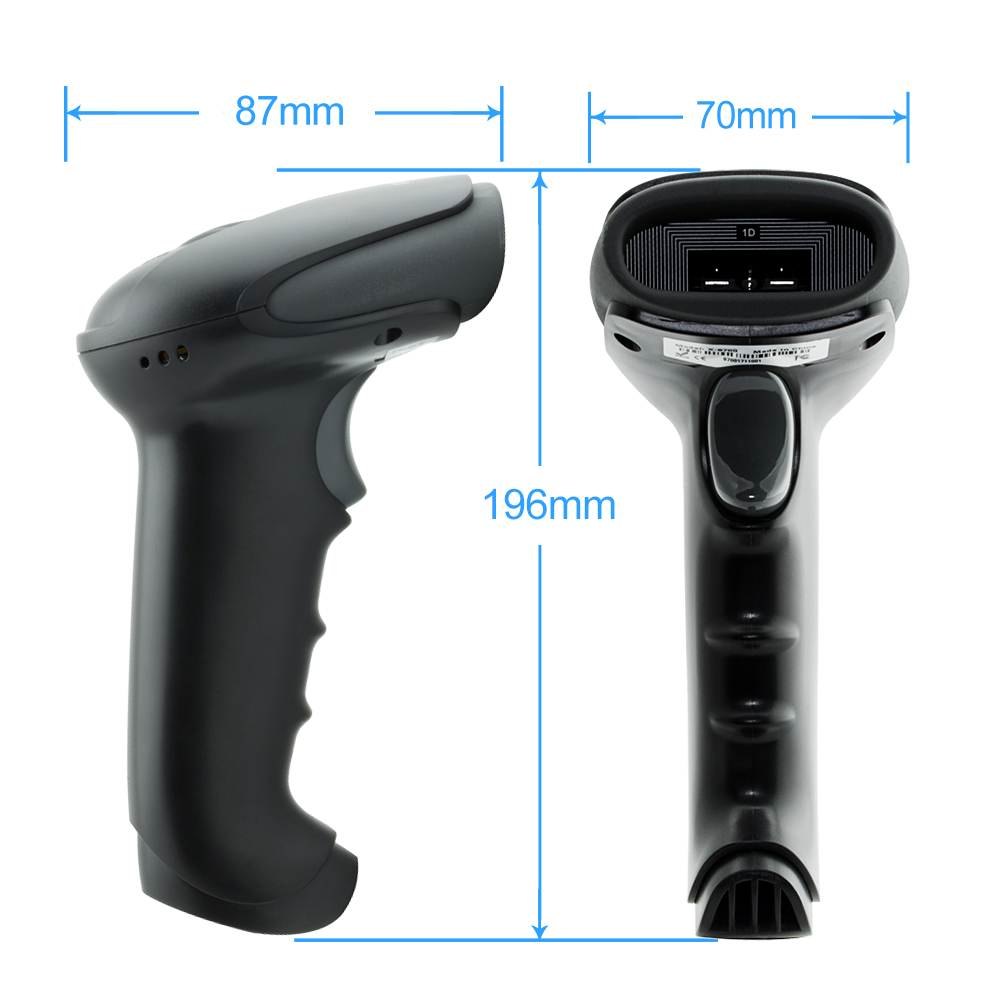

| Size | L*W*H：196 * 87 * 70（unit:mm） | ||||||
| Color | Grayish white;Black | ||||||
| Button Lifespan | ＞100000times | ||||||
| Performance Parameter | |||||||

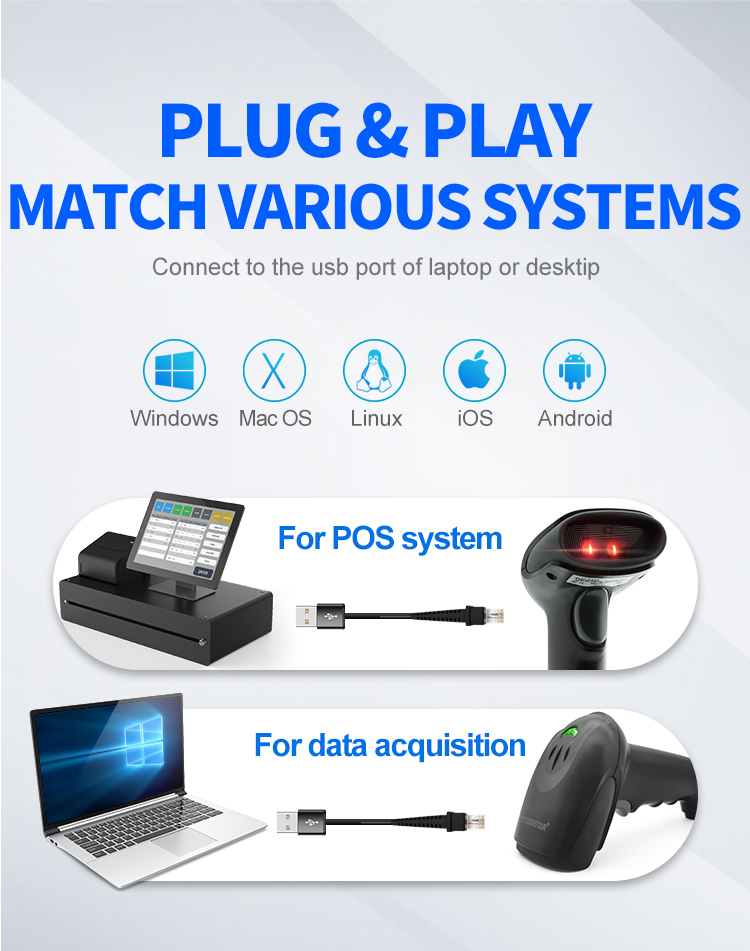

| Interface | USB cable；（RS232 can be customized） | ||||||

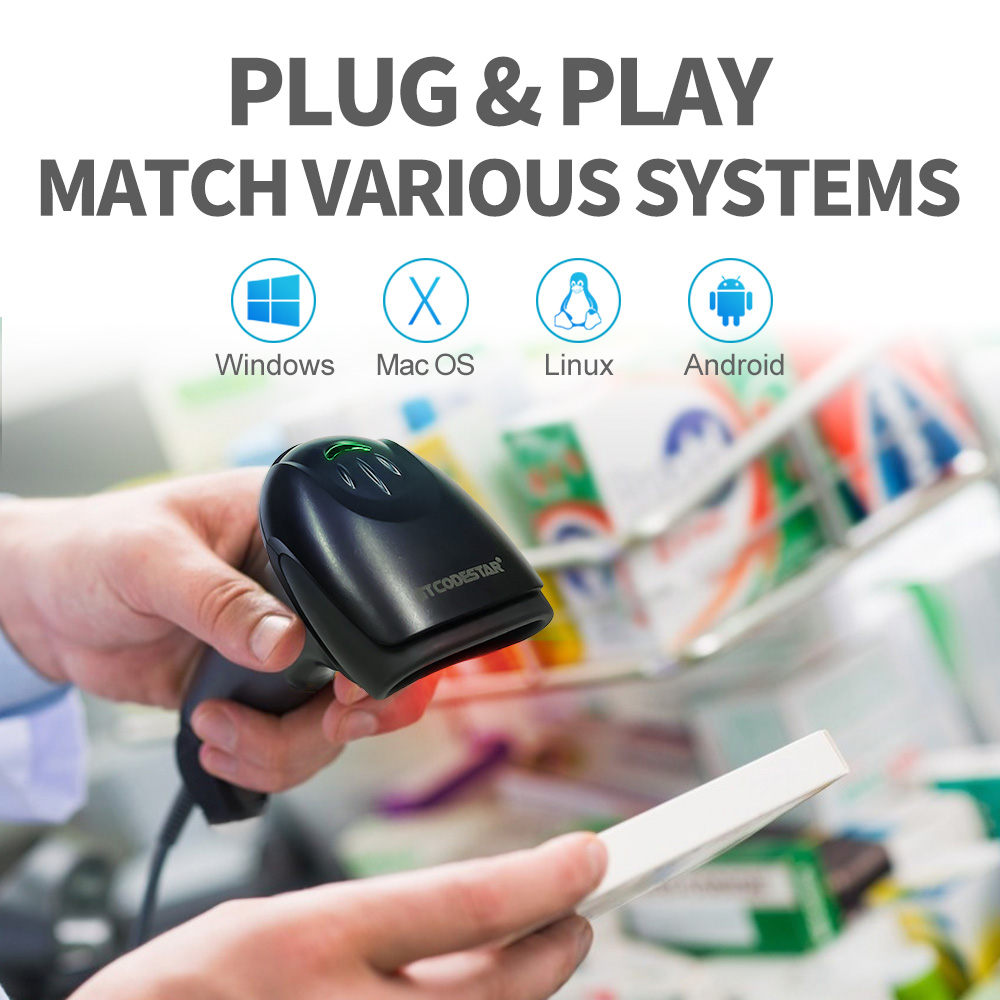

| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English, French, Dutch, Spanish (international), Italian (Italian 142), German, etc.(language can be customized) | ||||||
| Light Source | 632nm red diode(LED) | ||||||
| Resolution | 4mil | ||||||
| Bit Error Rate | 1/5000000 | ||||||
| Scanning speed | 500scans/sec | ||||||
| Sensor | Linear CCD sensor | ||||||
| Reading Mode | CCD | ||||||
| Trigger Mode | Manual, Continuous scanning | ||||||
| Scanning Distance | 10mm-600mm | ||||||
| Scanning Width | 5cm―15cm | ||||||

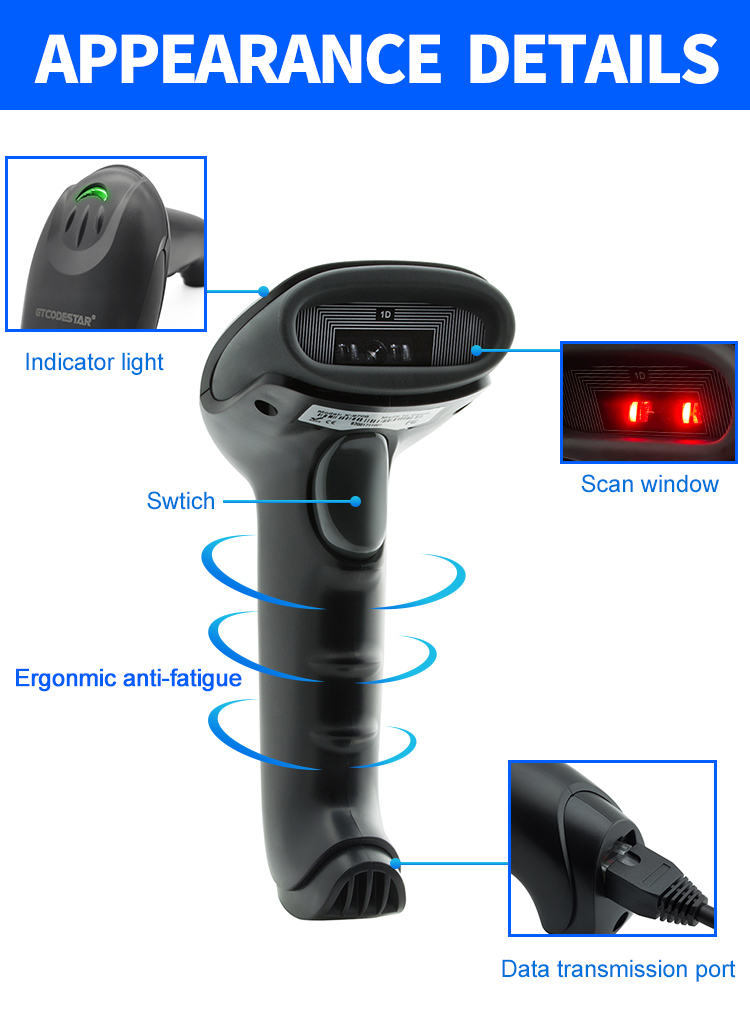

| Prompt Mode | Buzzer, Indicator Light（LED） | ||||||
| Print Contrast | 30% | ||||||
| Decoding Capability | ●Code25-Interleaved ●Code25-Standard ●Code25-Matri ●Code39-Regular ●Code39-FullASCII ●Code32 ●Code93-Regular ●Code93-FullASCII ●Code128 ●EAN/GSL/UCC-128Auto ●Codabar ●MSI ●EAN/JAN-13 ●UPC-A ●JAN-8 ●Code11 ●UPCE0 | ||||||
| Scanning Angel | Roll30°、Pitch65°、Yew65° | ||||||
| Scanning Depth | 5mil code39: 6--12 cm 10mil code39: 7--30 cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||

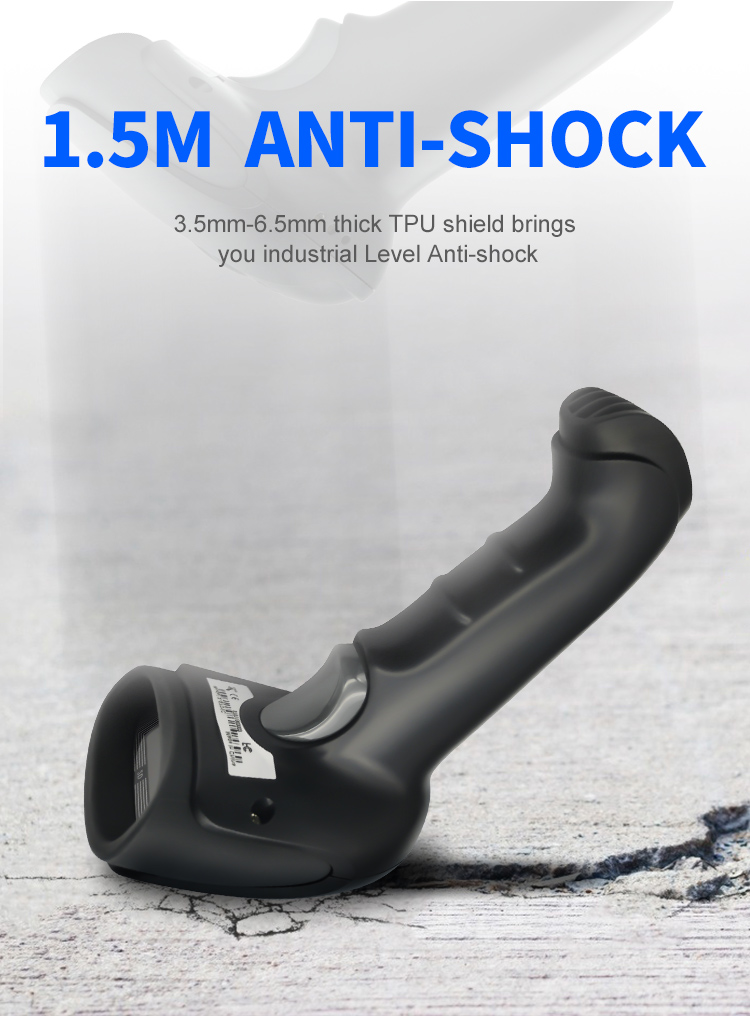

| Shock Resistance | 1.5m free fall on concrete surface | ||||||
