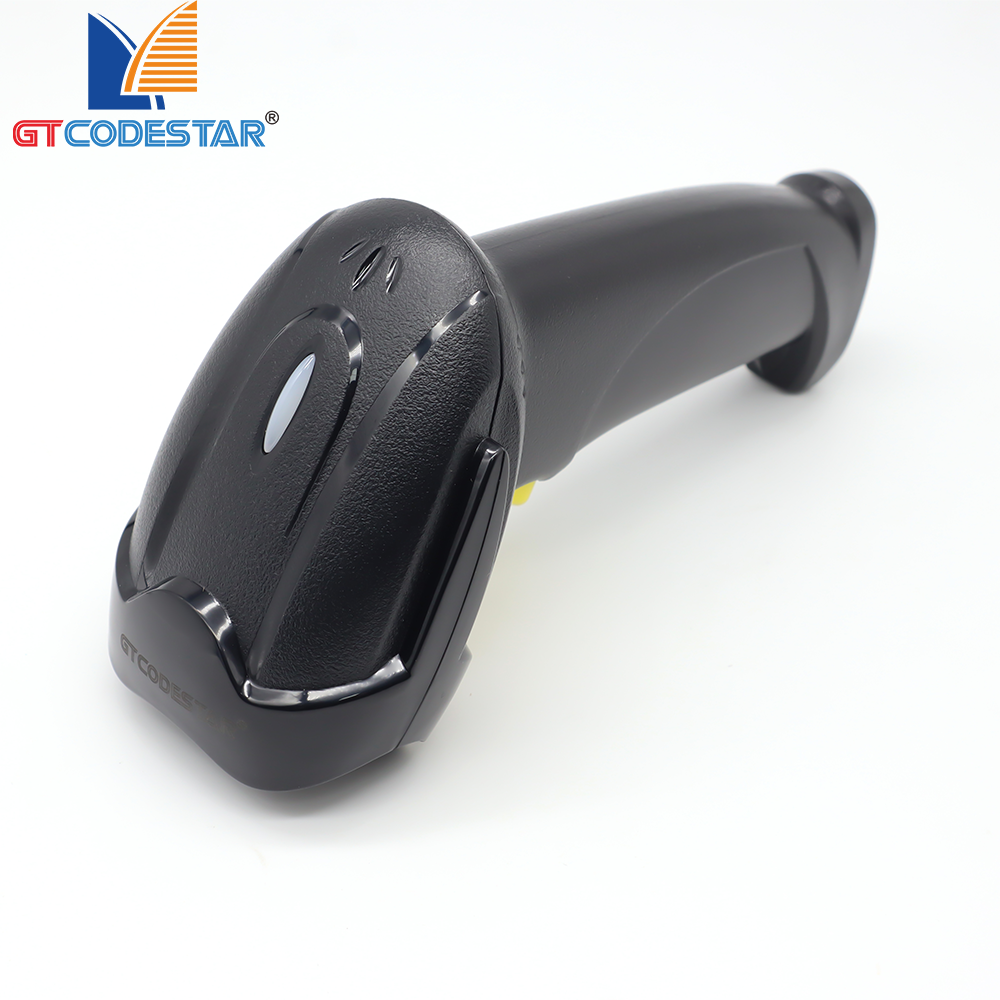

| X-9101C Technical Parameters | |||||||
| Product model | X-9101C | ||||||

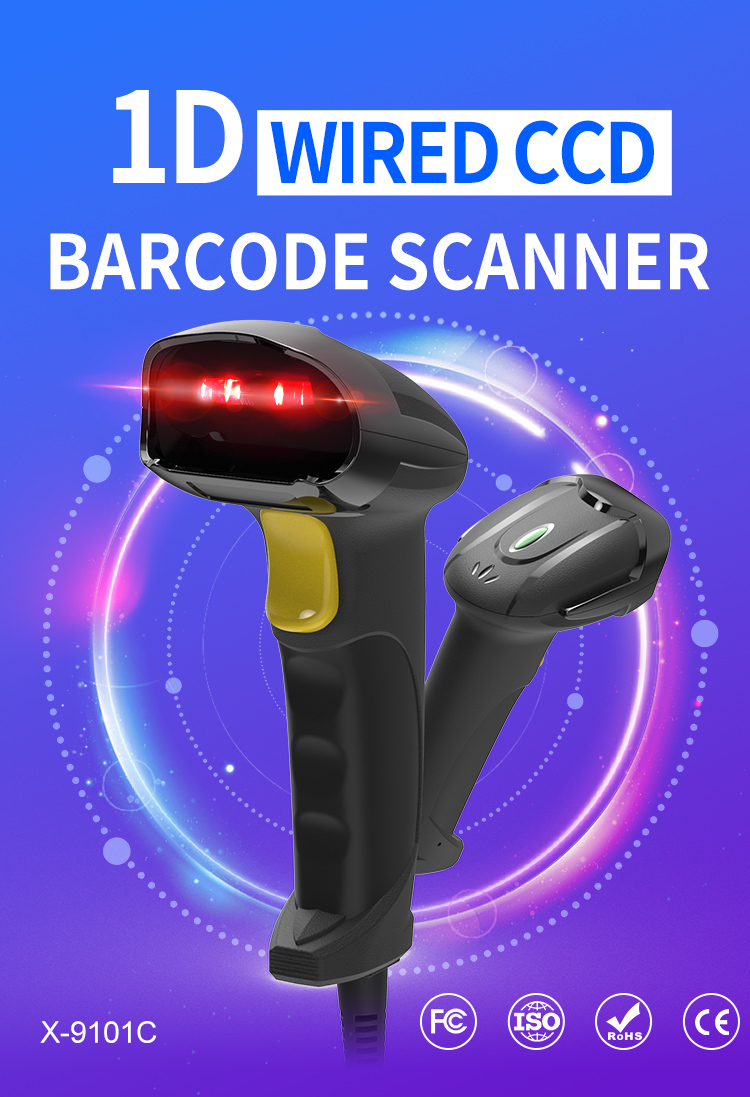

| Product Name | CCD Wired Barcode Scanner | ||||||
| Physical parameters | |||||||
| Material | ABS+PC+TPE | ||||||
| Power supply | DC 5V ±5% | ||||||
| Power consumption | 0.450W (working); 0.137W (standby); 0.850W (peak) [average power consumption] | ||||||
| Weight | 111g ± 5g (including wire) | ||||||

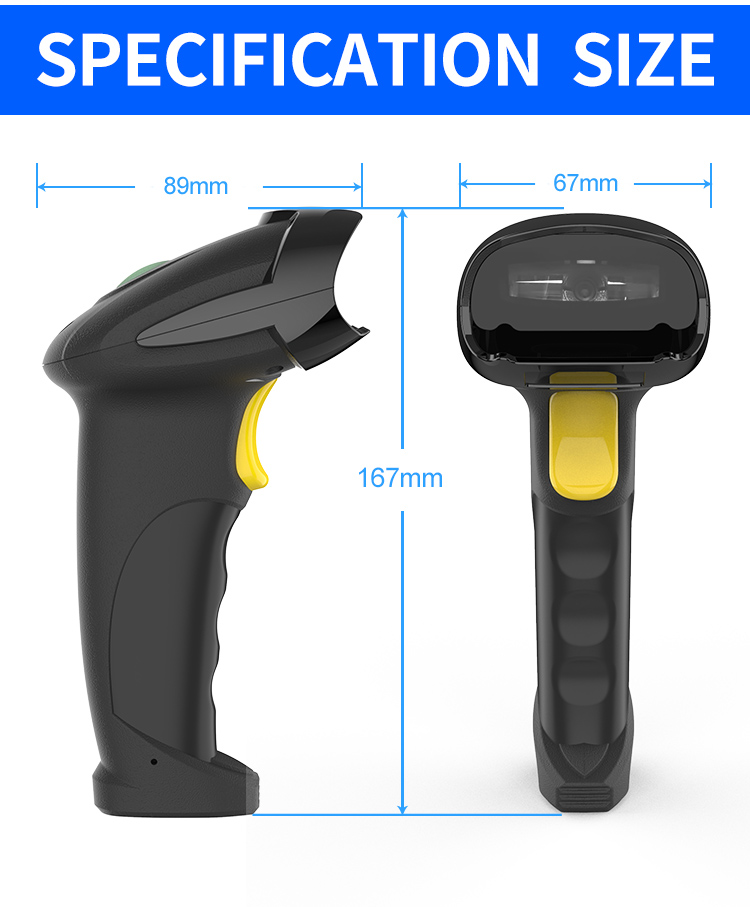

| Size | L * W * H: 168.0 * 66.5 * 89.0 (unit/mm) | ||||||
| Color | black; Grey white | ||||||
| Button lifespan | ＞>100000 times | ||||||
| Performance parameters | |||||||
| Interface | USB; (RS232 customizable) | ||||||
| system supports | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language support | English; French; Dutch; Spanish (International); Italian (Italian 142); German | ||||||
| Light source | 632nm red light diode (LED) | ||||||
| Resolution | 4mil | ||||||
| Error rate | 1/5 million | ||||||

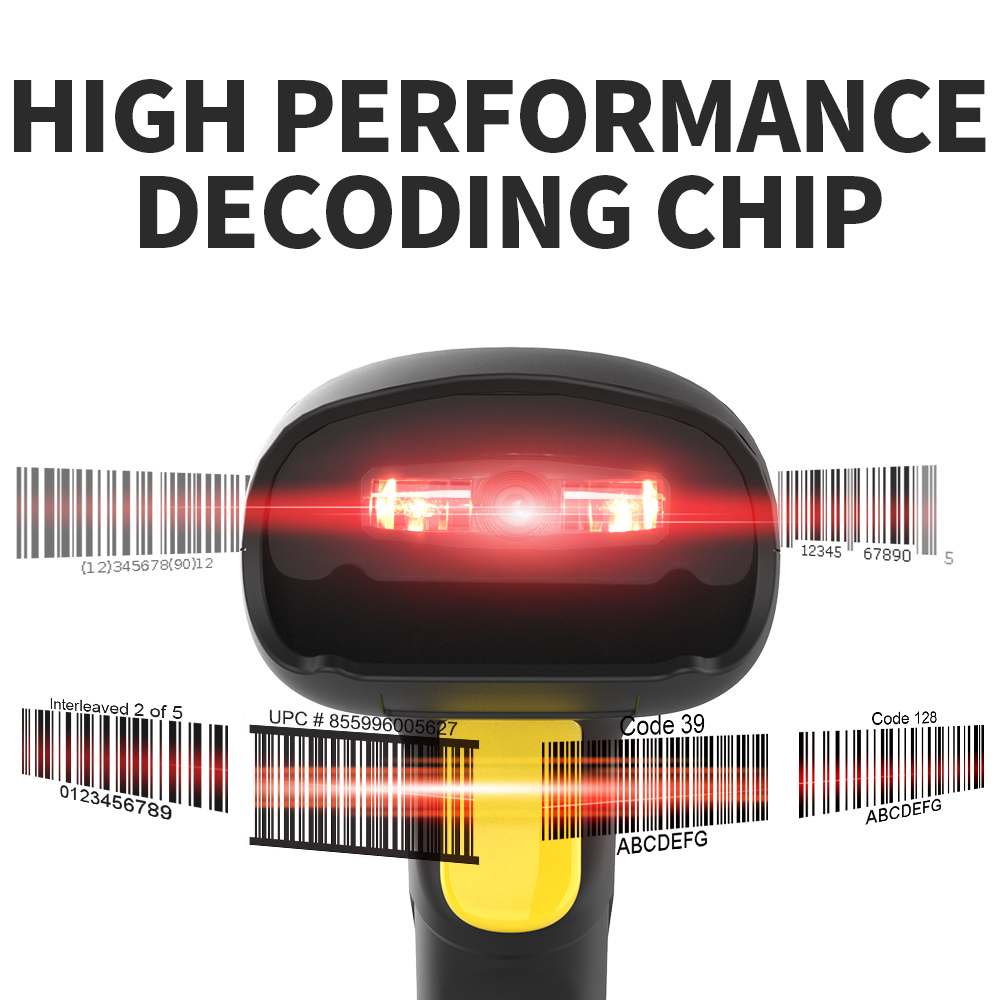

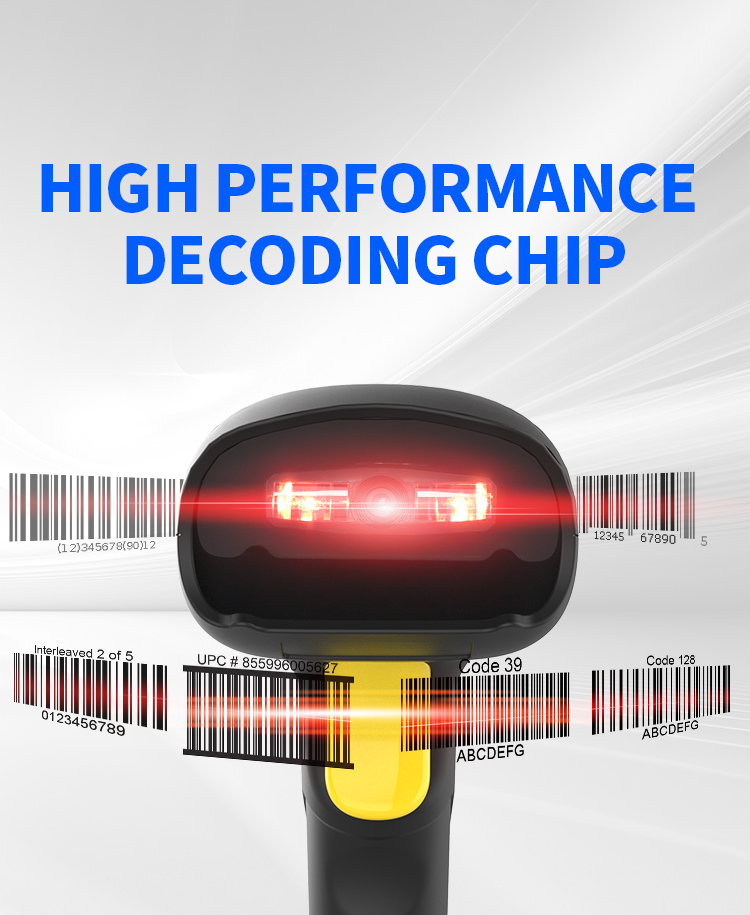

| Decoding speed | 300 times/sec | ||||||
| Sensor linear | CCD sensor 1500 points | ||||||
| Reading modle | CCD | ||||||
| Trigger mode | manual mode, continuous scanning mode | ||||||
| Reading distance | 10mm-500mm | ||||||
| Scanning width | 5cm―15cm | ||||||
| Feedback method | buzzer+indicator light (LED) | ||||||
| Print contrast | 30% | ||||||

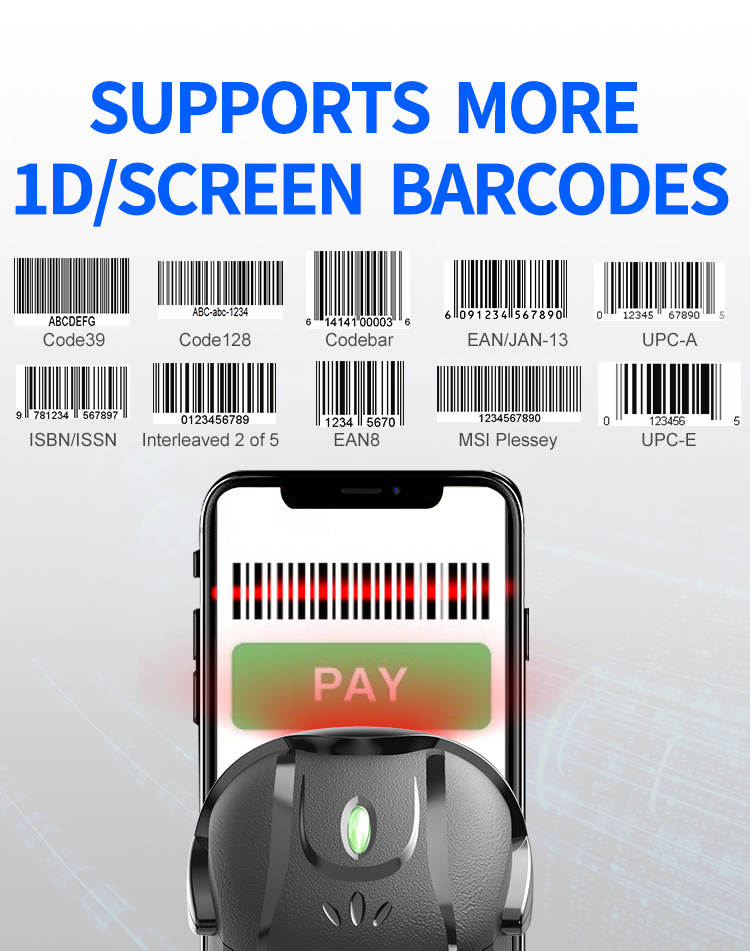

| Reading Code System | ●Code25-Interleaved ●Code25-Standard ●Code25-Matri ●Code39-FullASCII ●Code39-Regular ●Code32 ●Code93-Regular ●Code93-FullASCII ●Code128 ●Codabar ●EAN/GSL/UCC-128Auto ●UPC-A ●MSI ●EAN/JAN-13 ●JAN-8 ●UPCE0 ●Code11 | ||||||
| Identify angles and angles | 30 °, 65 ° elevation, and 65 ° inclination | ||||||
| Depth of field | Code39 4.17 mil (15 bytes): 5-13 cm Code128 5.83mil（16 bytes）：5 - 15 cm | ||||||
| Environmental parameters | |||||||
| IP level | IP52 | ||||||
| Operating temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating humidity | 20% to 85%(no condensation) | ||||||
| Storage humidity | 20% to 85%(no condensation) | ||||||
| Static protection | 15KV air discharge | ||||||
| Seismic resistance | Free fall 1.5m (concrete ground) | ||||||
