| GT-3303H-2.4G Technical Parameter | |||||||
| Model | GT-3303H-2.4G | ||||||

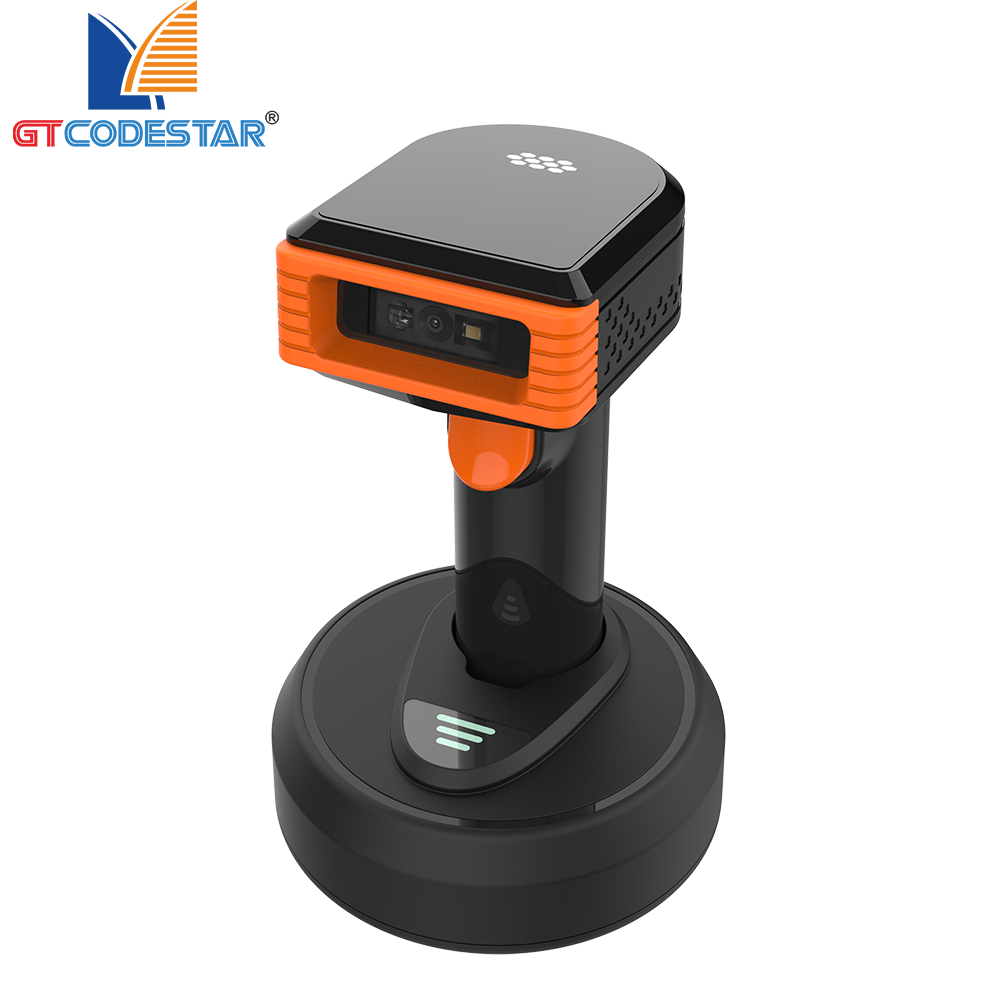

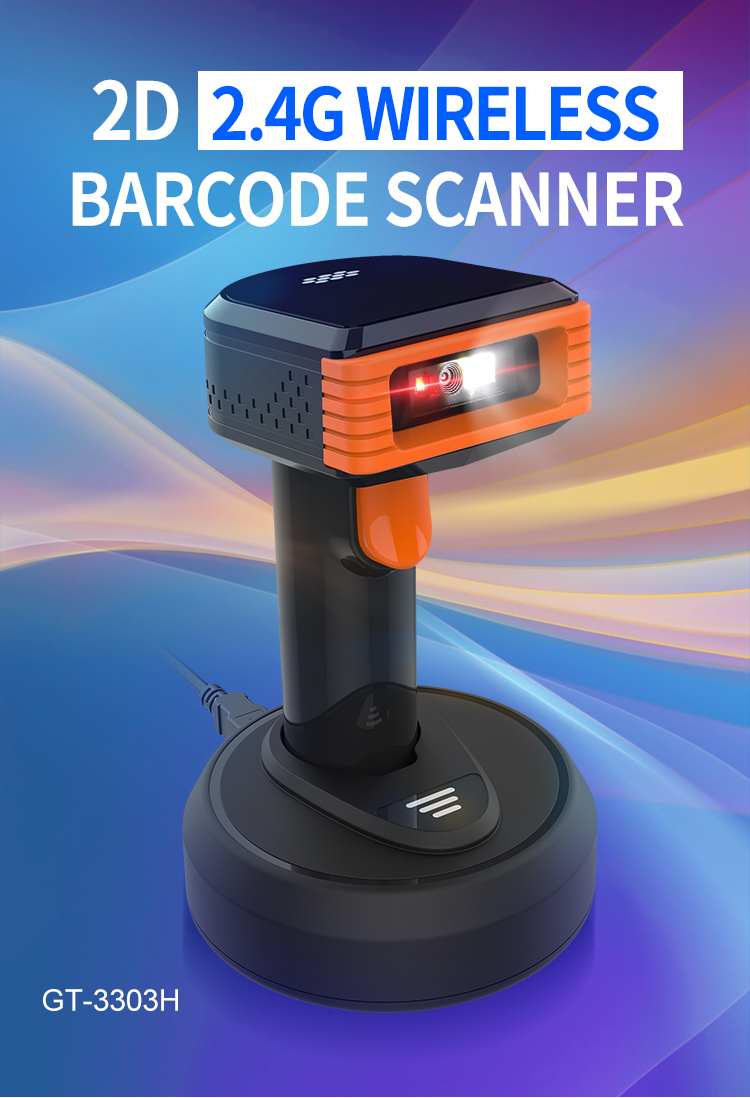

| Item | Wireless 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PVC+PC | ||||||

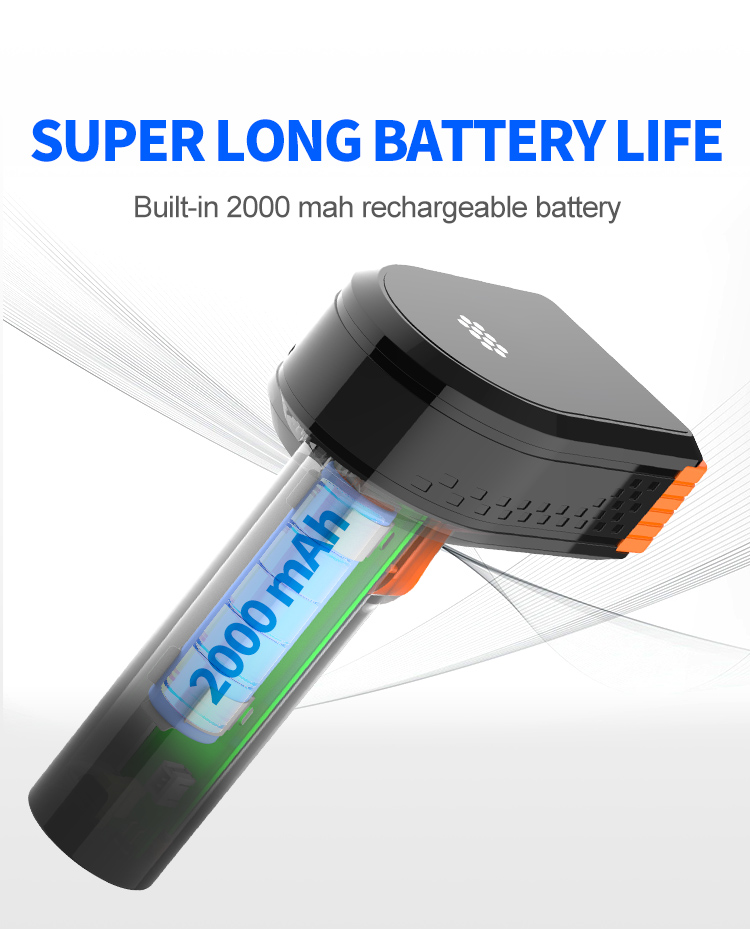

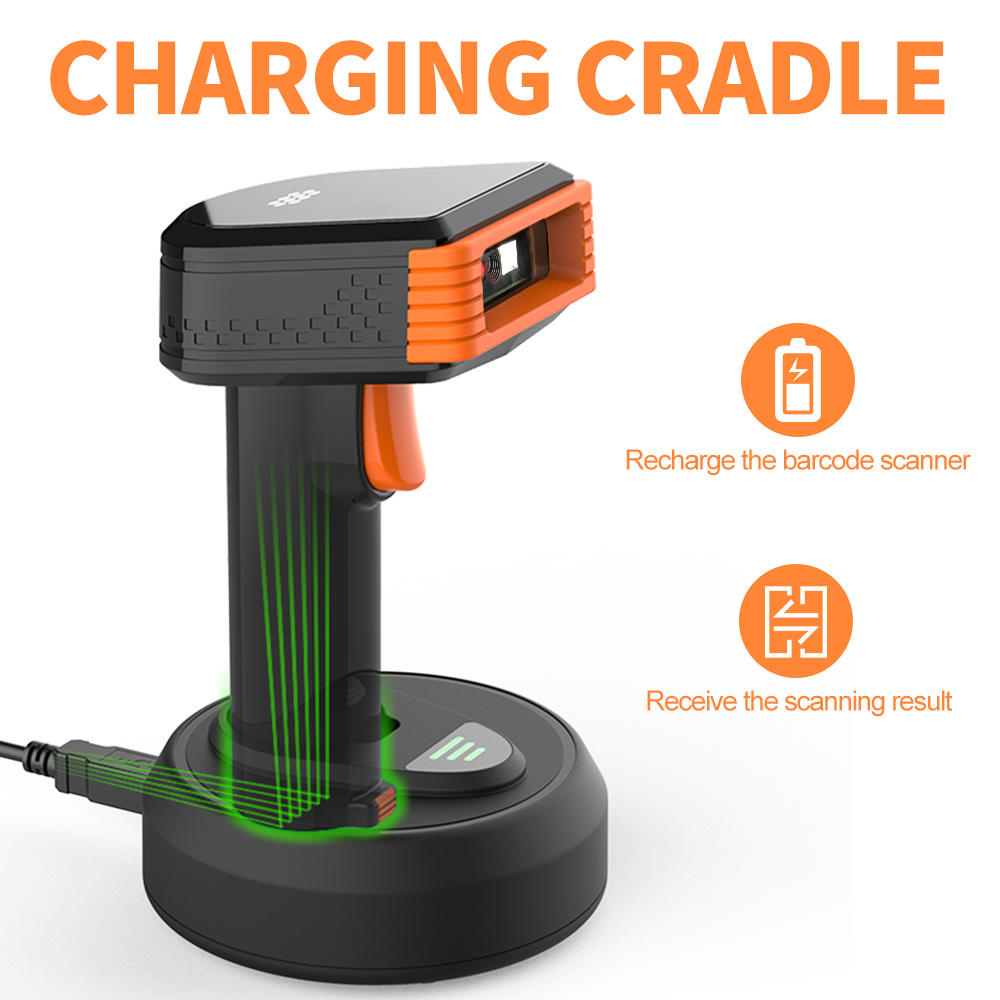

| Power Supply | Charge DC 5V ±5% ；Built-in 3.7V 2000mA lithium Battery | ||||||
| Power consumption | 0.41W（Working）; 0.20W（Stand by）; 0.75W（Maximum） | ||||||
| Weight | 151g±5g（Without wire） | ||||||

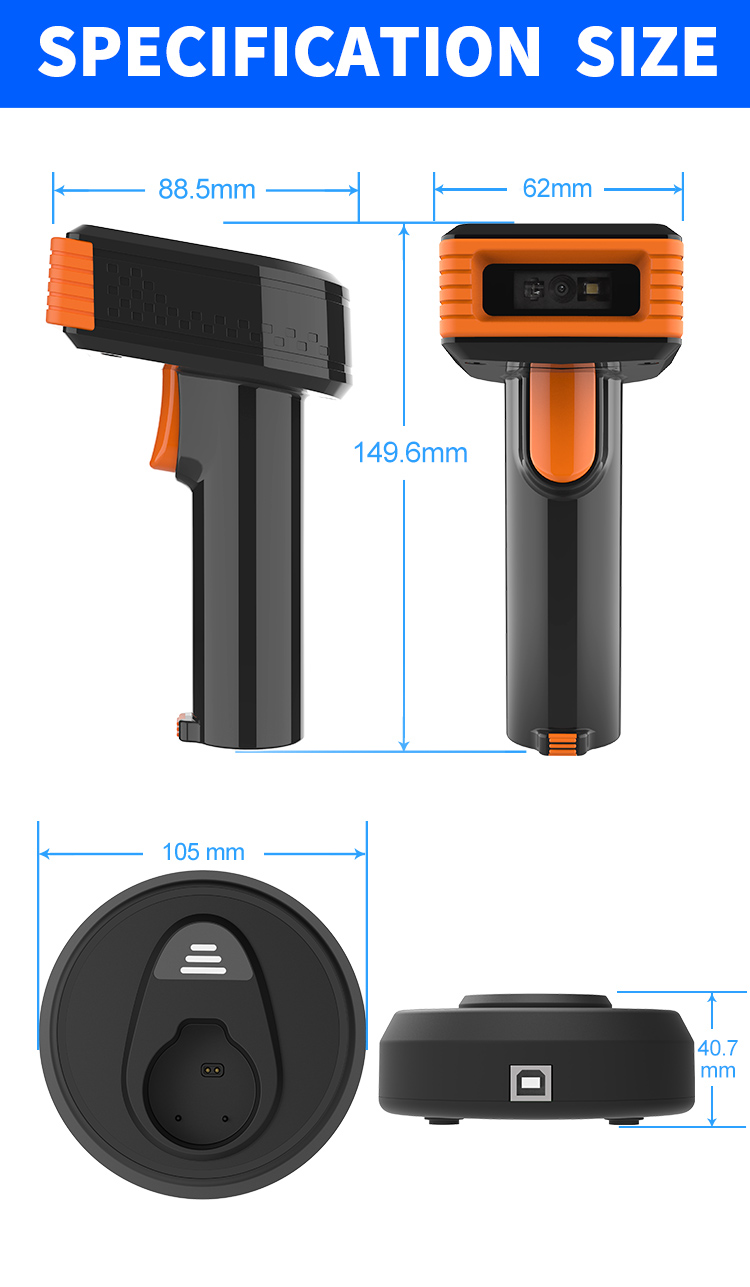

| Size | L * W * H：149.6 * 62.0 * 88.5（Unit/mm） | ||||||
| Color | Black；Off-White | ||||||
| Button life | ＞100,000 times | ||||||
| Performance Parameter | |||||||

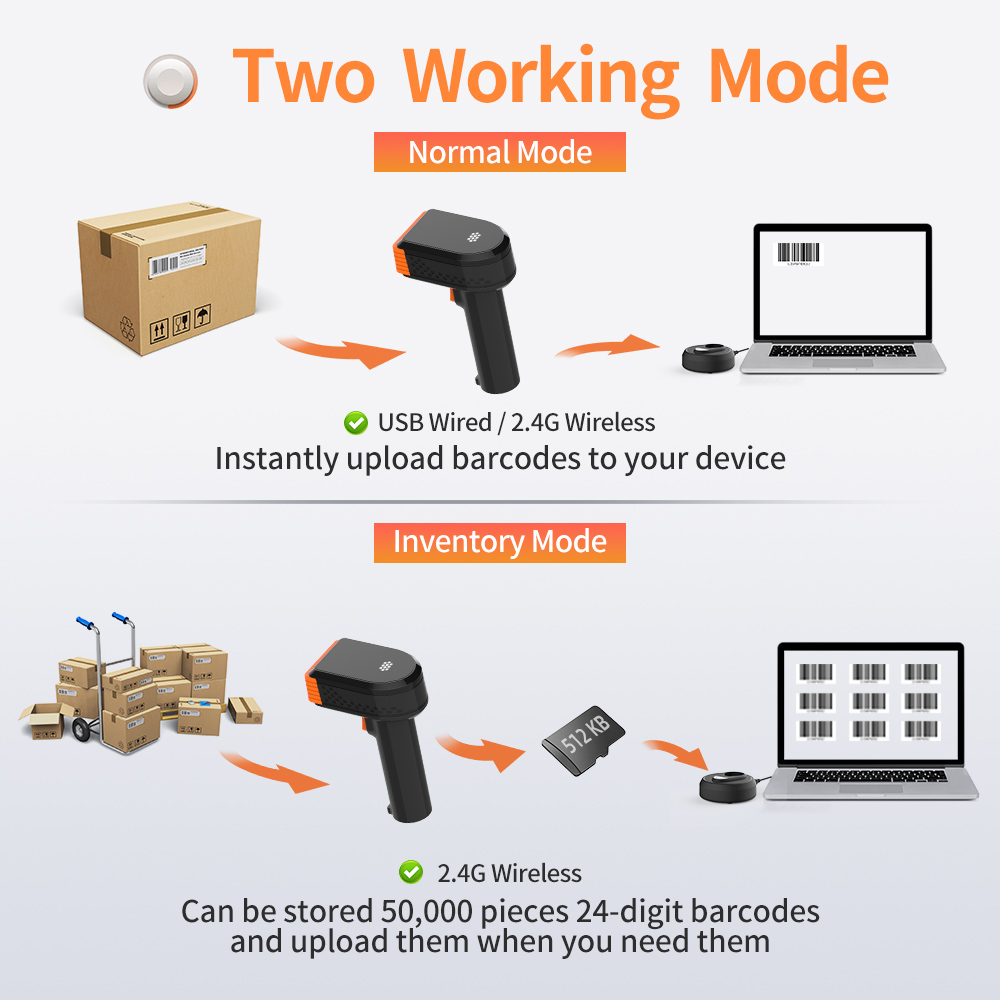

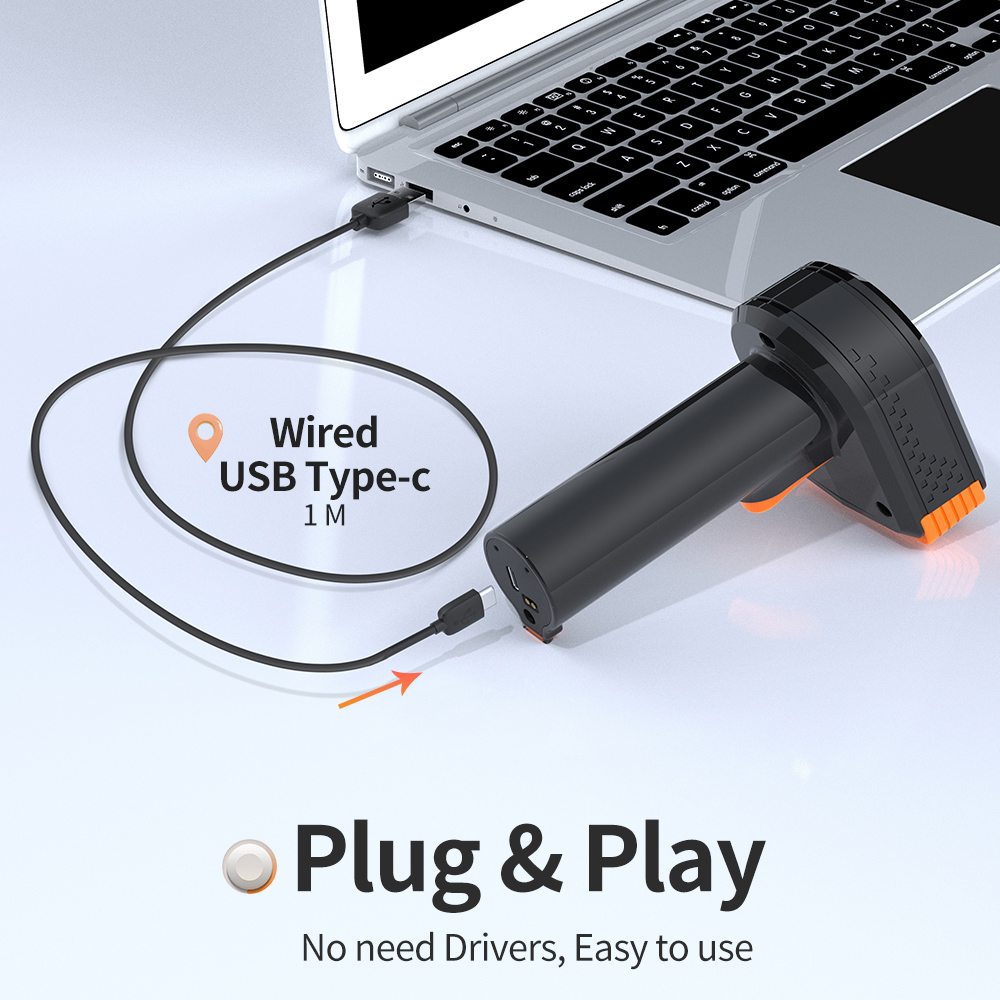

| Interface | USB；2.4G；Bluetooth | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English-United States; French-Canada; Dutch-Netherlands; Spanish-International; Latin American-Argentina; Portuguese-Brazil; Danish-Denmark; English-UK; Italian-Italy 142; French-France; German- Germany; Portuguese-Portugal; Finnish-Finland; Turkish-F; Japanese; Russian-Russia; Northern Sami-Norway [Support multi-country keyboard] | ||||||
| Sensor | Plane 640 × 480 CMOS sensor | ||||||

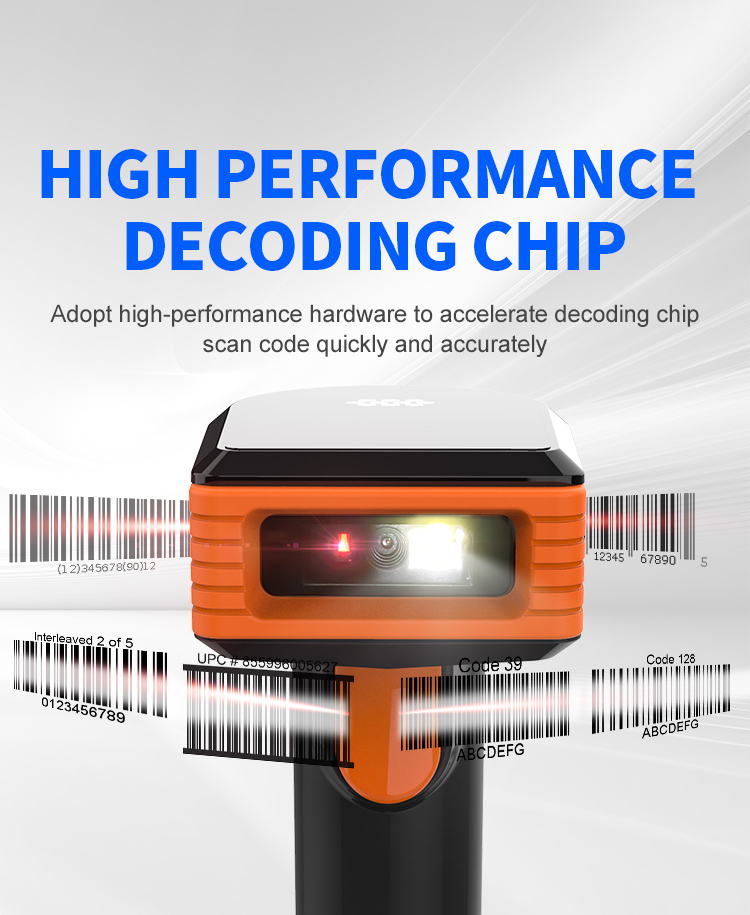

| Processor | 32-bit ARM MCU + BGA | ||||||

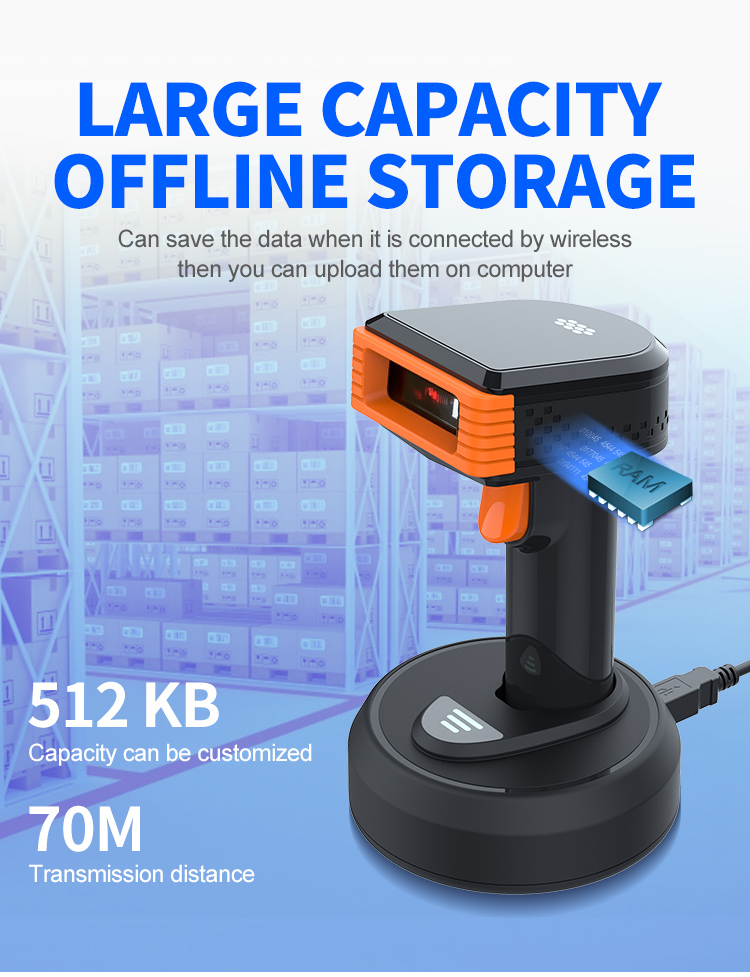

| storage | 512 KB (capacity can be customized) | ||||||
| Light Source | White light LED illumination + Red light LED Focus | ||||||
| Motion Tolerance | Code128： 35cm/sec QR： 45cm/sec | ||||||
| Wireless transmission distance | 2.4G≤60m（Visual range） Bluetooth≤10m（Visual range） | ||||||
| Reading Mod | Image | ||||||
| Resolution | ≥5mil | ||||||
| Bit error rate | 1/5000000 | ||||||
| Trigger Mode | Manual;Auto-Sensing;Continuous scanning | ||||||
| Prompt Mode | Buzzer, Indicator Light（LED）,Shock（Settable） | ||||||
| Recognition angle | Tilt ± 55°, deflection ± 55°, rotation 360° | ||||||
| Reading distance | 10mm-600mm | ||||||
| Print Contrast | 25% | ||||||

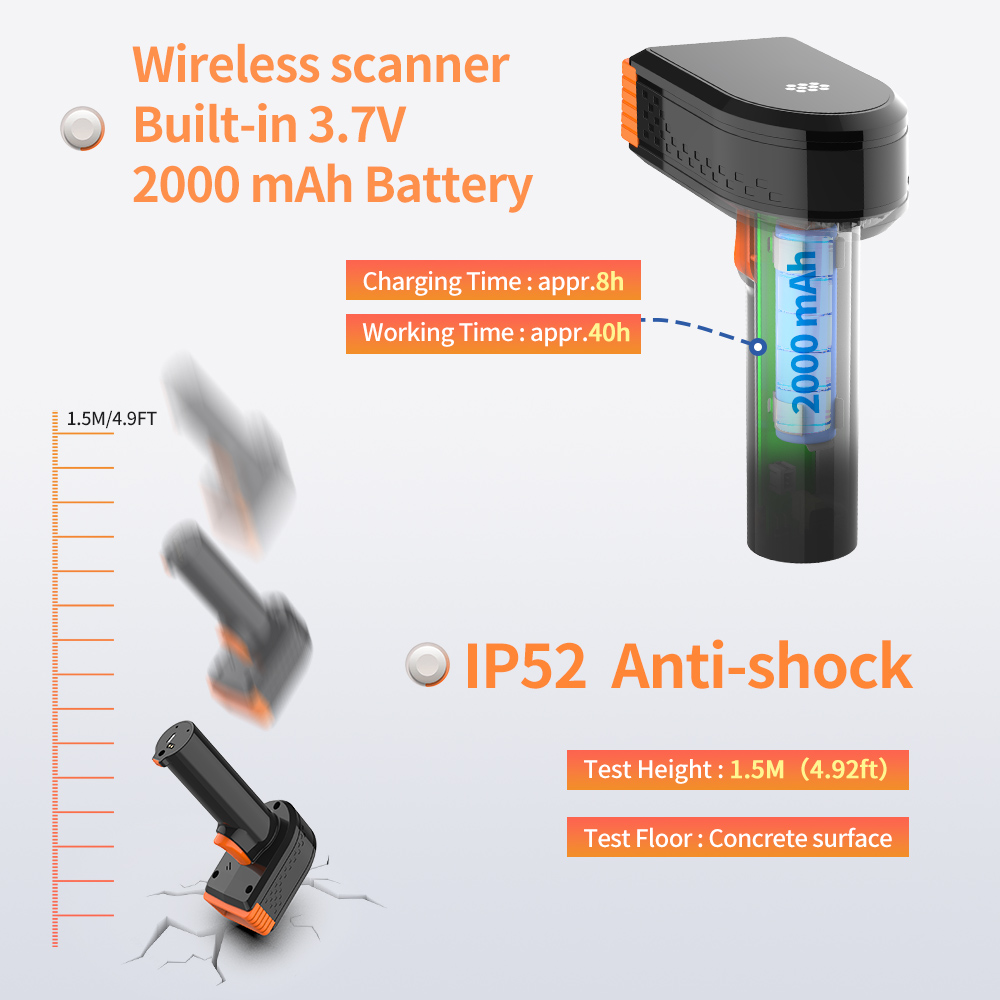

| Charging time | appr.8h | ||||||
| Working Time | appr.42h | ||||||
| Scan speed | 220 times/sec | ||||||

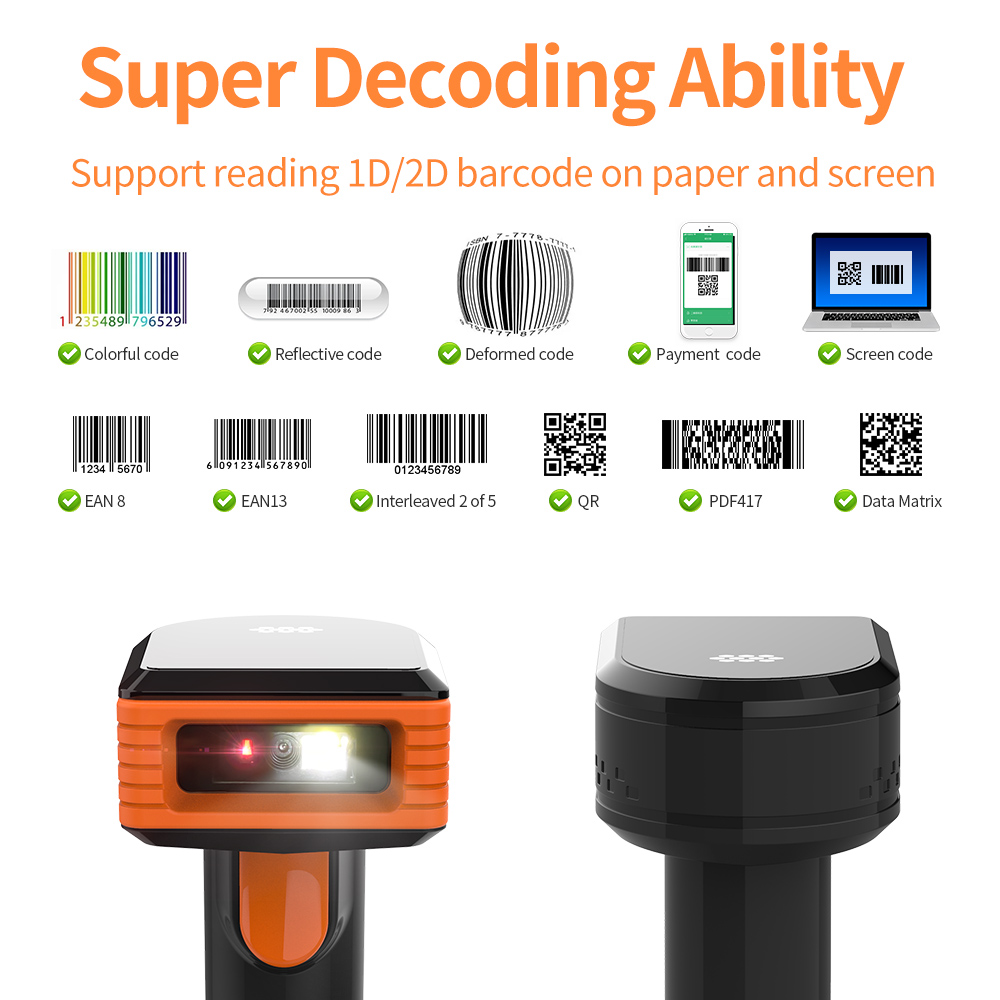

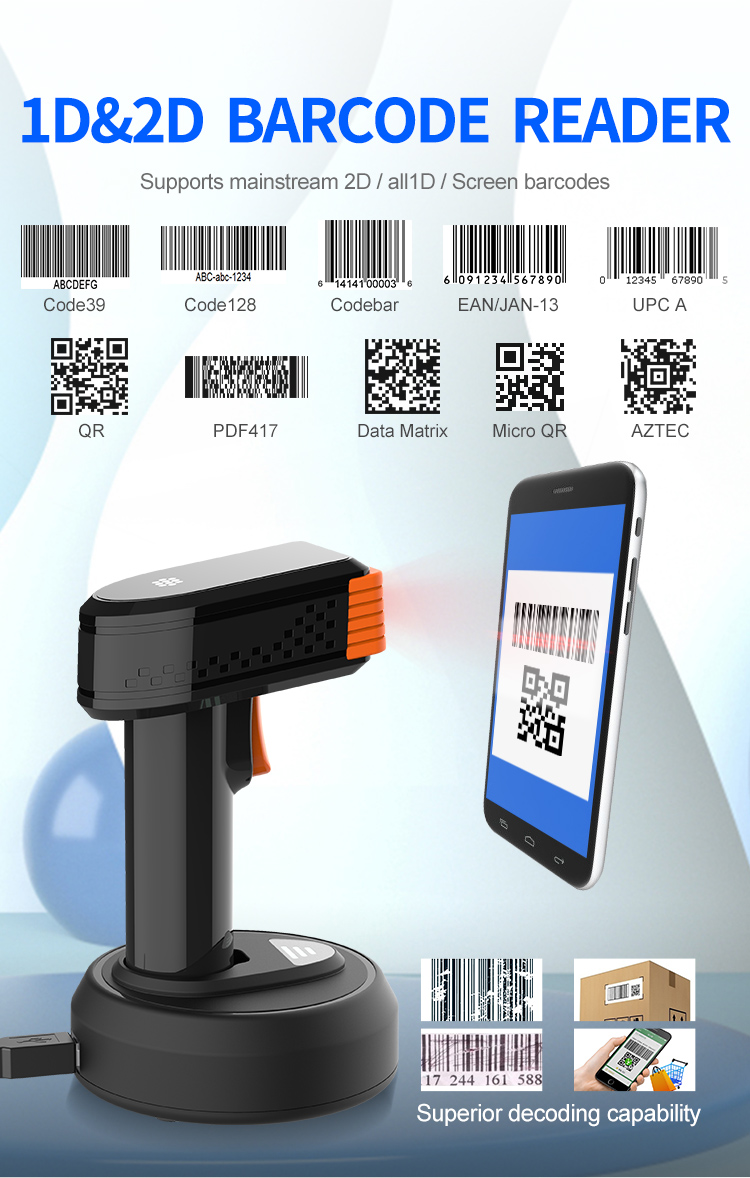

| Decoding Capability | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5 ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 composite code | |||||
| 2D | ● Data Matrix ● QR Code ● PDF417 ● HanXin Code ● Aztec ● Micro QR ● Micro PDF417 ● Maxi code | ||||||
| Scanning Depth | Code39 5mil：5cm - 8cm QR 20mil：4cm - 25cm | ||||||
| Environmental parameters | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | Free Fall 1.5m（concrete surface） | ||||||
| Ambient light | 0→100000Lux | ||||||
