| GT-9900 Technical Parameter | |||||||
| Model | GT-9900 | ||||||
| Item | Omnidirectional 2D barcode scanning platform | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V 2A | ||||||
| Power Consumption | 2.0W（working）；1.0W（standby）；2.5W（maxium） | ||||||
| Weight | 480.0g±5g（without cable） | ||||||

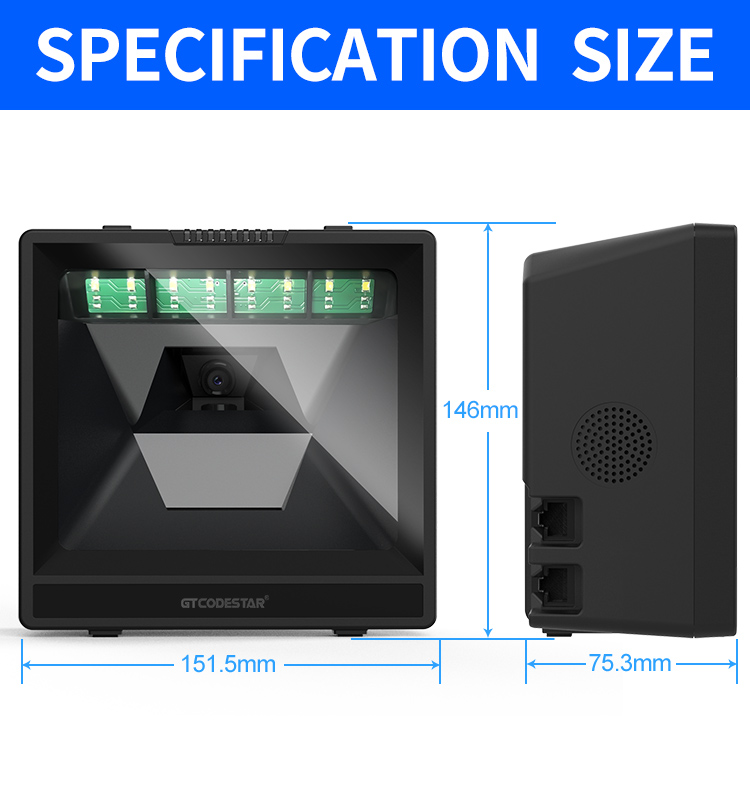

| Size | L * W * H：151.5 * 146.9 * 75.8（unit：mm） | ||||||
| Color | Black | ||||||
| Performance Parameter | |||||||

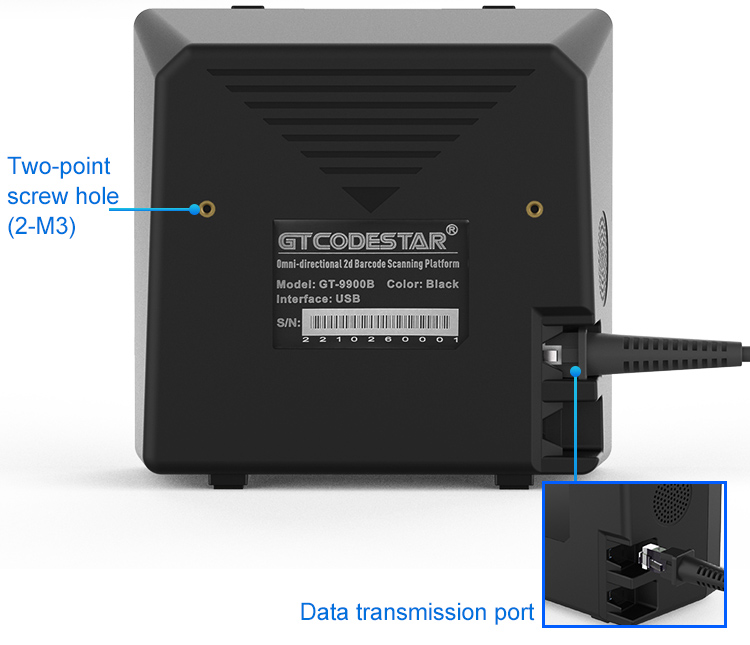

| Interface | USB；USB COM ；（RS232 can be customized） | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English; German; French; Italian; Russian; Finnish; Norwegian; Spanish; Czech; Polish; Portuguese; Türkiye Q; Türkiye F; Greek; Swedish; Irish . etc (Support for virtual keyboards) | ||||||
| Sensor | Global CMOS sensor 1280 * 800 | ||||||
| Light source | white LED | ||||||
| Processor | 32-bit ARM MCU + DSP | ||||||
| Decoding speed | 500Times/second Code39： 3.25m/sec QR： 3.82m/sec | ||||||
| Resolution | ≥4mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Imaging Sensor | ||||||

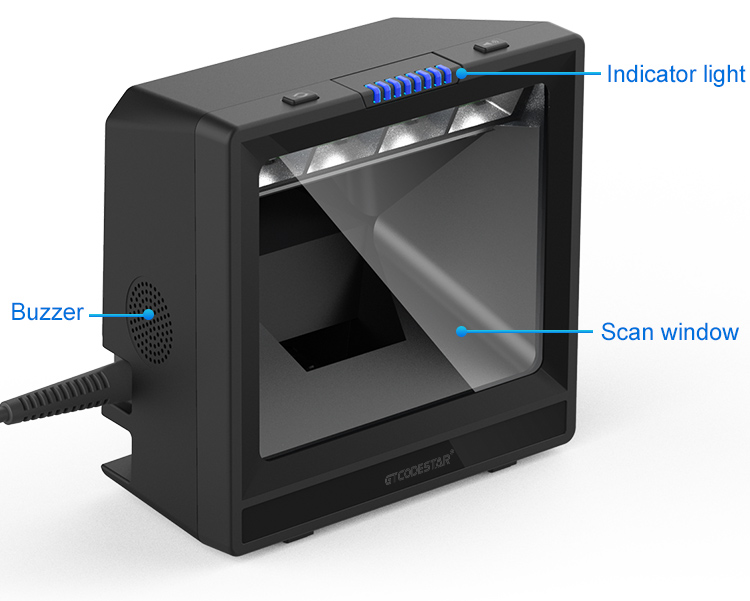

| Prompt Mode | Buzzer, Indicator Light（LED） | ||||||
| Invoice Function | Support | ||||||

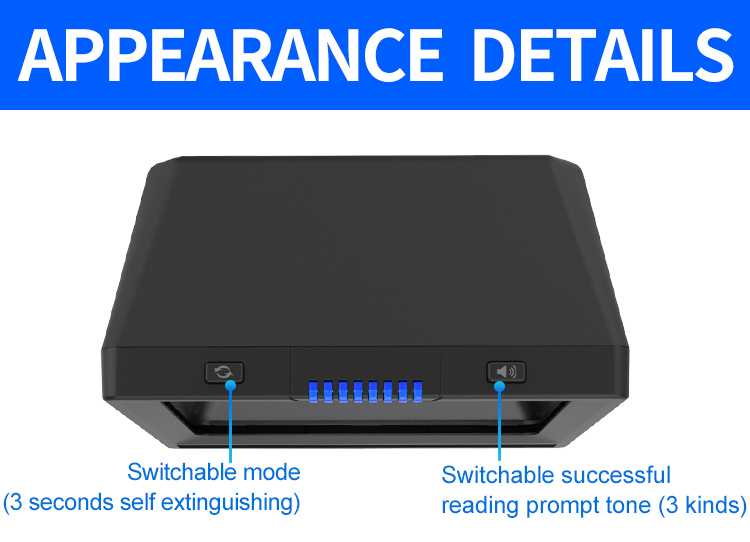

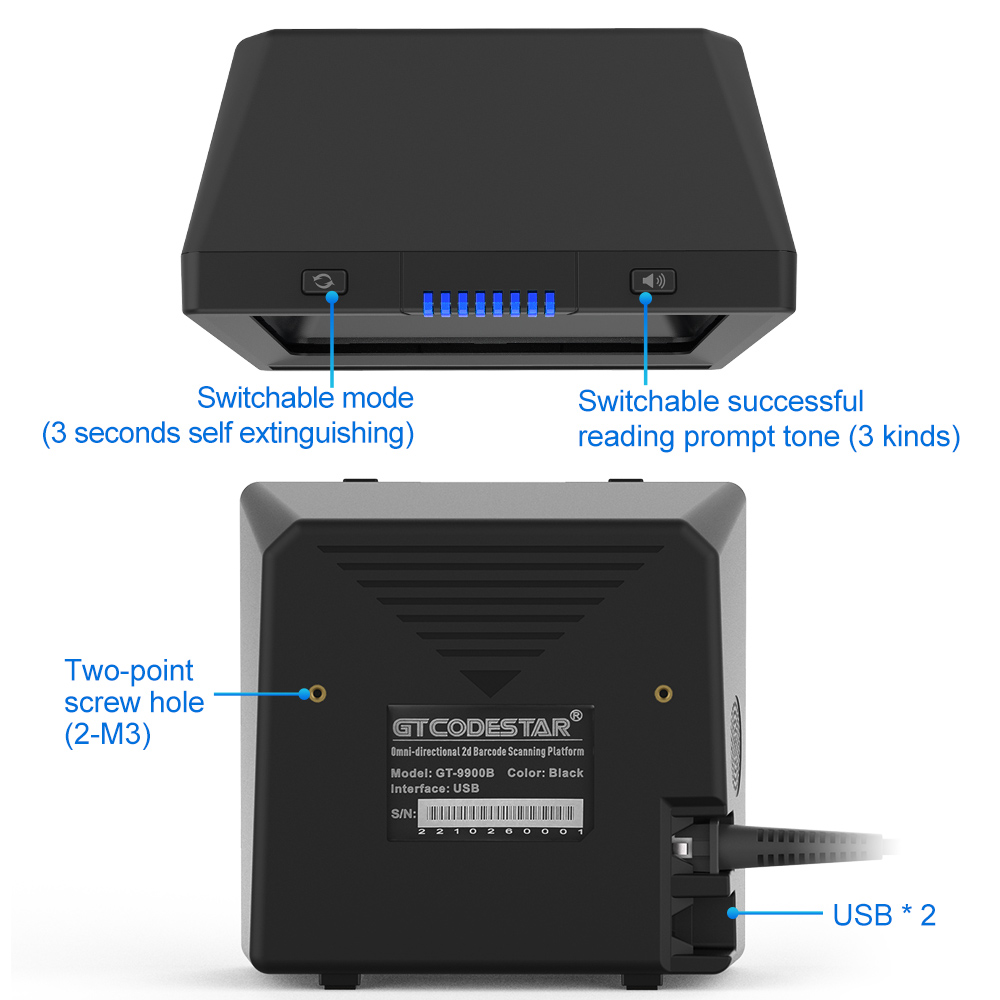

| Button | Button 1: You can switch the sound frequency and three different sounds. Button 2: Long press for 1.5s to enter sleep, then press once to wake up. | ||||||
| Print Constrast | ≥25% | ||||||
| Decoding Capability | 1D | ◎Code128 ◎EAN/UCC128(GS1 128) ◎Code39 ◎Code32 ◎EAN13 ◎EAN8 ◎ISSN ◎ISBN ◎UPC-E ◎UPC-A ◎Code93 ◎Codabar ◎ITF 2of5 ◎Matrix 2of5 ◎Standard 2of5 ◎Industrial 2of5 ◎Code11 ◎MSI Plssey ◎China Post ◎Telepen ◎Tcrioptic Code ◎Brazilian bank Code ◎GS1 Databar ◎Pharmacode One-Track ◎Grid Matrix Code ◎Postal Code ◎OCR | |||||
| 2D | ◎QR Code ◎PDF417 ◎Data Matrix ◎Aztec ◎GS1 e Compsite code ◎HanXin ◎Maxicode ◎DotCode ◎Codablock A ◎Codablock F | ||||||
| Scanning Angle | Angle 360 °, elevation 50 °, deviation 45 ° | ||||||
| Scanning Depth | EAN-13(13 bit):10mm -- 250mm Code 39 5mil(5 bit): 10mm -- 90mm Code 128 5mil(5 bit)： 10mm -- 80mm WeChat payment code(18bit)：10mm -- 400mm Alipay payment code18bit)：10mm -- 400mm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No condensation） | ||||||
| Storage Humidity | 20% to 85%（No condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | 1.2m free fall on concrete surface | ||||||
