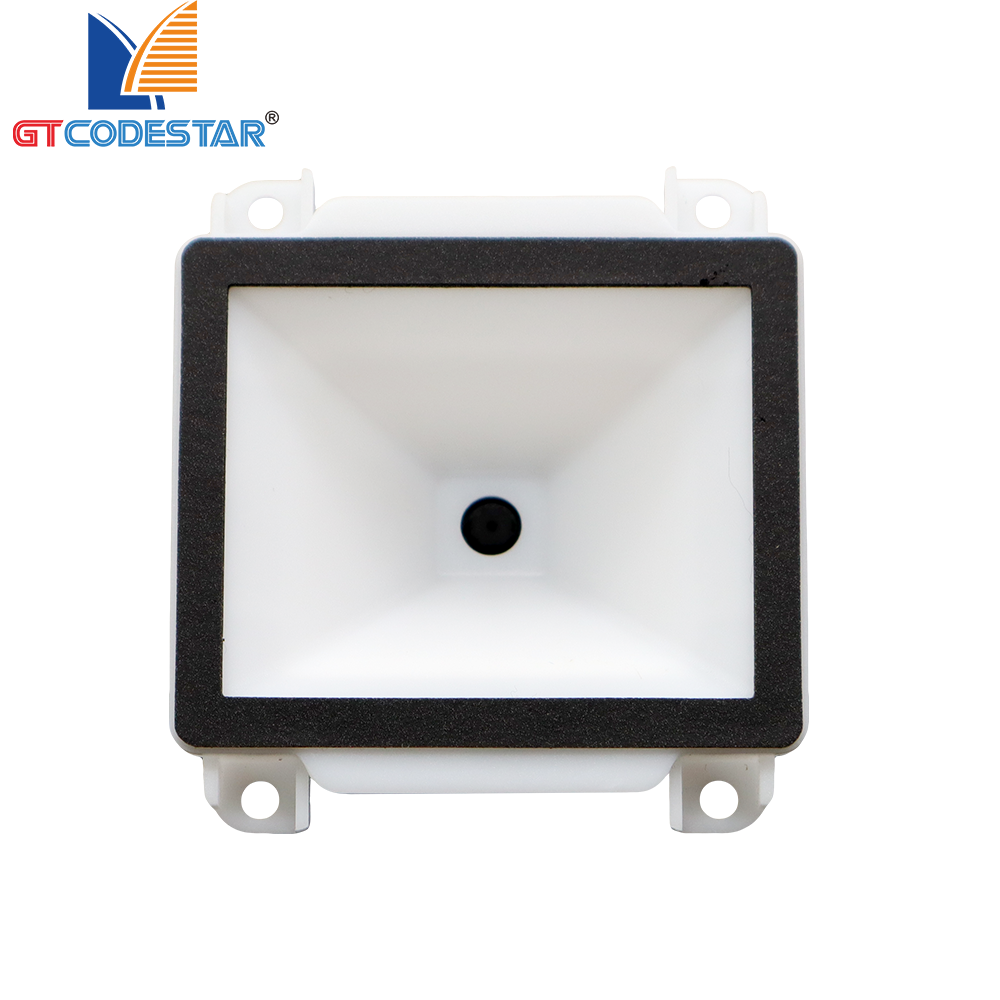

| Technical parameters of GT-7700E | |||||||
| Product model | GT-7700E | ||||||
| Product name | Wall mounted payment box | ||||||
| Physical parameters | |||||||
| texture of material | ABS | ||||||
| Power supply | DC 5V ±5% | ||||||
| power waste | 0.53w (working);0.43w (standby);0.65mw (peak) [average power consumption] | ||||||
| electric current | 105ma (working);87ma (standby);130mA (peak) [average current] | ||||||
| weight | 18.0g ± 2g (excluding wire) | ||||||

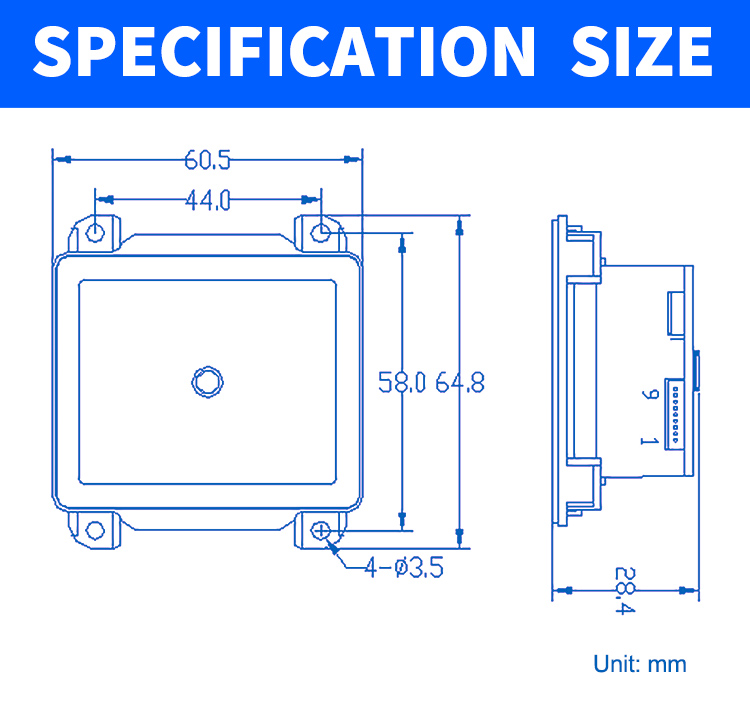

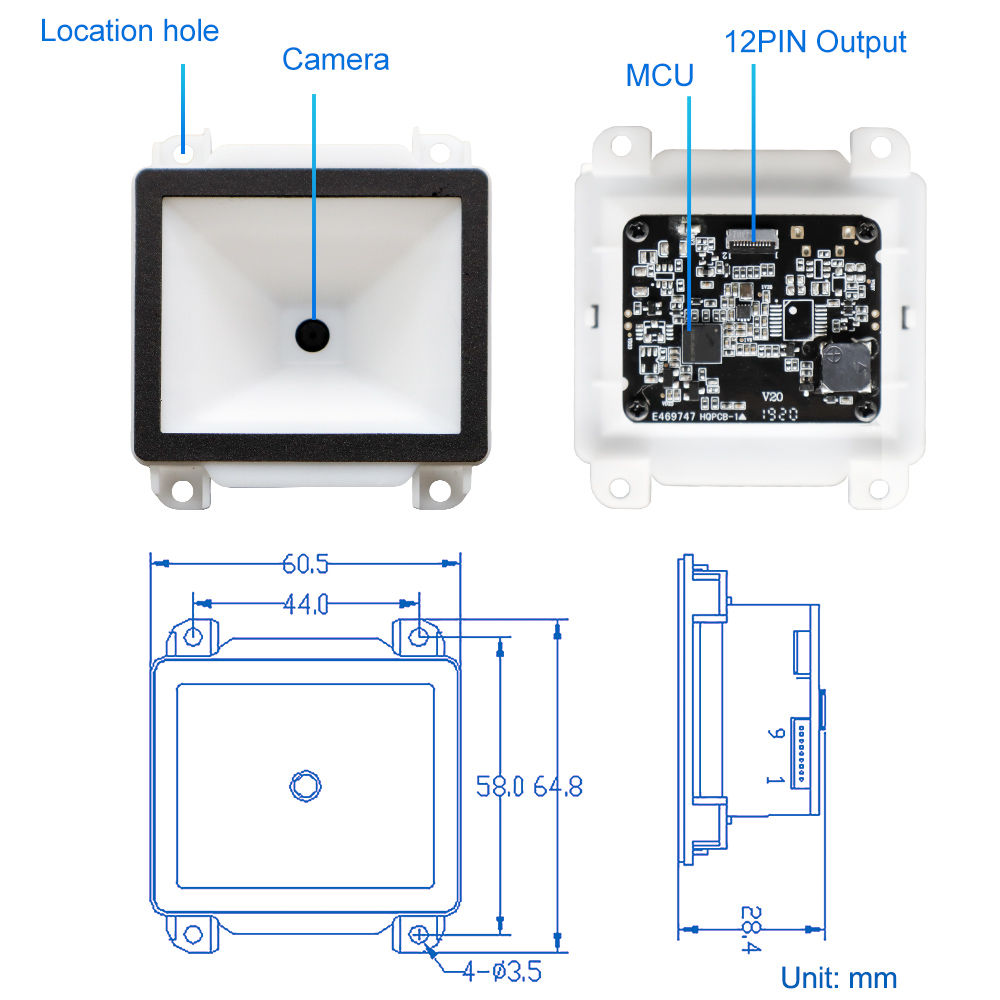

| size | long×wide×Height: 64.8 (W) mm×60.5(D)mm×28.4(H)mm | ||||||
| colour | white | ||||||
| performance parameter | |||||||

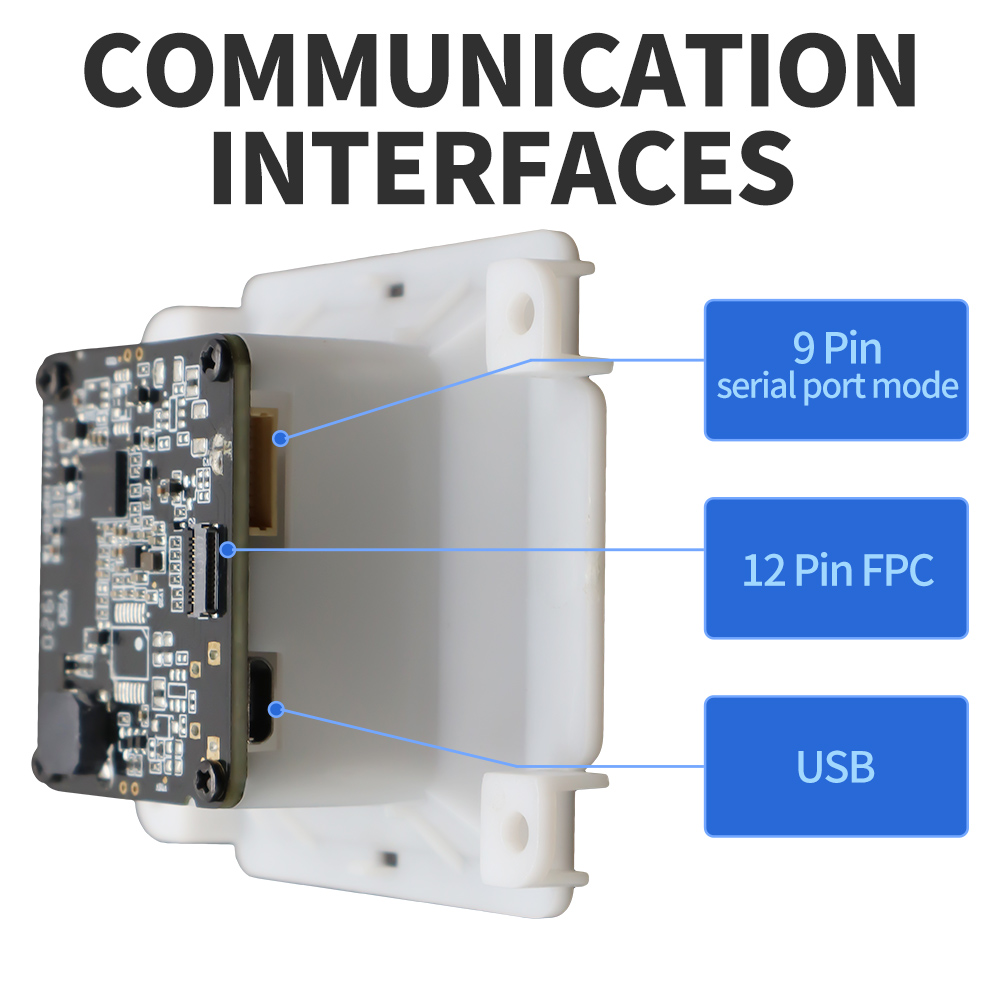

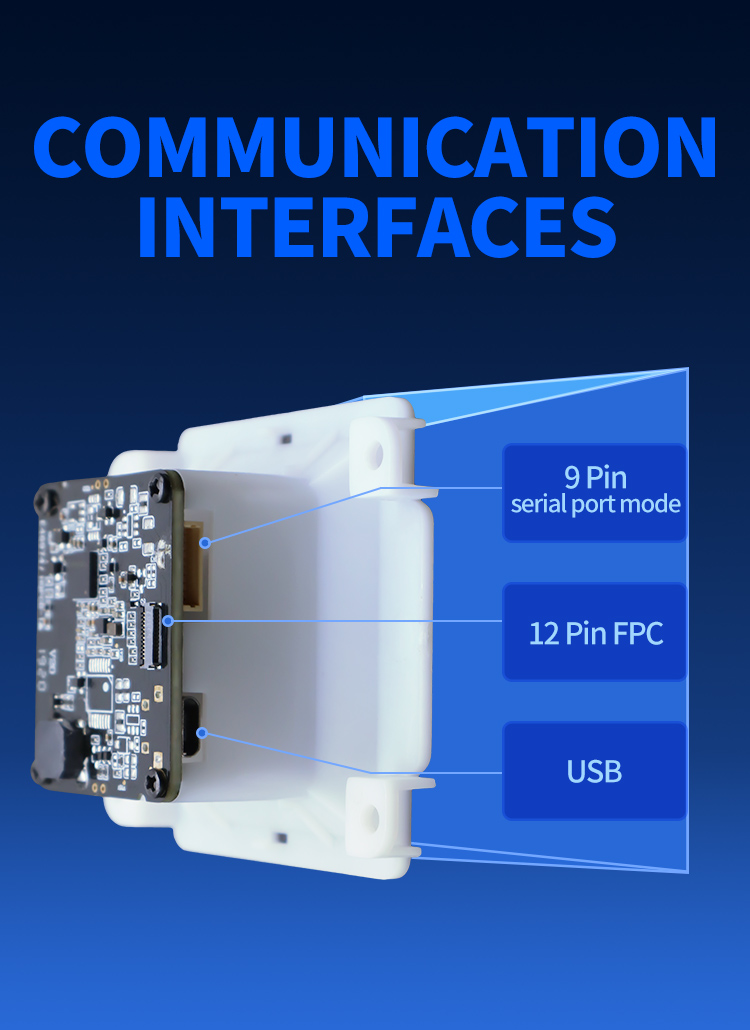

| Interface | USB；RS232 / TTL (customizable) | ||||||

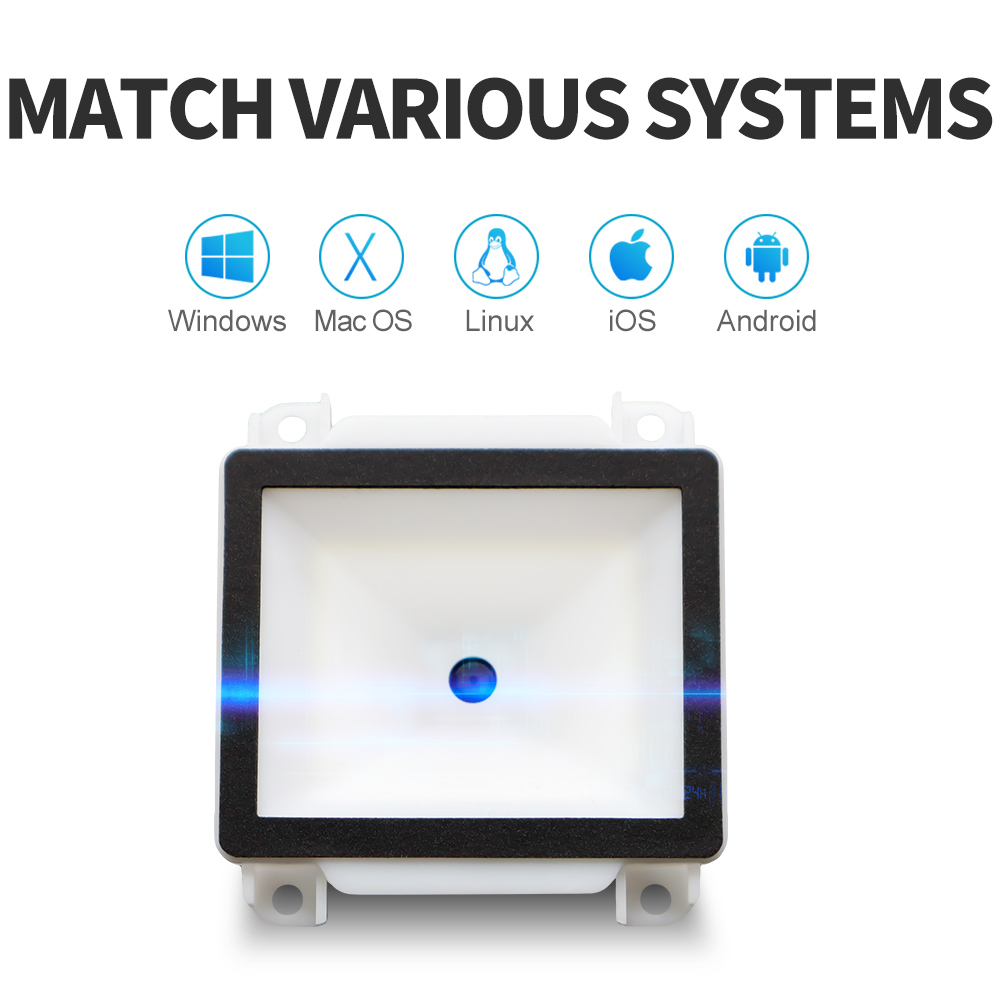

| System support | Linux，Android，Windows XP、7、8、10、MAC | ||||||
| Language support | American English;Finnish;Belgian French;French;German;Sweden;Denmark;Norway;Hungarian;Italian;Japanese;Spanish;Portugal;Turkey f;Russia;Czech Republic;Thailand;Ukraine;Brazil;Greece;Netherlands;Turkey Q;Poland;Romania;Slovakia. [support virtual keyboard] | ||||||
| sensor | Planar CMOS sensor 640×four hundred and eighty | ||||||

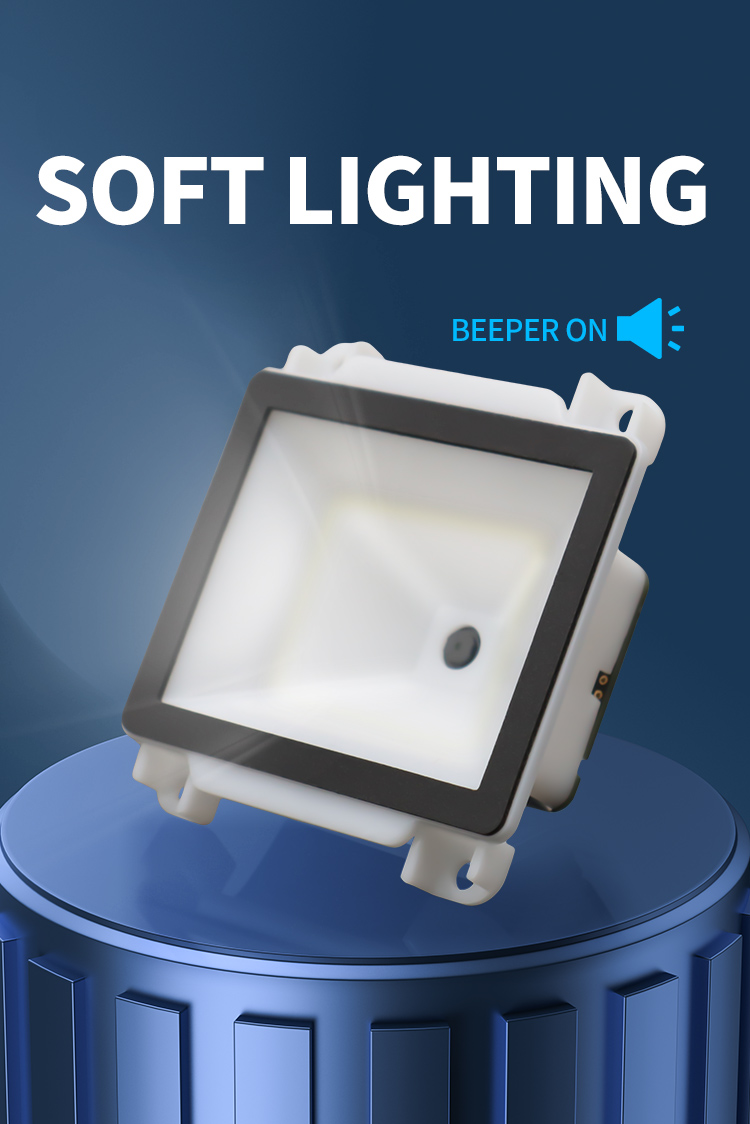

| light source | White LED | ||||||
| processor | 32-bit ARM MCU | ||||||
| Motion tolerance | code 128:10cm/sec QR:20cm/sec | ||||||
| resolving power | ≥5mil | ||||||
| error rate | 1 / 5 million | ||||||
| Reading mode | image | ||||||
| Trigger mode | Self induced mode | ||||||
| Feedback mode | Indicator light (LED) + buzzer | ||||||
| Print contrast | ≥30% | ||||||
| Scan speed | 100 times/sec | ||||||
| Reading code system | 1D | ●Code25-Interleaved ●Code25-Standard ●Code25-Matri ●Code39 ●ITF-6 ●Code32 ●Code93 ●ITF-14 ●Code128 ●EAN/GSL/UCC-128Auto ●Codabar ●MSI ●EAN/JAN-13 ●UPC-A ●JAN-8 ●Code11 ●UPCE0 | |||||
| 2D | ●QR Code ●Data Matrix ●PDF417 | ||||||
| Recognition angle | Angle 360 °;Elevation ± 55 °;Deflection angle ± 55 ° | ||||||
| Depth of field | QR 10.83mil (8 bytes) 2cm - 5cm Code128 5.83mil (15 bytes) 4.5cm - 6cm Code28 10.83mil (16 bytes) 5cm - 12cm Wechat payment one-dimensional code 3.5cm - 14cm Wechat payment QR code 3.5cm - 22cm | ||||||
| Environmental parameters | |||||||
| IP level | IP52 | ||||||
| Operating temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating humidity | 20% to 85% (no condensation) | ||||||
| Storage humidity | 20% to 85% (no condensation) | ||||||
| Electrostatic protection | 15kV air discharge | ||||||
| Seismic capacity | Free fall 1.2m (concrete ground) | ||||||
| Attachment: this parameter is subject to change without notice. | |||||||
