| X-6301B Technical Parameter | |||||||
| Model | X-6301B | ||||||

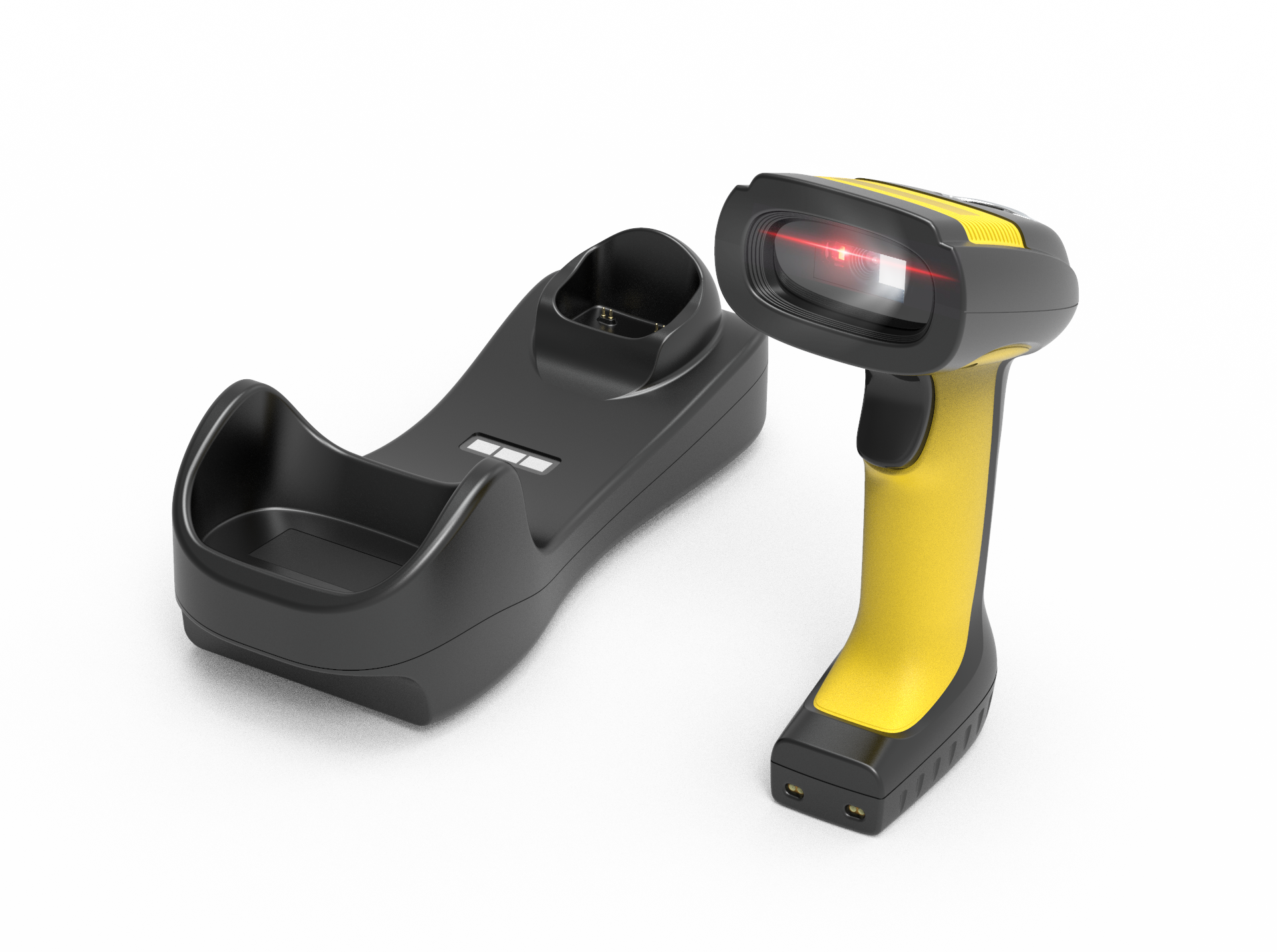

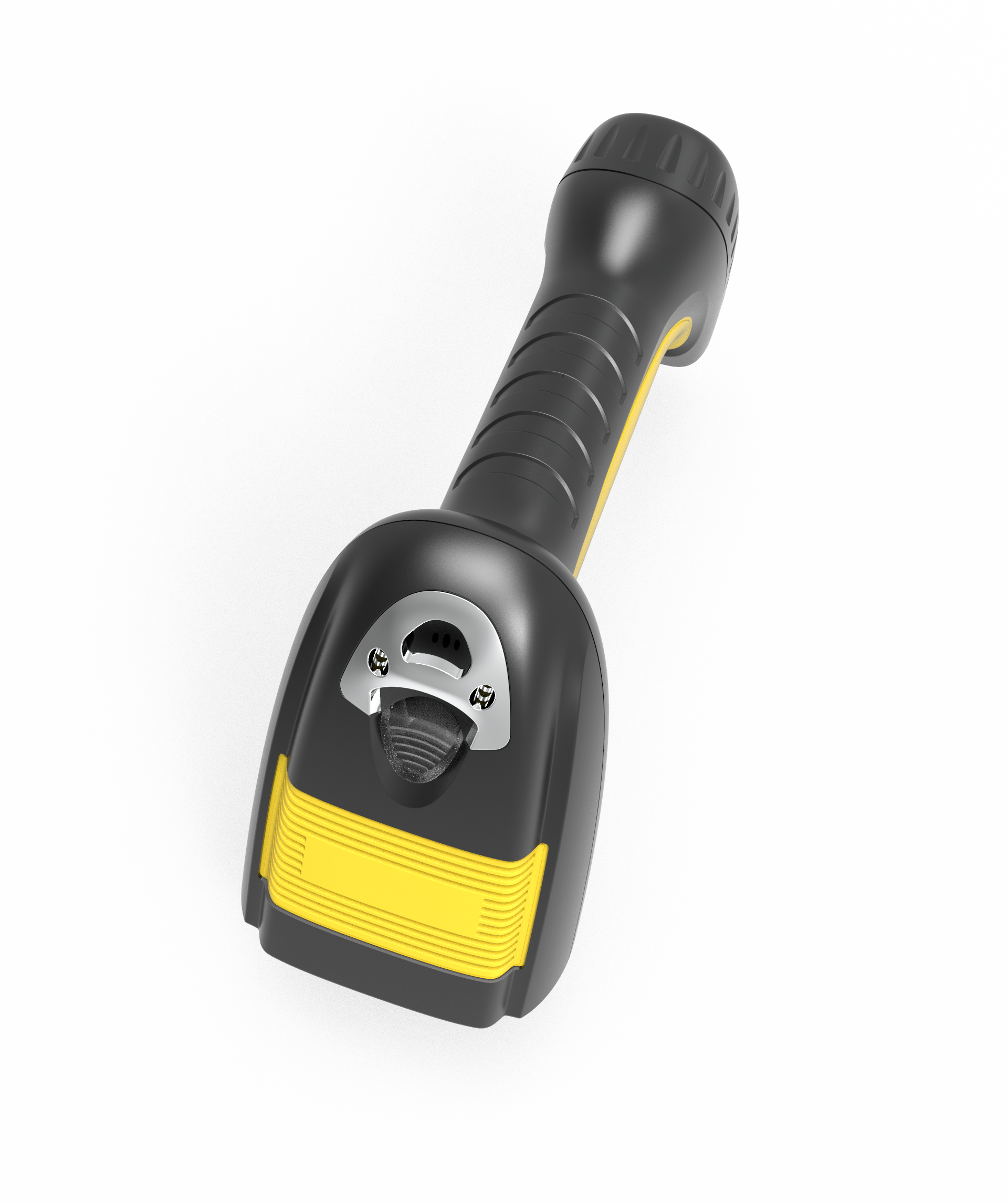

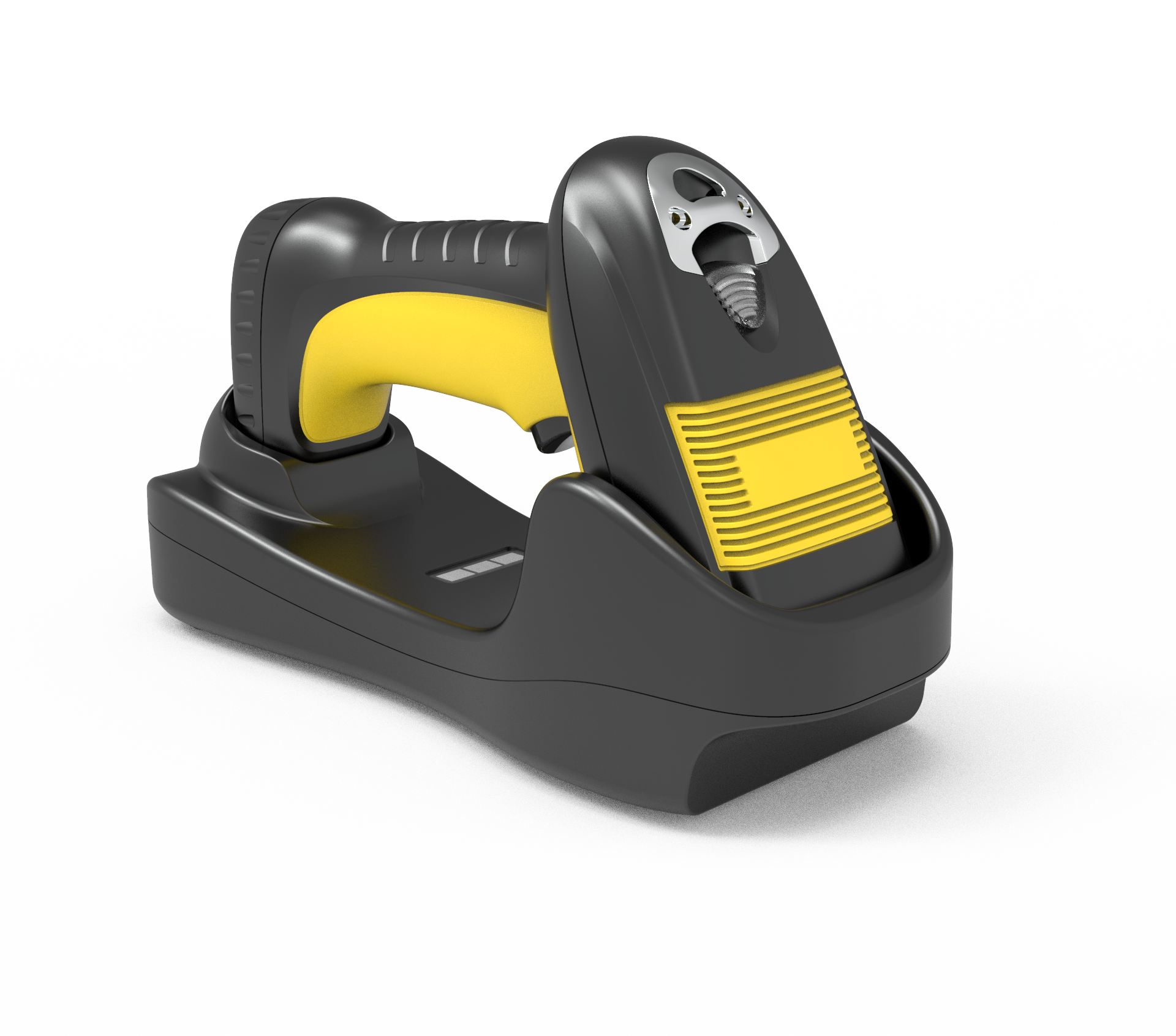

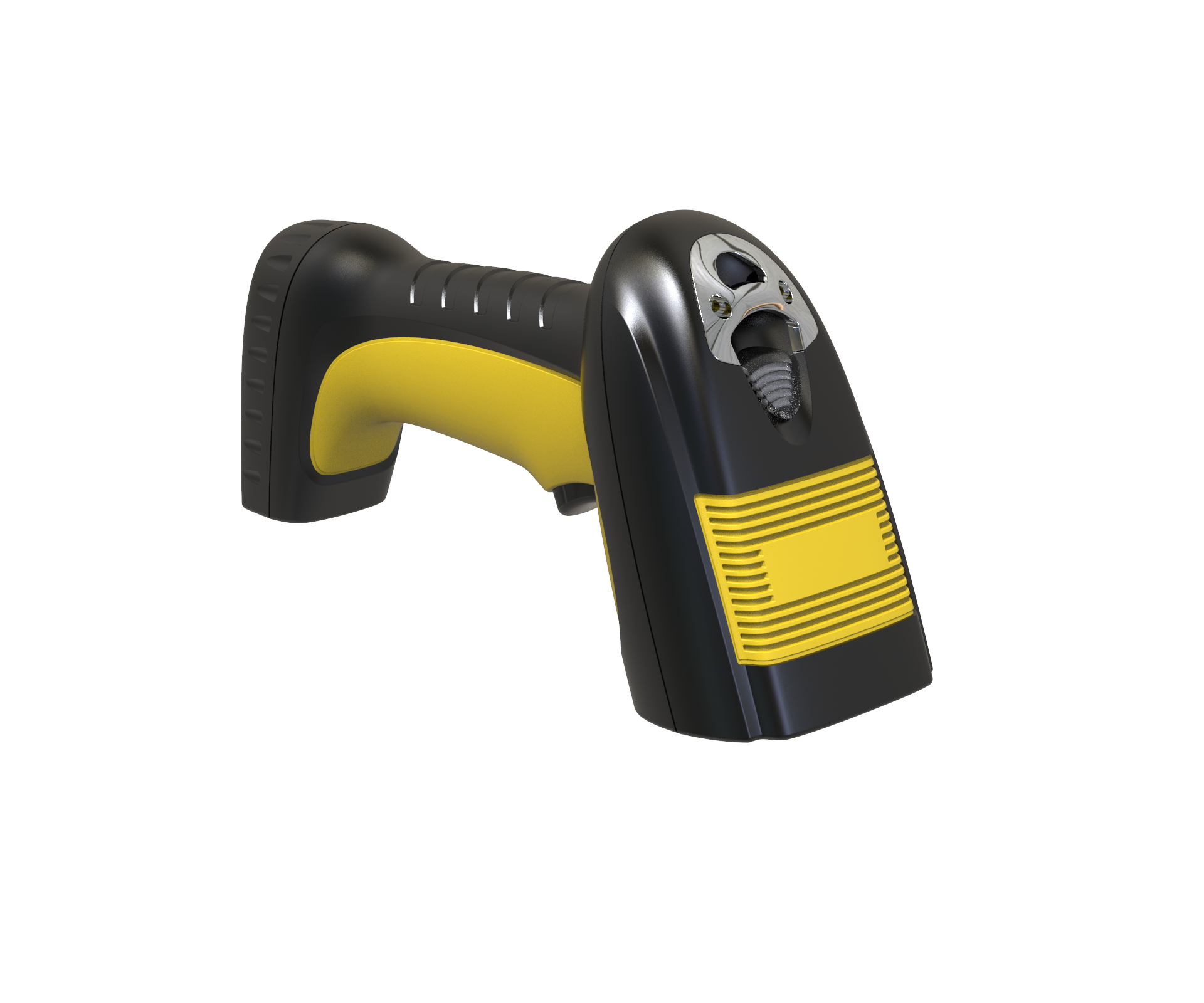

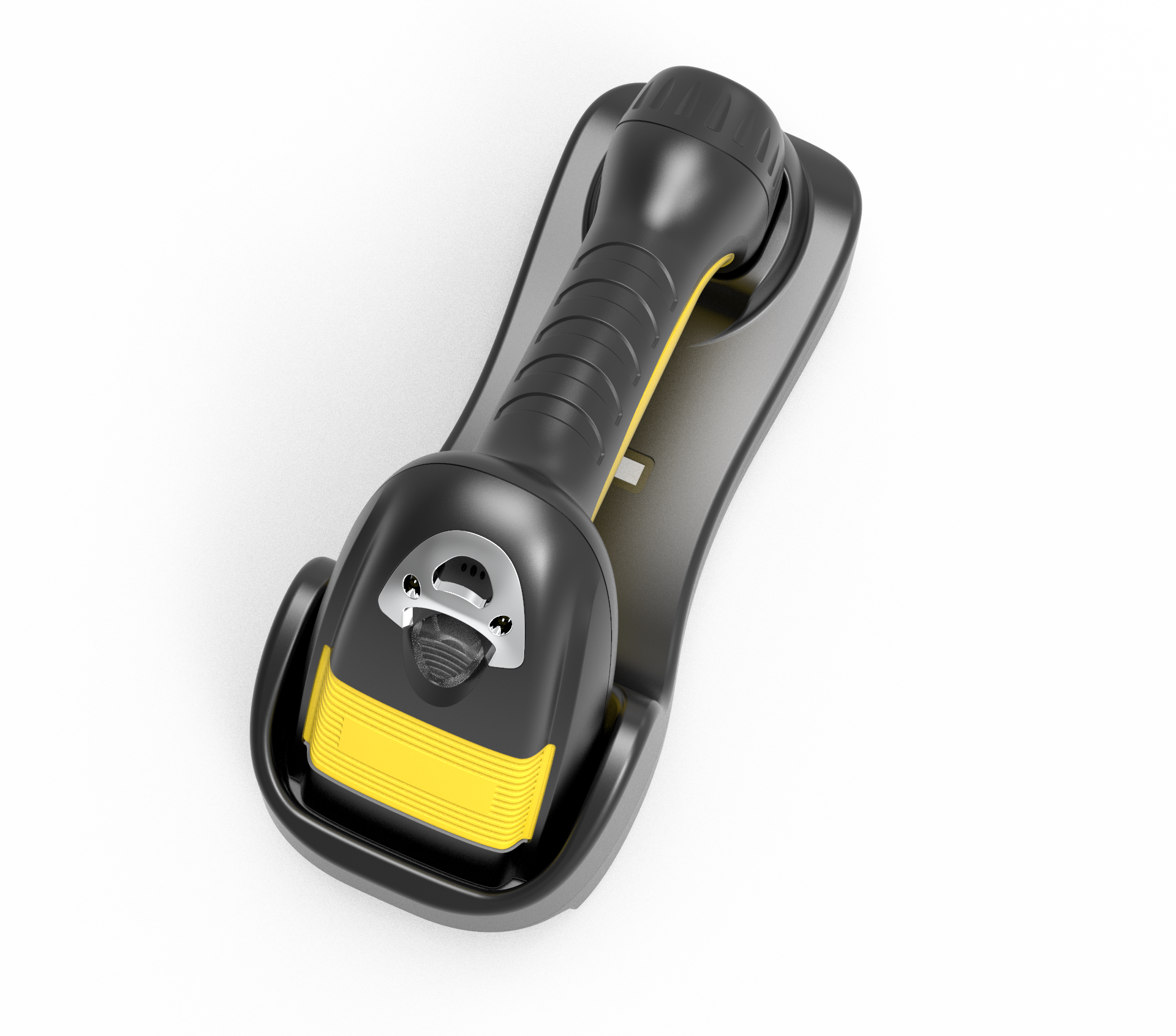

| Item | Wireless 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PVC+PC | ||||||
| Power Supply | Charge DC 5V ±5% ；Built-in 3.7V 2000mA lithium Battery | ||||||
| Power consumption | 0.45W（Working）; 0.23W（Standby）; 0.85W（Maximum） | ||||||
| Weight | 151g±5g（Without wire） | ||||||
| Size | L * W * H：186.0 * 72.2 * 99.8(unit:mm) | ||||||

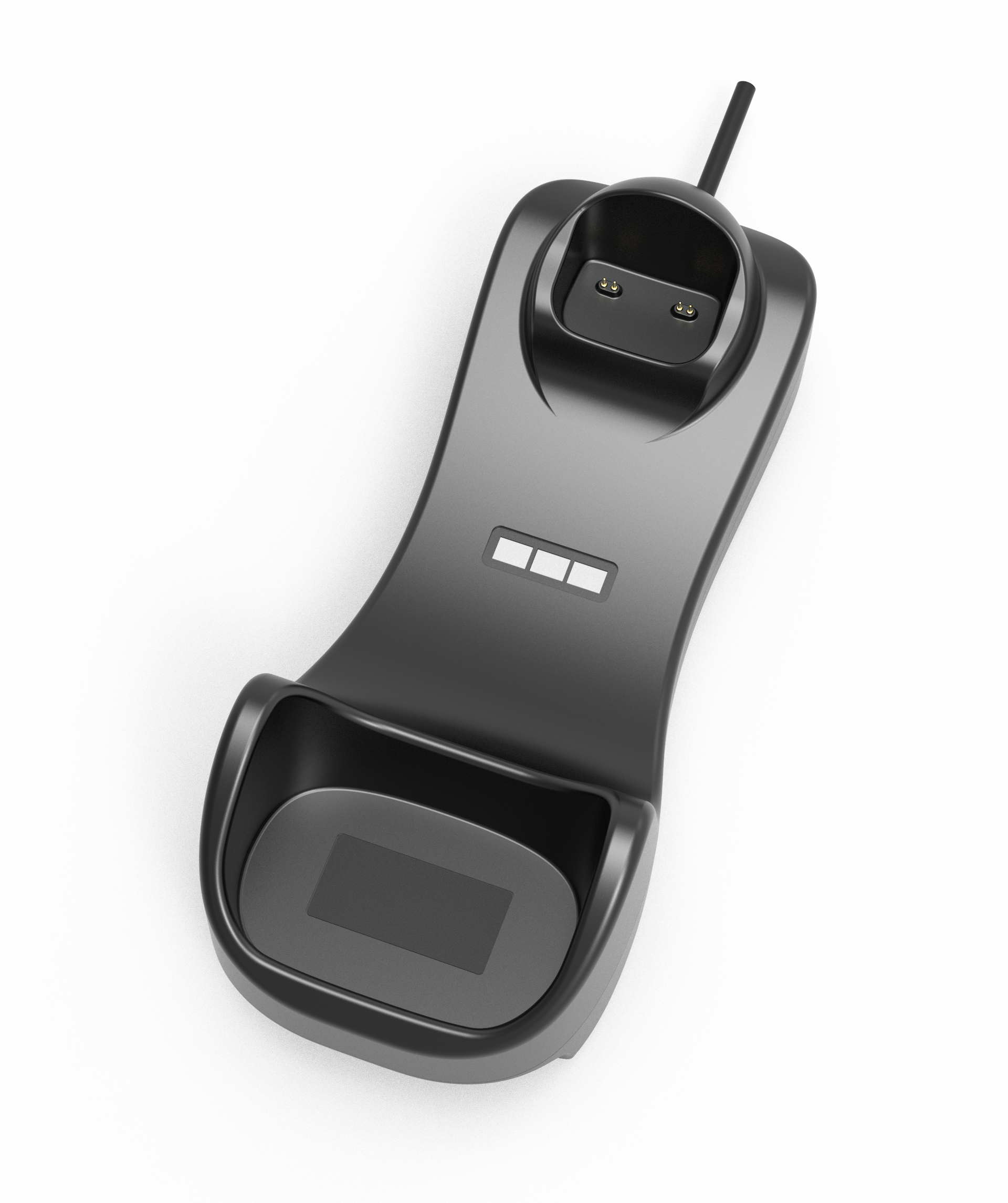

| Charging base size | L * W * H: 220.0 * 91.2 * 71.0(unit:mm)【Optional】 | ||||||
| Color | Black; grey white | ||||||
| Button life | ＞100000 | ||||||
| Performance Parameter | |||||||
| Interface | 2.4G；Bluetooth | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English-United States; French-Canada; Dutch-Netherlands; Spanish-International; Latin American-Argentina; Portuguese-Brazil; Danish-Denmark; English-UK; Italian-Italy 142; French-France; German- Germany; Portuguese-Portugal; Finnish-Finland; Turkish-F; Japanese; Russian-Russia; Northern Sami-Norway [Support multi-country keyboard] | ||||||
| Sensor | Planar CMOS sensor 1280×800 | ||||||
| Processor | 32-bit ARM MCU + BGA | ||||||
| storage | 512 KB (capacity can be customized) | ||||||
| Light Source | Red light LED aiming + white light LED lighting | ||||||
| Motion Tolerance | Code128： 80cm/sec QR： 85cm/sec | ||||||
| Wireless transmission distance | 2.4G≤70m（Visual range） Bluetooth≤10m（Visual range） | ||||||
| Reading Mod | Image | ||||||
| Resolution | ≥4mil | ||||||
| Bit error rate | 1/5000000 | ||||||
| Trigger Mode | Manual;Auto-Sensing;Continuous scanning | ||||||
| Prompt Mode | Buzzer + indicator light | ||||||
| Recognition angle | Tilt ±45°, deflection ±45°, rotation 360° | ||||||
| Reading distance | 10mm-600mm | ||||||
| Print Contrast | 25% | ||||||
| Charging time | appr.8h | ||||||
| Working Time | appr.40h | ||||||
| Scan speed | 100 times/sec | ||||||
| Decoding Capability | 1D | ● Interleaved 2 of 5 ● Standard 2 of 5 ● Matri 2 of 5 ● ITF-14 ● Code39-Regular ● Code39-FullASCII ● Code93-Regular ● Code93-FullASCII ● Code128 ● Code11 ● UPCE0/E1 ● EAN/GS1-128 ● Codabar ● MSI ● EAN/JAN-13 ● UPC-A ● JAN/EAN-8 ● Plessey ● GS1 Databar ● Code 32 | |||||
| 2D | ● Data Matrix ● QR Code ● PDF417 ● HanXin Code ● Aztec ● Micro QR ● Micro PDF417 ● Maxi code | ||||||
| Scanning Depth | QR 7.50mil 15byte：5cm - 10cm QR 10.83mil 16byte：4cm - 16cm Code39 5.83mil 15byte: 6cm - 16cm | ||||||
| Environmental parameters | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | Free Fall 1.5m（concrete surface） | ||||||
| Ambient light | 0→100000Lux | ||||||
