| GT-8800L Technical Parameter | |||||||
| Model | GT-8800L | ||||||

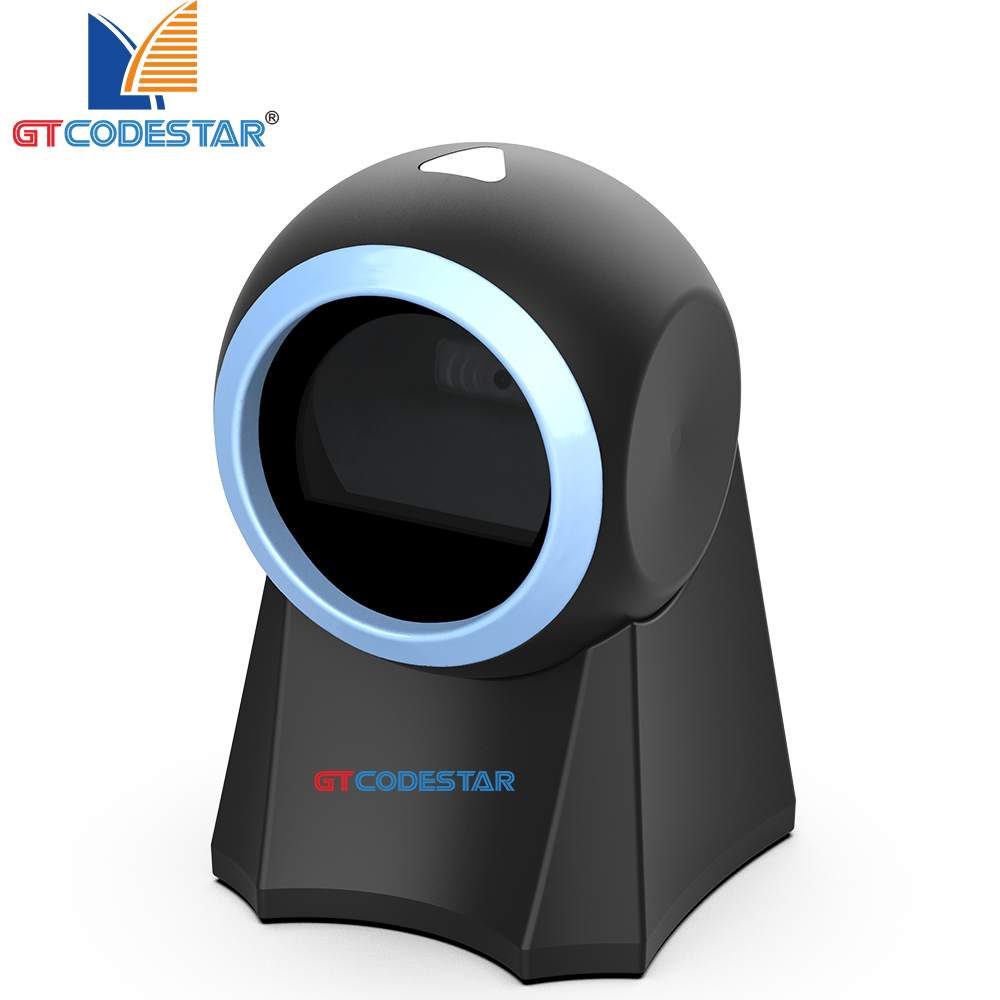

| Item | Wireless 2D Desktop barcode scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS + PC + TPU | ||||||

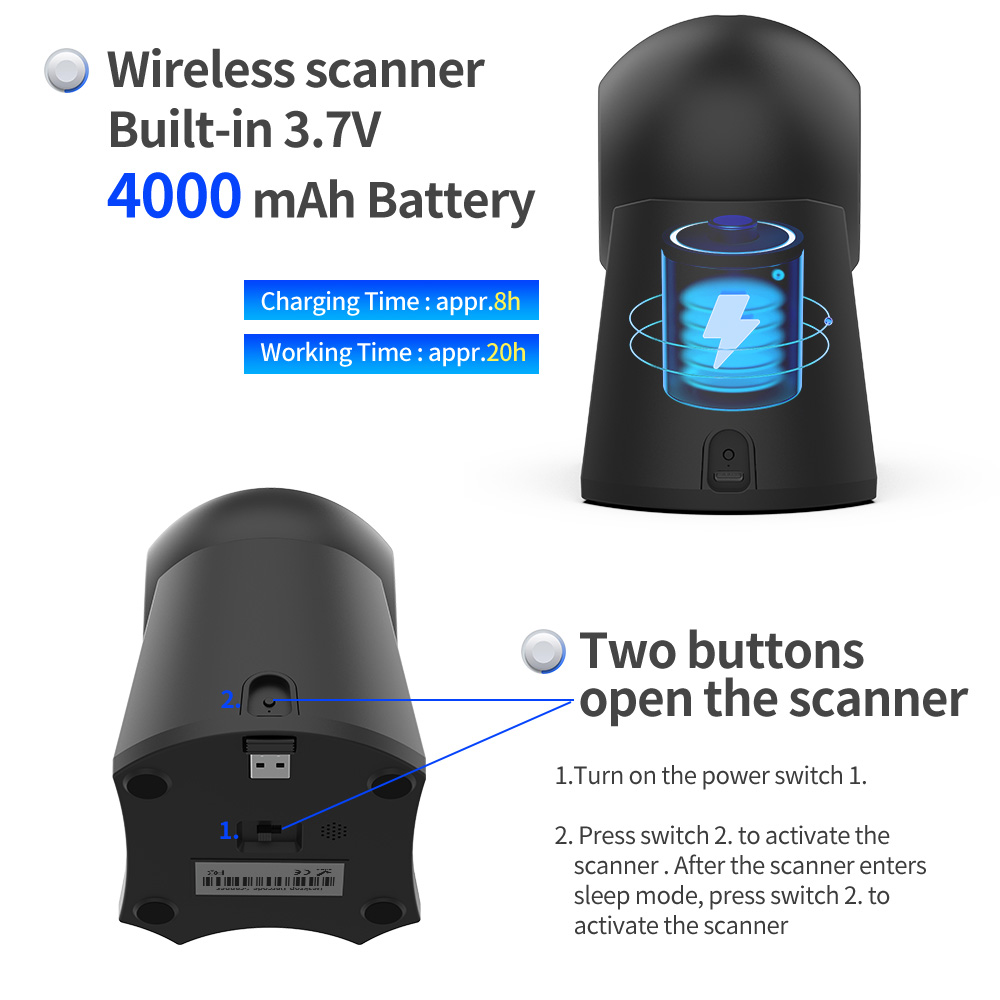

| Power Supply | DC 5V ±5% ; 3.7V 4000mA lithium battery | ||||||
| Power consumption | 0.60W(Standby); 0.35W(Operating); 1.00W(Max) | ||||||
| Weight | 386g±5g(Without cable) | ||||||

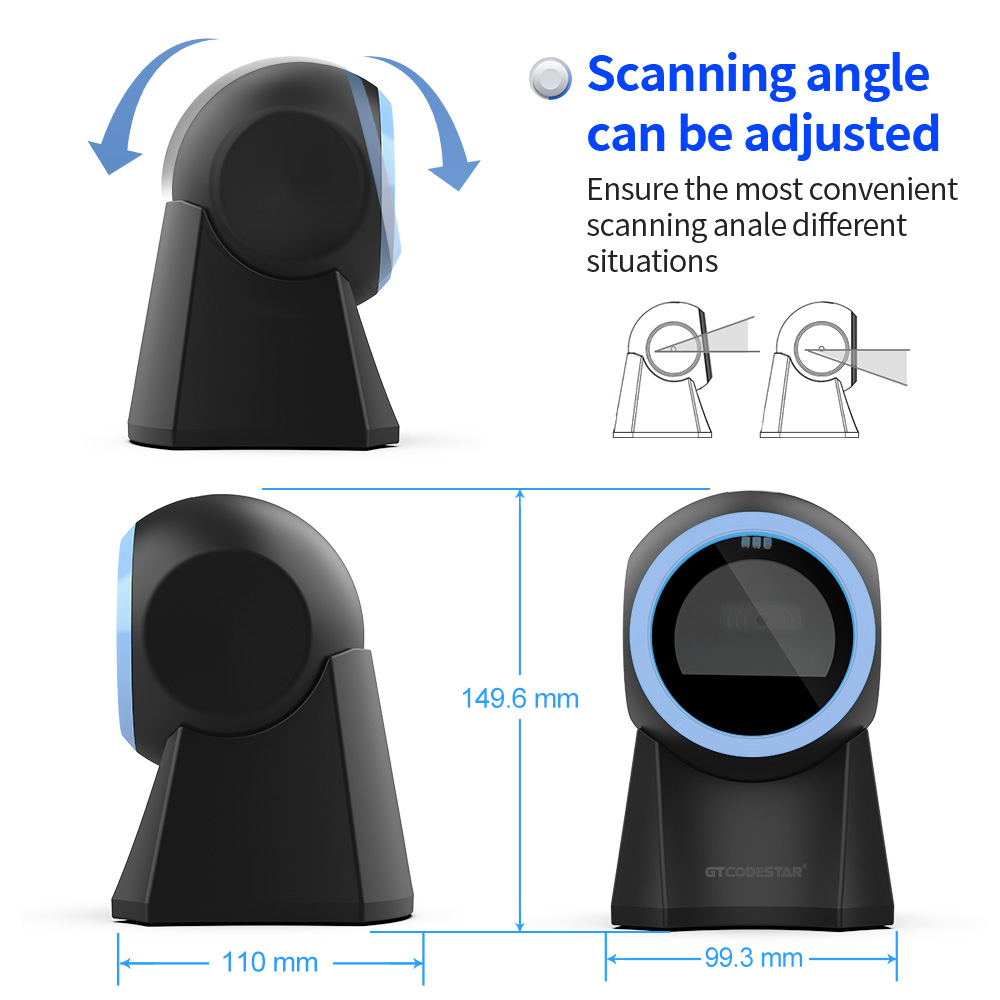

| Size | L * W * H:110.0 * 99.3 * 149.6(unit:mm) | ||||||
| Color | Black blue/Black Orange | ||||||
| Key life | >100000 | ||||||
| Performance Parameter | |||||||

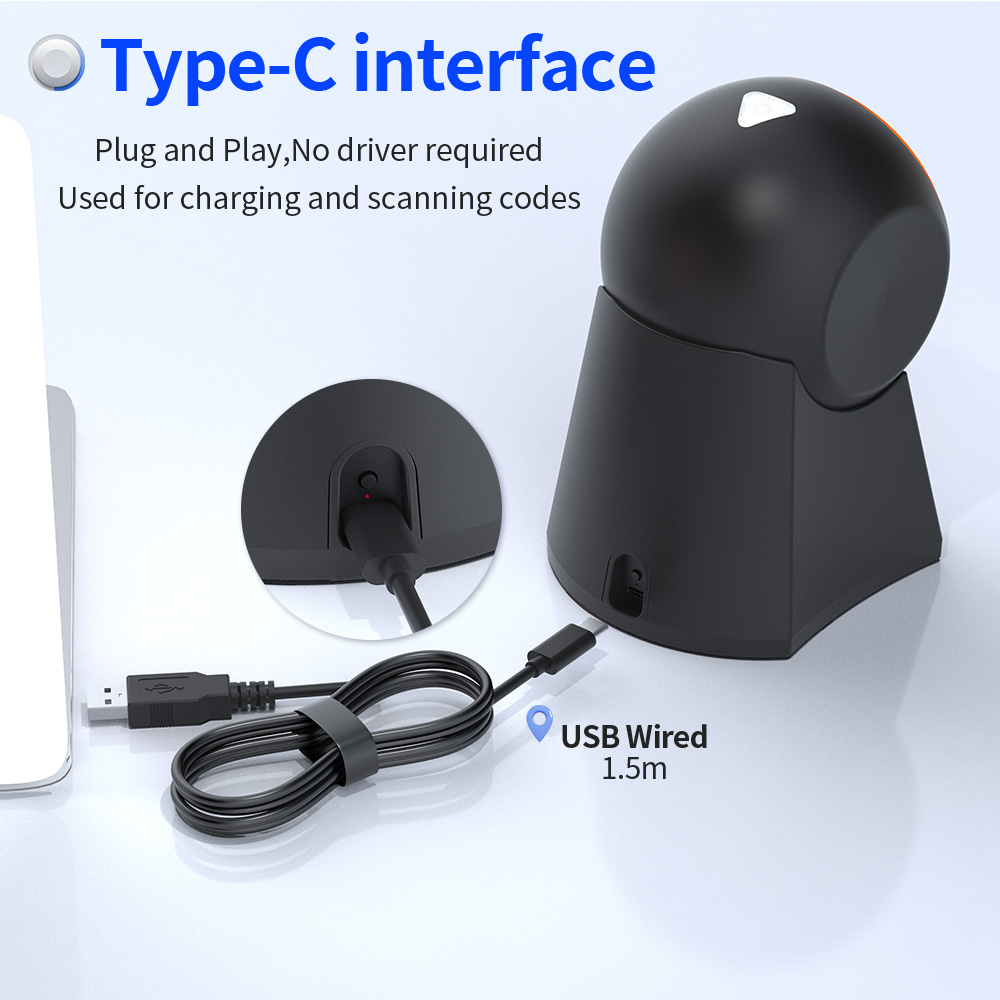

| Interface | USB;2.4G;Bluetooth | ||||||
| System supported | Linux,Android,Windows XP,7,8,10,MAC | ||||||
| Language supported | English US; French Canada; Dutch Netherlands; Spanish International; Latin American Argentina; Portuguese Brazil; Danish Denmark; English UK; Italian Italy 142; French France; German Germany; Portuguese Portugal; Finnish Finland; Turkish F; Japanese; Russian - Russia; Northern Sami - Norway [Supports keyboards from multiple countries] | ||||||
| Sensor | CMOS sensor 480 * 640 | ||||||
| Processor | 32-bit ARM MCU | ||||||
| Storage | 512 KB(customizable) | ||||||
| Light Source | White LED Light | ||||||
| Motion Tolerance | Code39: 25cm/sec QR: 35cm/sec | ||||||

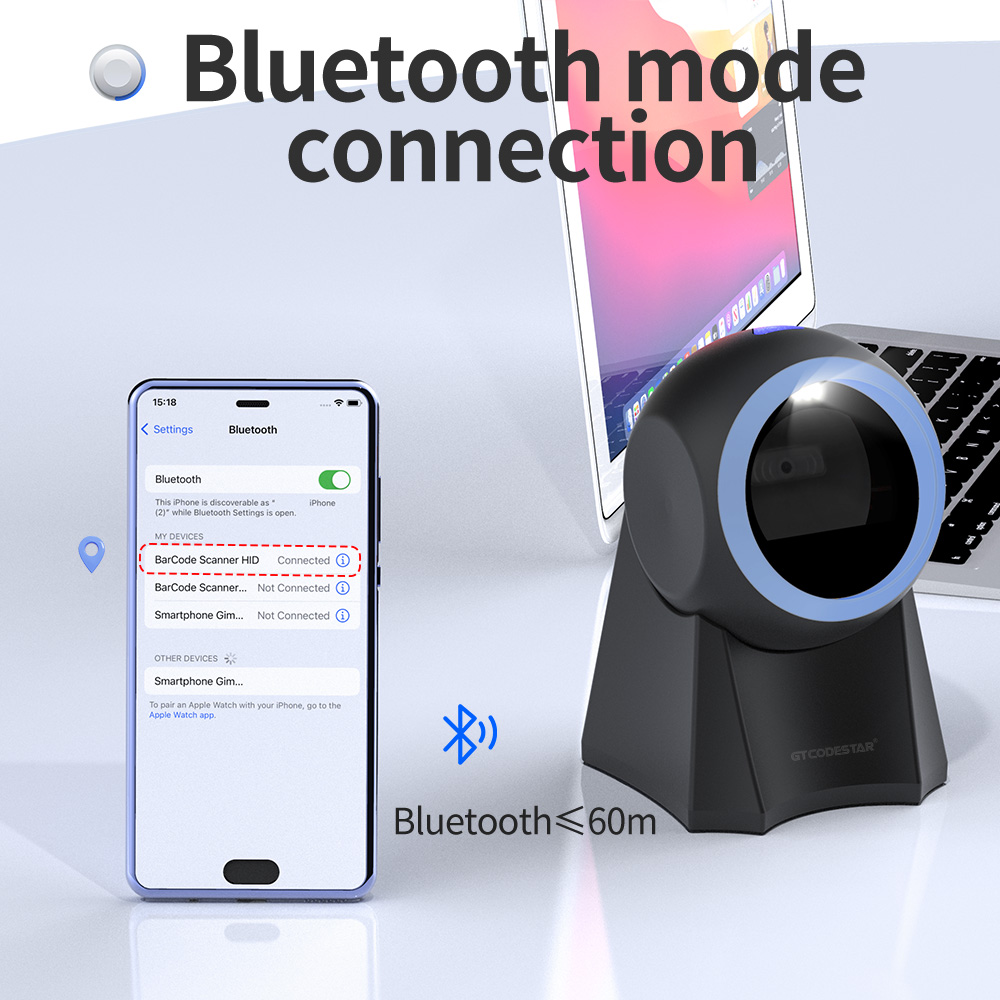

| Wireless transmission distance | 2.4G≤90m(Visible range) Bluetooth≤60m(Visible range) | ||||||
| Reading Mode | Image | ||||||
| Resolution | ≥5mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||

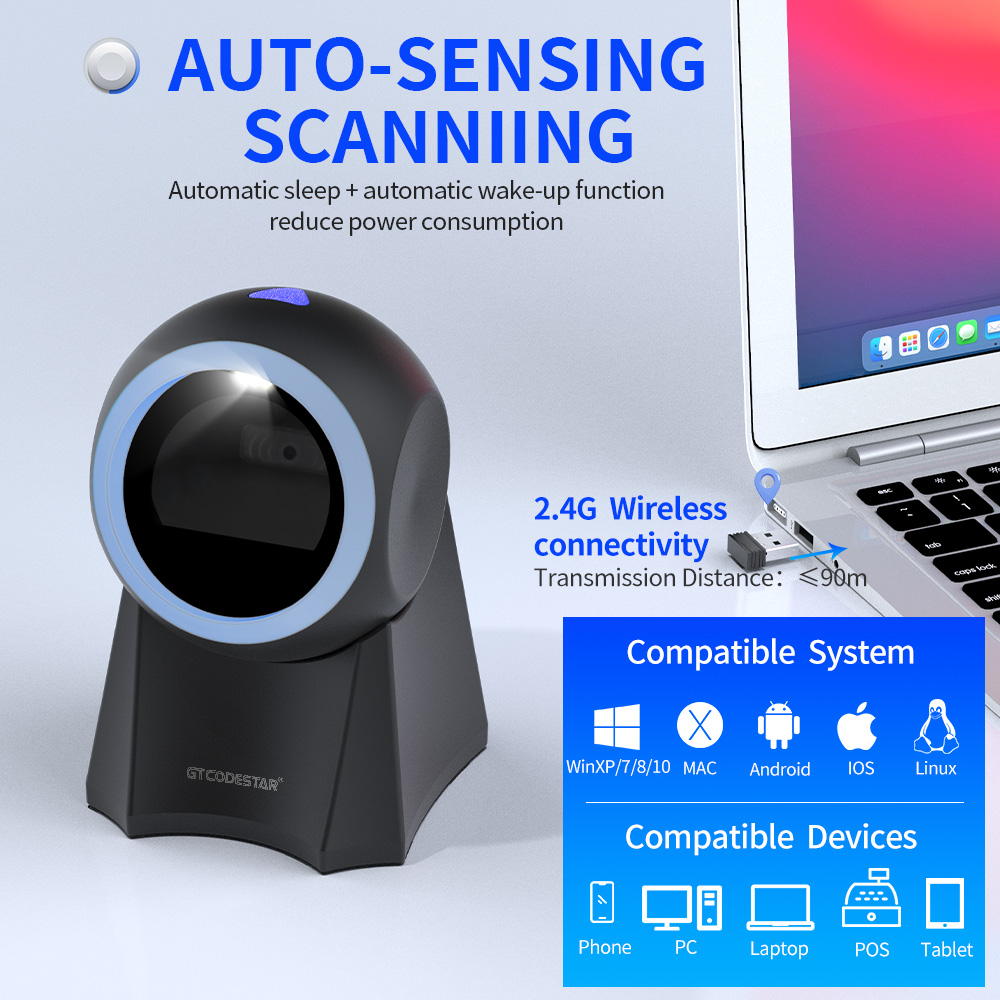

| Triggle Mode | Auto-sensing | ||||||
| Prompt Mode | Buzzer+Indicator Light | ||||||
| Scanning Angle | Rotate 360 °, horizontal 32 °, vertical 24 ° | ||||||
| Scan Distance | 1cm-200cm | ||||||
| Scanning distance | 0cm - 50cm | ||||||
| Print Contrast | ≥30% | ||||||
| Charging duration | appr.8h | ||||||
| Continuous working hours | appr.20h | ||||||

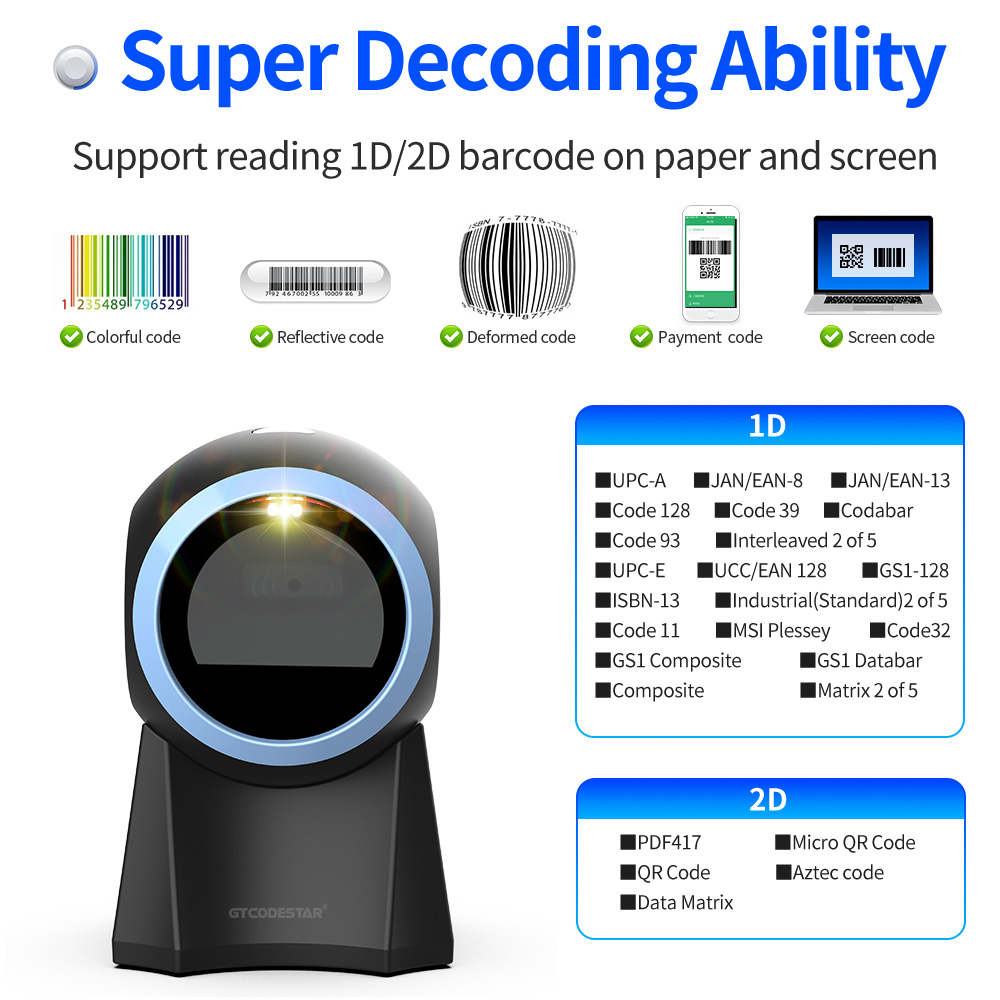

| Decoding Capability | 1D | UPC-A JAN/EAN-8 JAN/EAN-13 Code 128 Code 39 Codabar Code 93 Interleaved 2 of 5 UPC-E UCC/EAN 128 GS1-128 ISBN-13 Industrial(Standard)2 of 5 Code 11 MSI Plessey Code32 GS1 Composite GS1 Databar Composite Matrix 2 of 5 | |||||
| 2D | PDF417 Micro QR Code QR Code Aztec code Data Matrix | ||||||
| Scanning Depth | QR Code 12.50mil(7 bit):0cm - 11cm PDF417 9.17mil(7 bit):0cm -11cm Data Matrix 12.50mil(8 bit):0cm - 7cm Code 128 7.50mil(15 bit):1cm - 10cm EAN13(10mil):3cm - 12cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%(No Condensation) | ||||||
| Storage Humidity | 20% to 85%(No Condensation) | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | 1.5m free fall on concrete surface | ||||||
| Ambient light | 0→100000Lux | ||||||
