| Performance Parameter | ||||||||||
| Power Supply | DC 5V ±5% | |||||||||
| Current | 170mA（working） ；88mA（ standby） ；200mA（ maximum）【Average】 | |||||||||
| Weight | 182g ± 3g（ Including wire） | |||||||||
| Interface | USB； USB COM； RS232（ customizable） | Error Rate | 1/5000000 | |||||||
| Sensor | Flat CMOS sensor | Reading mode | Image | |||||||
| Light source | White LED lighting | Resolution | ≥5mil | |||||||
| Processor | 32-bit ARM MCU + DSP | Print contrast | ≥25% | |||||||
| Motion Tolerance | Code 128:20cm/sec QR:25cm/sec | |||||||||

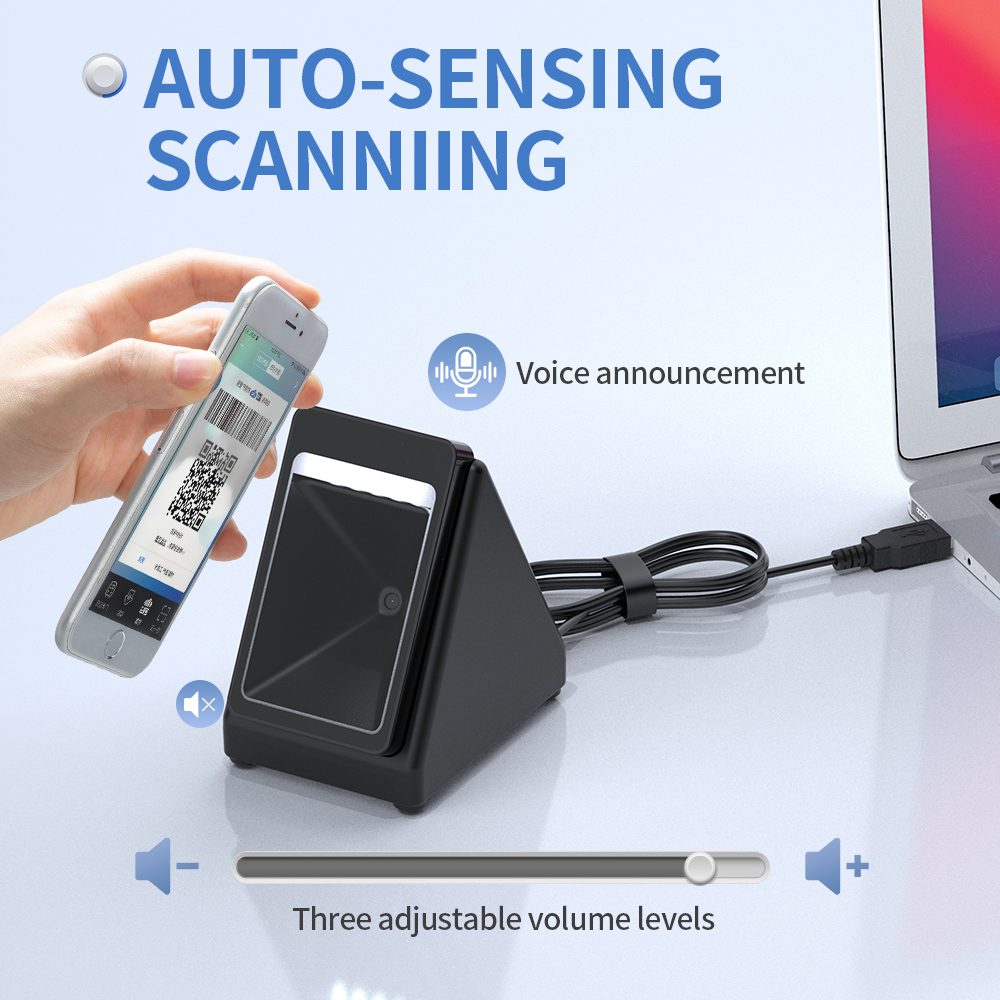

| Triggle Mode | Auto-sensing | |||||||||
| Scanning Angle | Rotation 360° , elevation 32° , deflection 24° | |||||||||
| Language supported | English; Czech; French; German; Hungarian; Italian; Japanese; Spanish; Turkish Q; Turkish F; Latin American (Mexico)【Virtual Keyboard】 | |||||||||

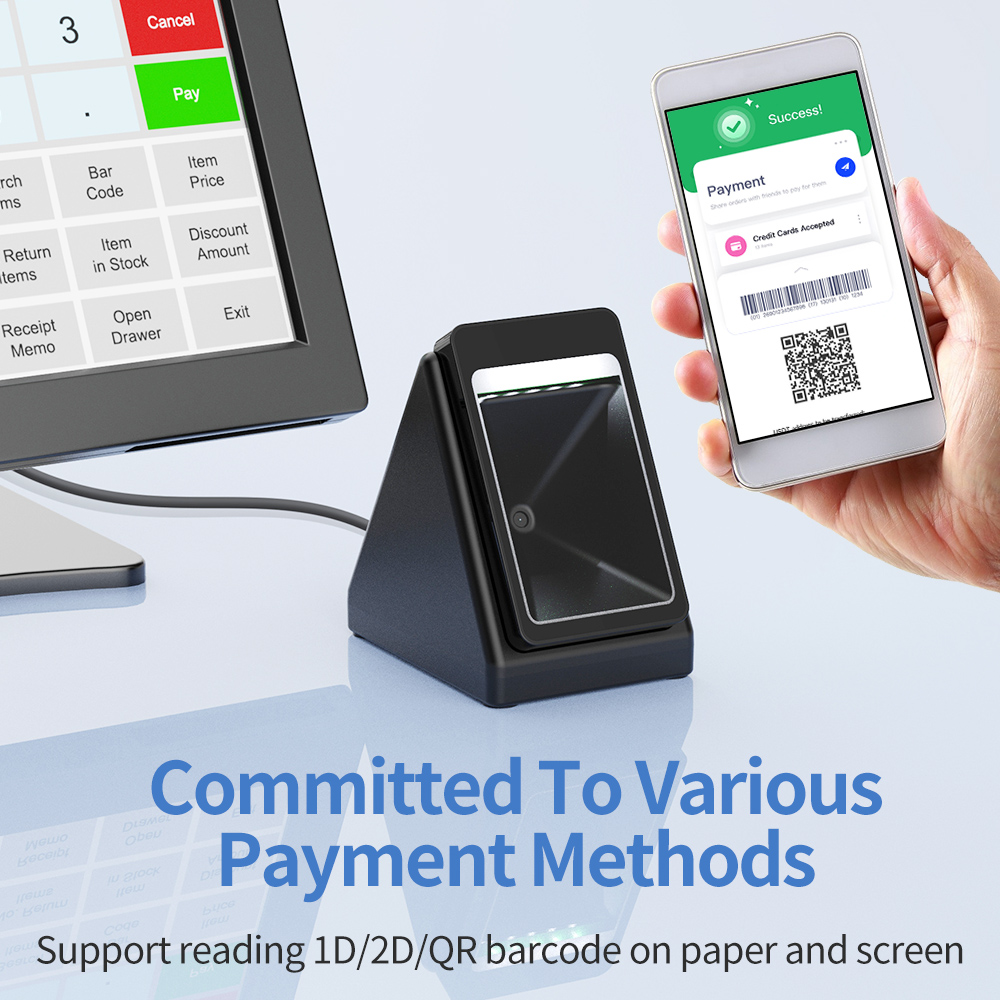

| Decoding Capability | 1D： ● Code25-Interleaved | ● Code25-Standard | ● Code25-Matri | 2D： ● Data Matrix | ||||||
| ● Code39-Regular | ● Code93-Regular | ● Code128 | ● QR | |||||||
| ● Code11 | ● UPCE0/E1 | ● EAN/JAN-13 | ● PDF417 | |||||||
| ● UPC-A | ● JAN/EAN-8 | ● Compact PDF417 | ||||||||
| Scanning Depth | Paper: QR 15.83mil（ 8 byte） : 1 - 8 cm EAN13 10mil ： 1 - 12cm | |||||||||

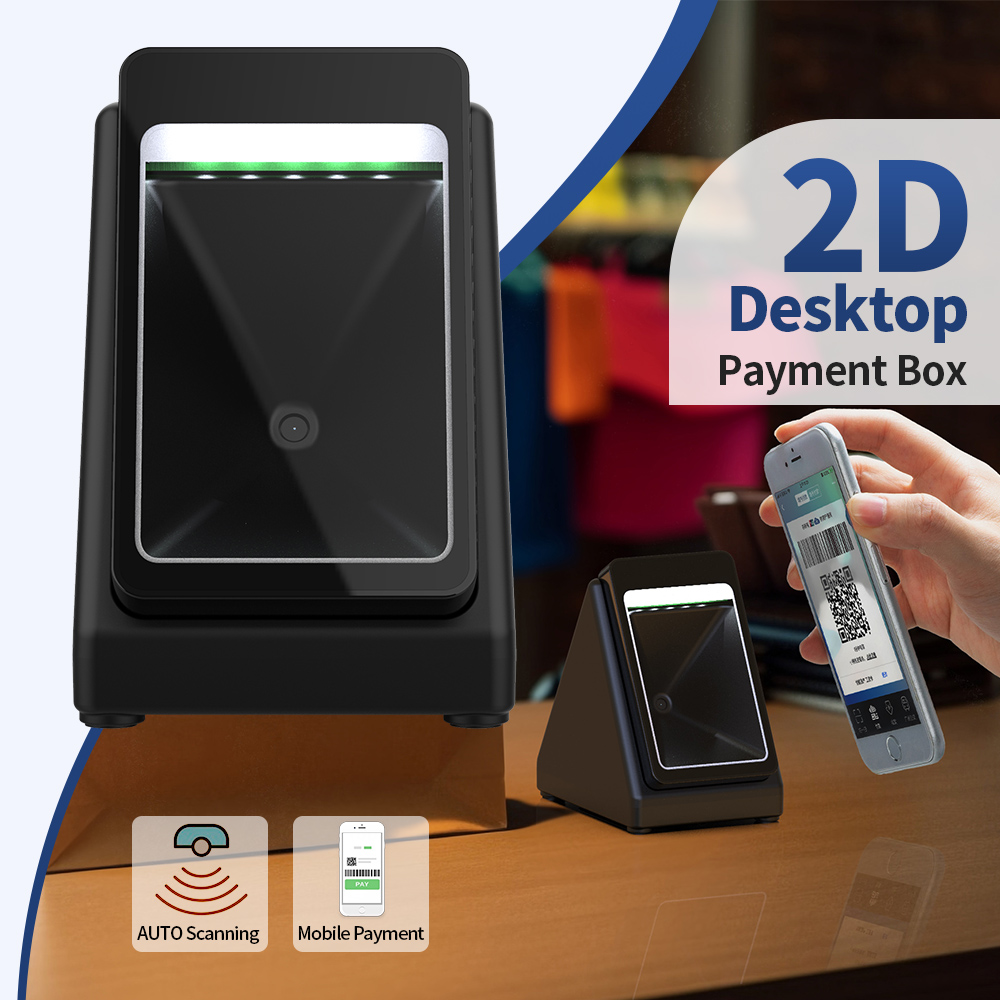

| Mobile payment code: WeChat payment code： 1 - 30 cm Bus Ride Code： 2 - 23 cm | ||||||||||
| Physical Parameter | ||||||||||

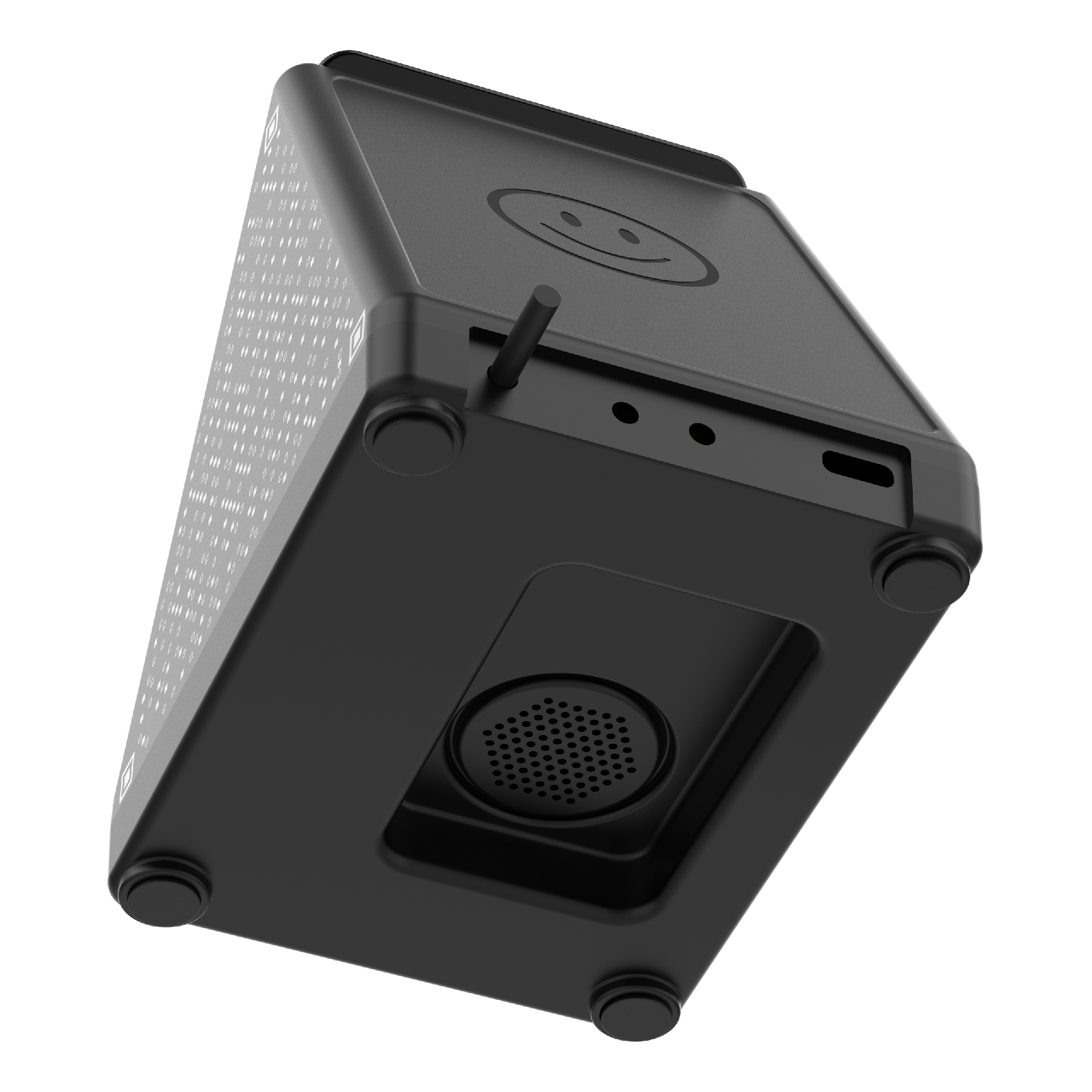

| Material | ABS | Feedback method | Voice announcement | |||||||

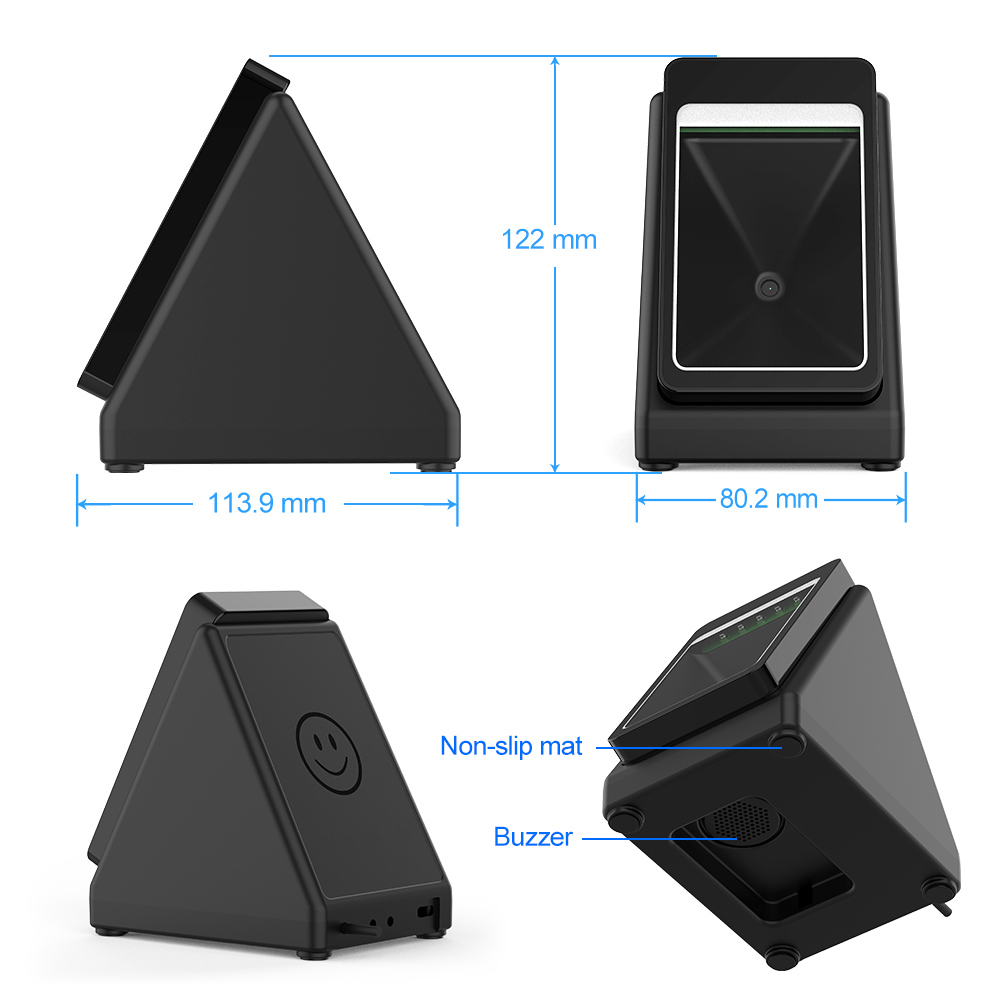

| Size | L*W*H ：80.2 * 113.9 * 122（mm） | Ambient light | 0~ 100000LUX | |||||||
| System Supported | Linux ，Android ，MAC ，Windows | IP Grade | IP52 | |||||||
| Color | White ，Black | Shock Resistance | Free fall 1.5m (concrete floor) | |||||||
