| X-9201C Technical Parameter | |||||||
| Model | X-9201C | ||||||

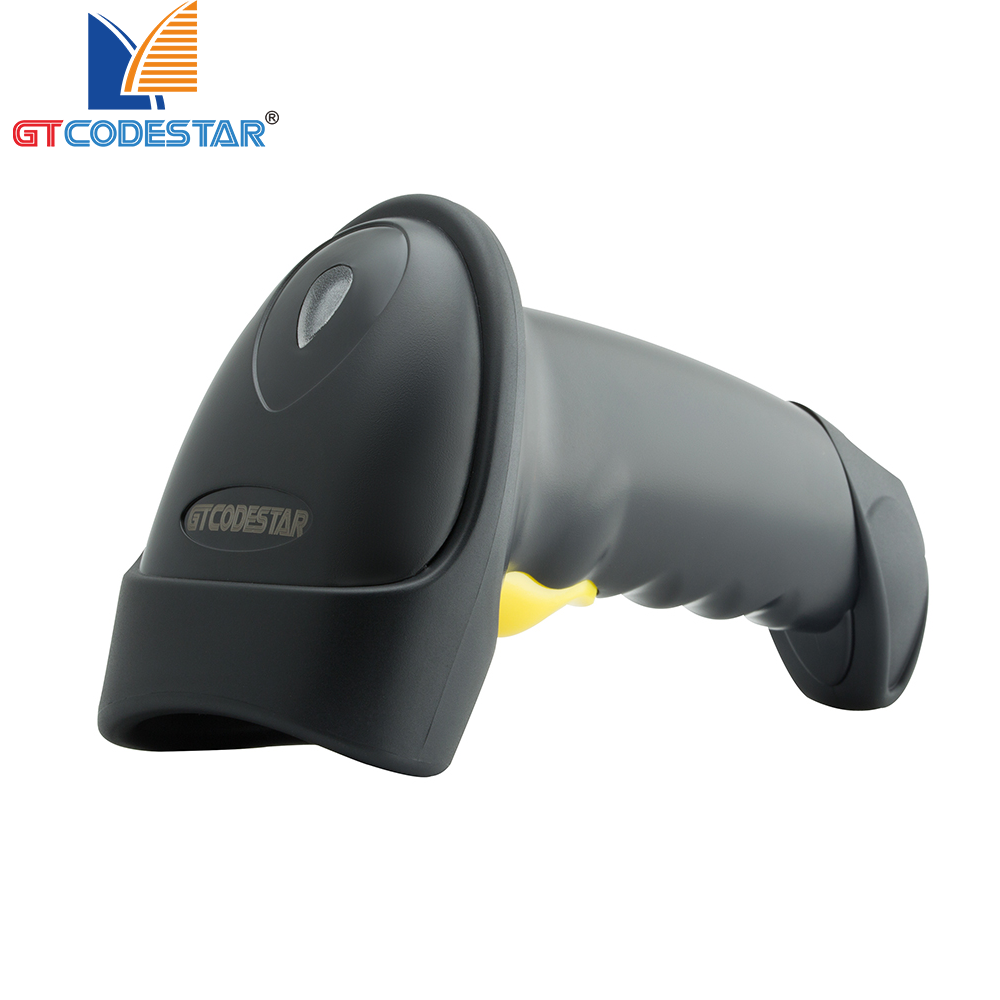

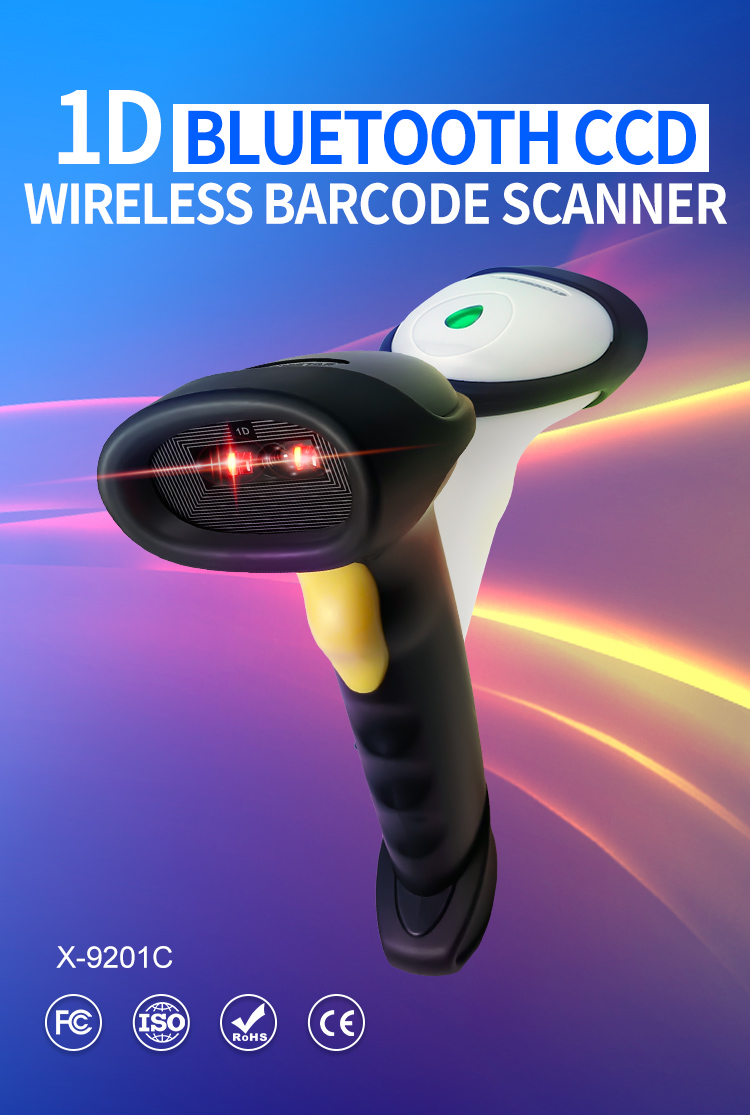

| Item | Wireless CCD barcode scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PVC+PC | ||||||

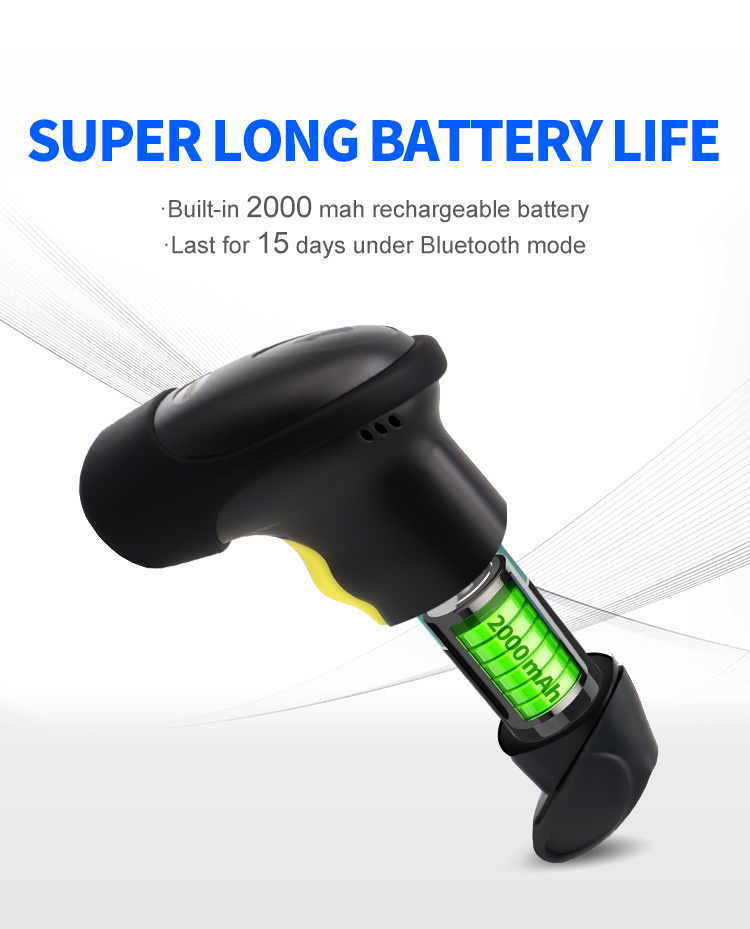

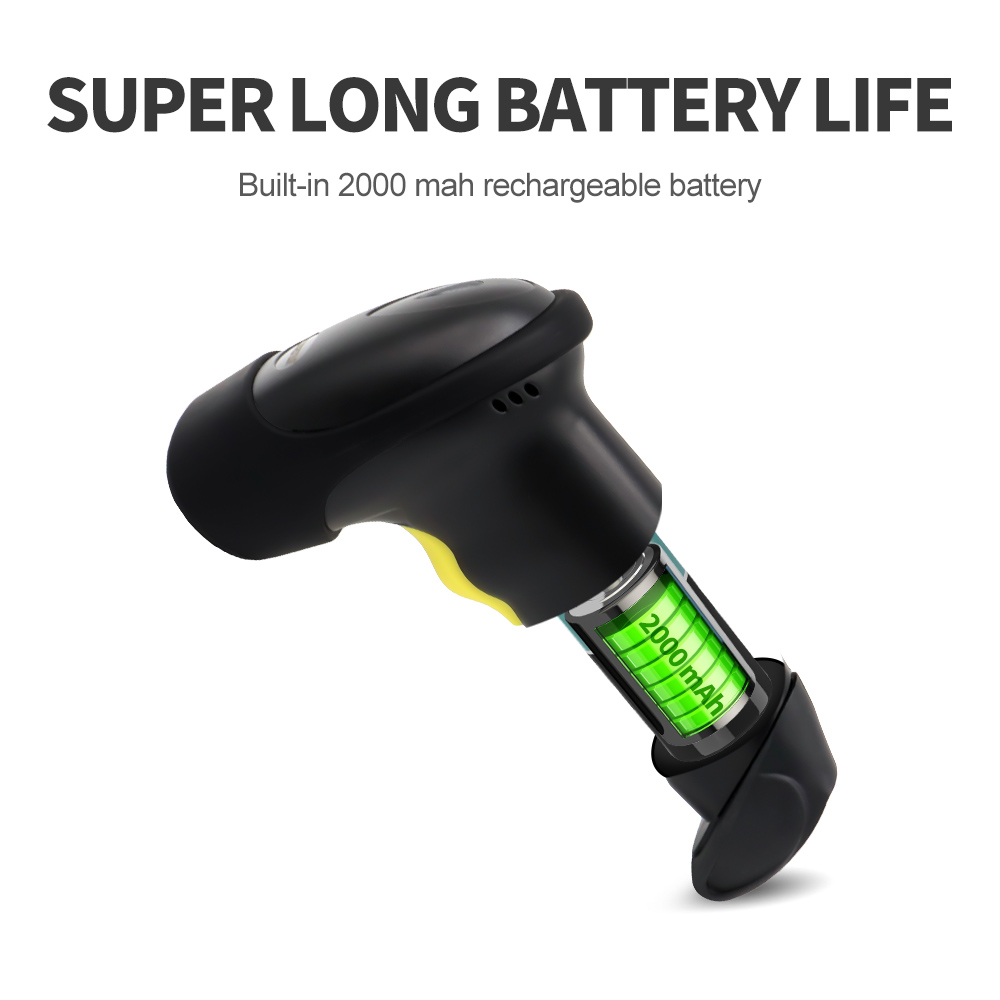

| Power Supply | Charge DC 5V ±5% ；Built-in 3.7V 2000mA lithium Battery | ||||||
| Current | 114mA（Working）;50mA（Standby）;205mA（Maximum）【Average current】 | ||||||
| Weight | 175g±5g（Without wire） | ||||||

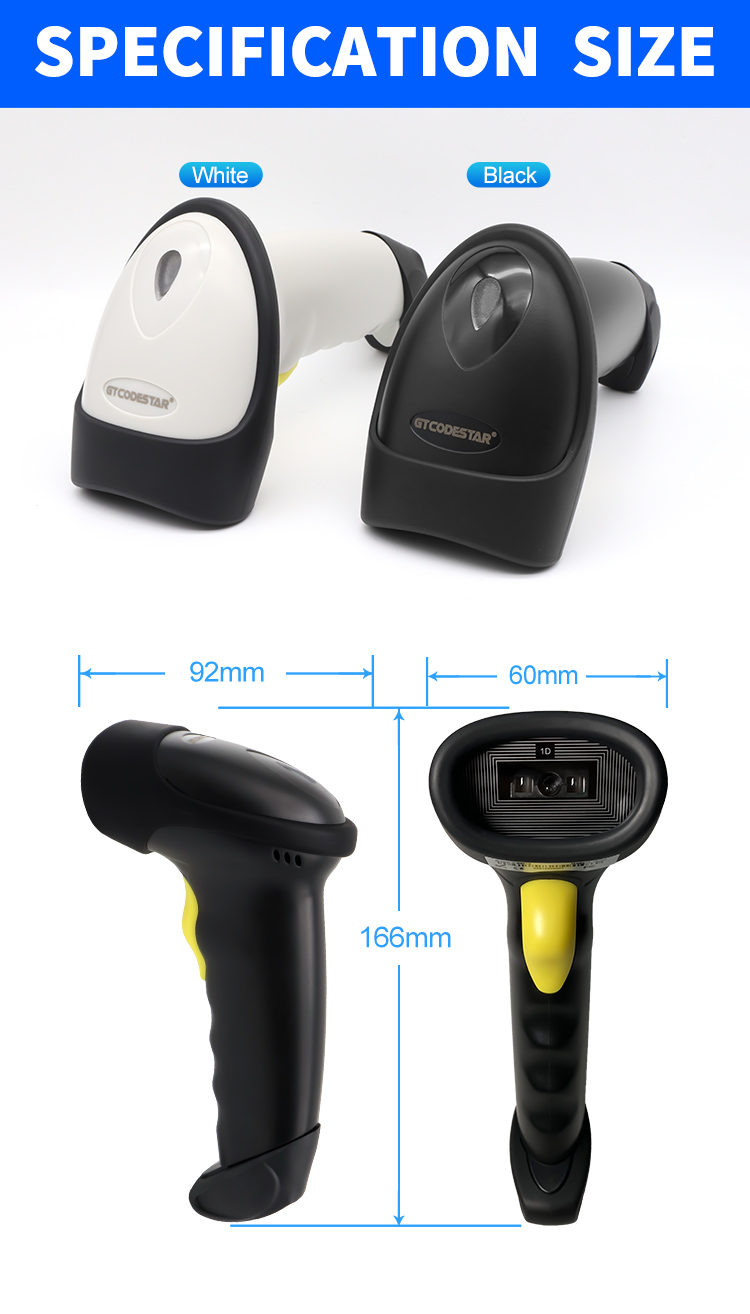

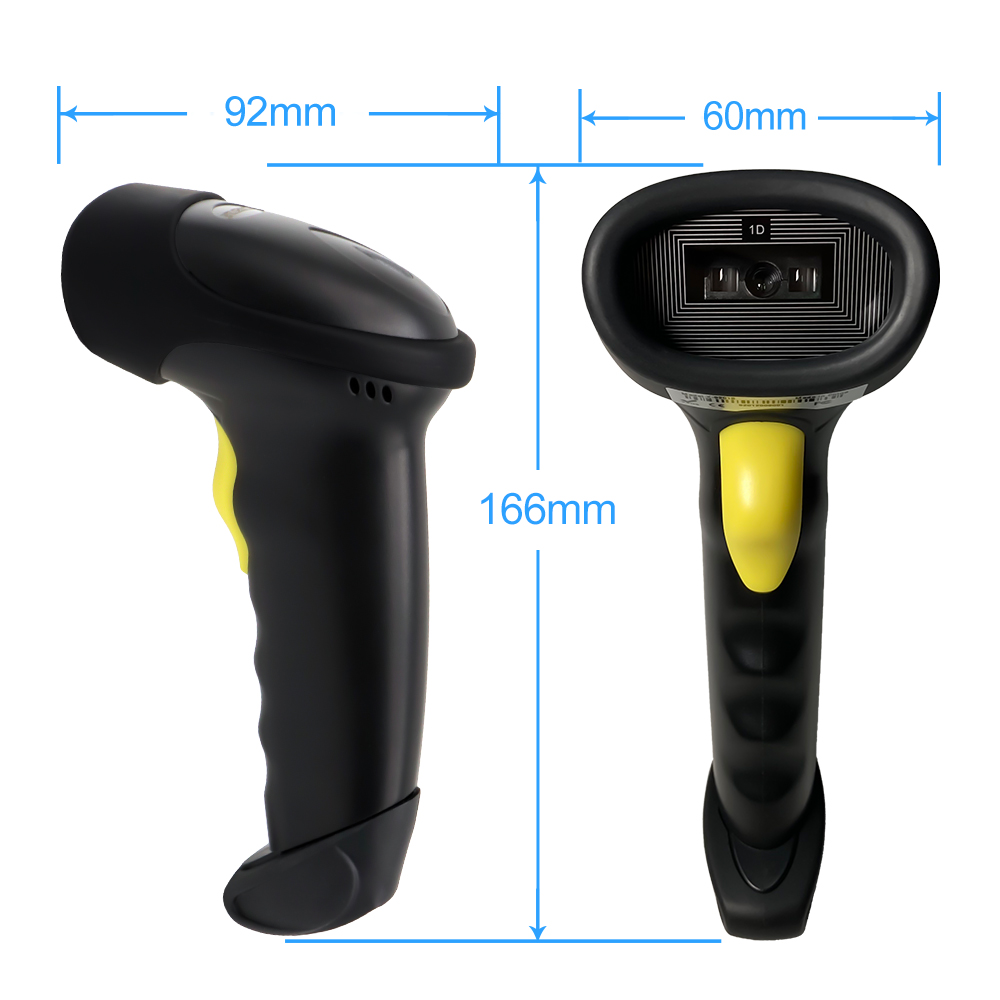

| Size | L * W * H：168.7*63.8*88.3（Unit/mm） | ||||||
| Color | Black | ||||||
| Button life | ＞100000 | ||||||
| Performance Parameter | |||||||

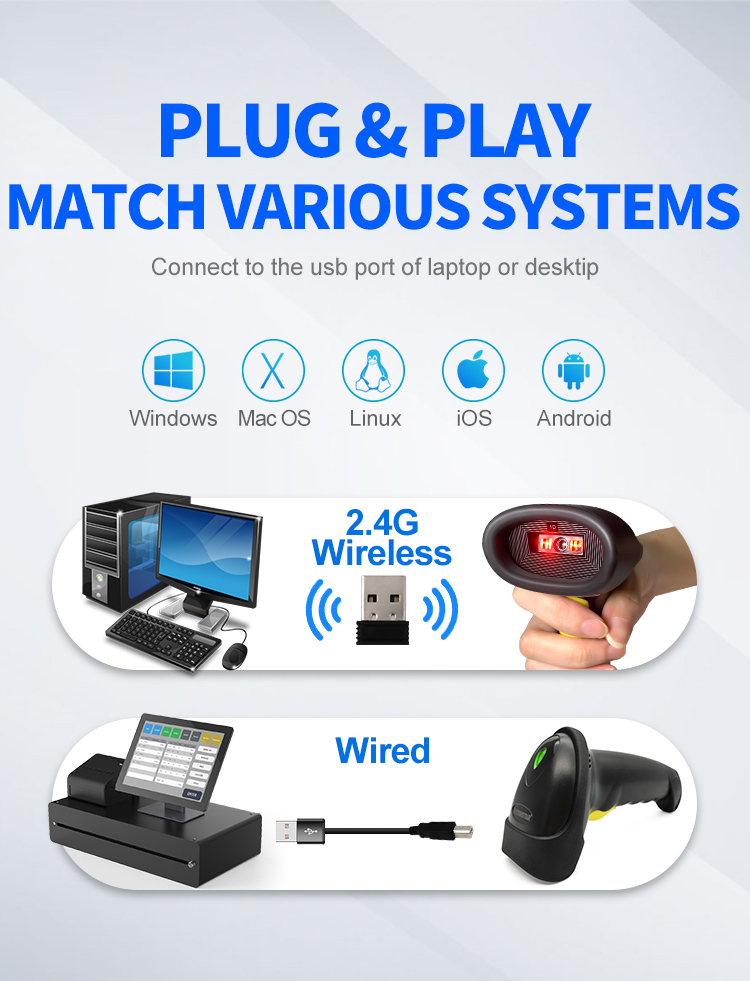

| Interface | USB；2.4G；Bluetooth | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English-United States; French-Canada; Dutch-Netherlands; Spanish-International; Latin American-Argentina; Portuguese-Brazil; Danish-Denmark; English-UK; Italian-Italy 142; French-France; German- Germany; Portuguese-Portugal; Finnish-Finland; Turkish-F; Japanese; Russian-Russia; Northern Sami-Norway [Support multi-country keyboard] | ||||||
| Processor | 32-bit ARM MCU | ||||||
| storage | 512 KB (capacity can be customized) | ||||||
| Light Source | 632nm red light diode (LED) | ||||||
| Decoding speed | 500 times/sec | ||||||
| Sensor | Linear CCD sensor 2500 points | ||||||
| Reading Mod | Image | ||||||
| Resolution | ≥4mil | ||||||
| Wireless transmission distance | 2.4G≤60m（Visual range） Bluetooth≤10m（Visual range） | ||||||
| Bit error rate | 1/5000000 | ||||||
| Trigger Mode | Manual;Auto-Sensing;Continuous scanning | ||||||
| Prompt Mode | Buzzer + indicator light | ||||||
| Reading distance | 10mm-600mm | ||||||
| Scan width | 5cm―15cm | ||||||
| Recognition angle | Rotation angle 30°, elevation angle 65°, inclination angle 65° | ||||||
| Print Contrast | 25% | ||||||
| Charging time | appr.8h | ||||||
| Working Time | appr.38h | ||||||

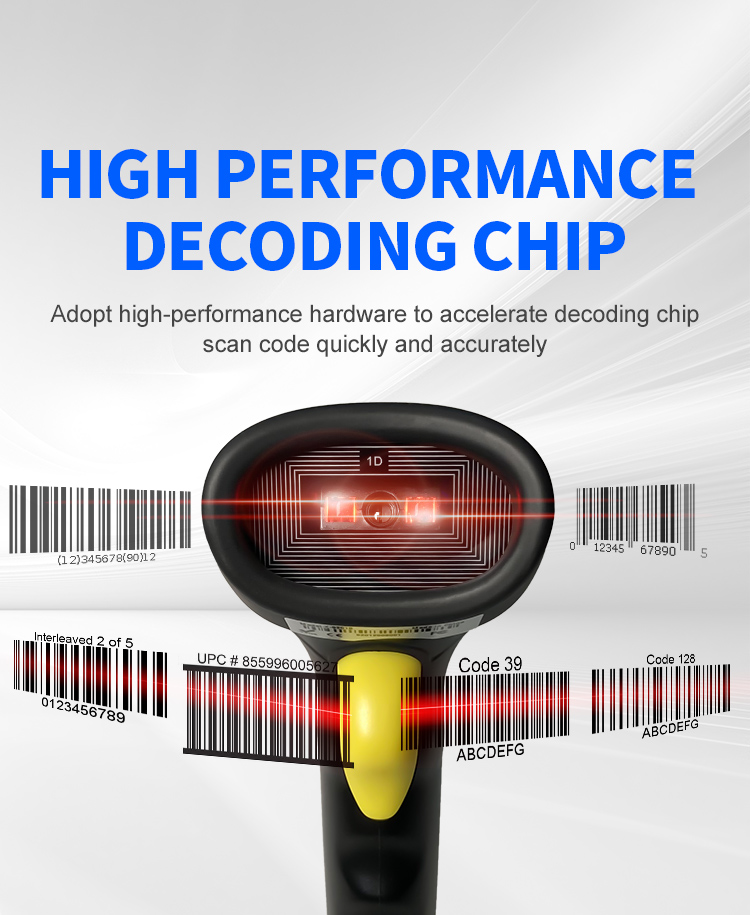

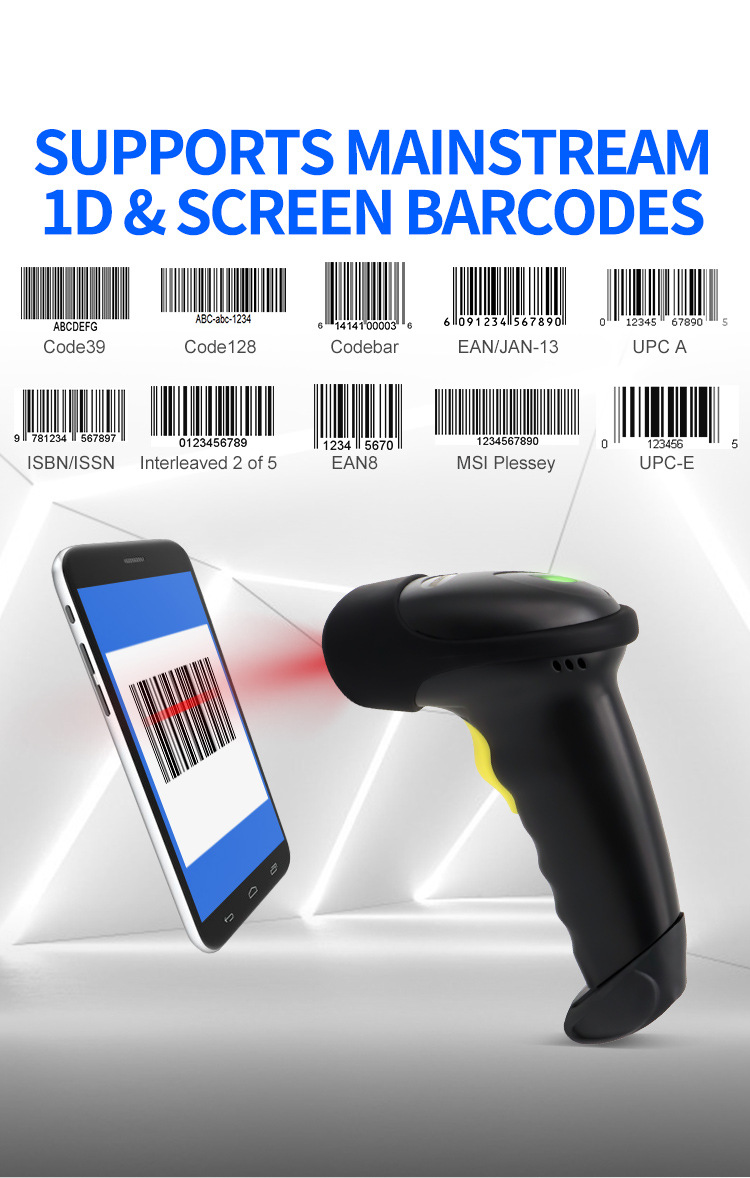

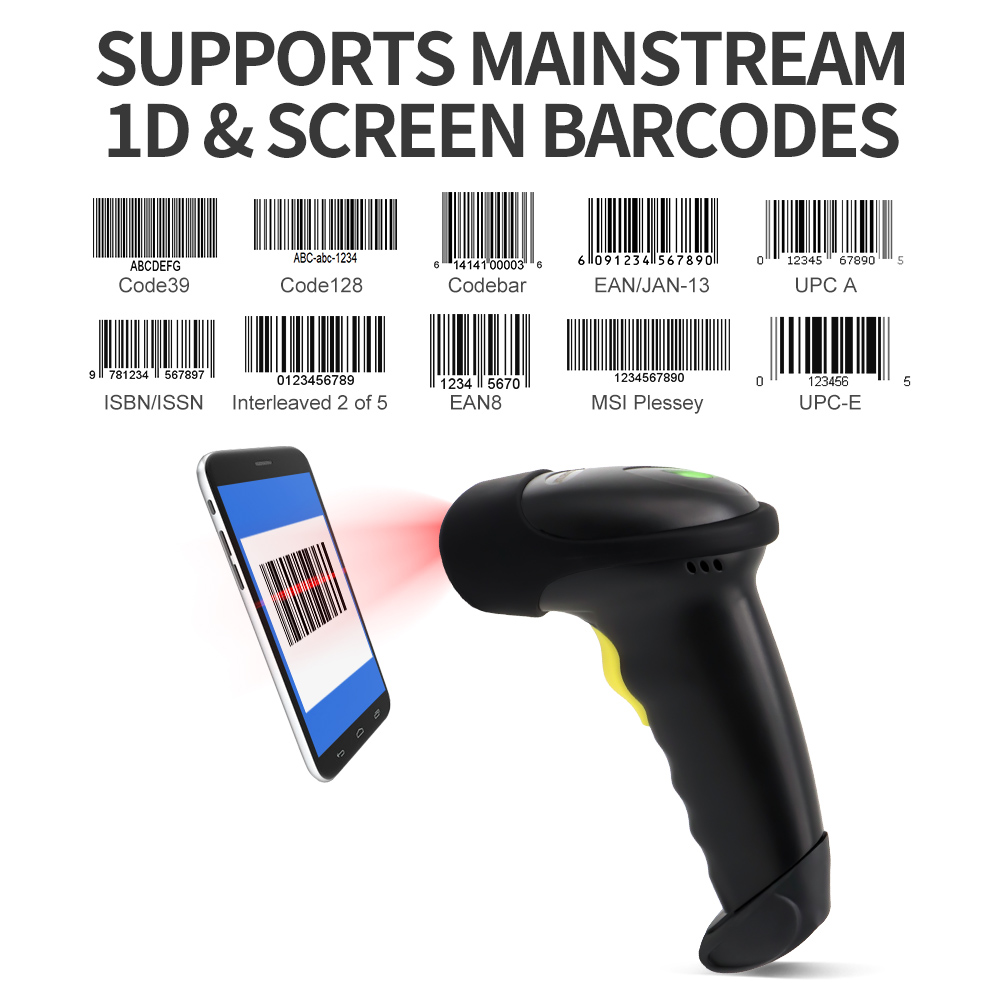

| Decoding Capability | ●Code25-Interleaved ●Code25-Standard ●Code25-Matrix ●Code39-Regular ●Code39-FullASCII ●Code32 ●Code93-Regular ●Code93-FullASCII ●Code128 ●EAN/GSL/UCC-128Auto ●Codabar ●MSI ●EAN/JAN-13 ●UPC-A ●JAN-8 ●Code11 ●UPCE0 ●Datalogic 25 | ||||||
| Scanning Depth | Code128 4.17mil 15byte: 5 -- 12 cm Code128 5.83mil 15byte: 5 -- 16 cm EAN-13 4.17mil : 3 -- 14 cm Code39 5.83mil 14byte: 5-- 18 cm | ||||||
| Environmental parameters | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||

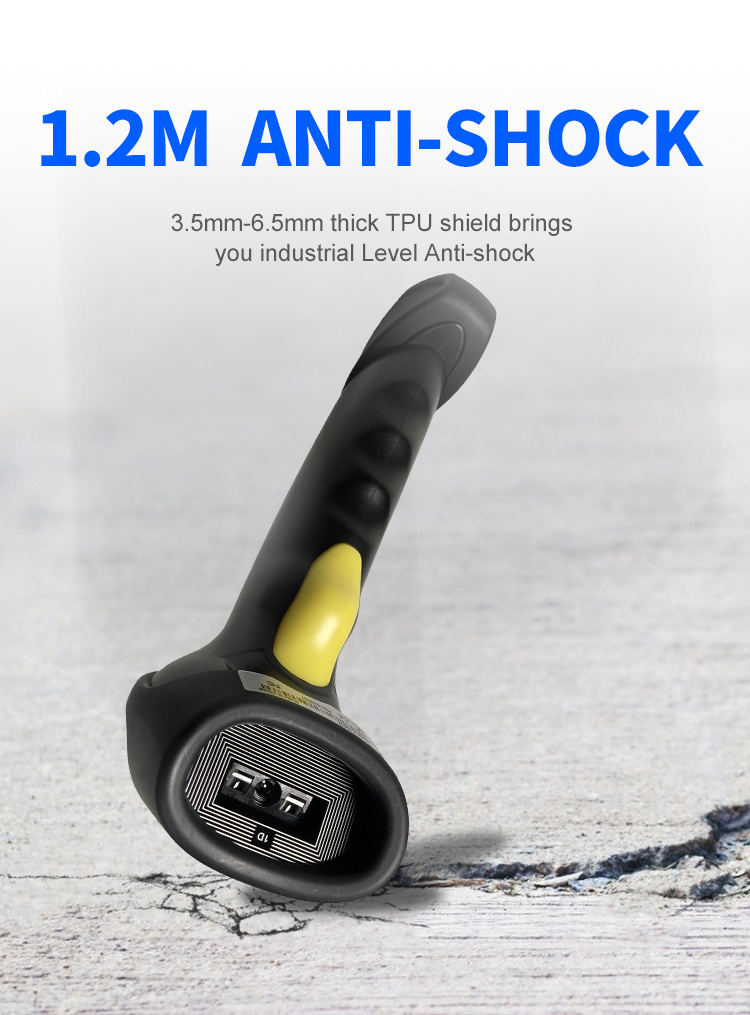

| Shock Resistance | Free Fall 1.5m（concrete surface） | ||||||
| Ambient light | 0→100000Lux | ||||||
